For: Piaggio

20262

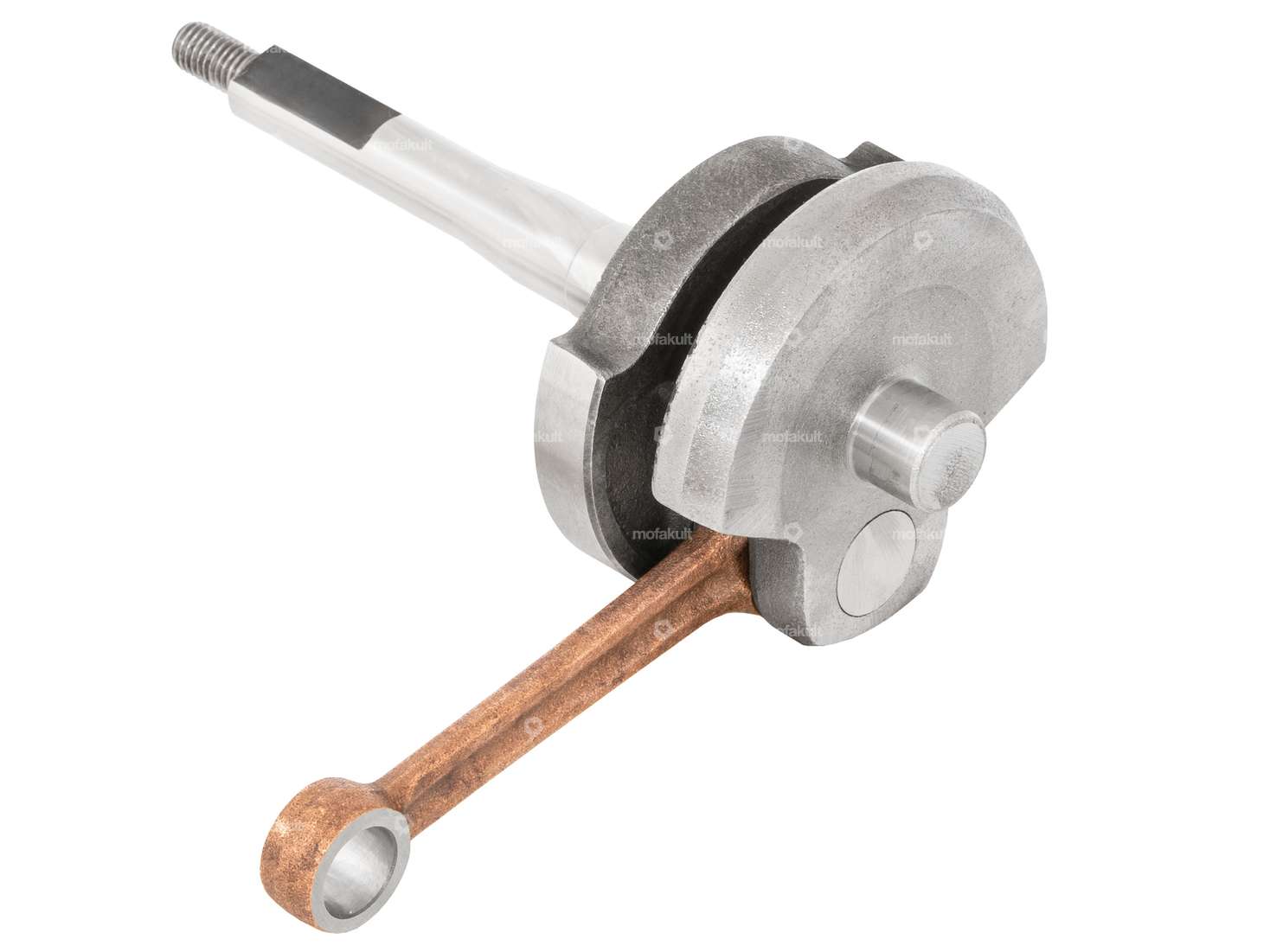

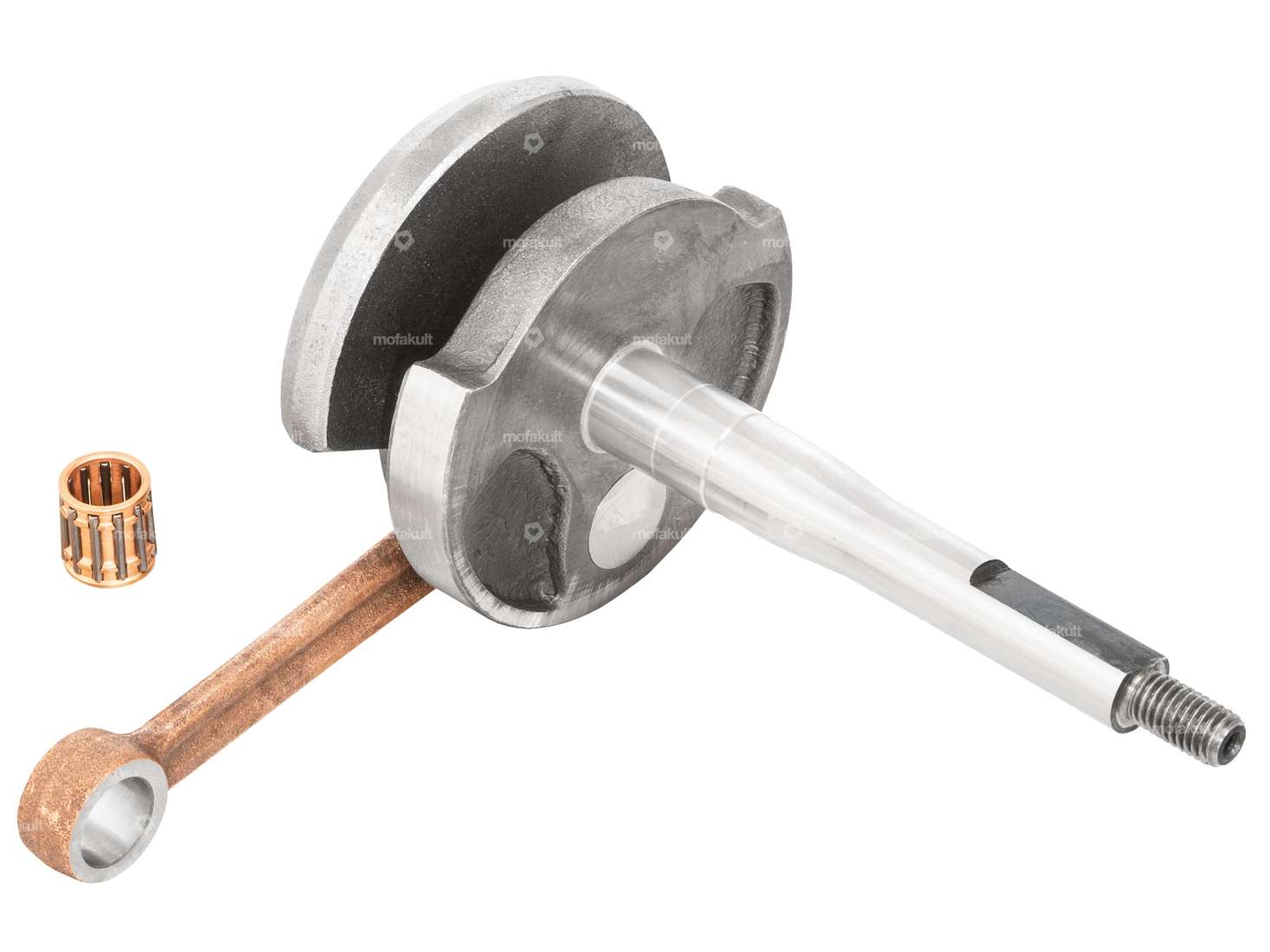

Mazzucchelli crankshaft "Original" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 183.70

Incl. 25% VAT.

Description

Crankshaft suitable for all Piaggio moped models (Ciao, Si, Bravo, Boxer, Grillo).

This finely balanced crankshaft fits all cylinders with 10 mm piston pins and impresses with its high-quality workmanship.

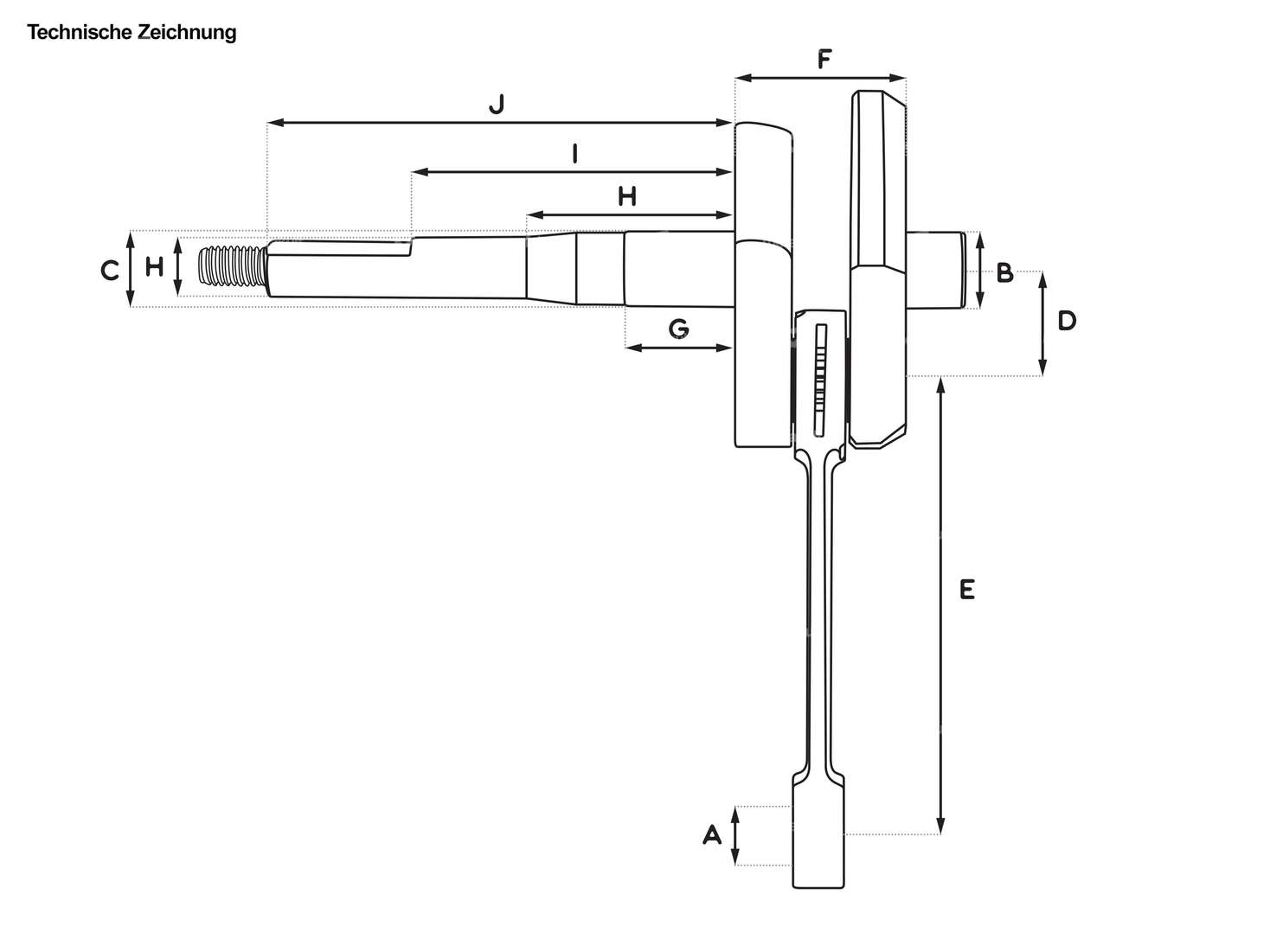

Connecting rod eye (A): 13.0 mm
Ø Bearing seat right (B): 15.0 mm
Ø Bearing seat end (C): 15.0 mm
Stroke (2xD): 43.0 mm
Sleeve length (E): 87.0 mm
Width of crank webs (F): 33.0 mm
1st shoulder (G): 21.0 mm
2nd shoulder (H): 44.0 mm
3rd shoulder (I): 63.5 mm
Total length crankpin end (J): 90.0 mm
Ø Vario / clutch pin (H): 12.0 mm
Dimension needle bearing: Ø 10 / 13 x 14.2 mm (axe 10)
Thread: M8 x 1.25 mm

Note: For assembly, a 16 x 0.5 mm shim must be inserted between the standard crankshaft and its main bearings.
When assembling, check that the pole wheel sits properly on the cone. Depending on the batch of crankshaft or pole wheel used, the key may need to be adjusted slightly.

ManufacturerMazzucchelli
Weight695 g
Area of applicationStandard, Original
MaterialSteel
Cheek typestandard
Crankshaft stroke43 mm
Ø coupling pin / vario pin12 mm
Connecting rod length center-center87 mm
Total length crankpin ignition side90 mm, 106 mm
Ø crank webs69.7 mm
Ø piston pin (B)10 mm
Ø Connecting rod eye13 mm
Bearing seat right15 mm
Ø Bearing seat (ignition side)15 mm
Thread typeM8x1.25 (standard thread)
Thread length16 mm
Dimension needle bearing10 / 13 x 14.2 mm (axe 10)
Wide crank webs33 mm
Length 1st paragraph21 mm
Length 2nd paragraph44 mm
Length 3rd paragraph63.5 mm
Ø 1st step (on the coupling side)15 mm
Ø 2nd shoulder (on the clutch side)14.4 mm
Ø 3rd step (on the clutch side)12 mm
Inlet control time130 °
Control time before O.T77 °
Control time according to O.T53 °
Number of gears1 pcs
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo
