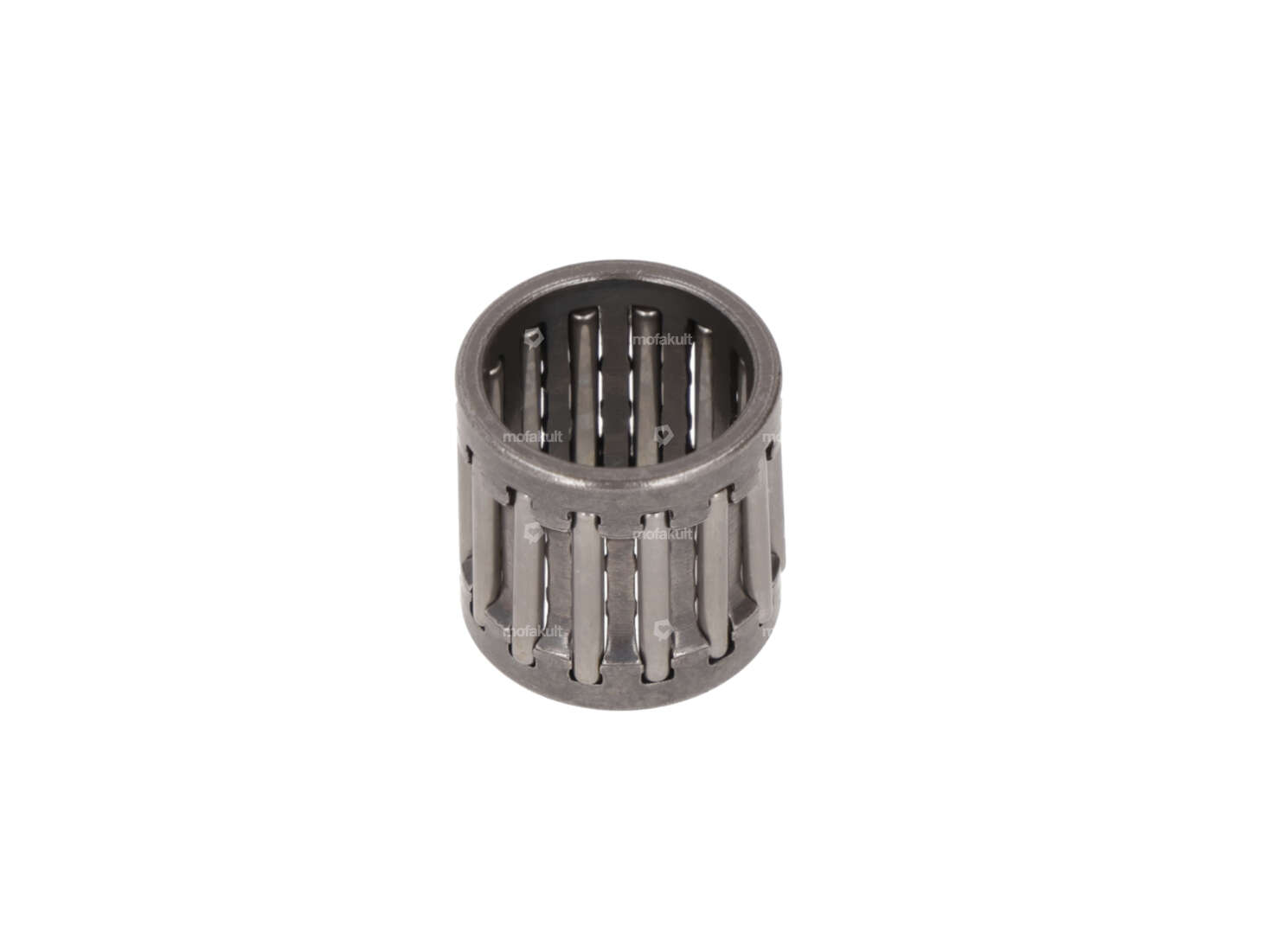

Mazzucchelli needle bearing 12/15/15 piston pin | Piaggio Ciao, SI, Bravo, Boxer

Jasil crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: M8x1.25 (standard thread) · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Number of gears: 1 pcs · Area of application: Racing

Malossi piston 43 mm (12 mm KoBo) old version | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Nominal diameter: 43 mm · Ø outside piston (A): 42.92 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.1 mm · Curvature (D): 4.7 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 90 g

Polini 46 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Nominal diameter: 46 mm · Ø outside piston (A): 45.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 50.7 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm

Athena crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Area of application: Racing · Cheek type: standard · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.6 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21.9 mm · Length 2nd paragraph: 43.2 mm · Length 3rd paragraph: 63.5 mm

Pinasco 46 mm cylinder kit EVOTEN BIG 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Material: Aluminum · Manufacturer: Pinasco · Surface: varnished · Area of application: Tuning · Displacement: 71 ccm · Nominal diameter: 46 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 49.9 mm · Ø Outlet outside: 22.5 mm · Ø Outlet outside: 25 mm · Ø Outlet outside: 28 mm · Ø outlet inside: 18.5 mm · Ø outlet inside: 20.9 mm · Ø outlet inside: 24.4 mm · Ø piston pin (B): 12 mm · Number of fixing points: 3 pcs · Hole spacing outlet: 47.5 mm · Outlet type: clamped · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No

Mazzucchelli needle bearing 10/13/14.5 piston pin | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Ø inside: 10 mm · Bearing type: Needle roller and cage assembly · Ø outside: 13 mm · Width: 14.5 mm · Dimension needle bearing: 10/13 x 14.5

GPO clutch trigger | Puch E50

Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened

GPO sprocket 14 teeth (wide) | Puch

Manufacturer: GPO · Surface: Hardened · Material: Steel · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Number of teeth: 14 pcs · Recording type: Interlocking · Total thickness: 4.6 mm

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Thread length: 12 mm · Strength class: 10.9

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

Sliding bush fork original | Puch

Manufacturer: Made in Italy · Material: Plastic · Color: white · Ø outside: 27 mm · Ø inside: 23 mm · Total length: 30 mm · Puch OEM number: 349.1.30.126.1

swiing® revival wheel bearing 25/37/6.3 coaster wheel

Bearing type: Ball ring · Stock number: K042 · Ø inside: 25 mm · Ø outside: 36 mm · Width: 6.8 mm · Inner ring width: 25 mm · Ball bearing closed: No · Manufacturer: swiing® revival parts · Bearing cage: "-" Sheet steel cage ball-guided · Ø ball: 6.34 mm · Groove ring: No · Material: Steel · Area of application: Standard

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

GPO mudguard strut silver | Puch Maxi S, N

Manufacturer: GPO · Material: Steel · Surface: varnished · Color: silver · Wheel size [inch]: 17 " · Total length: 240 mm · Distance mudguard - center hole: 197 mm · Distance mudguard - center hole: 231 mm · Outer width: 25.5 mm · Mounting type: Nuts & bolts · Number of fixing points: 8 pcs · Hole spacing: 40 mm · Ø mounting hole: 6 mm · Wide intake: 53 mm

Wedge 12.1x4.9x3 mm

Total length: 12.5 mm · Width: 3 mm · Height: 4.9 mm · Material: Steel

swiing® revival 12 mm intake manifold | Puch E50

Manufacturer: swiing® revival parts · Camouflaged: No · Material: Aluminum · Ø inside: 12 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 53 mm · Height flange center hole: 43 mm · Total length: 45.5 mm · Area of application: Original
