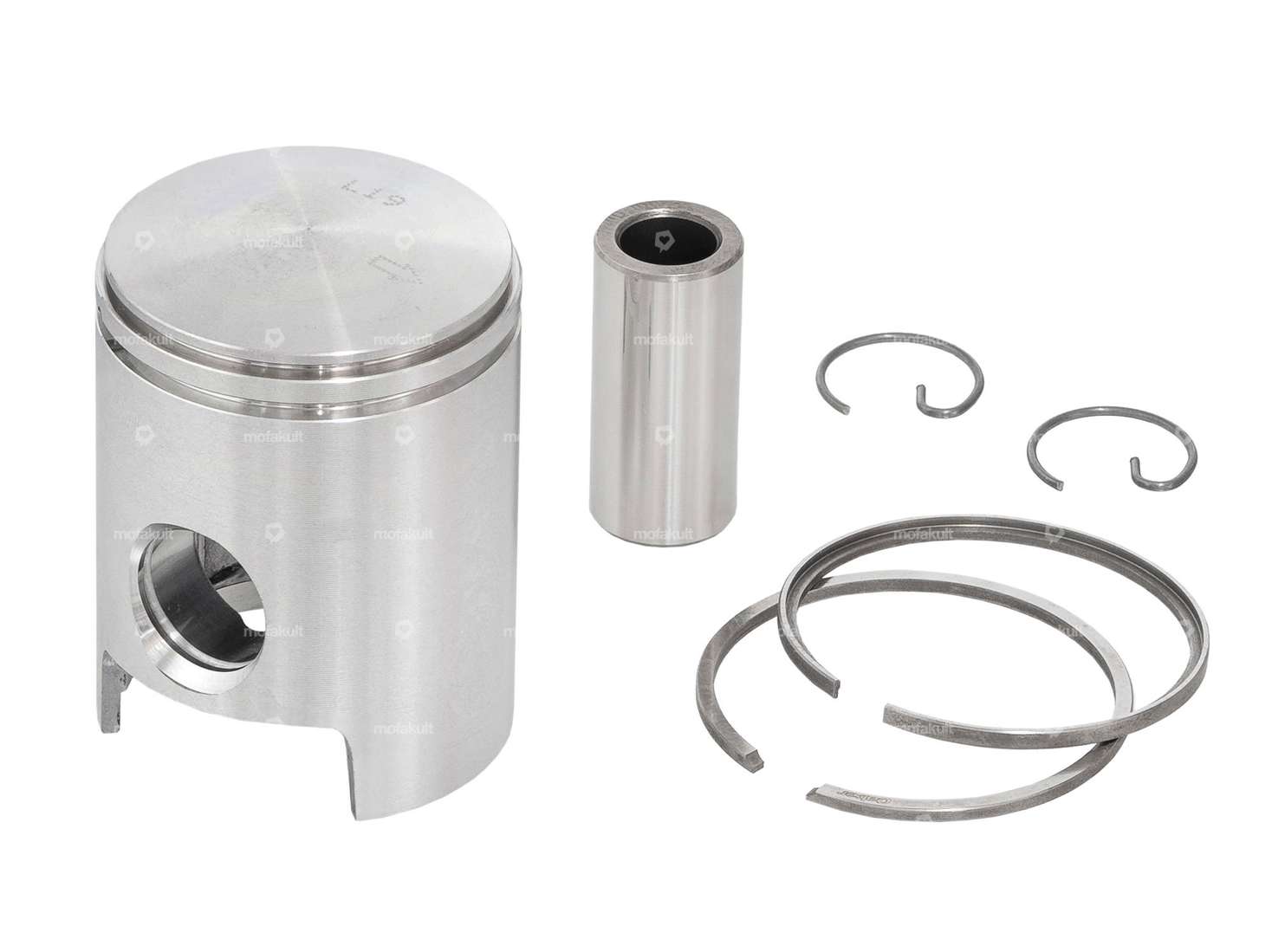

38.00 mm piston with a 2 mm L-shaped piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with flank circlip (FS) suitable for mopeds, mopeds and small motorcycles with Sachs 50 engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the common piston rings, their stems and locking types on the legend in the pictures.
| Nominal diameter | 38 mm |
| Manufacturer | Meteor |
| Ø outside piston (A) | 37.96 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 2 mm |
| Total piston height (E) | 51 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Piston ring height | 2 mm, 1.5 mm |
| Ø piston pin (B) | 14 mm |
| Tolerance group | B |
| Weight piston kit | 86 g |
| Sachs | 50/5 |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool
EUR 24.40

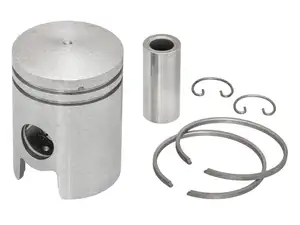

Piston 38.3 mm (14 mm KoBo) NOS | Sachs 50
Manufacturer: Sachs · Ø piston pin (B): 14 mm · Ø outside piston (A): 38.25 mm · Compression height (C): 28 mm · Curvature (D): 2 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Tolerance group: 1 · Weight piston kit: 99 g
EUR 232.80
Explore categories from Piston
Moped fans also bought
NSK L17 shoulder ball bearing
Bearing type: Shoulder bearing · Stock number: L17 · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Material: Brass · Area of application: Standard · Material: Steel · Ø inside: 17 mm · Width: 10 mm · Ø outside: 40 mm
EUR 23.90
Shock Absorber 37.5 cm, Black | Kreidler
Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Damping type: Spring · Total length: 405 mm · Ø spars: 30 mm · Adjustable: Yes · Ø outside: 49 mm · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs · Ø Fastening inside: 10 mm · Hole spacing: 375 mm
EUR 79.60

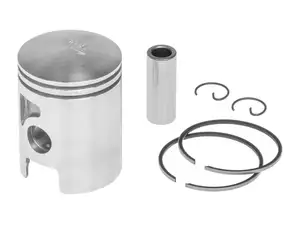

swiing® ingenious piston 40 mm | Sachs 503
