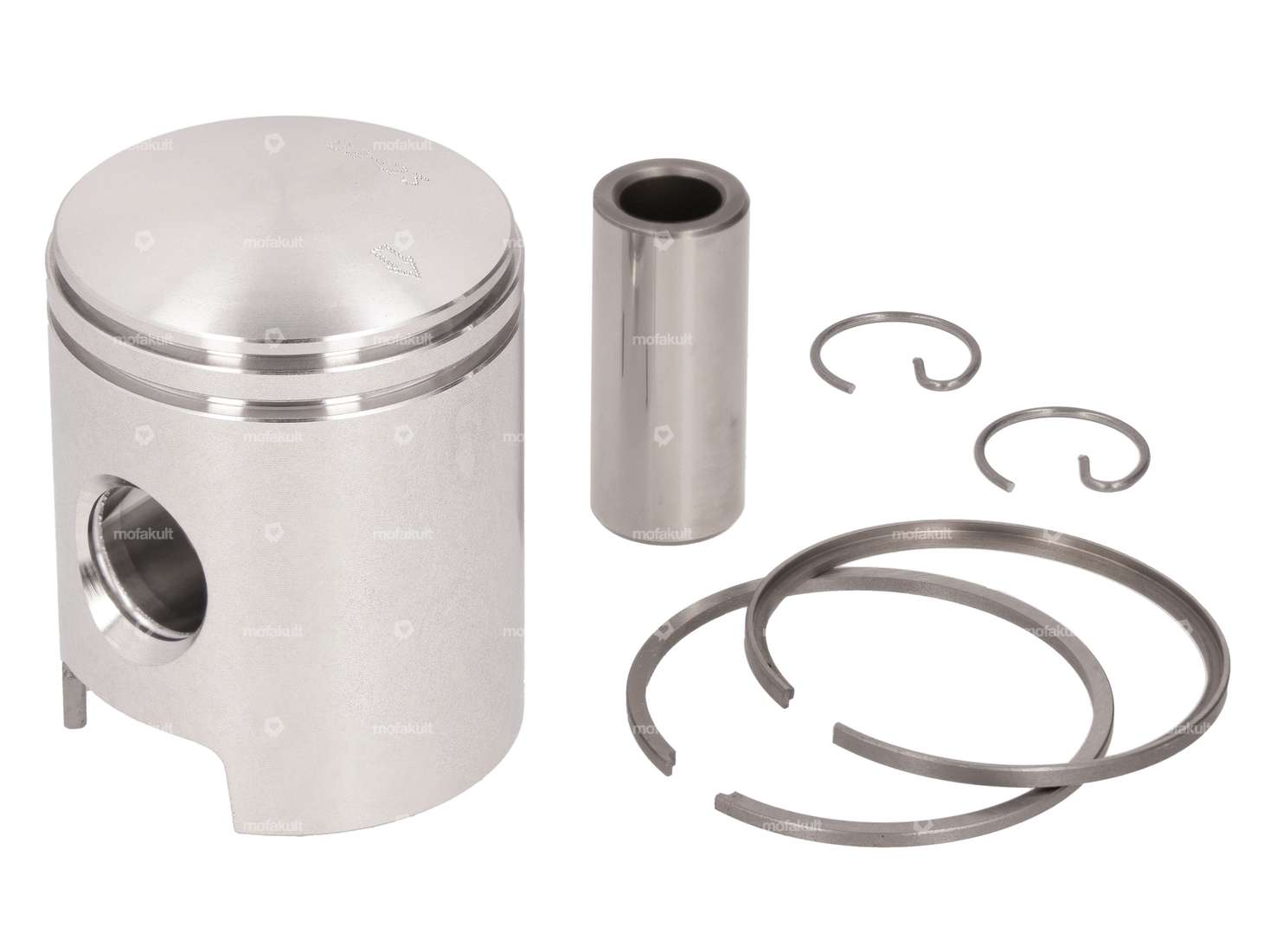

40.0 mm replacement piston with a 2 mm L-shaped piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Kreidler Florett RS small engine bikes with 40 mm cylinder.

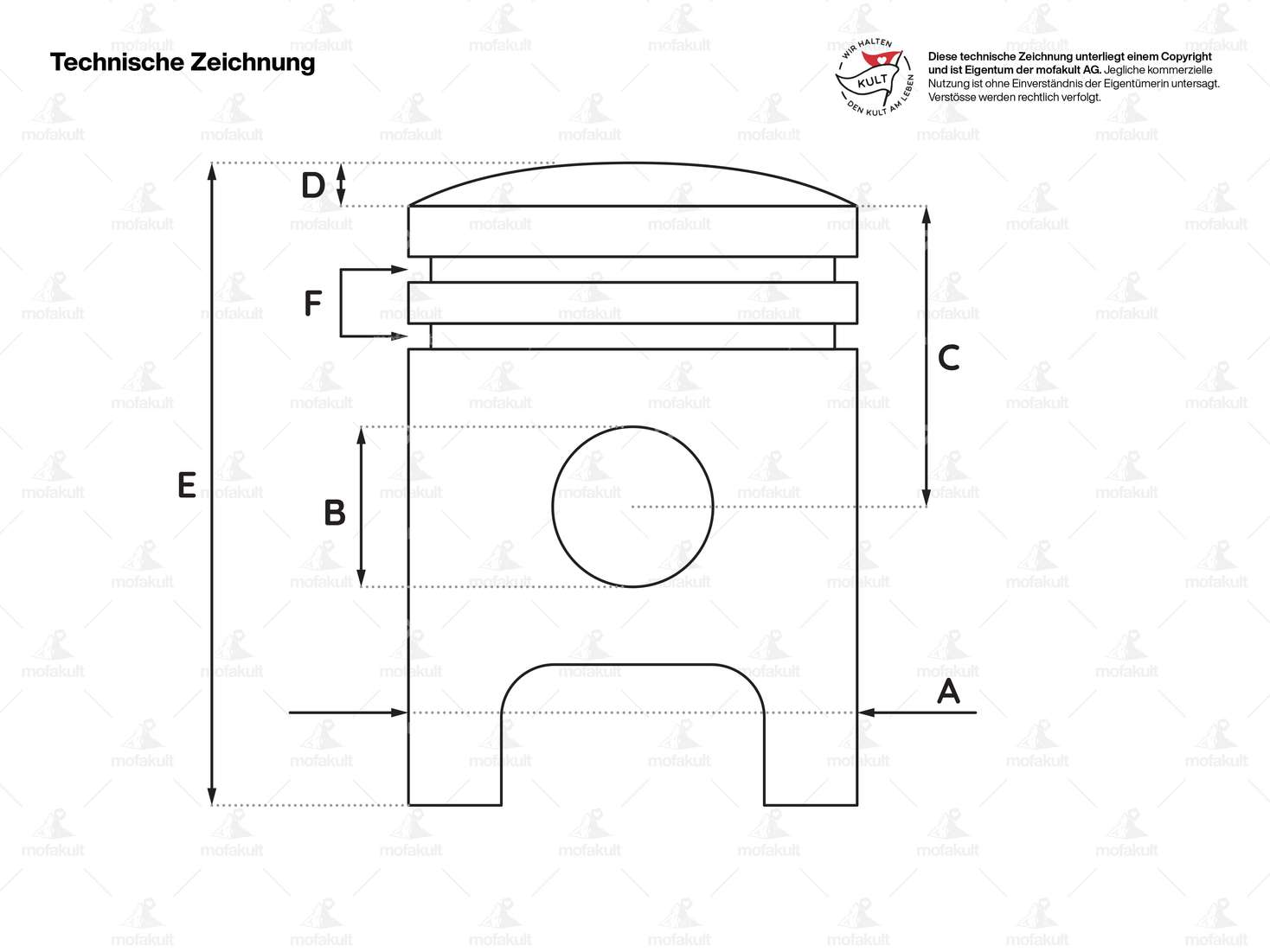

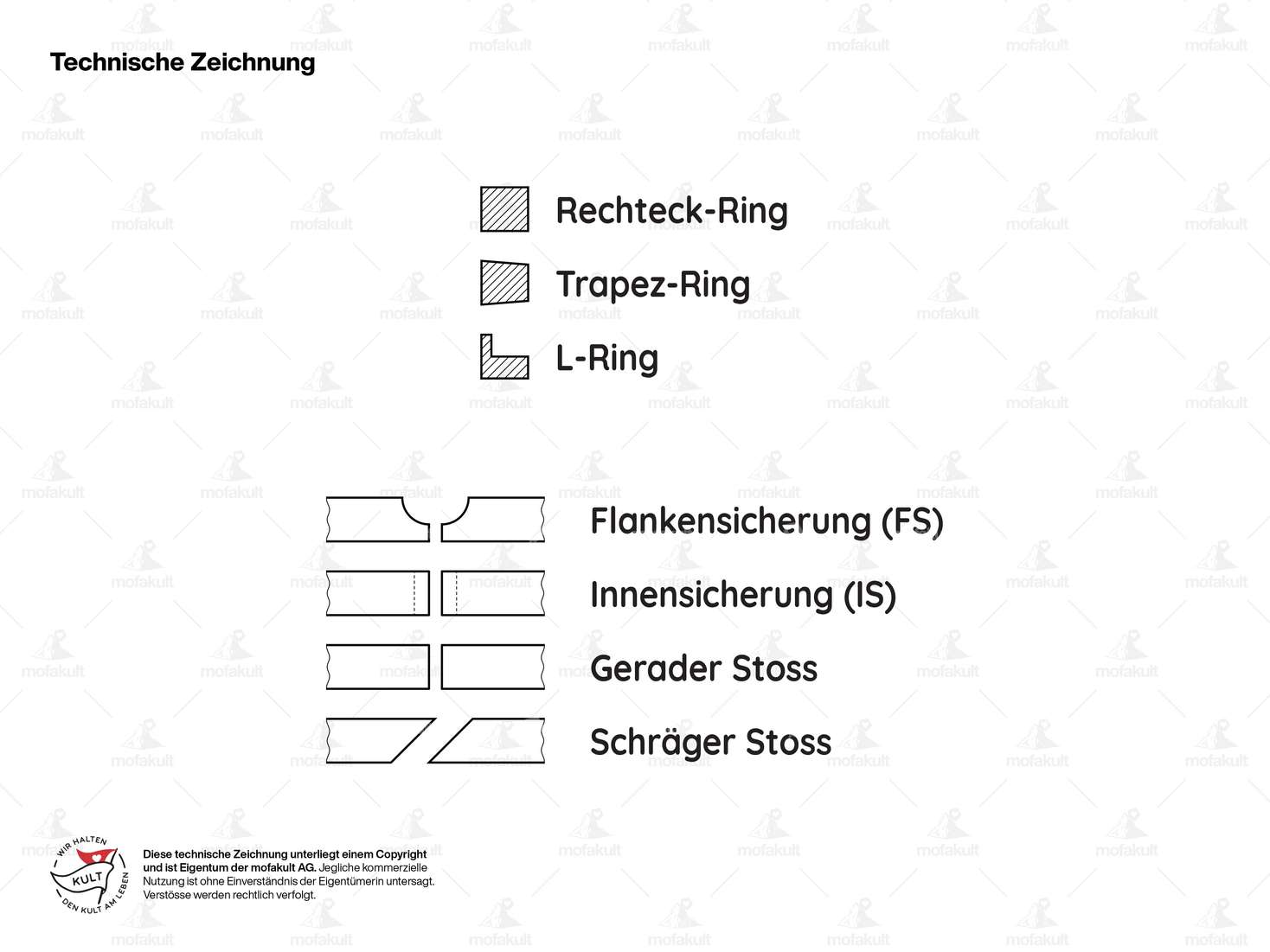

The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | Meteor |
| Nominal diameter | 40 mm |
| Ø outside piston (A) | 39.95 mm |
| Compression height (C) | 27 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 51 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring, L-ring |
| Ø piston pin (B) | 14 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm, 2 mm |
| Tolerance group | A |
| Weight piston kit | 99 g |
| Kreidler |
Ratings
Accessories & related products
Meteor piston 39.955 mm (14 mm KoBo) B | Kreidler Florett RS
Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.955 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: B · Weight piston kit: 100 g
EUR 73.40
Meteor piston 39.96 mm (14 mm KoBo) C | Kreidler Florett RS
Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.96 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: C · Weight piston kit: 100 g
EUR 73.40
Meteor piston 39.965 mm (14 mm KoBo) D | Kreidler Florett RS
Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.965 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: D · Weight piston kit: 100 g
EUR 73.40
Meteor piston 39.97 mm (14 mm KoBo) E | Kreidler Florett RS
Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.97 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: E · Weight piston kit: 99 g
EUR 73.40
Meteor piston 39.975 mm (14mm KoBo) F | Kreidler Florett RS
Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.975 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: F · Weight piston kit: 99 g
EUR 73.40
Not in stock
Meteor piston 38 mm (14 mm KoBo) B | Sachs 50
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.96 mm · Ø piston pin (B): 14 mm · Compression height (C): 28 mm · Curvature (D): 2 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: B · Weight piston kit: 86 g
EUR 77.10
