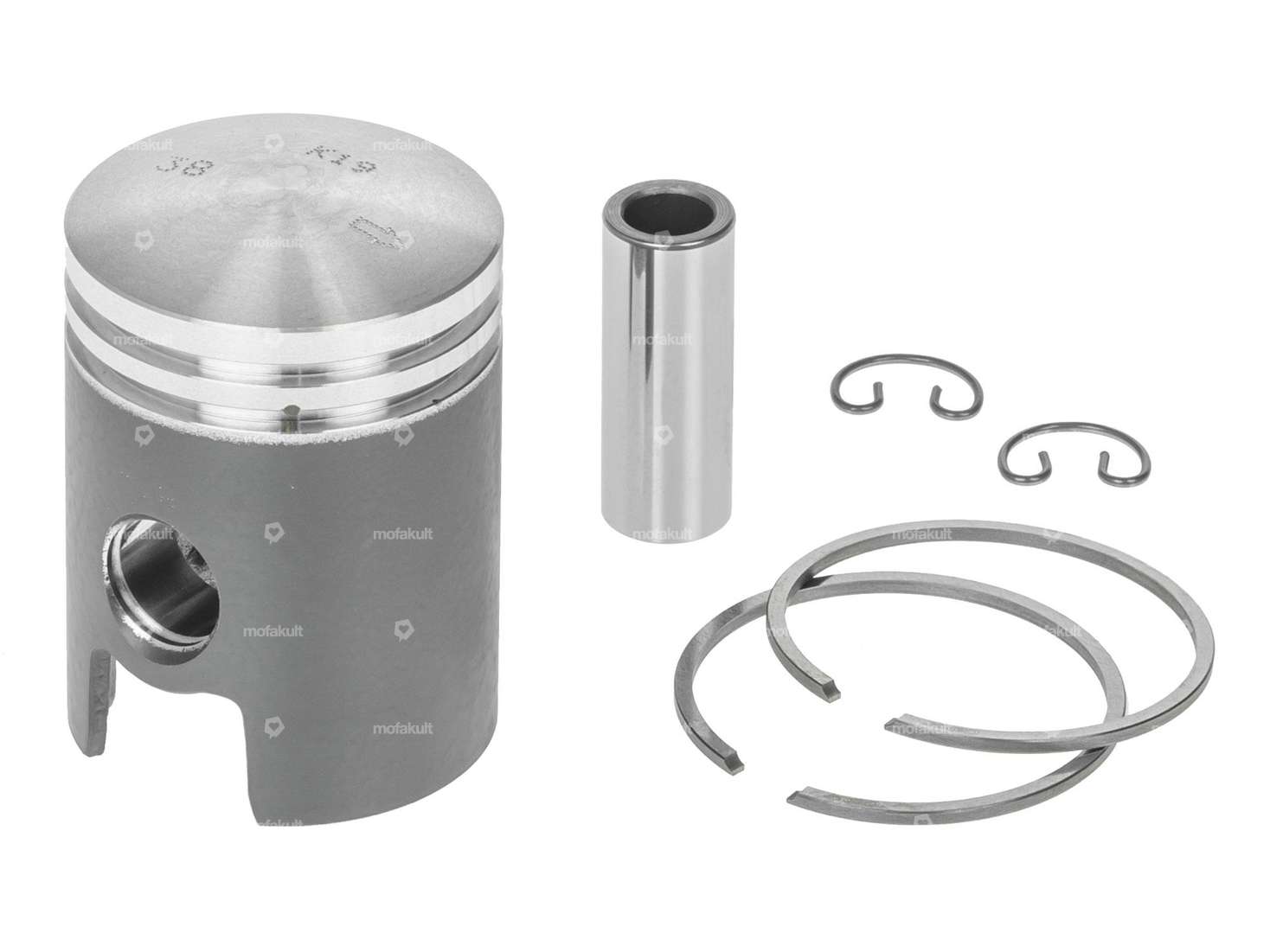

38.60 mm ¨oum dimension piston with two 2 mm rectangular piston rings with flank lock (FS) for use in Meteor cast iron cylinders suitable for your Sachs 502, 50/2, 503 2AL, AAL, 2BL, ABL CH moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
| Manufacturer | Meteor Racing |
| Surface | molybdenum-coated |
| Ø outside piston (A) | 38.55 mm |
| Compression height (C) | 28 mm |
| Curvature (D) | 3 mm |
| Total piston height (E) | 53 mm |
| Number of piston rings (F) | 2 pcs |
| Nominal diameter | 38 mm |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Piston ring impact | Flank safety device (FS) |
| Piston ring height | 2 mm |
| Weight piston kit | 84 g |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 503 - AAL , ABL , 2AL / 2BL |
