Market innovation: special float chamber with integrated adjusting nozzle suitable for the 24 mm MIKUNI flat slide carburettor.
The mixture of the main nozzle can be infinitely adjusted with the aid of the adjustable nozzle.
Perfect fine adjustment of the mixture while the engine is running is now child's play.
The adjusting nozzle protrudes approx. 35 mm from the float chamber.
The adjusting screw of the nozzle is secured against vibration with a PVC hose.
Corresponding attachments can be found in the accessories section.

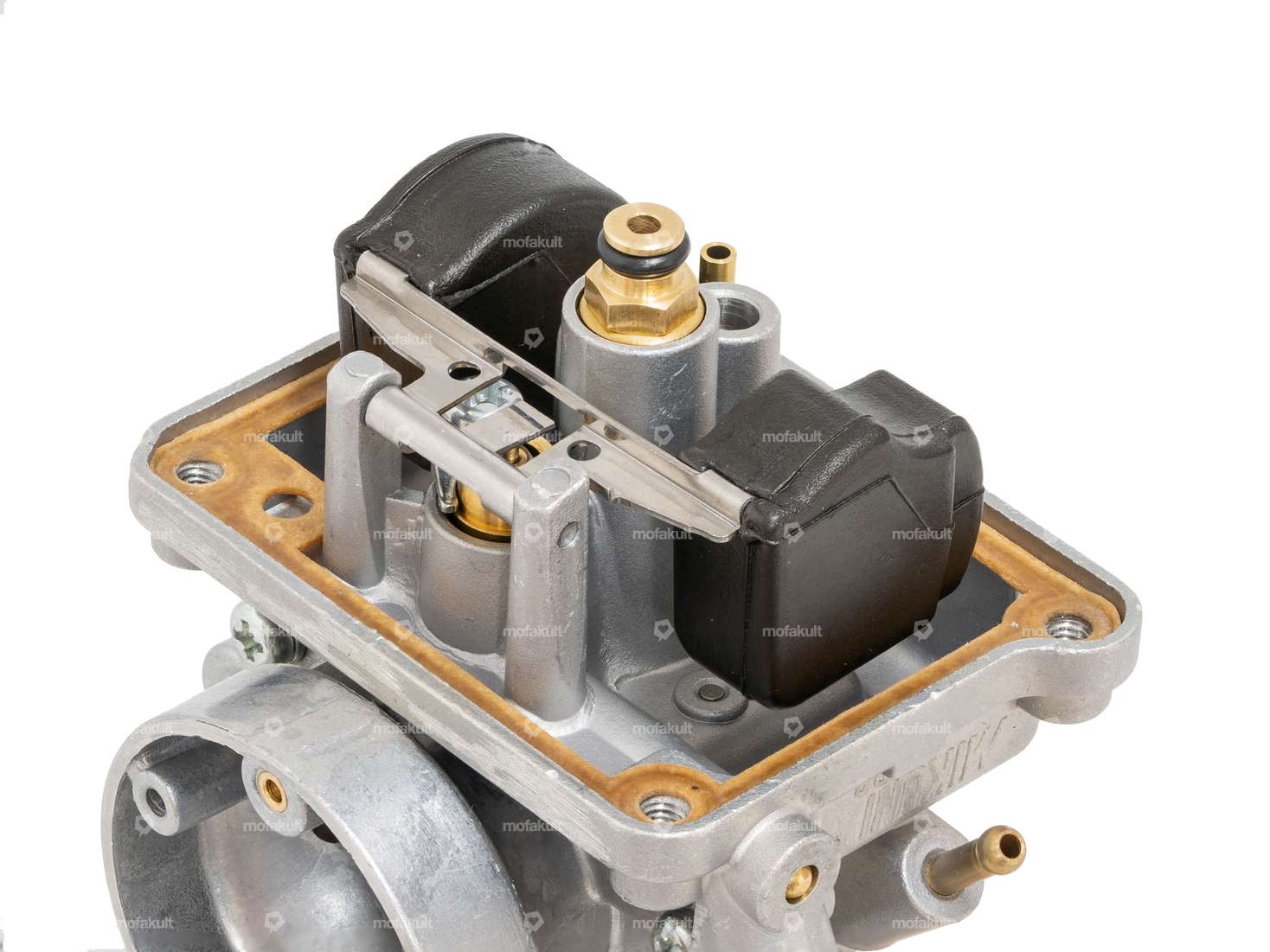

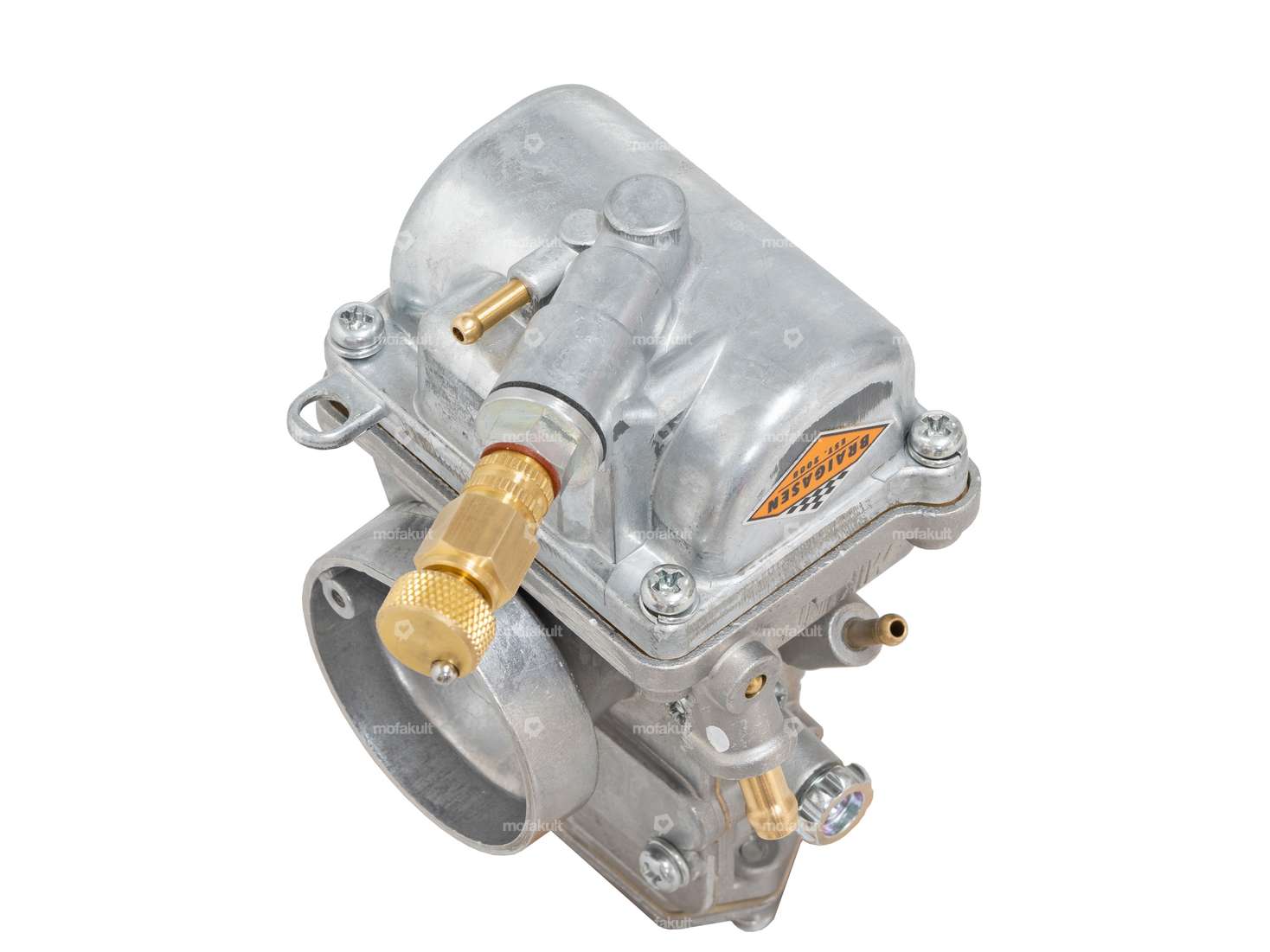

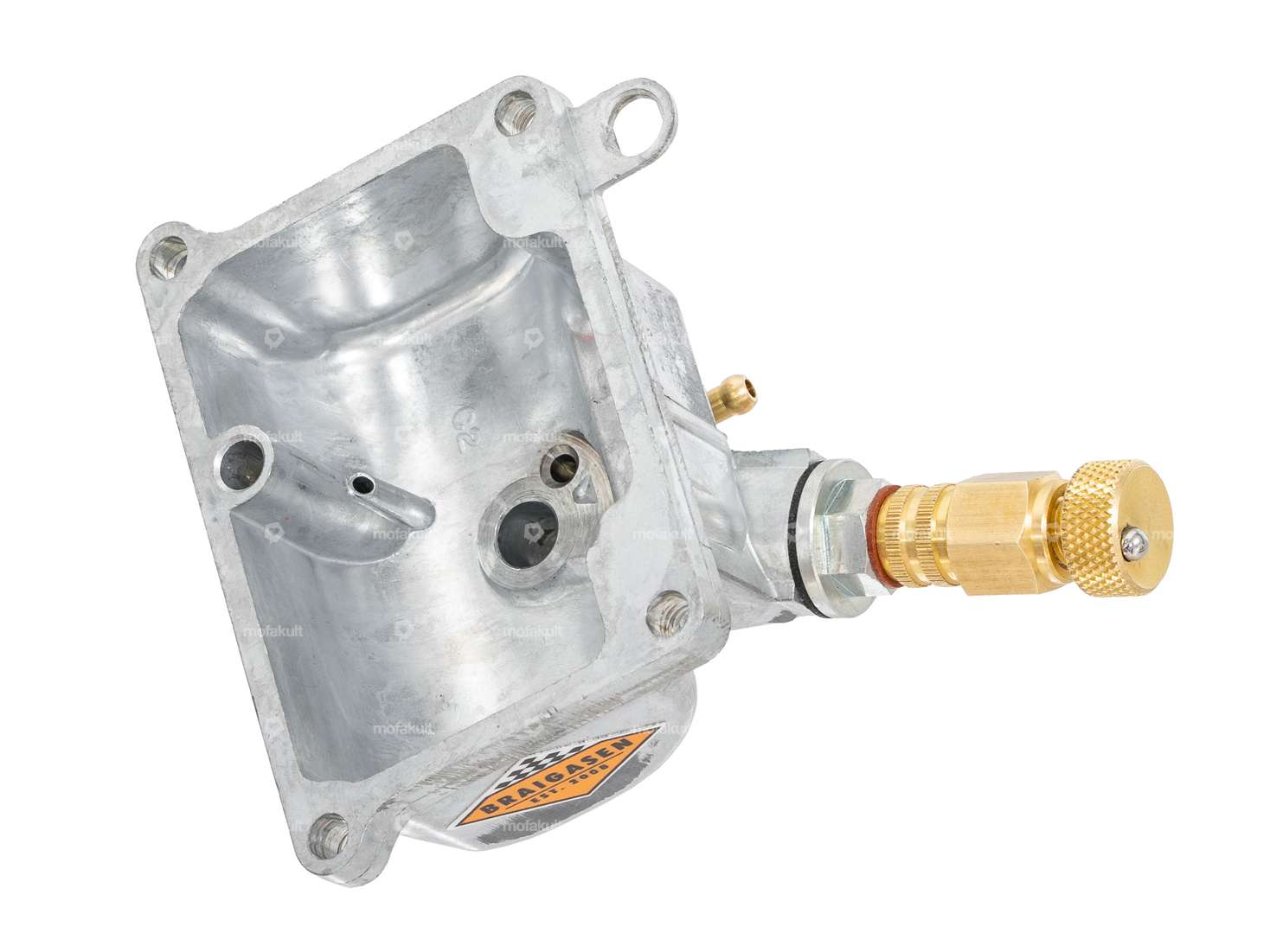

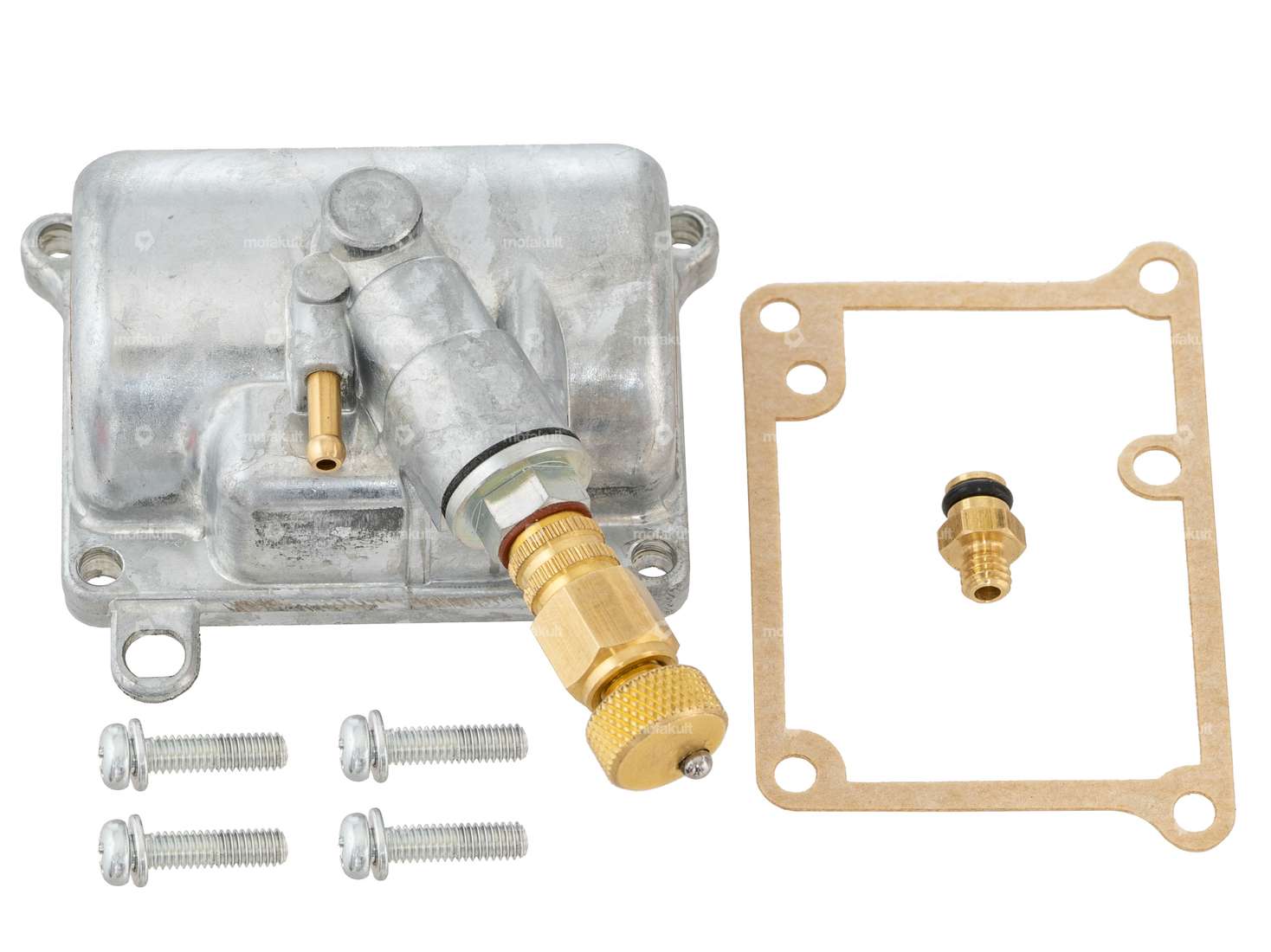

Scope of delivery as shown in Figure 1. Figure 3 & 4 show the float chamber and the adjusting screw in assembled condition.
Quality product from the Japanese manufacturer MIKUNI.
| Manufacturer | MIKUNI |
| Material | Aluminum |
| Component group Carburetor | Adjusting screws, float, etc. |
| Carburetor type | Mikuni (VM, TM, TMX) |
| Number of fixing points | 4 pcs |
| Thread type | M4x0.7 (standard thread) |
