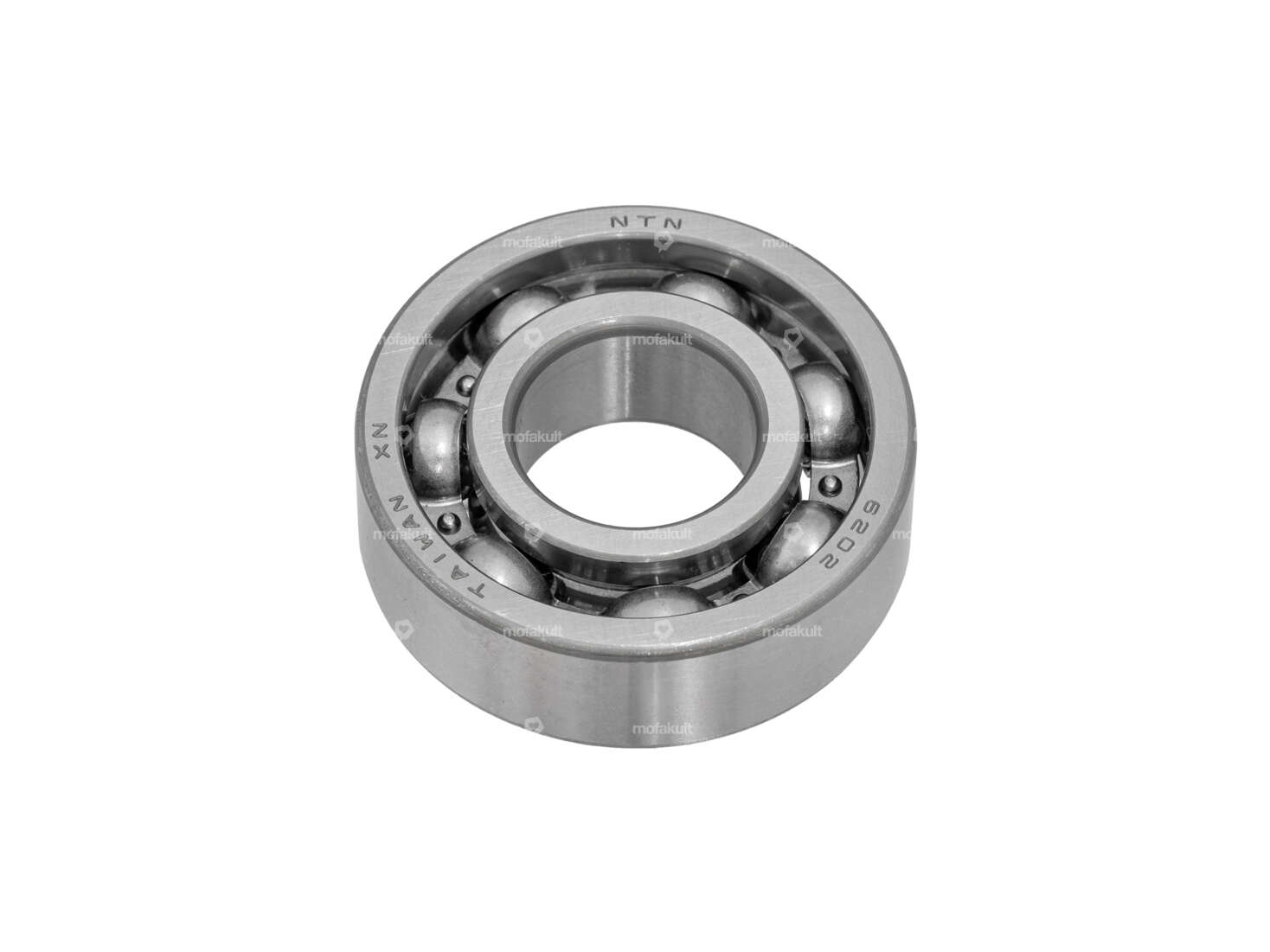

Grooved ball bearing 6202 C4 for various applications for your moped, moped and small motorcycle.
C4 bearing with more bearing clearance. The low rolling resistance of the bearings is designed for engines with high speeds.
Note: Due to the increased bearing clearance, this bearing should only be used in Piaggio cases with diaphragm or side intake. With rotary valve-controlled intakes, the intake window may be damaged.
You can find more ball bearings and suitable tools in the accessories section.
Quality product from the Japanese manufacturer NTN.
| Bearing type | Deep groove ball bearing |
| Stock number | 6202 |
| Inner ring width | 11 mm |
| Manufacturer | NTN |
| Bearing clearance | C4 |
| Bearing cage | Sheet steel cage ball-guided |
| Ø inside | 15 mm |
| Ø outside | 35 mm |
| Width | 11 mm |
| Puch OEM number | 900.4.6202 |
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Zündapp Belmondo | |
| Solex | |
| Cilo | 502 / 502t |
