Description

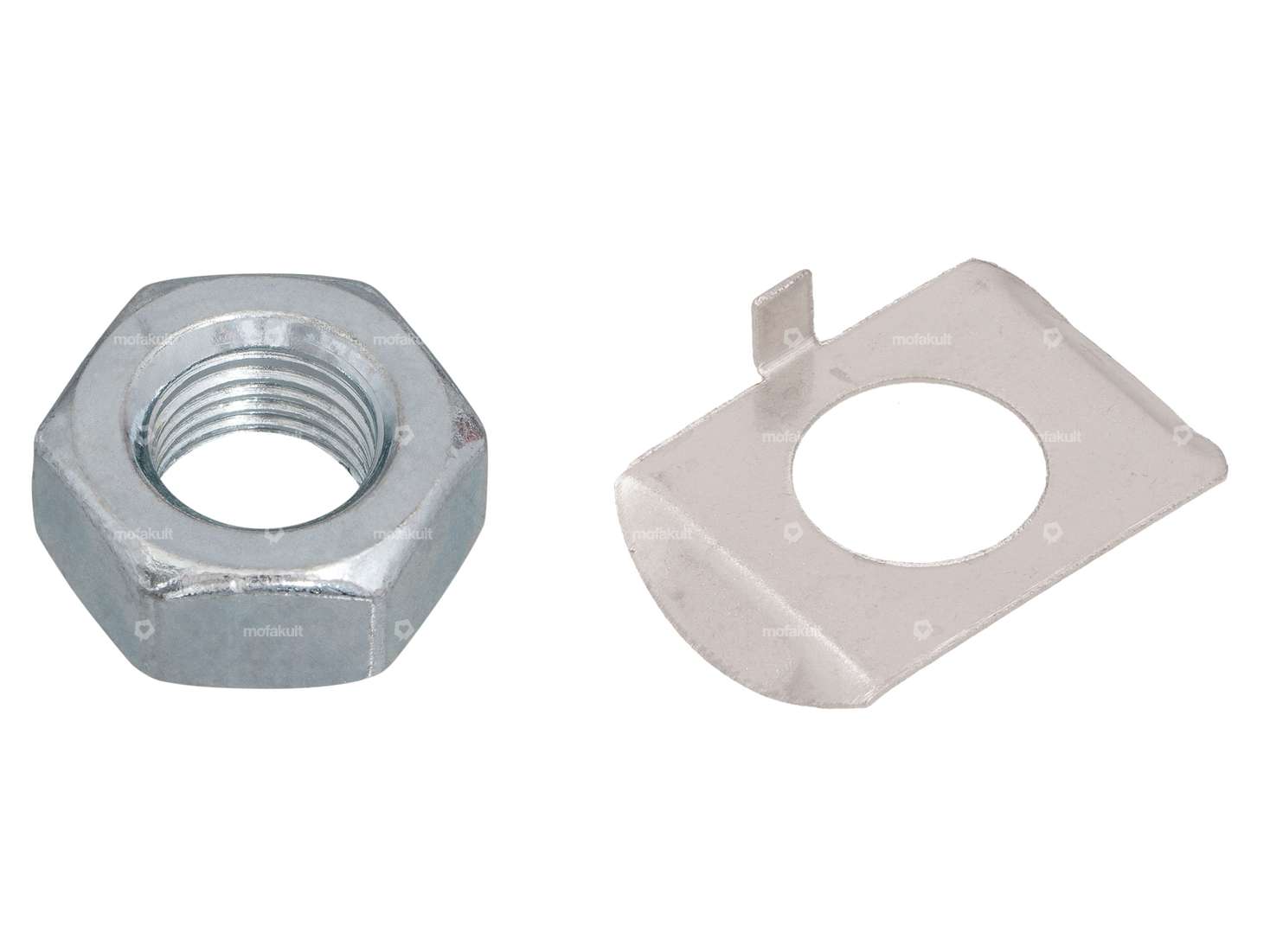

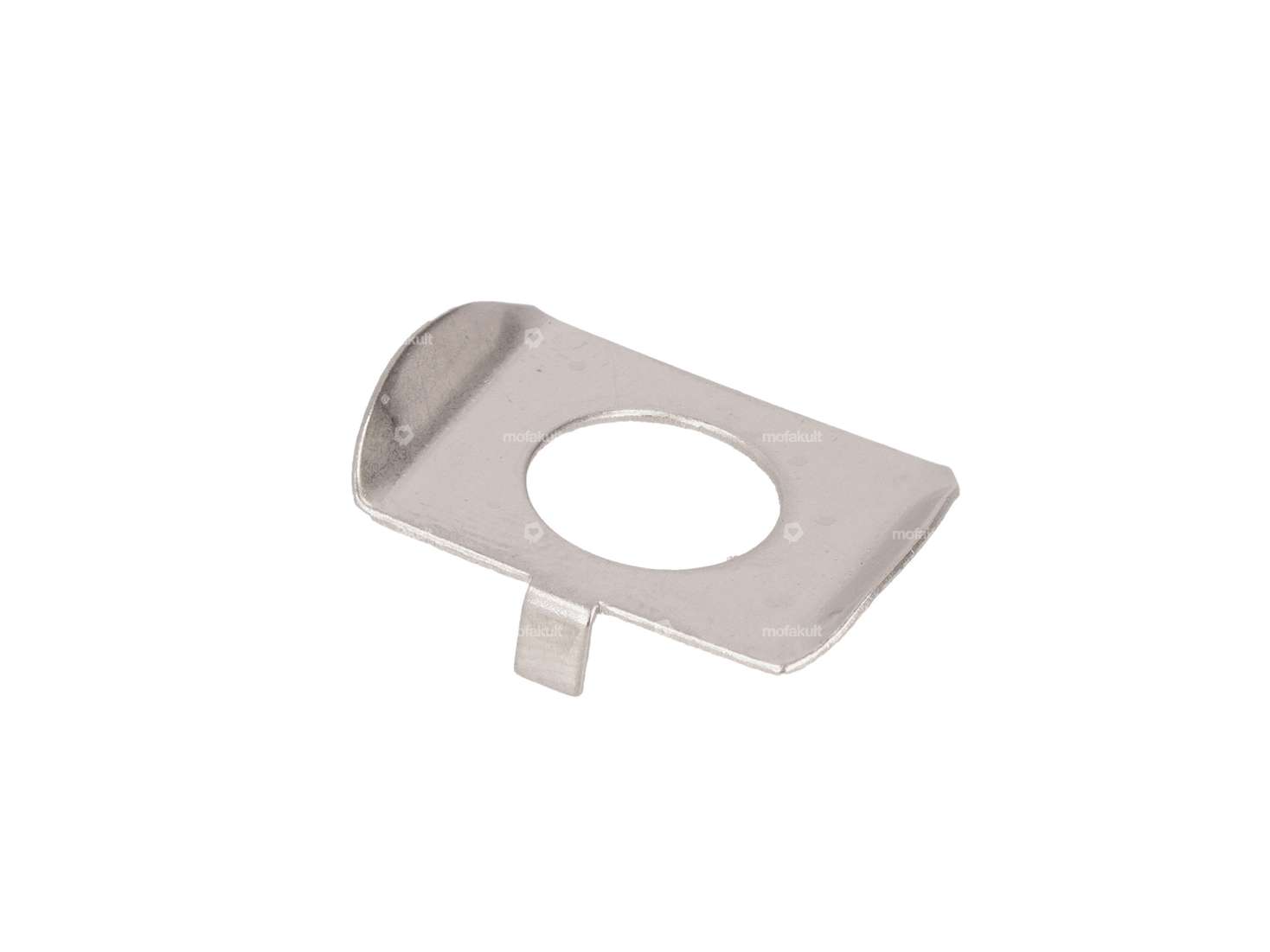

Security plate and nut for fastening the pinion to the pinion shaft suitable for Zündapp Belmondo mopeds, Zündapp Bergsteiger M25/M50 mopeds, as well as Alpa Spezial 3000 and Alpa Black River small motorcycles which have a Zündapp type 247 engine installed.

Attention: can only be used in conjunction with conventional pinion shaft and pinions. Not suitable for swiing pinion shaft.

Thread: M10 x 1 mm
Wrench width: 17 mm

Parts included in the set

For: Puch

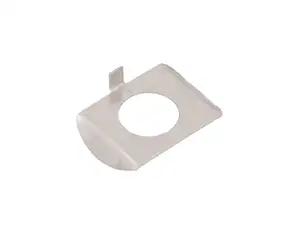

swiing® revival locking plate gear nut M10 | Puch X30

12277

Manufacturer: swiing® revival parts · Material: Steel · Thread size: M10 · Number of lobes: 1 pcs · Ø inside: 10.45 mm

Universal

Nut M10x1 mm galvanized

24185

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Drive: External hexagon · Thread type: MF10x1 (fine pitch thread) · Height: 8 mm · Width across flats SW: 17 mm · Tomos OEM number: 215487

Details

Nut type	Hexagon nut
Drive	External hexagon
Width across flats SW	17 mm
Thread type	MF10x1 (fine pitch thread)

Suitable for the following models

Zündapp Belmondo
Zündapp	247 Motor
