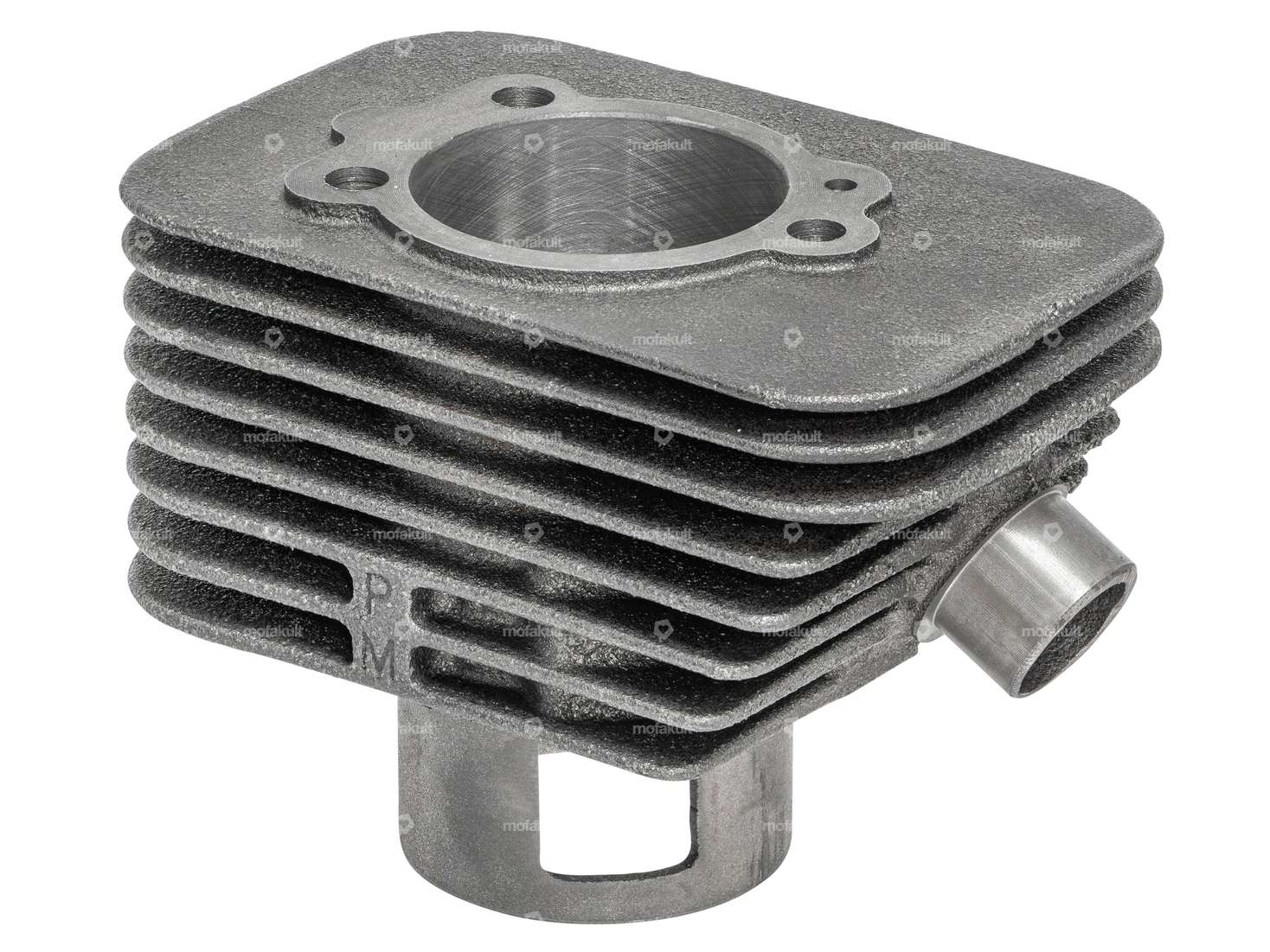

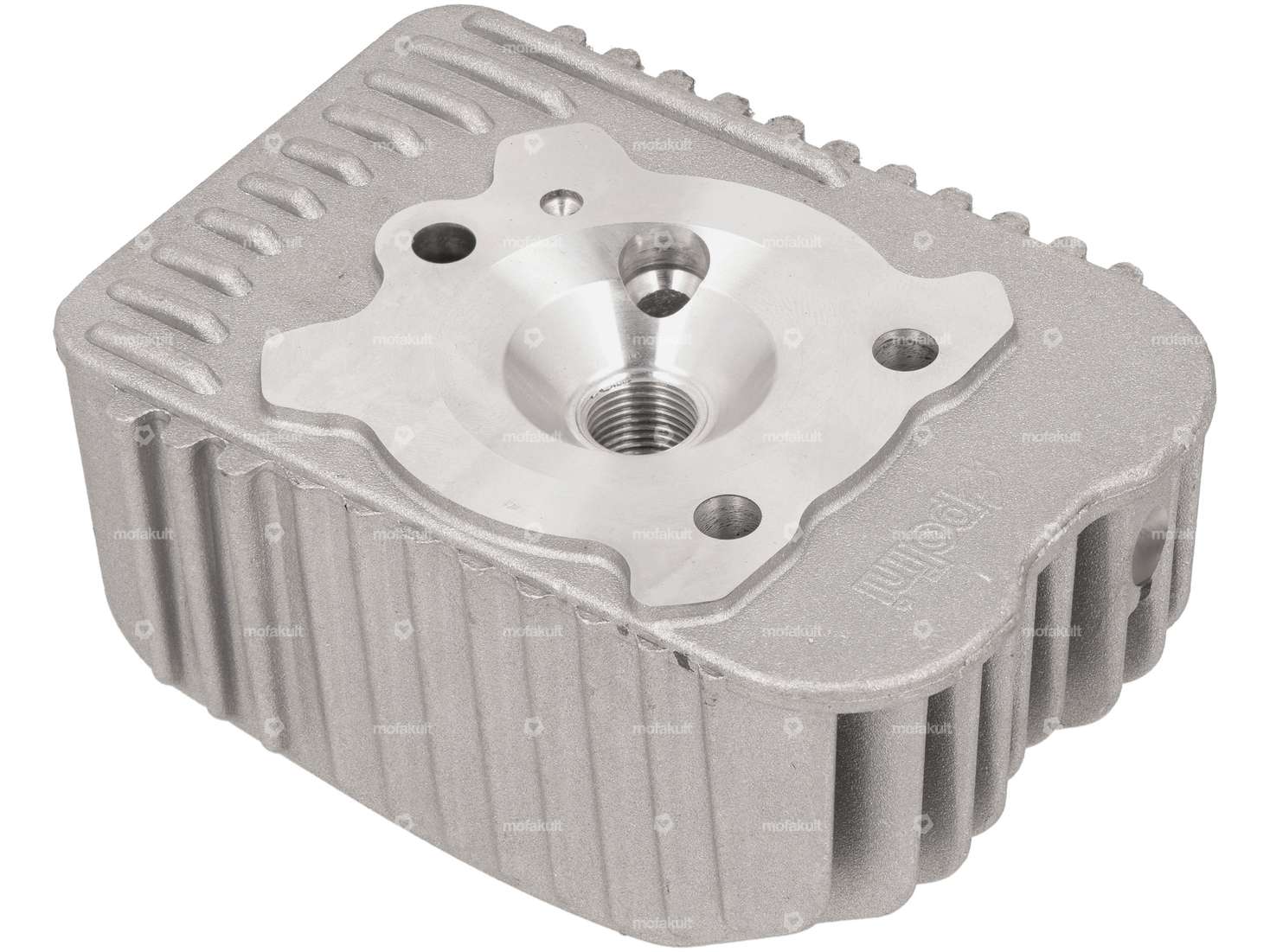

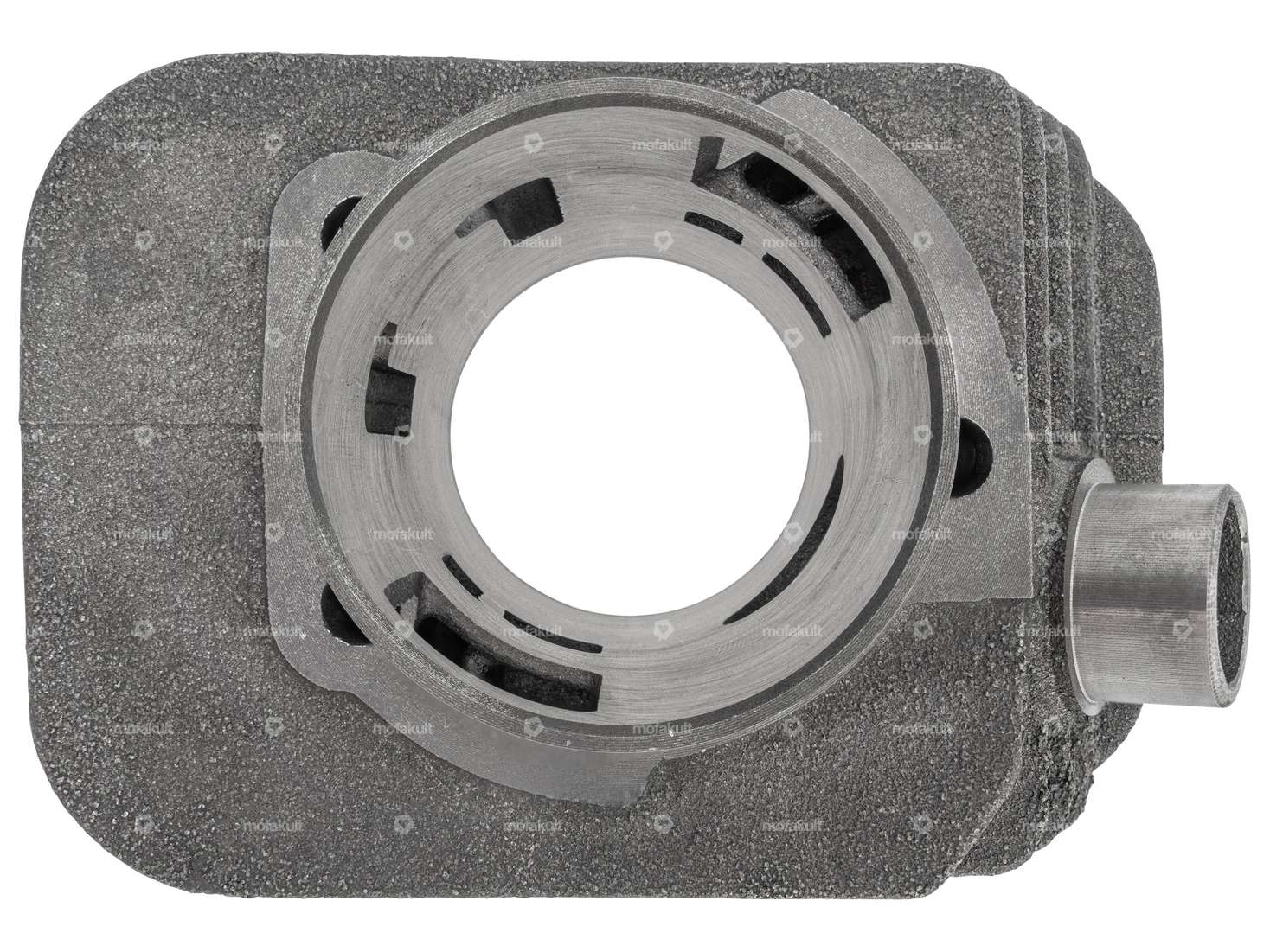

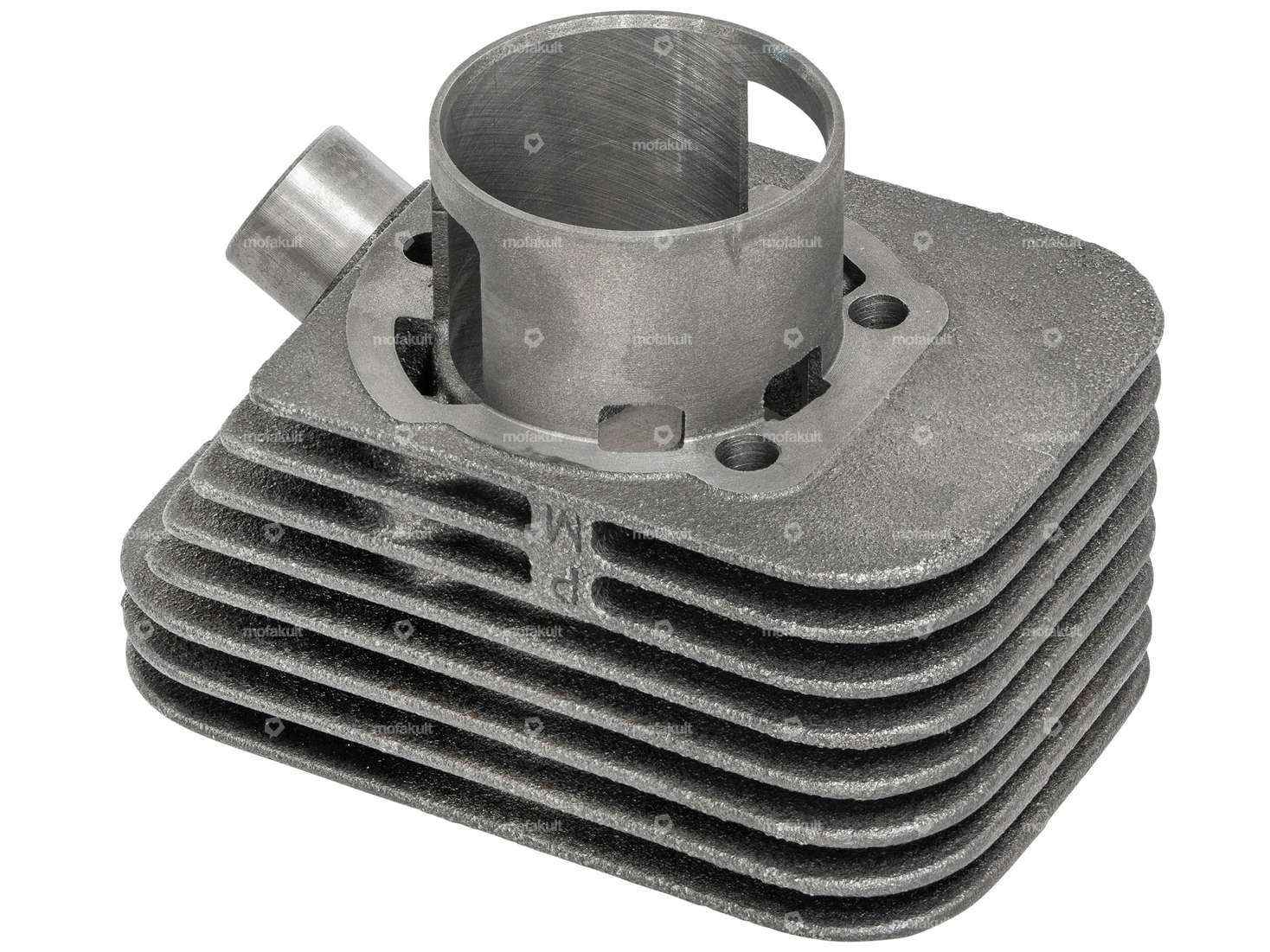

This cast iron cylinder, which is supplied with the matching cylinder head, fits all Piaggio Ciao, Bravo 1 and Boxer mopeds.
Excellent workmanship and durability, combined with an exceptional price-performance ratio make this cylinder one of the most popular on the market.
The piston pin has a diameter of 12 mm.
We can also offer you this cylinder kit without cylinder head, or with 10 mm piston pin diameter.
Quality product from the Italian manufacturer Polini.

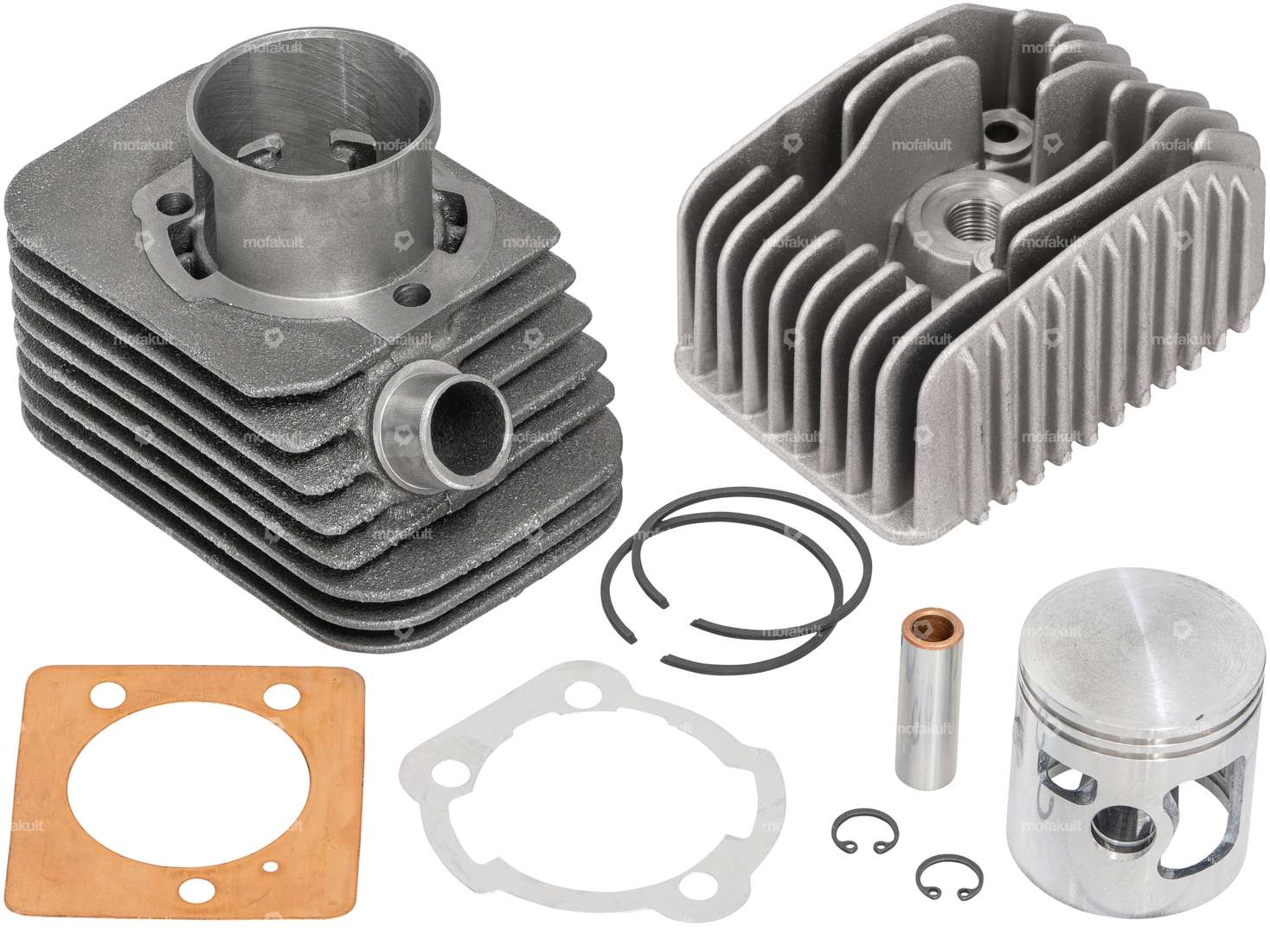

The set includes the following fixed parts:
Manufacturer: Polini · Material: Aluminum · Ø cylinder: 44 - 46 mm · Area of application: Racing
Hole pattern [mm]: 55 x 34 · Manufacturer: Polini · Material: Gray cast iron · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46 mm · Ø cylinder neck: 49.8 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 18 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
Details
| Manufacturer | Polini |
| Material | Gray cast iron |
| Area of application | Tuning |
| Surface | sandblasted |
| Displacement | 70 ccm |
| Nominal diameter | 46 mm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Number of fixing points | 3 pcs |
| Decompressor | Yes |
| Outlet type | clamped |
| Camouflaged | No |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Bravo / Super Bravo Boxer |
