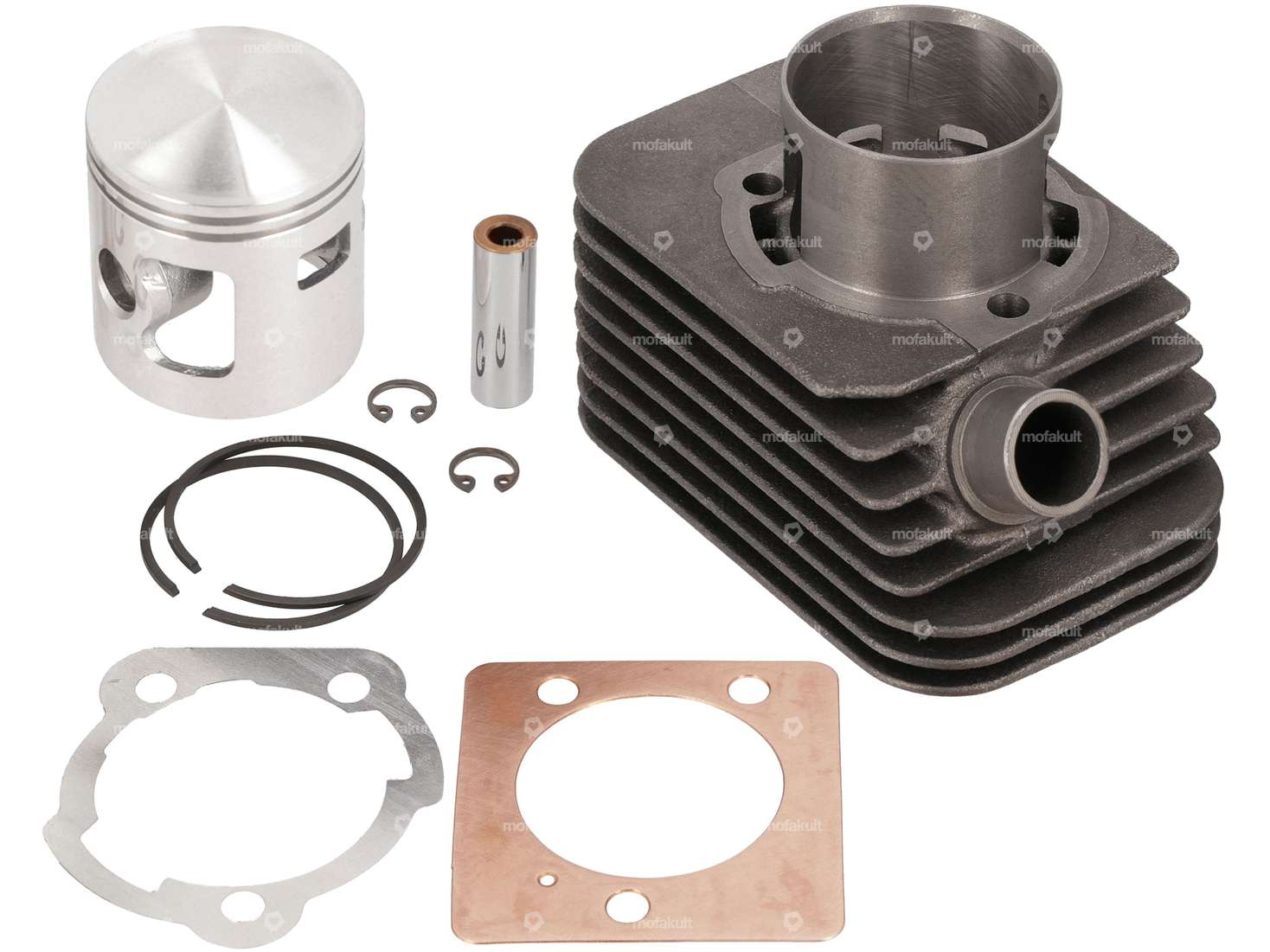

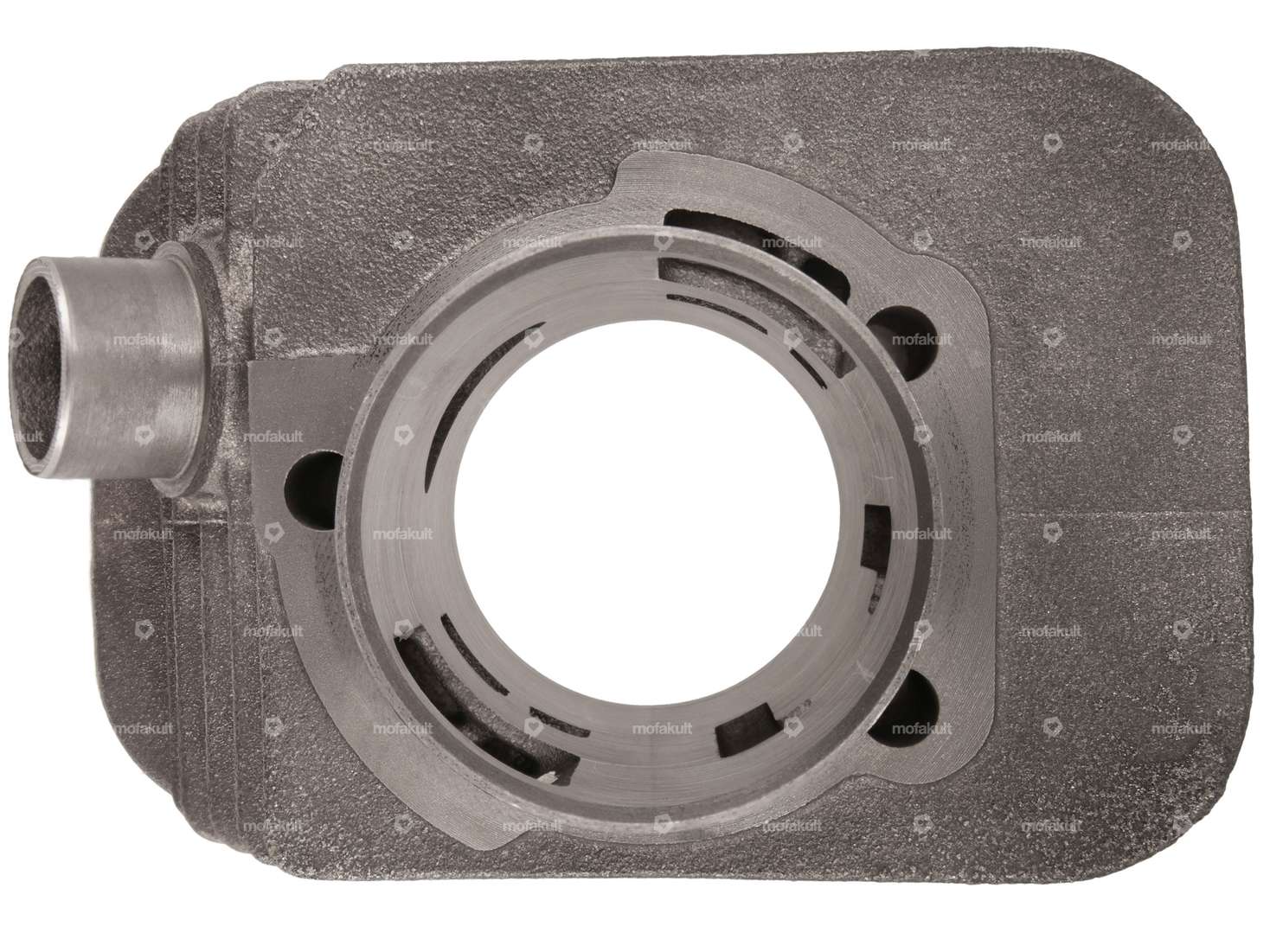

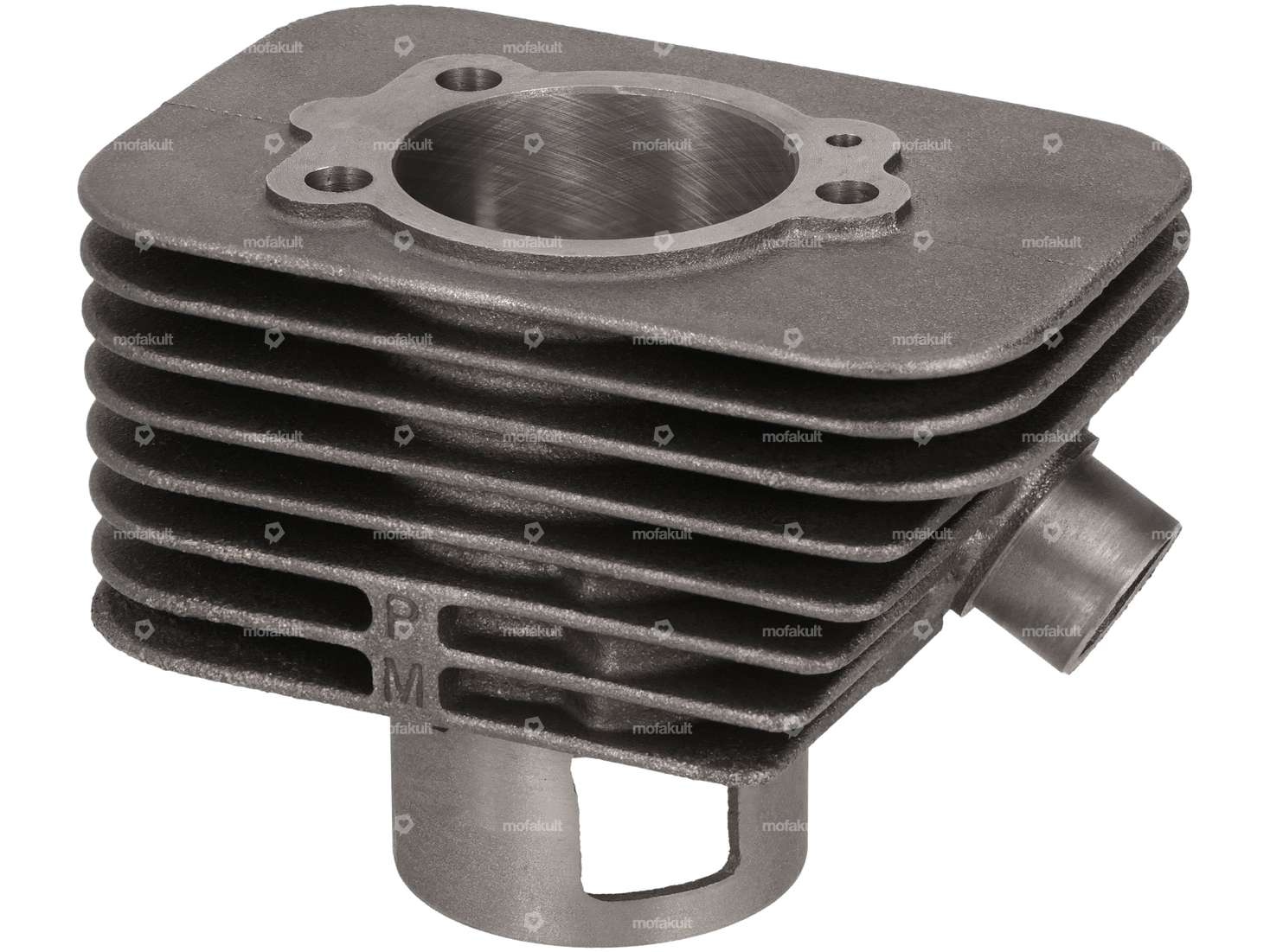

Polini 46 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao

Nut M7 Inox

Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut · Width across flats: 11 mm · Thread type: M7x1 (standard thread) · Nominal diameter (thread): 7 mm · Drive: External hexagon · Height: 5.5 mm · Piaggio OEM number: 020107, 1107, 226745

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Surface: burnished · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool · Total length: 130 mm · Number of components: 7 pcs

Polini gasket set 46 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Ø cylinder: 46 mm · Area of application: Tuning · Decompressor: Yes · Number of components: 2 pcs

Polini cylinder head for 44 - 46 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Area of application: Racing · Ø cylinder: 44 - 46 mm

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing type: Needle roller and cage assembly · Ø inside: 13 mm · Dimension needle bearing: 10/13 x 14.5 · Manufacturer: Malossi · Bearing cage: Sheet steel cage · Ø outside: 1 mm · Width: 14.5 mm

NGK (B5HS - B10HS) spark plug short thread

Manufacturer: NGK · Candle thread type: short · Width across flats: 21 mm · Spark plug socket: M4 · Thread type: MF14x1.25 (fine pitch thread) · Spark plug socket: SAE · Suppressed: No

swiing® ingenious stud bolt M7x120 / Ø 7.3 shank (10.9 strength)

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Diameter: 7.3 mm · Thread type: M7x1 (standard thread) · Total length: 120 mm · Strength class: 10.9 · Thread length: 20 mm · Thread length: 30 mm

swiing® ingenious Cylinder Head Gasket 46 mm Copper | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® ingenious parts · Material: Copper · Place of use: Cylinder head · Nominal diameter: 46 mm · Ø cylinder: 46 - 47 mm · Ø cylinder: 46.5 - 47 mm · Ø inside: 47 mm · Ø cylinder: 47 mm · Thickness: 0.5 mm

Polini 46 mm cylinder kit incl. head 12 mm KoBo | Piaggio Ciao, Bravo, Boxer

Manufacturer: Polini · Material: Gray cast iron · Area of application: Tuning · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Material: Plastic · Material: Steel · Area of application: Standard · Number of components: 3 pcs

Spacer washer 16/22/0.5

Ø inside: 16 mm · Material: Steel · Surface: blank / oiled · Ø outside: 21 mm · Nominal diameter inside: 16 mm · Thickness: 0.5 mm

Polini cylinder head for 44 - 46 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Area of application: Racing · Ø cylinder: 44 - 46 mm

Polini Speed Engine engine housing electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Stock number: 6202 · Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Color: silver · Crankshaft stroke: 43 mm · Width: 175 mm · Height: 104 mm · Total length: 215 mm · Ignition type: Electronic

Mazzucchelli crankshaft "original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Thread type: M8x1.25 (standard thread) · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Thread length: 16 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Area of application: Original · Area of application: Standard · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 ° · Weight: 698 g · Number of gears: 1 pcs

Mazzucchelli crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Thread type: M8x1.25 (standard thread) · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Thread length: 16 mm · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Weight: 705 g · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Area of application: Racing · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 °

swiing® ingenious 16 mm SHA intake manifold Speed Engine | Piaggio Ciao, SI, Bravo

Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Area of application: Tuning · Color: graphite colors · Ø inside: 16 mm · Mounting type: Screws · Ø External connection: 19 mm · Hole spacing inlet: 36 mm · Total height: 24.2 mm · Total length: 29 mm · Number of fixing points: 2 pcs · Camouflaged: No

Spacer washer 16/22/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Ø outside: 22 mm · Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm · Nominal diameter inside: 16 mm · Ø inside: 16 mm

swiing® revival Stud Bolt Set M7x120 Cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Strength class: 8 · Strength class: 8.8 · Material: Steel · Diameter: 6.2 mm · Surface: galvanized (blue) · Width across flats: 11 mm · Thread type: M7x1 (standard thread) · Nominal diameter (thread): 7 mm · Drive: External hexagon · Total length: 120 mm · Thread length: 25 mm
