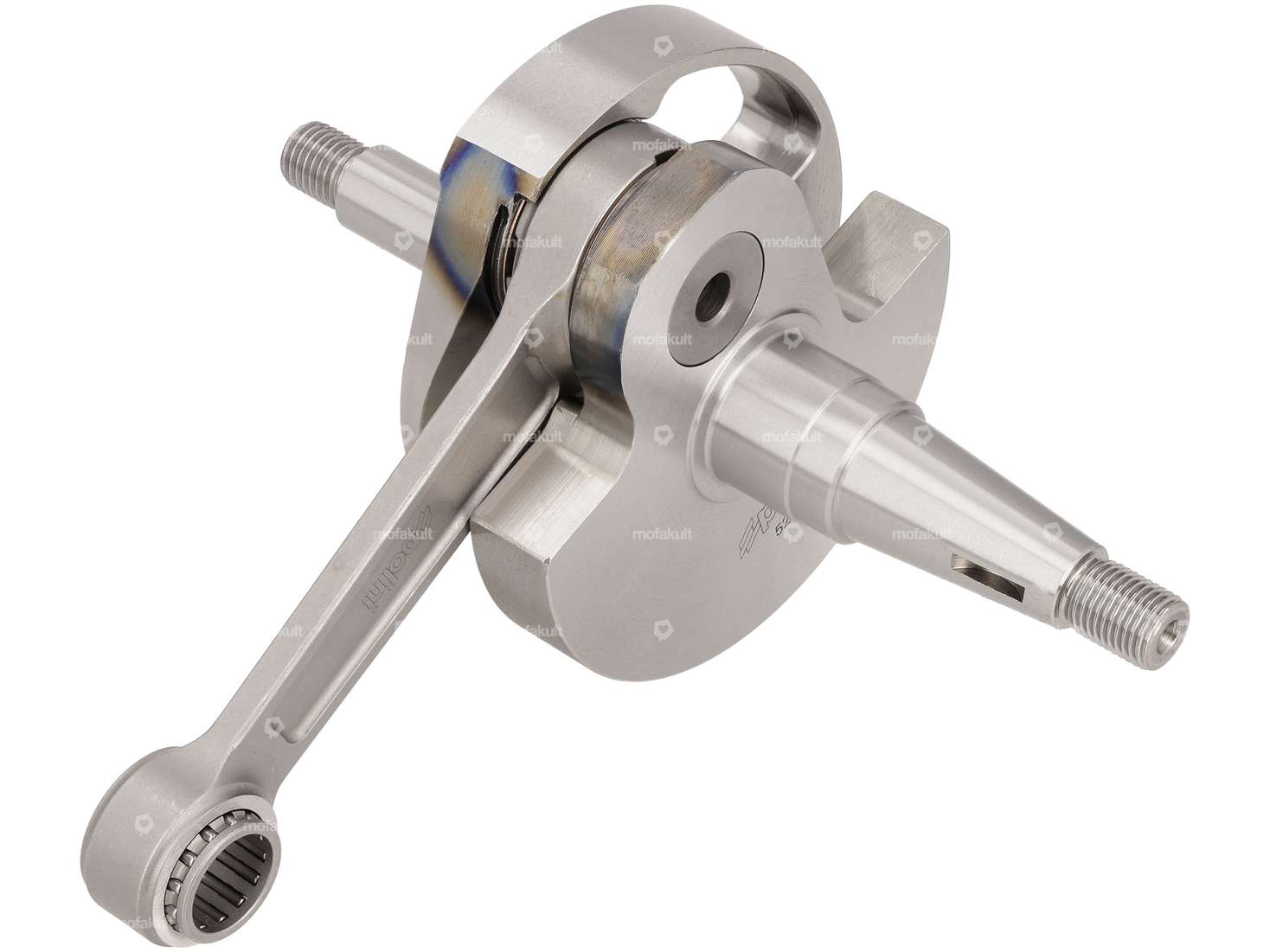

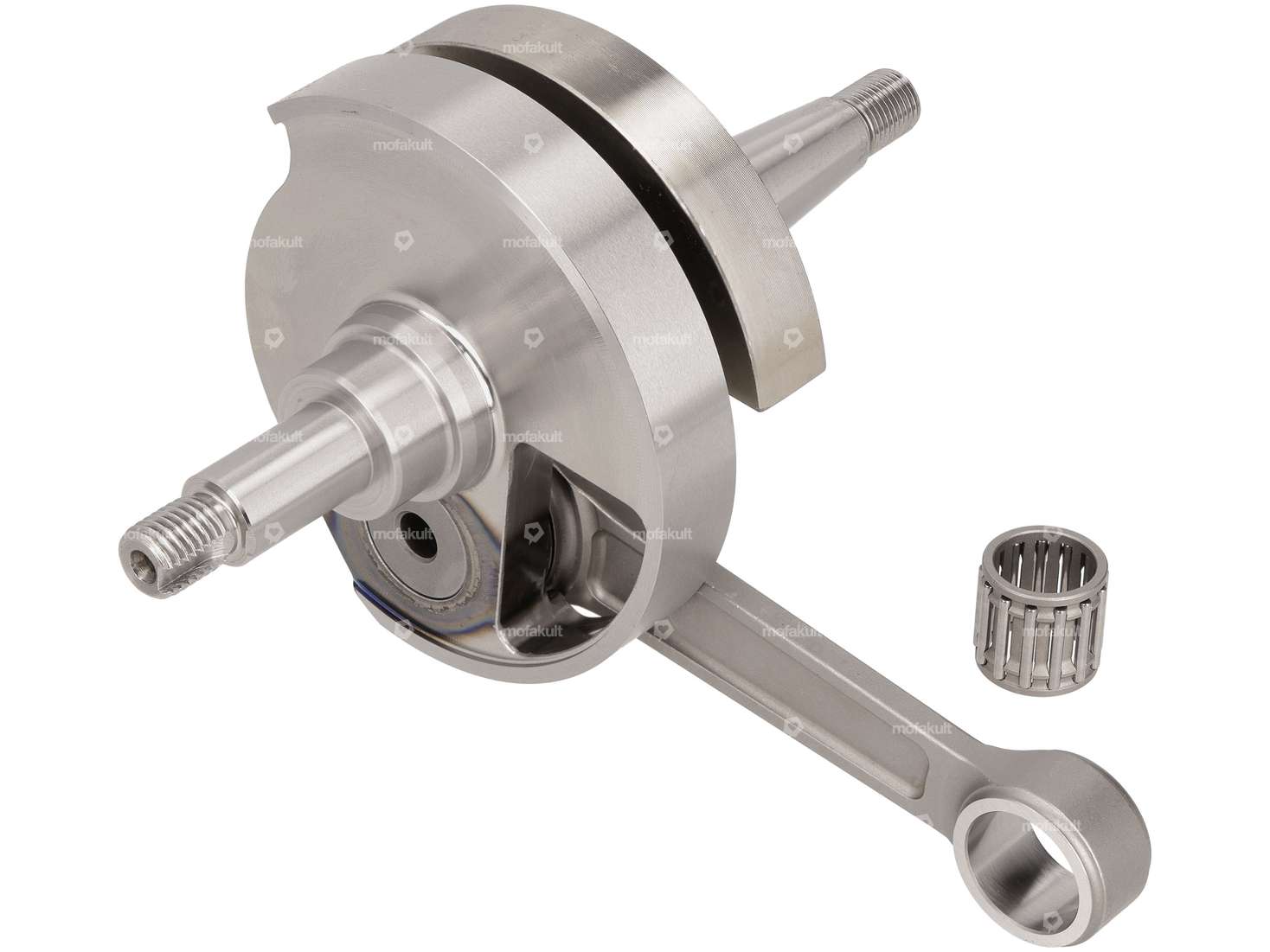

The Polini “Tuning” crankshaft with a 57 mm stroke is a racing crankshaft for rotary valve engines, compatible with your Vespa PX 200, P 200, Rally 200, and Cosa 200.
This precision-balanced tuning crankshaft features a sturdy connecting rod and a flow-optimized cam lobe. The extended intake cam angle allows for a larger cross-sectional area at the rotary valve, making it perfect if you want to finely tune your large-frame engine for power band and RPM. With 110 mm connecting rods, it serves as a robust foundation for a rebuild or if you want to upgrade your engine reliably. The timing is 138° / 5° after TDC.
You’ll find new crankshaft bearings, oil seals (commonly known as Simmerrings), and an engine gasket set among the accessories
A quality product from the Italian manufacturer Polini.
| Manufacturer | Polini |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 57 mm |
| Connecting rod length center-center | 110 mm |
| Thread type | MF12x1.5 (fine pitch thread), MF12x1.25 (fine pitch thread) |
| Total length of crankpin on clutch side | 58.8 mm |
| Thread length | 14.5 mm, 15.5 mm |
| Total length crankpin ignition side | 77.7 mm |
| Ø crank webs | 97.9 mm |
| Ø Connecting rod eye | 20 mm |
| Ø piston pin (B) | 16 mm |
| Ø Bearing seat (clutch side) | 25 mm |
| Ø Bearing seat (ignition side) | 25 mm |
| Area of application | Tuning |
| Dimension needle bearing | 16x20x20 |
| Wide crank webs | 39.1 mm |
| Control time according to O.T | 138 °, 5 ° |
| Vespa | Vespa PX, T5, Cosa - P200E · VSX1T · 1977–1984 (Ignition Switch on Steering Head) , PX200 · VSX1T · 1984–1993 Lusso / Arcobaleno , PX200 · VSX1T · 1993–1996 Classic , PX200 · VSX1T · 1997–1999 (Disc) , Cosa 200 · VSR1T · I 1988–1992 II 1992–1998 Vespa Rally, Sprint, GT, GTR, TS, SS180, GS160 - 200 Rally · VSE1T · 1973–1979 |
