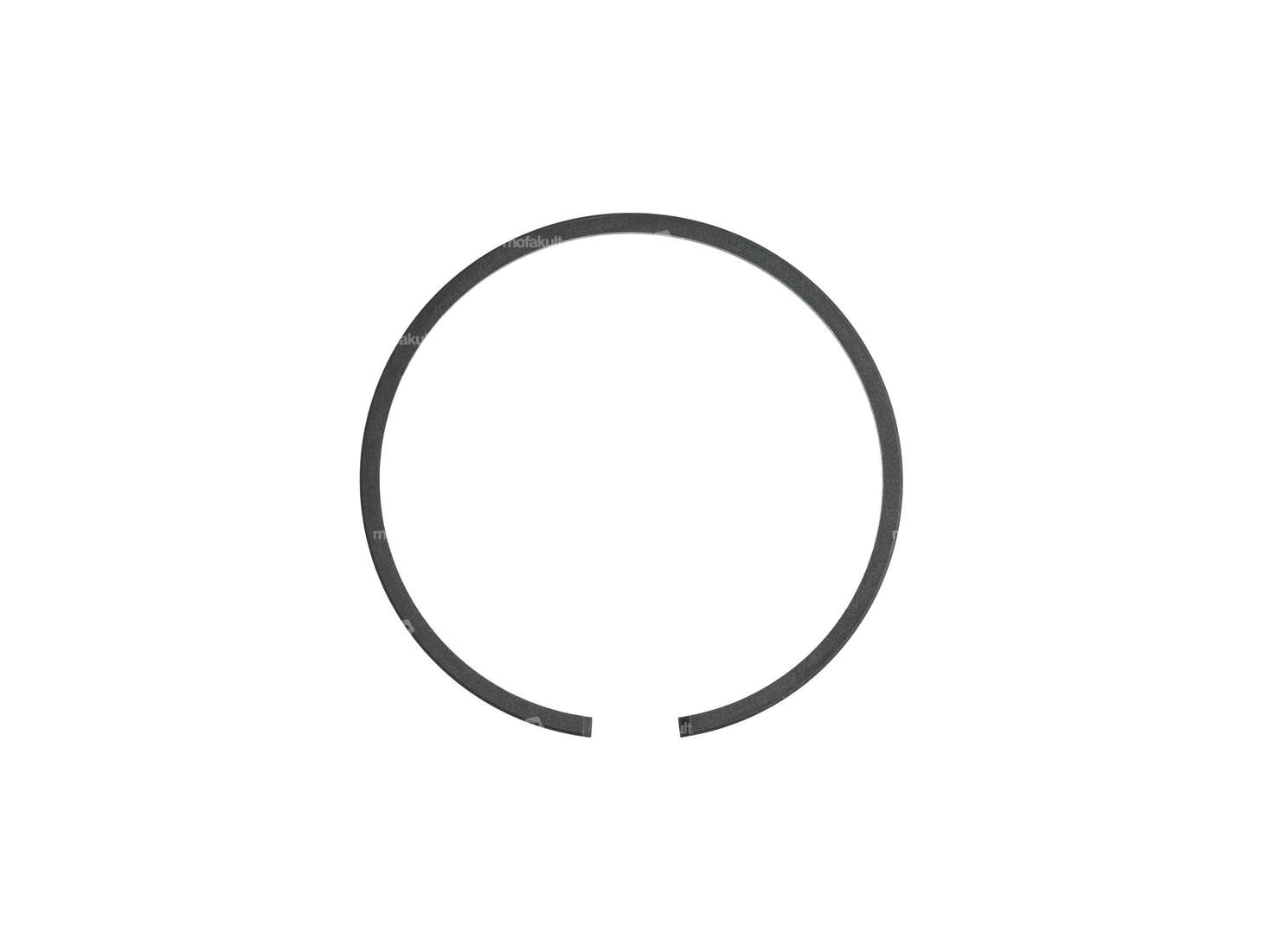

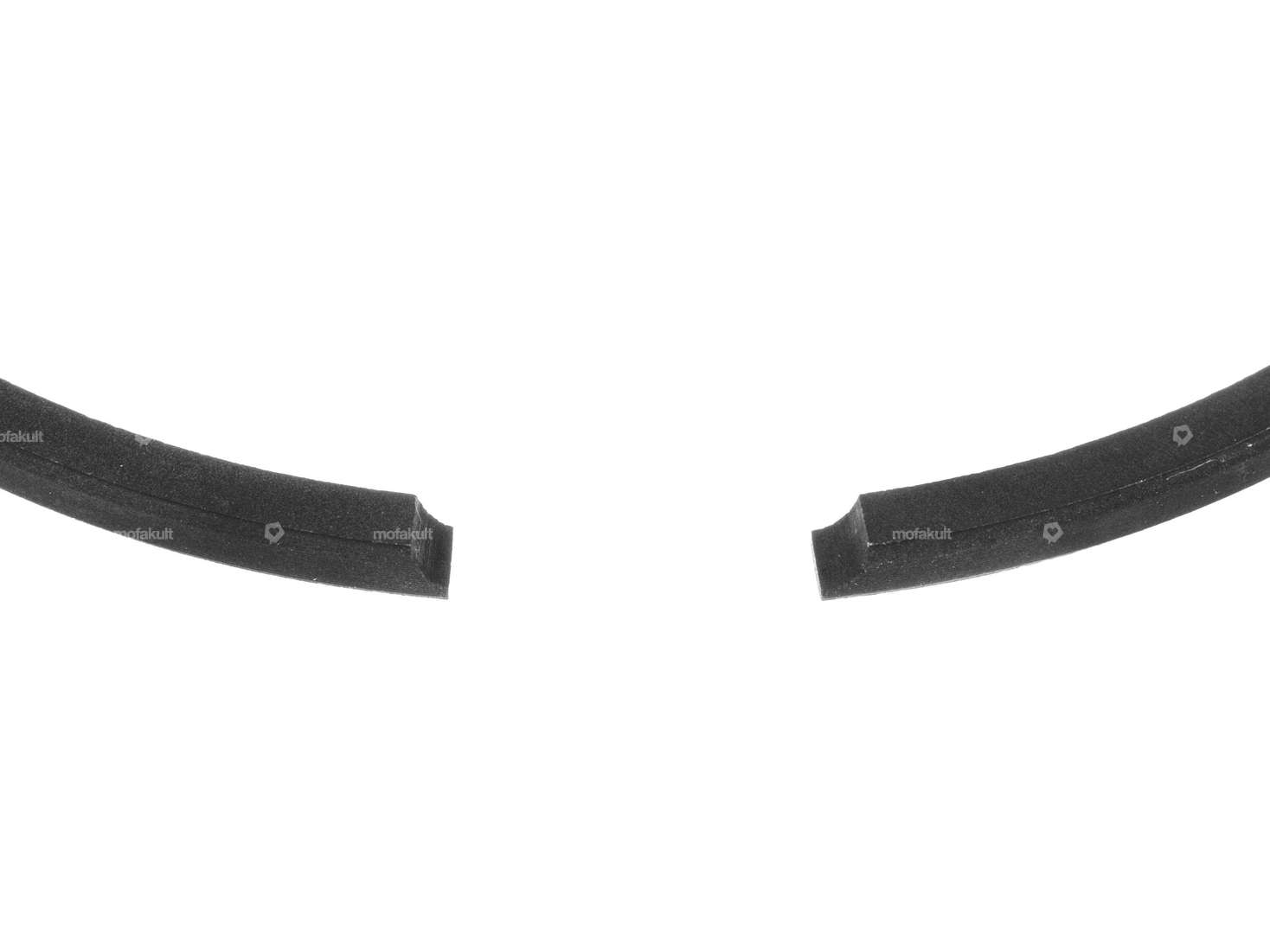

Polini piston ring 47 x 1.5 mm | Minarelli V1

Athena gasket set | Minarelli V1 engine type 1

Manufacturer: Athena · Number of components: 7 pcs · Area of application: Standard

Engine revision set Minarelli V1 engine

Manufacturer: NTN · Area of application: Standard · Number of components: 16 pcs

Polini gasket set cylinder Minarelli V1 engine

Manufacturer: Polini · Number of components: 4 pcs · Ø cylinder: 47 mm · Area of application: Tuning

Polini 47 mm cylinder kit | Minarelli V1

Manufacturer: Polini · Material: Gray cast iron · Surface: varnished · Displacement: 75 ccm · Nominal diameter: 47 mm · Ø Inlet inside: 18.3 mm · Thread inlet: M5x0.8 (standard thread) · Ø outlet inside: 20.5 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Hole spacing outlet: 38 mm · Outlet type: straight · Hole spacing inlet: 38.5 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 46 x 46 · Area of application: Tuning · Decompressor: none · Camouflaged: No

Athena gasket set | Minarelli V1 engine type 2

Manufacturer: Athena · Number of components: 7 pcs · Area of application: Standard

Exhaust gasket 24 mm graphite | Minarelli V1 / Morini

Manufacturer: Made in Italy · Place of use: Exhaust · Thickness: 4 mm · Ø outlet inside: 24 mm · Hole spacing inlet: 38 mm

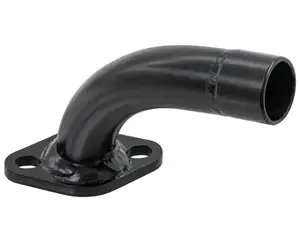

MLM 18 mm intake manifold Dell'Orto PHBG | Minarelli V1

Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Ø inside: 18 mm · Ø External connection: 23 mm · Mounting type: Screws · Hole spacing inlet: 40 mm · Number of fixing points: 2 pcs · Area of application: Tuning

Malossi gasket inlet Ø 22 mm | Minarelli V1

Manufacturer: Malossi · Place of use: Admission · Thickness: 0.55 mm · Hole spacing inlet: 36 - 45 mm · Ø outlet inside: 22 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Ø nipple: 3.5 mm · Ø nipple: 6 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Cable length: 2200 mm · Area of application: Standard · Nipple length: 10 mm

Plastic license plate holder (CH version)

Manufacturer: Made in Switzerland · Hole spacing: 50 mm · Color: black · Material: Brass · Material: Plastic · Ø mounting hole: 6 mm · Thread type: M5x0.8 (standard thread) · Thread length: 6 mm · Number of fixing points: 9 pcs · Total length: 175 mm · Width: 108 mm · Height: 11 mm · Mounting type: Nuts & bolts

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Number of components: 2 pcs · Thread type: M4x0.7 (standard thread) · Ø Cable bushing: 1.6 mm · Screw head: Lens head · Total length: 6 mm · Thread length: 4 mm · Drive: Slot · Ø outside: 5 mm

NTN 6203 C3 Ball bearing 17/40/12

Manufacturer: NTN · Material: Steel · Surface: blank · Bearing type: Deep groove ball bearing · Inner ring width: 12 mm · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Ø outside: 40 mm · Ø inside: 17 mm · Stock number: 6203 · Width: 12 mm · Ball bearing closed: No · Area of application: Standard

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents [ml]: 1000 ml · Color: red

Gas cable Ø 1.2 mm x 165 cm (nipple ball) Dell'Orto

Ø Stranded wire: 1.2 mm · Nipple shape: Ball · Ø nipple: 3.5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Area of application: Standard · Cable length: 1650 mm

Polini gasket set cylinder Minarelli V1 engine

Manufacturer: Polini · Number of components: 4 pcs · Ø cylinder: 47 mm · Area of application: Tuning

Exhaust gasket 24 mm graphite | Minarelli V1 / Morini

Manufacturer: Made in Italy · Place of use: Exhaust · Thickness: 4 mm · Ø outlet inside: 24 mm · Hole spacing inlet: 38 mm
