Variomatic gearwheel for your Piaggio Ciao, Si, Bravo and Boxer moped / moped.
The converter shaft has been equipped with an M10x1.25 mm thread and a key instead of a key compared to the original input shaft.

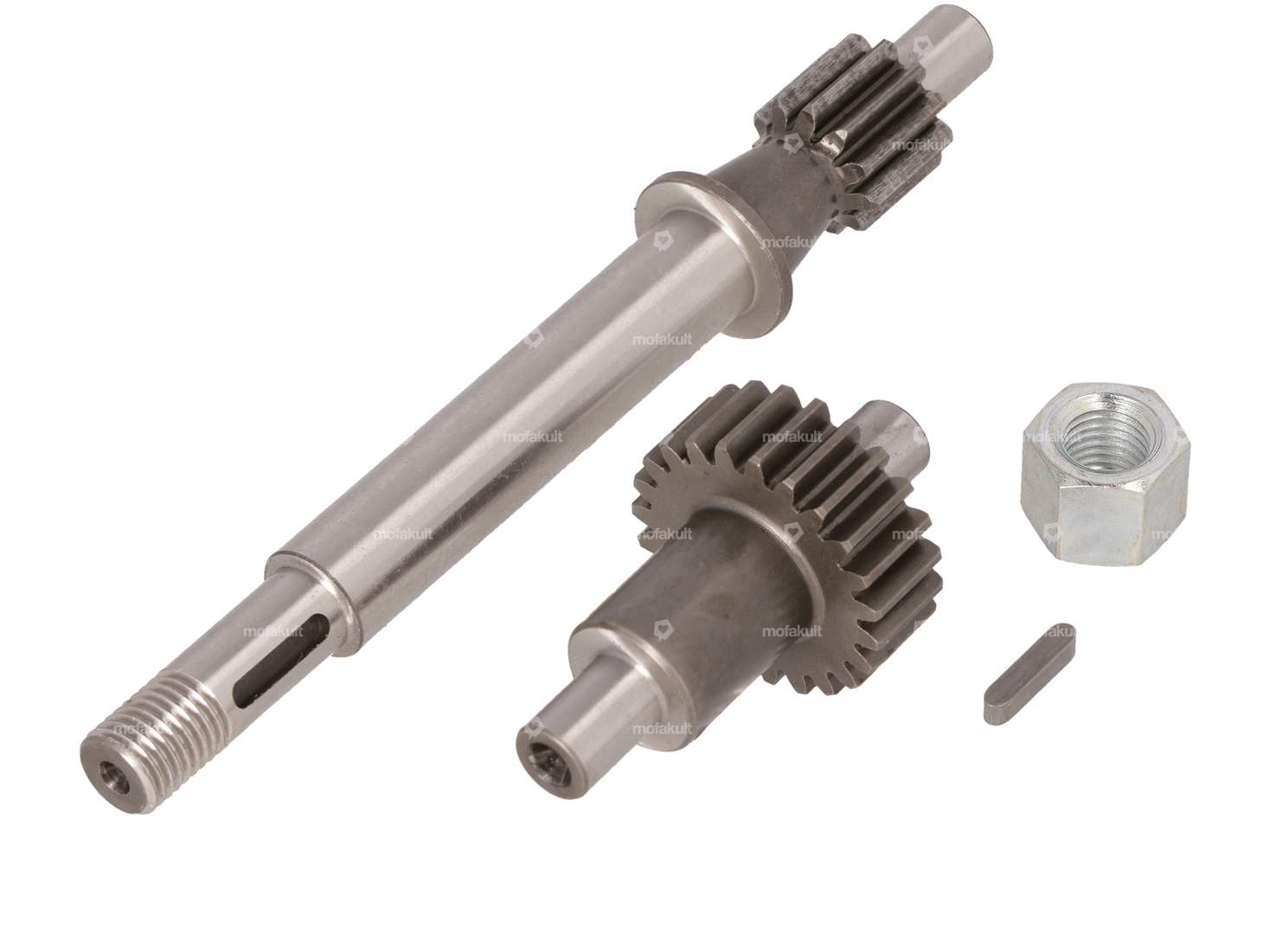

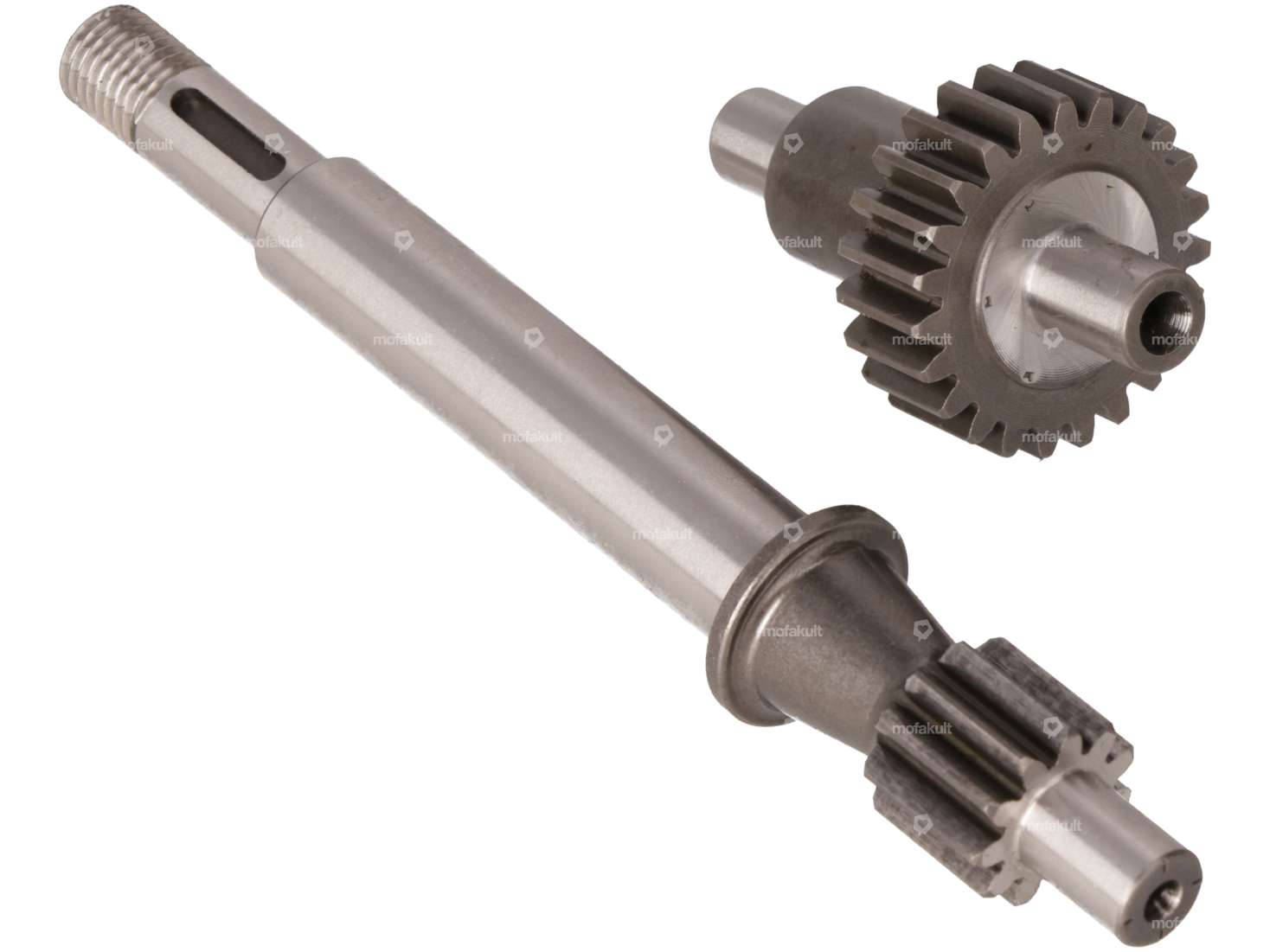

The set includes the input shaft and the first gearwheel. You can combine these gears with the two other available gears to achieve gear ratios of 13:1 or 11.5:1 (correctly calculated 12.82:1 or 11.40:1).
Both additional gear sets can be found in the accessories section along with other gear parts.
Quality product from the Italian manufacturer Polini.
| Manufacturer | Polini |
| Material | Steel |
| Toothing type | straight toothed |
| Translation | 11.40 / 1, 12.82 / 1 |
| Number of teeth | 11 pcs, 23 pcs |
| Gearbox type | Vario |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products

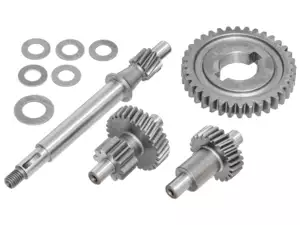

Pinasco gearbox 12.3:1 Vario | Piaggio Ciao, SI, Bravo, Boxer, Grillo
