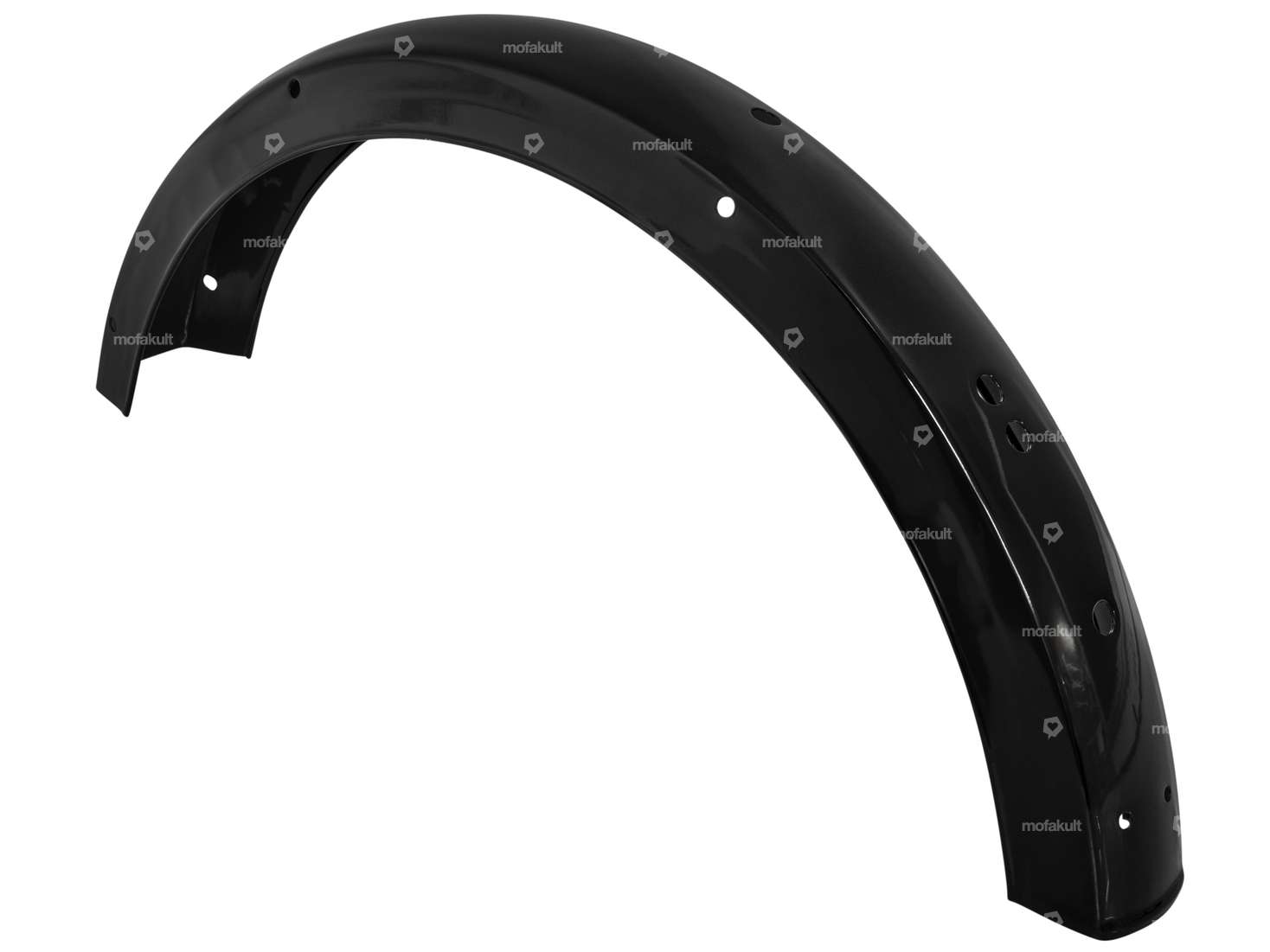

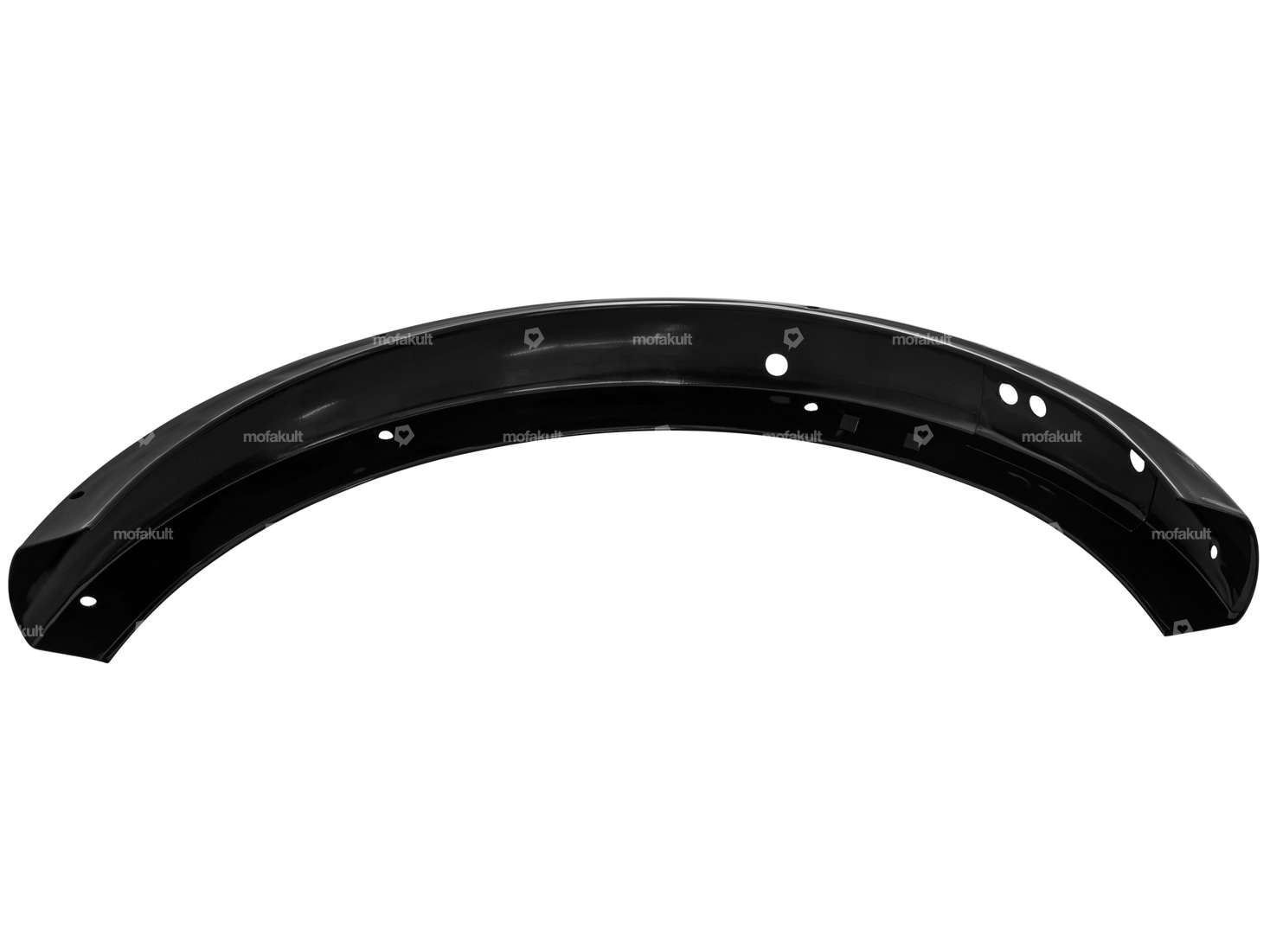

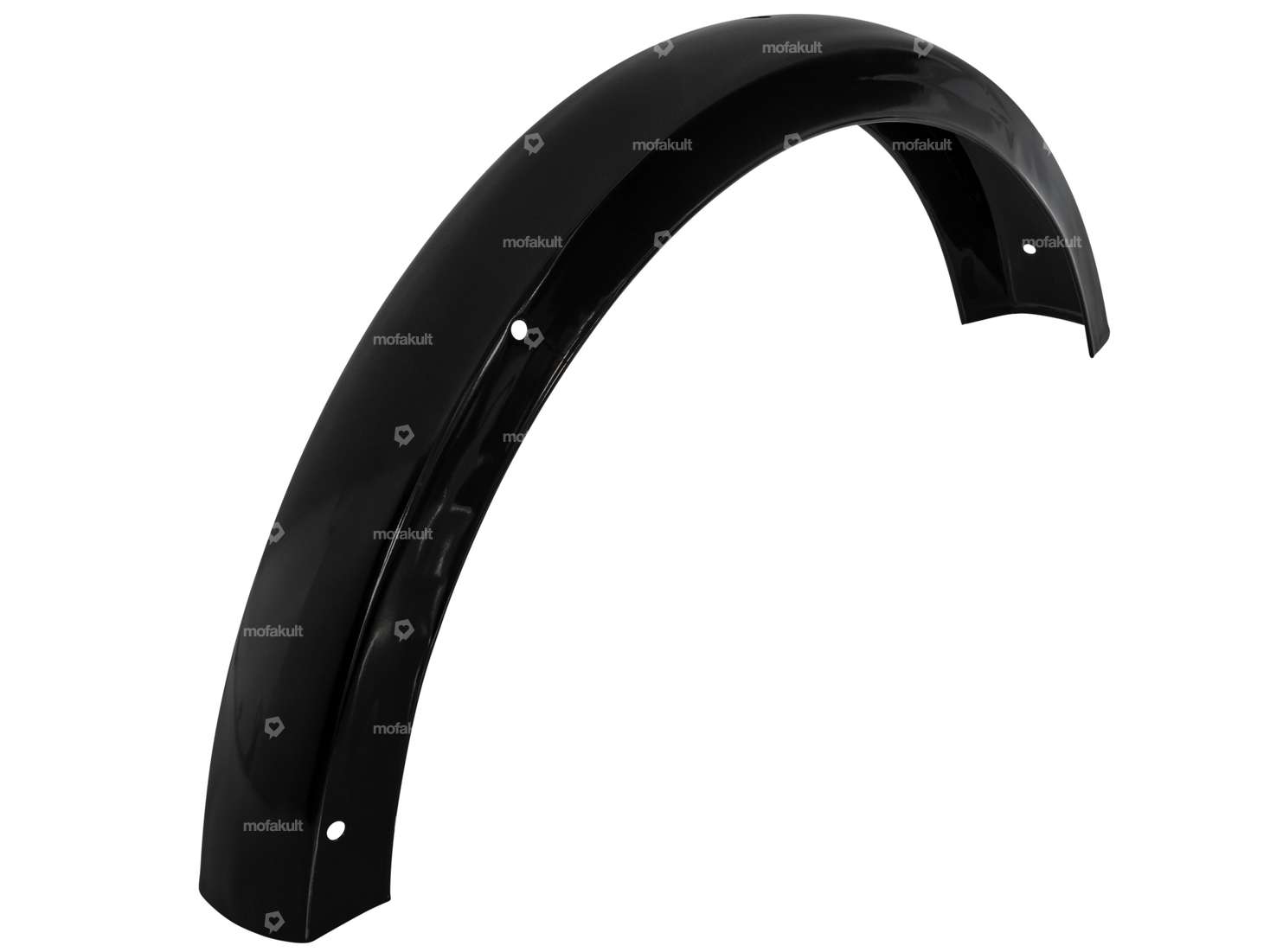

Rear fender black | Tomos A35

Rubber grommet side panel | Tomos

Manufacturer: Tomos · Material: Rubber · Ø Cable bushing: 6 mm · Clamping diameter: 10 mm · Height: 7.5 mm · Color: black

Cable grommet Ø 10 / 13 mm PVC

Ø outside: 10 mm · Manufacturer: Made in Germany · Height: 6 mm · Ø Cable bushing: 10 mm · Material: Polyvinyl chloride (PVC-U_hard) · Color: black · Ø mounting hole: 13 mm · Material thickness: 2 mm

Spotlight round Ø 13 cm chrome / black

Material: Sheet metal (steel) · Test mark: none · Depth: 80 mm · Housing material: Metal · Surface: chrome-plated · Surface: varnished · Color: Chrome · Lens material: Plastic · Color: black · Color: transparent · Bulb holder: BA15d · Number of fixing points: 2 pcs · Width: 134 mm · Thread size: M6 · Speedometer recording: None · Height: 147 mm · Switch included: No · Battery operated: No · Ø outside: 130 mm · Mounting type: Screws · Area of application: Standard

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Automatic machine · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Rear light | Tomos A3, A35

Material: Plastic · Test mark: none · Bulb holder: BA15s · Color: black · Color: red · Mounting type: Nuts & bolts · Number of fixing points: 2 pcs · Height: 70 mm · Brake light: Yes · Reflectors: Yes · Battery operated: No · Width: 115 mm

DMP front fender black (new model) | Tomos A35, Classic

Material: Steel · Surface: varnished · Color: black · Folding the ends: folded · Mounting type: Nuts & bolts · Total length over ends: 490 mm · Scope: 610 mm · Wide mudguard profile: 90 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 150 mm

Front fender primed black (old model) | Tomos A35, Classic

Material: Steel · Surface: primed · Color: black · Mounting type: Nuts & bolts

Main stand spring | Tomos

Material: Spring steel · Spring design: Tension spring · Manufacturer: Tomos · Surface: galvanized (blue) · Length spring hook: 17.4 mm · Total length: 86.6 mm · Ø wire: 2.5 mm · Ø outside: 14.5 mm · Area of application: Original · Area of application: Standard · Ø inside: 9.8 mm · Tomos OEM number: 200609

Main stand 24 cm black | Tomos A3, A35

Material: Steel · Surface: varnished · Color: black · Stand base - center mount (A): 200 mm · Total width of stand base (B): 235 mm · Wide receptacle (C): 51 mm · Ø Receptacle (D): 8.1 mm · Spring nipple distance - center pivot axis (E): 65 mm · Wide upright foot (F): 30 mm · Total height: 240 mm · Tomos OEM number: 237153S91

Front mudguard strut | Tomos Classic, Quadro, Sprint, Fun Sport'R

Material: Steel · Surface: varnished · Color: black · Total length: 56 mm · Outer width: 104 mm · Mounting type: Nuts & bolts · Number of fixing points: 6 pcs · Hole spacing: 40 mm · Hole spacing: 43 mm · Ø mounting hole: 6 mm · Ø mounting hole: 7 mm

swiing® revival bulb rear light 12V - 5W (BA15s, G18) 1-filament

Manufacturer: swiing® revival parts · Test mark: E1 · Test mark: R5W · Bulb holder: BA15s · Tension: 12 V · Performance: 5 W · Color: white · Ø base: 15 mm · Total length: 36 mm · Ø Lamp head: 17 mm · LED: No

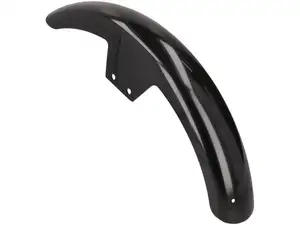

Front fender black | Tomos Revival

Manufacturer: Tomos · Material: Plastic · Color: black · Wheel size: 17 " · Folding the ends: folded · Shape of the mudguard: partly round · Total length over ends: 530 mm · Scope: 630 mm · Wide mudguard profile: 84 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 150 mm · Mounting type: Nuts & bolts · Tomos OEM number: 242088
