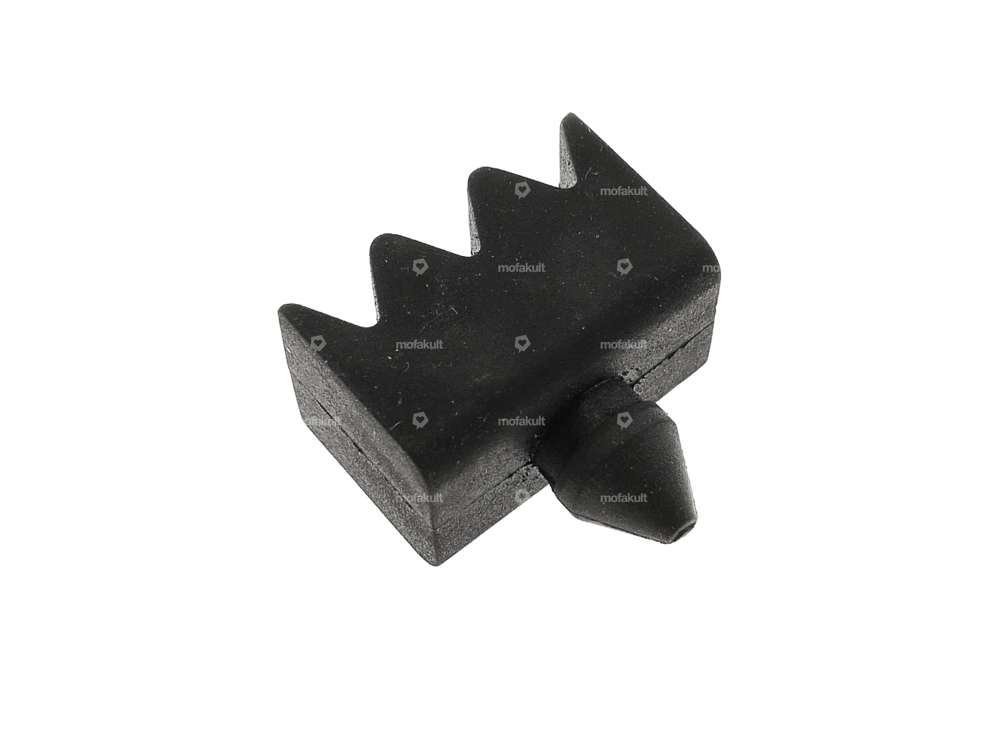

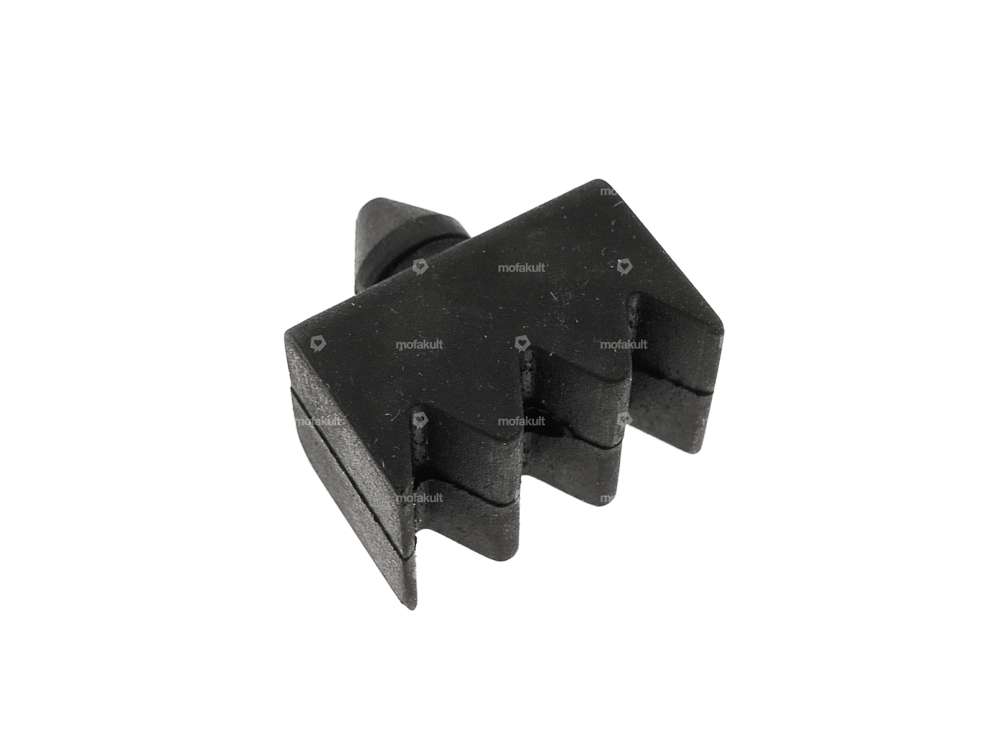

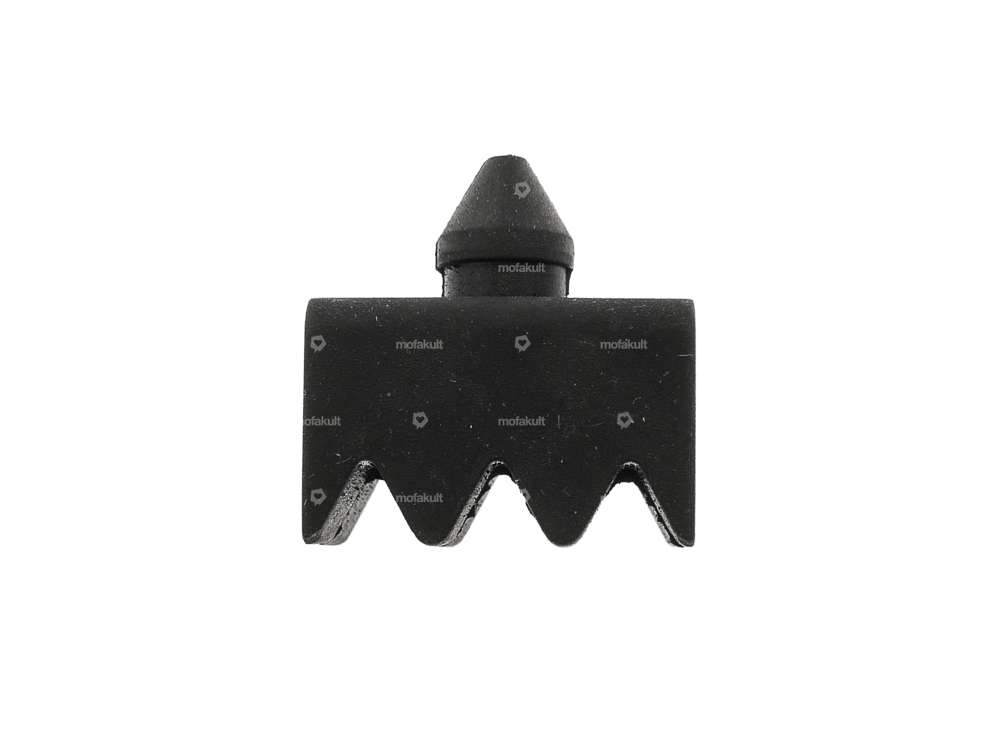

Stop rubber fork / stand original | Piaggio SI PTT

CIF repair kit fork | Piaggio Ciao

Ø wire: 4.2 mm · Manufacturer: CIF · Material: Chrome steel (known as Nirosta®) · Material: Plastic · Material: Rubber · Material: Spring steel · Material: Steel · Ø inside: 20 mm · Ø outside: 28 mm · Total length: 112 mm

swiing® ingenious bushing fork swing arm brass original | Piaggio Ciao

Manufacturer: swiing® ingenious parts · Material: Brass · Ø inside: 12.85 mm · Ø outside: 16 mm · Total length: 12 mm · Ø Bundle: 22 mm

swiing® revival plain bearing fork swing arm brass original | Piaggio Ciao

Manufacturer: swiing® revival parts · Material: Brass · Ø inside: 12.85 mm · Ø outside: 16 mm · Nominal diameter inside: 13 mm · Ø Bundle: 22 mm · Total height: 12 mm

CIF Clamping screw front brake | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø outside: 11 mm · Thread type: M7x1 (standard thread) · Total length: 25 mm · Drive: External hexagon · Screw head: Hexagon · Number of components: 6 pcs · Thread length: 19.5 mm · Width across flats: 11 mm

Pedals square | Piaggio Ciao, SI, Bravo

Material: Plastic · Surface: ribbed · Color: black · Thread type: FG14.3 (9/16" 20G) · Total length: 118 mm · Drive: Outer edge · Width: 51 mm · Height: 29 mm · Reflectors: Yes · Width across flats: 15 mm

Stand set | Piaggio SI, Grillo

Manufacturer: Made in Italy · Material: Steel · Surface: varnished · Color: black · Stand base - center mount (A): 225 mm · Total width of stand base (B): 220 mm · Wide receptacle (C): 89 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Total height: 265 mm

Fuel tap vertical M12x1 (with union nut) outgoing right | Piaggio SI

Manufacturer: Made in Italy · Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Plastic · Filter type: Plastic net · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: right · Spare tube shape: straight · Reserve level: 65 mm

Triangular bearing plate galvanized | Piaggio Ciao, SI, Bravo

Manufacturer: Made in Italy · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Color: silver · Total length: 17.5 mm · Ø axle: 15 mm · Width: 99 mm · Number of fixing points: 2 pcs

Stand bolt Ø 14 mm with circlips | Piaggio Ciao, SI, Bravo

Manufacturer: Made in Italy · Material: Steel · Surface: galvanized (blue) · Color: silver · Number of fixing points: 2 pcs · Total length: 112 mm · Mounting type: Circlip · Piaggio OEM number: 164167

Bottom bracket bushing black | Piaggio SI, Bravo

Manufacturer: Made in Italy · Material: Plastic · Color: black · Ø inside: 16 mm · Bearing type: Plain bearing · Ø outside: 25.3 mm · Total length: 15.4 mm

Oil seal fork NBR 25.7/35/9 B DUO original | Piaggio SI, Bravo, Boxer

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Piaggio · Material: NBR · Ø inside: 25.7 mm · Ø outside: 35 mm · Width: 7 mm · Width: 9 mm · Piaggio OEM number: 123196 · Piaggio OEM number: 269888

Dust cover swingarm original | Piaggio SI, Boxer

Manufacturer: Piaggio · Ø inside: 14 mm · Ø outside: 23 mm · Height: 1.6 mm · Height: 4.6 mm

Bride cable original | Piaggio SI

Manufacturer: Piaggio · Ø mounting hole: 7.15 mm
