logo_swiing ingenious parts

For: Sachs

23603

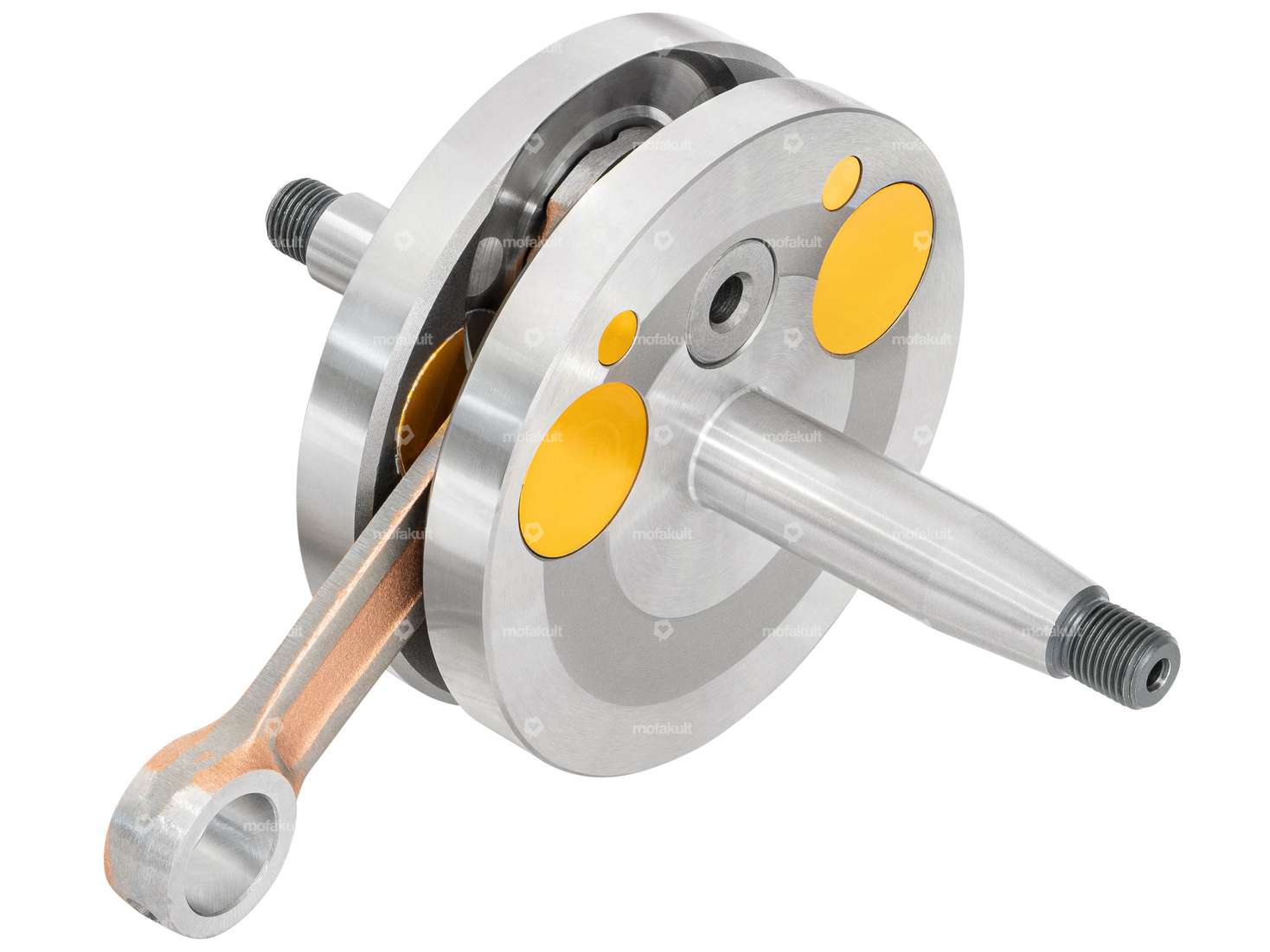

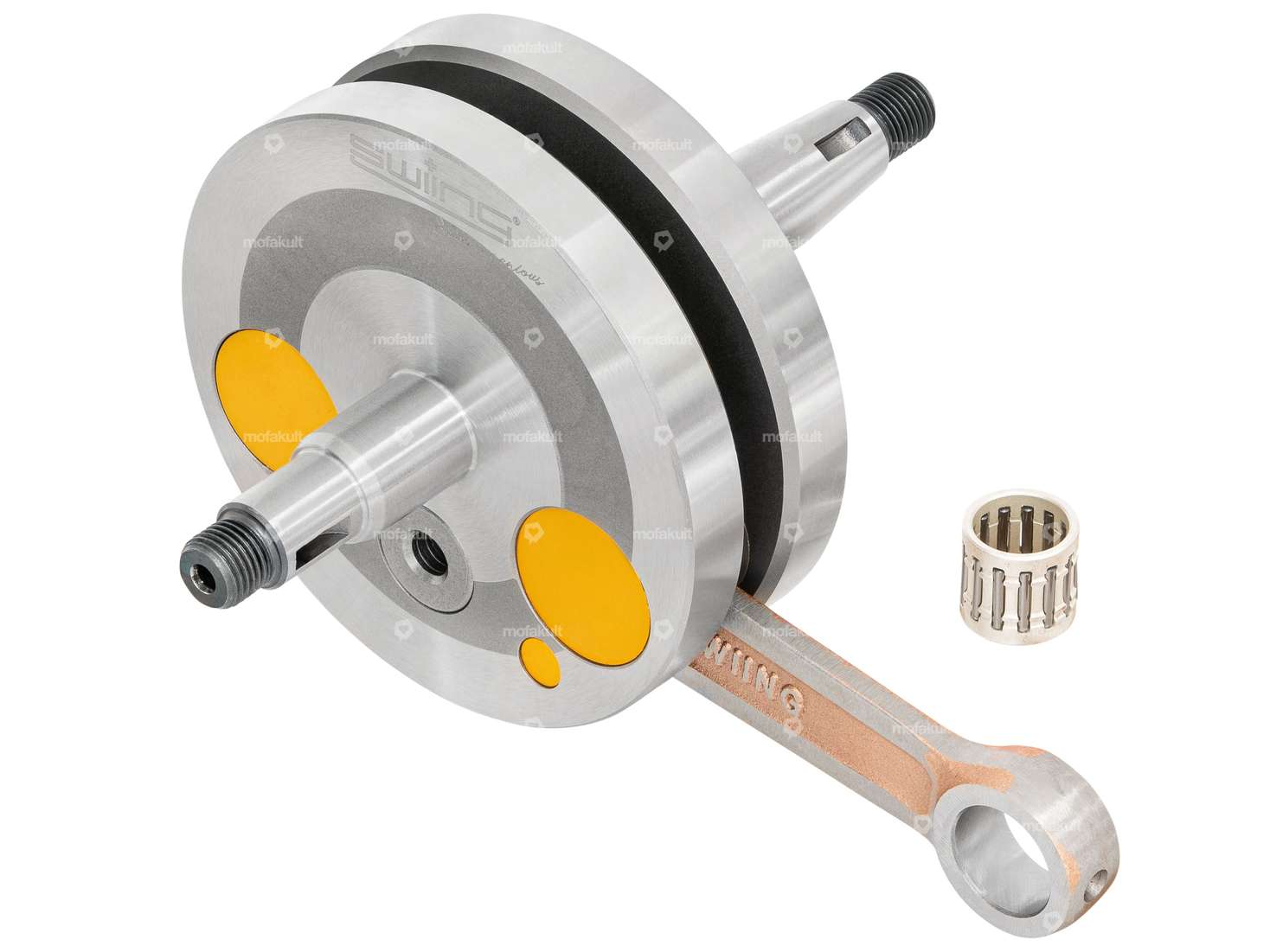

swiing® ingenious crankshaft "High End" | Sachs 50/2, 50/3

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 226.60

Incl. 25% VAT.

Description

<p

High-end full cheek crankshaft suitable for your moped / moped with manual Sachs 50/2 (502), 50/3 engine. (not to be confused with 503 engines)

High-quality and precisely fitting, 1038 gram full cheek crankshaft, which has proven itself in various load tests. The shaft has an additional slotted connecting rod base for better lubrication and impresses with its excellent balance ratio and good speed stability.

Manufacturerswiing® ingenious parts
Area of applicationHigh End
Cheek typeFull cheeks
Crankshaft stroke42 mm
Thread typeMF10x1 (fine pitch thread)
Connecting rod length center-center85 mm
Total length of crankpin on clutch side40.7 mm
Total length crankpin ignition side63.4 mm
Ø crank webs85 mm
Ø Connecting rod eye15 mm
Ø piston pin (B)12 mm
Ø Bearing seat (clutch side)15 mm
Ø Bearing seat (ignition side)15 mm
Dimension needle bearing12 / 15 x 14.2 mm (axe 12)
Wide crank webs30.1 mm
Weight1038 g
Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS)

50/3
