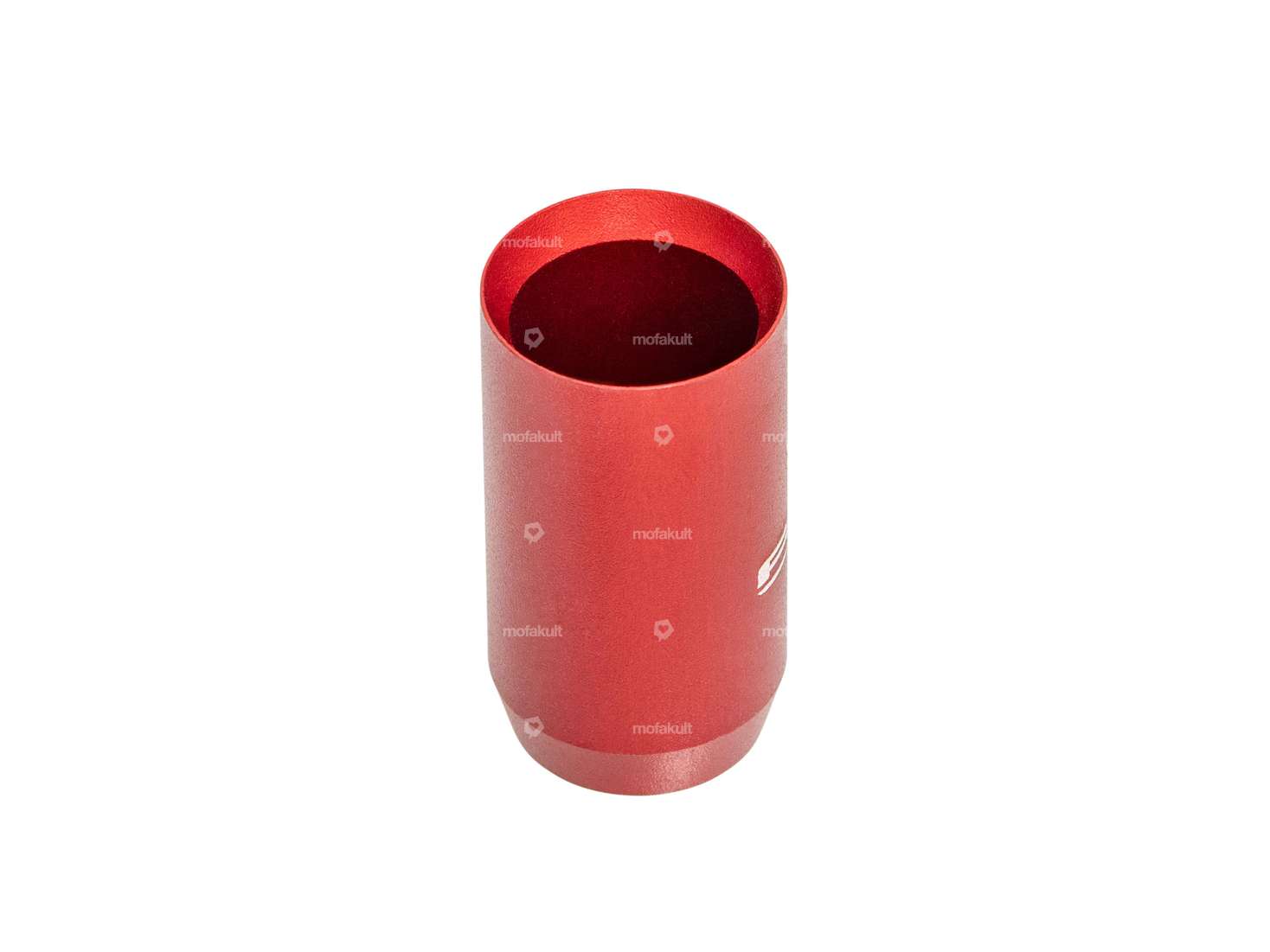

Red anodized aluminium bushing for gentle installation of the KW oil seal on your Sachs moped, moped and small motorcycle.

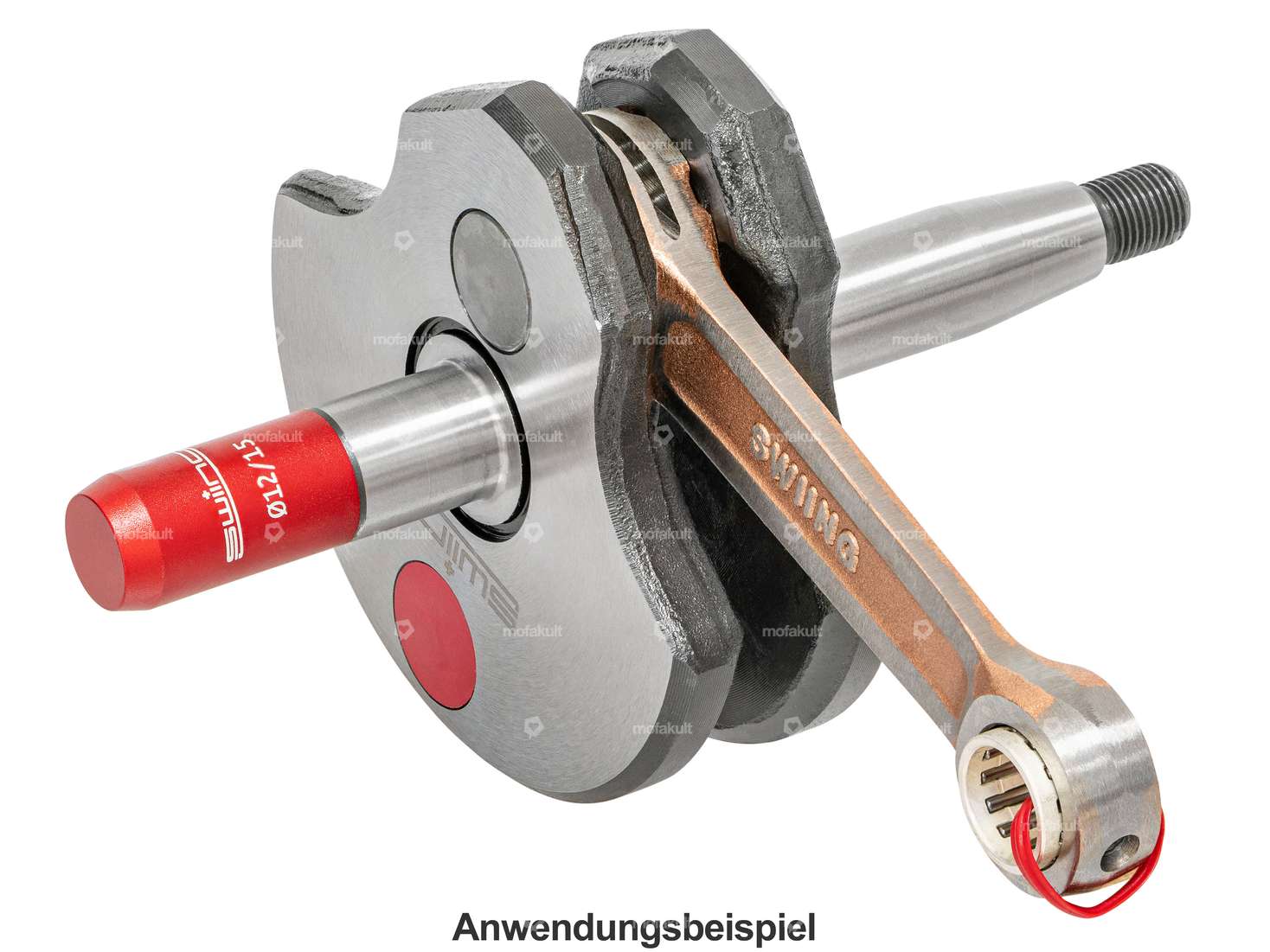

The mounting attachment is used for professional installation of the clutch-side oil seal (colloquially known as a radial shaft seal) on crankshafts with BO15 shoulder ball bearings from Sachs 50/2, 50/3 and 503 engines. Without this mounting aid, the oil seal is often damaged by the sharp-edged shoulder on the crankshaft. With the shaft attachment, the oil seal glides gently over the delicate area.
Ø inner: 12 mm
Ø outer: 15 mm
Exceptional product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Surface | anodized |
| Ø inside | 12 mm |
| Ø outside | 15 mm |
| Number of components | 1 pcs |
| Area of application | Special tool |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 503 - 2AL / 2BL |
