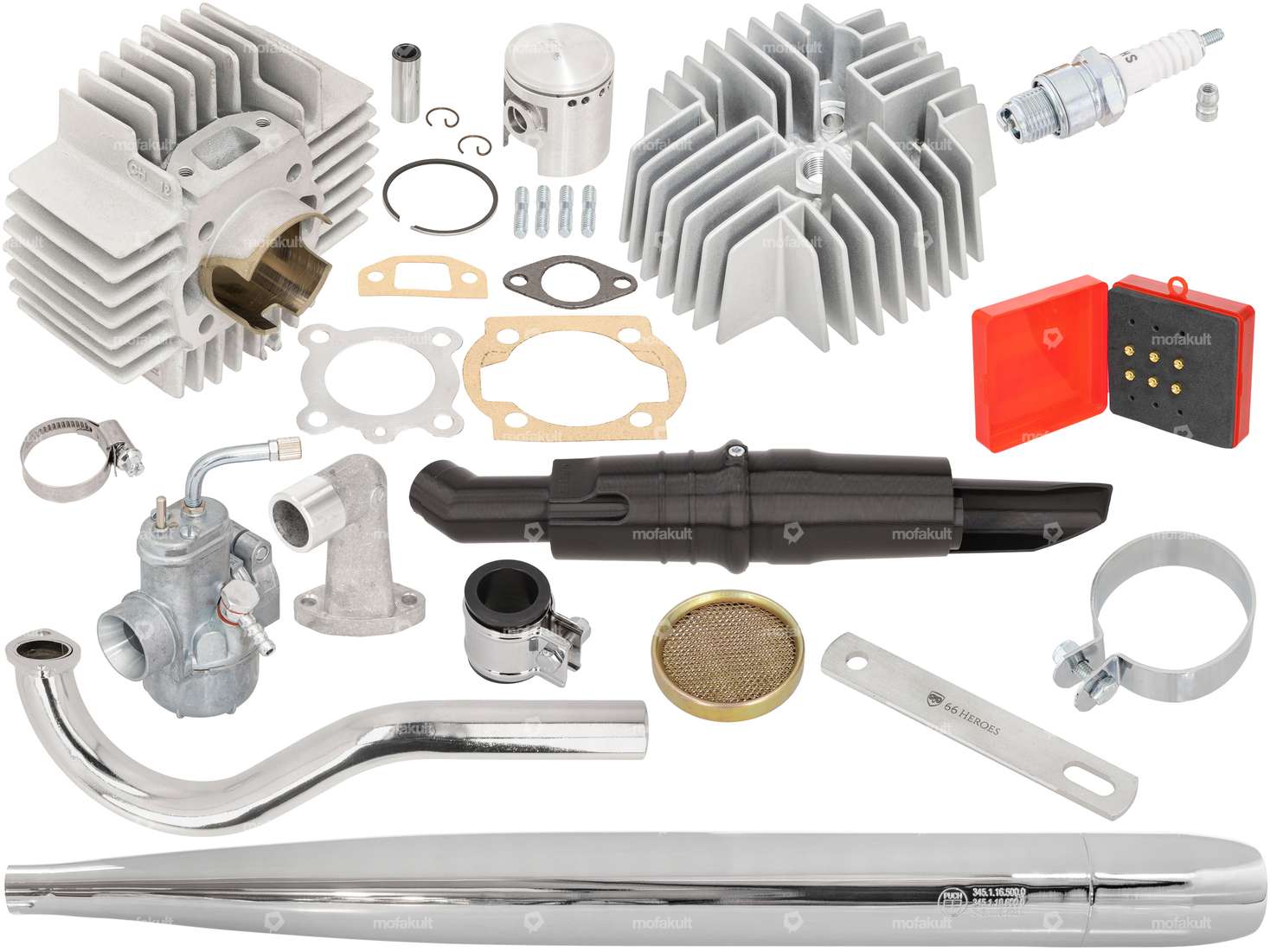

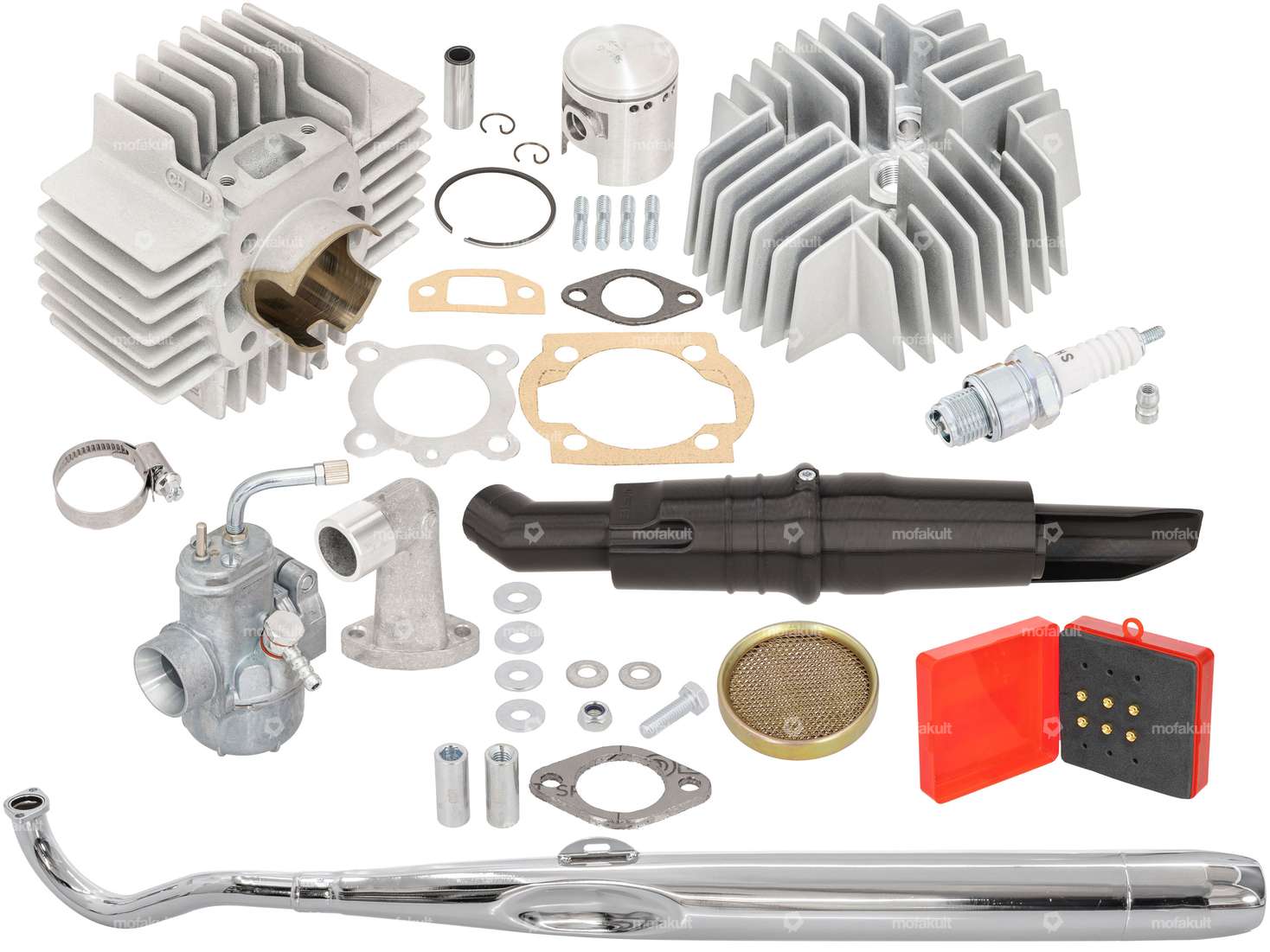

High-quality 45 mm tuning set for your Puch X30 Sport, Turbo and Sprinter moped / moped with 2-speed Z50 engine.
The 45 mm racing kit, the swiing® ingenious 17 mm SRF carburetor as well as the intake manifold and racing exhaust are perfectly matched and guarantee power over the entire rev range. The additively manufactured tuning air filter has a flow-optimized design on the inside and ensures that your engine is supplied with the required amount of air to achieve maximum power output.
With the exception of the inlet manifold and the air filter, almost all parts bear the original cast or stamped numbers. The 70 cc cylinder is marked with a CH12, the carburetor with the code number «1/12/197» and the resonance cigar with the Puch logo and engraved numbers.
A düsenset is included for perfect tuning of the tuning carburetor.
Hole pattern [mm]: 44 x 44 · Inlet window: 23.6/21.2 x 14.7 · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 25 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 38 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: Yes · Area of application: Tuning
Hole pattern [mm]: 44 x 44 · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Camouflaged: Yes · Number of fixing points: 4 pcs · Candle thread: short · Decompressor: No · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Area of application: Tuning
Manufacturer: swiing® ingenious parts · Material: Steel, FPM / FKM (colloquially known as Viton) · Surface: chrome-plated · Color: Chrome · Ø inside: 25 - 28 mm · Width: 40 mm · Mounting type: Nuts & bolts · Total length: 40 mm
Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Nominal diameter: 70 mm · Clamping diameter: 67 - 71 mm · Width: 28 mm · Thickness: 2 mm · Number of fixing points: 1 pcs · Ø mounting hole: 8.2 mm
Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø inside: 24 mm · Ø outside: 28 mm · Total length: 295 mm · Mounting type: Stud bolts & nuts · Number of fixing points: 2 pcs · Hole spacing outlet: 42 mm
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 70 mm · Total length: 730 mm · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp
Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Ø inside: 17 mm · Ø External connection: 23 mm · Mounting type: Stud bolts & nuts · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Total height: 73 mm · Height flange center hole: 61 mm · Total length: 45 mm · Area of application: Tuning, Racing, Performance
Nozzle block: 2.2 · Nozzle size: 74 · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 17 mm · Ø Internal connection: 23 mm · Ø Inside entrance: 17 mm · Ø Output inside: 17.1 mm · Ø Air filter connection: 27.5 mm · Ø fuel hose connection: 5 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 3 N/m, 4 N/m · Total length: 65 mm · Width: 47 mm · Height: 109 mm, 89 mm · Area of application: Tuning · Component group Carburetor: Carburetor complete
Manufacturer: GPO · Camouflaged: No · Color: yellow · Material: Steel · Surface: galvanized (yellow) · Height: 9.7 mm · Ø outside: 52 mm · Area of application: Tuning
Manufacturer: FST RACING · Color: black · Material: Plastic · Total length: 350 mm
Manufacturer: Made in Europe · Material: Steel, Chrome steel (colloquially known as stainless steel) · Ø inside: 20 - 32 mm · Surface: galvanized (blue), stainless
Nozzle size: 76, 78, 80, 82, 84, 86 · Manufacturer: swiing® revival parts · Material: Brass · Quantity: 6 pcs · Carburetor type: SRE, SRF, SRA (1/11/31) Velux, SRA (1/11/35) Velux, SRC · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Drive: Slot · Component group Carburetor: Spraying
Manufacturer: 66HEROES · Material: Chrome steel (colloquially known as stainless steel) · Surface: electropolished · Total length: 130 mm · Hole spacing: 100 mm · Thickness: 4 mm · Number of fixing points: 2 pcs · Ø mounting hole: 8.3 mm, 20 mm
| Nominal diameter | 45 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Aluminum |
| Area of application | Tuning |
| Displacement | 70 ccm |
| Ø piston pin (B) | 12 mm |
| Puch | Z50 (X30 Sport) |
