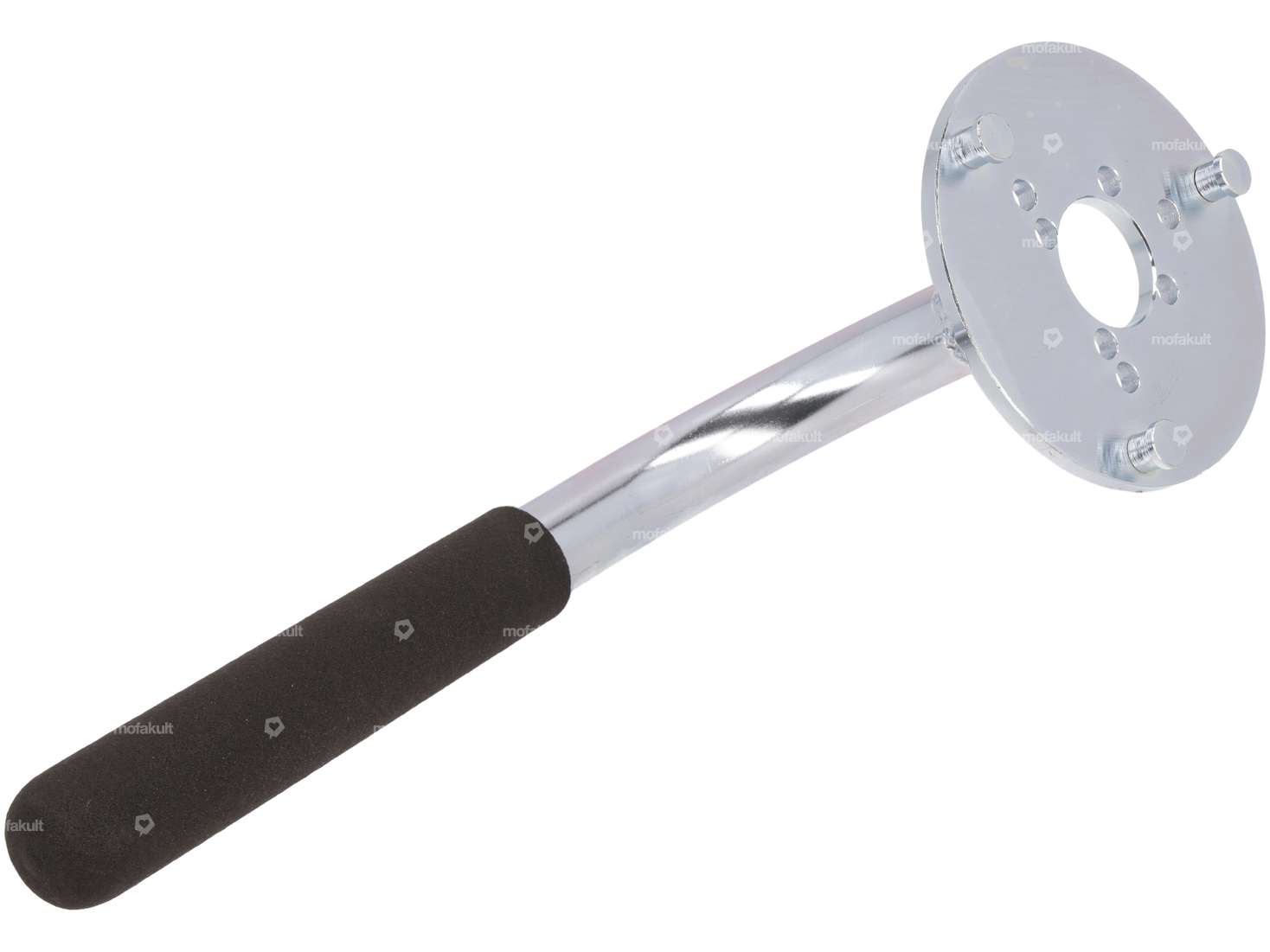

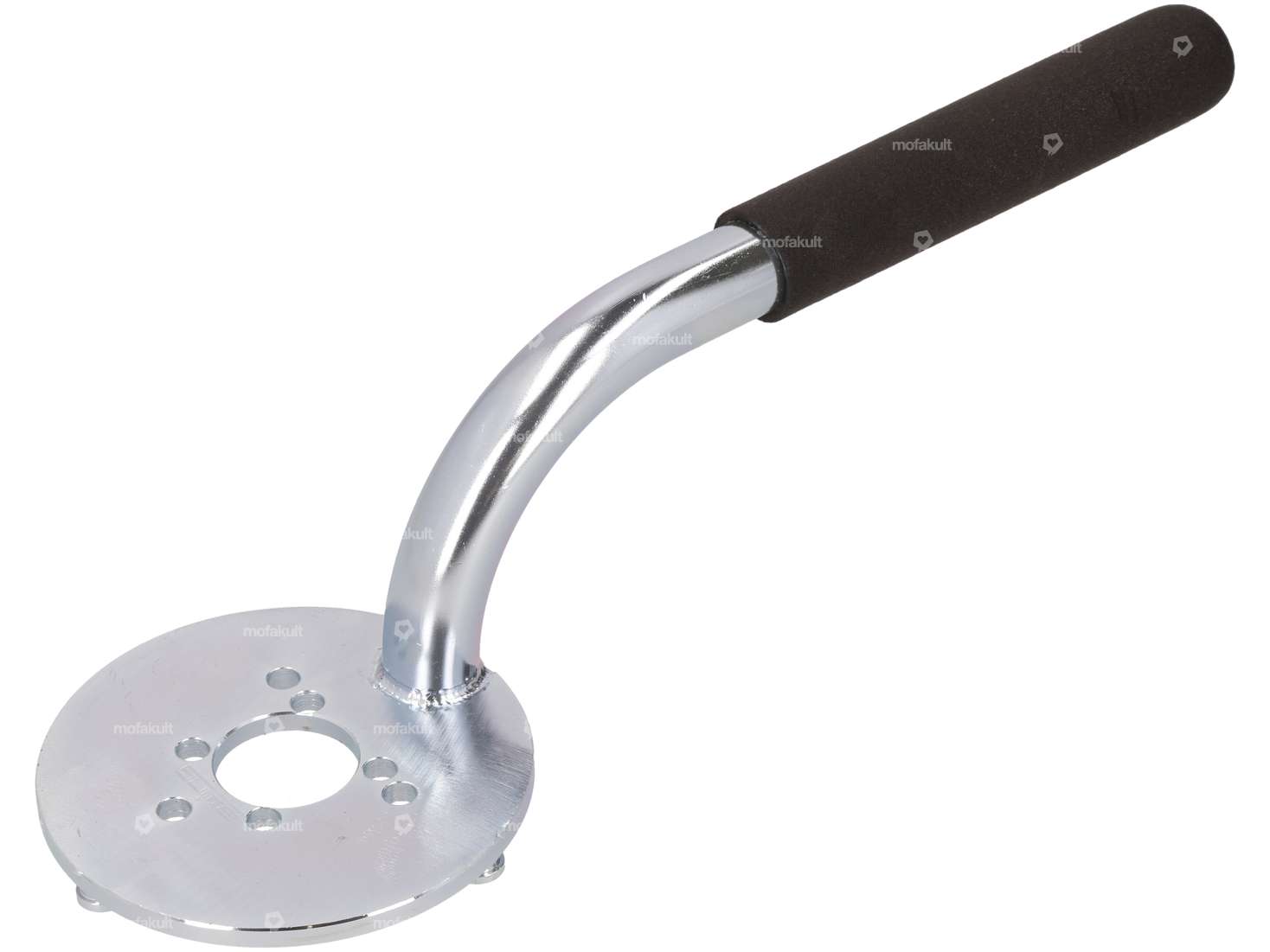

Very useful tool for fixing the flywheel.
The flywheel stopper can be used on all Bosch and Ducati flywheels, as well as those with the same masses.
Stable construction made of galvanized steel. Comfortable rubber grip.
Ø outer plate: 93 mm
Ø inner plate: 51 mm
Pin spacing: 68 mm
Ø pins: 8 mm
Pin length to heel: 5.5 mm

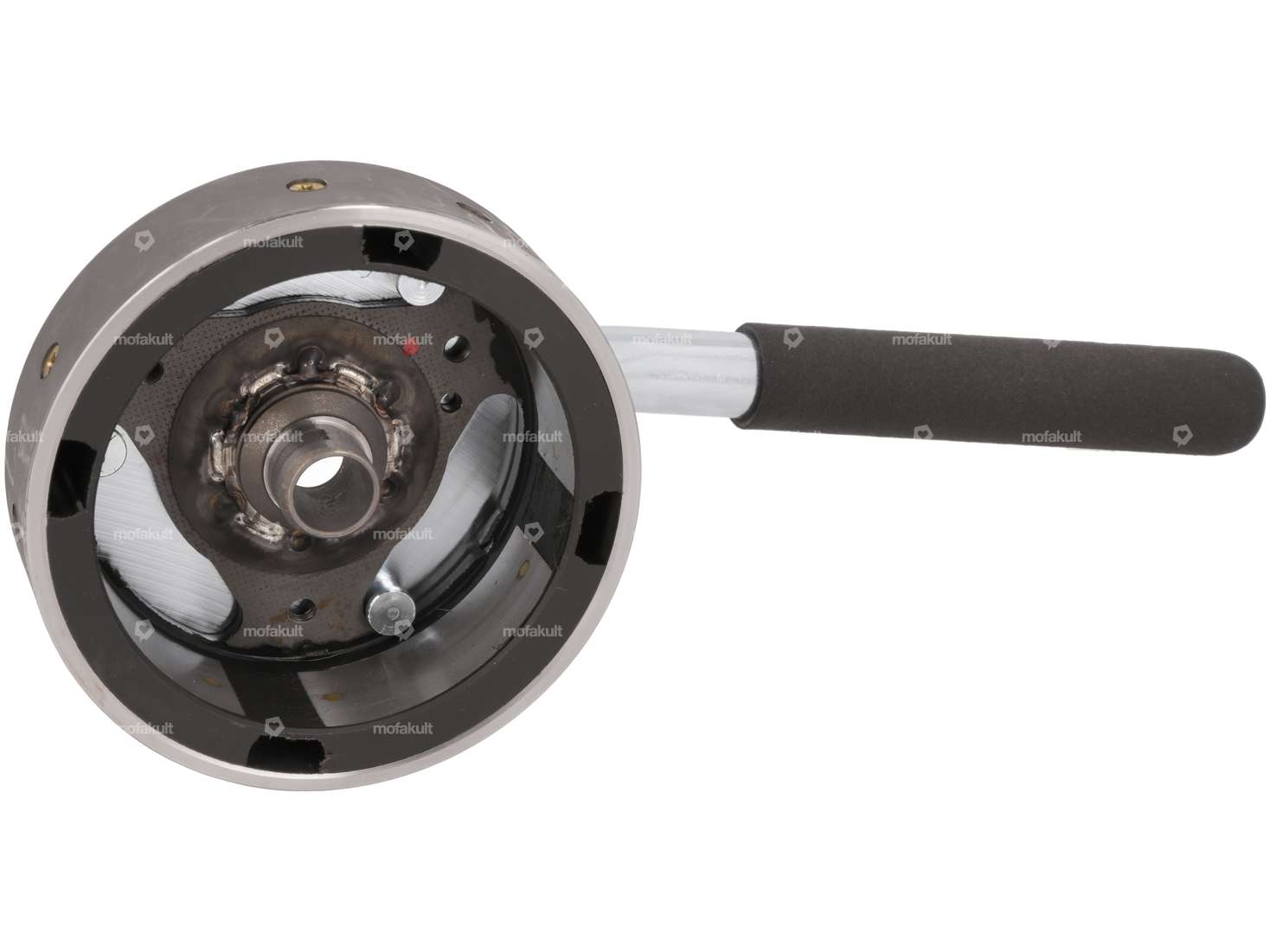

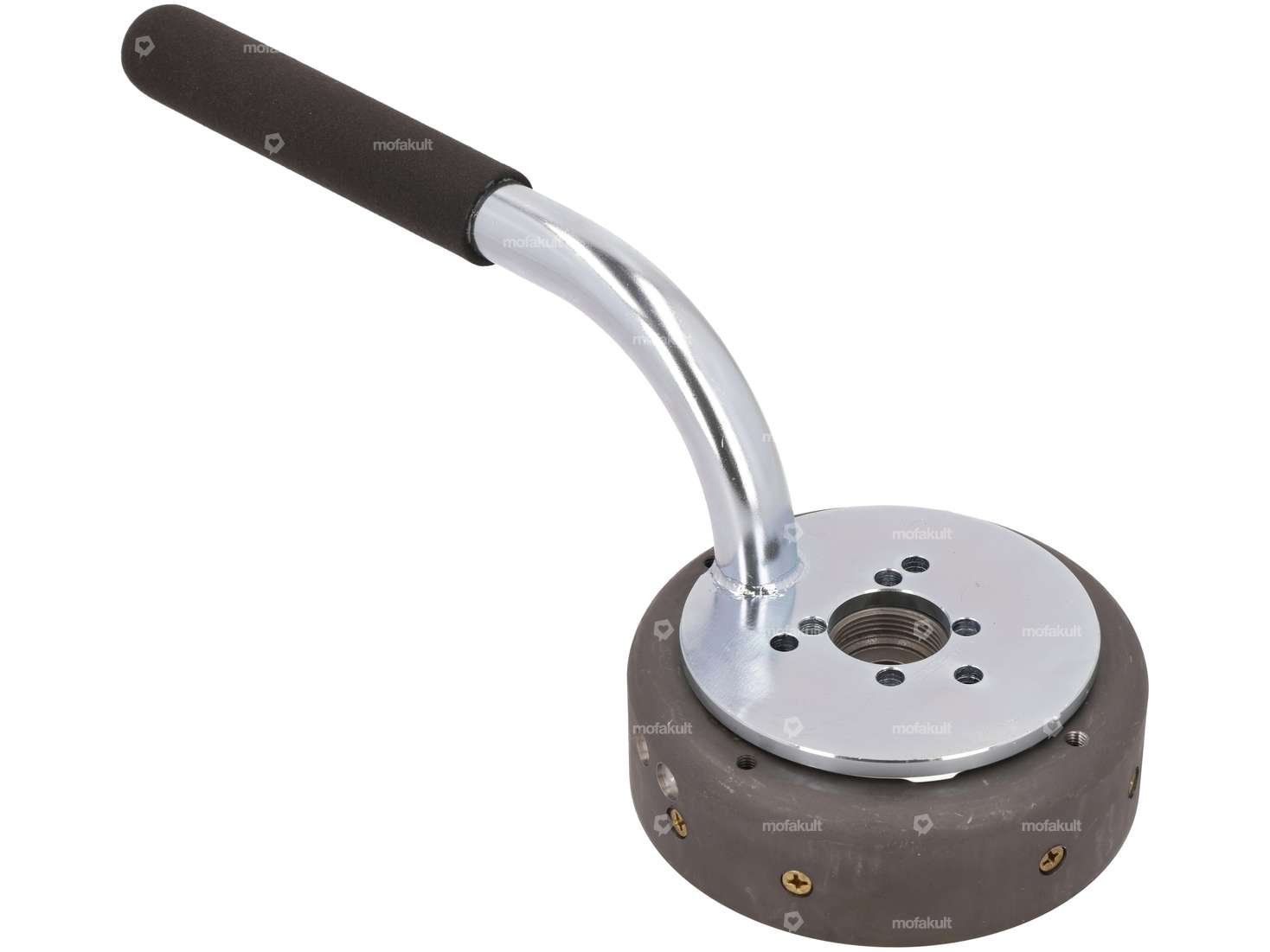

Figure 3 shows the application of the tool.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® ingenious parts |
| Area of application | Special tool |
| Material | Steel |
| Surface | galvanized (blue), rubberized |
| Diameter | 19 mm |
| Ø inside | 27 mm |
| Thickness | 5 mm |
| Ø outside | 93 mm |
| Total length | 290 mm |
| Number of components | 1 pcs |
| Height | 80 mm |
| Ø Pin | 8 mm |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 50/5 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 505 (with pedal shaft) - 1A (AT), 2A (HG) 535 |
| Zündapp Belmondo | |
| Zündapp | 247 Motor |
