Socket axle set with closed groove ball bearings (Ø 29 mm) for front cast hubs (Leleu) on your Puch moped / moped.
The threaded shaft set consists of a 165 mm long wheel axle, two special ball bearings and all required nuts and spacers.
The wheel axle set works with Leleu front wheel hubs, which are installed in cast rims.

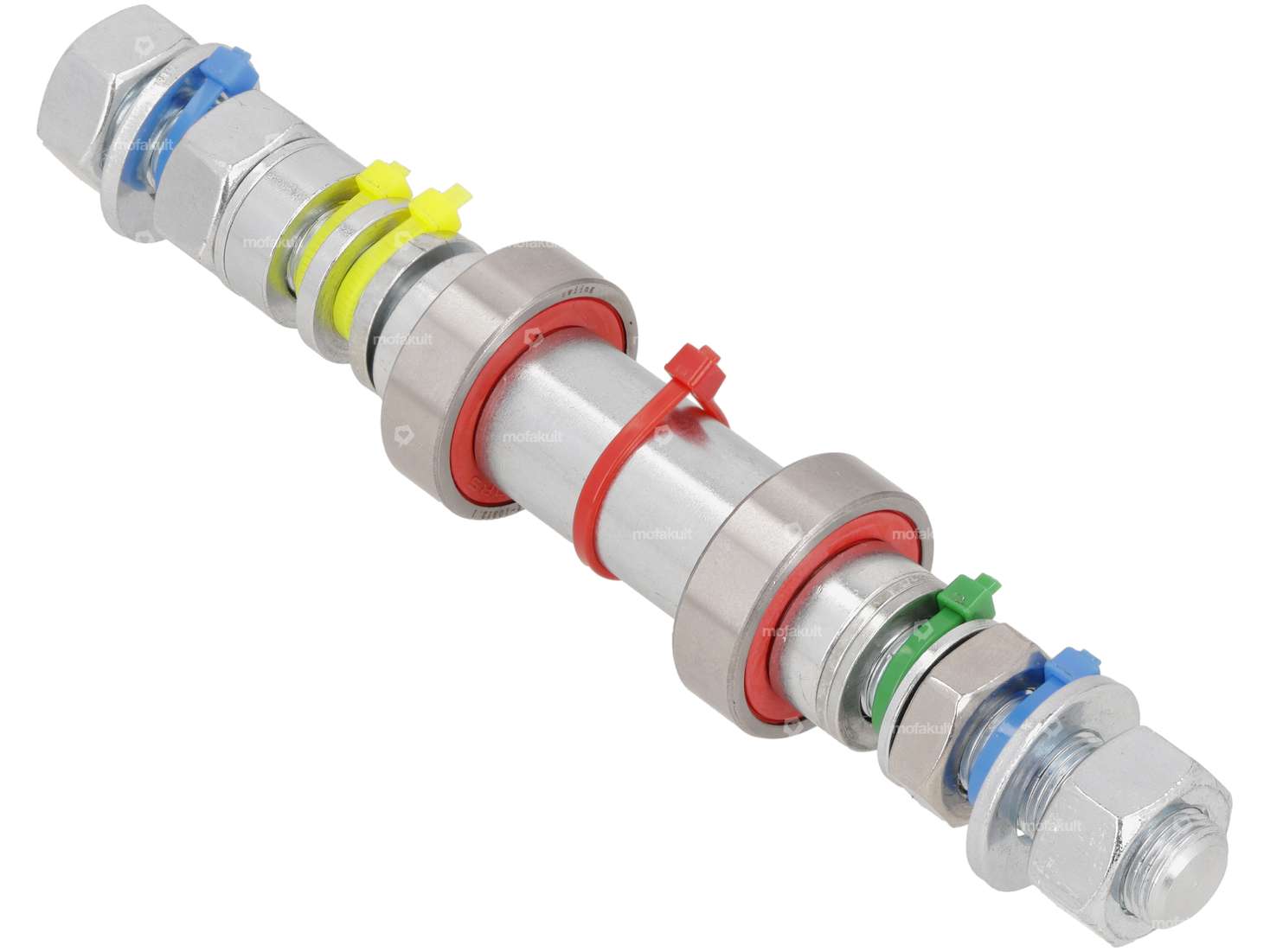

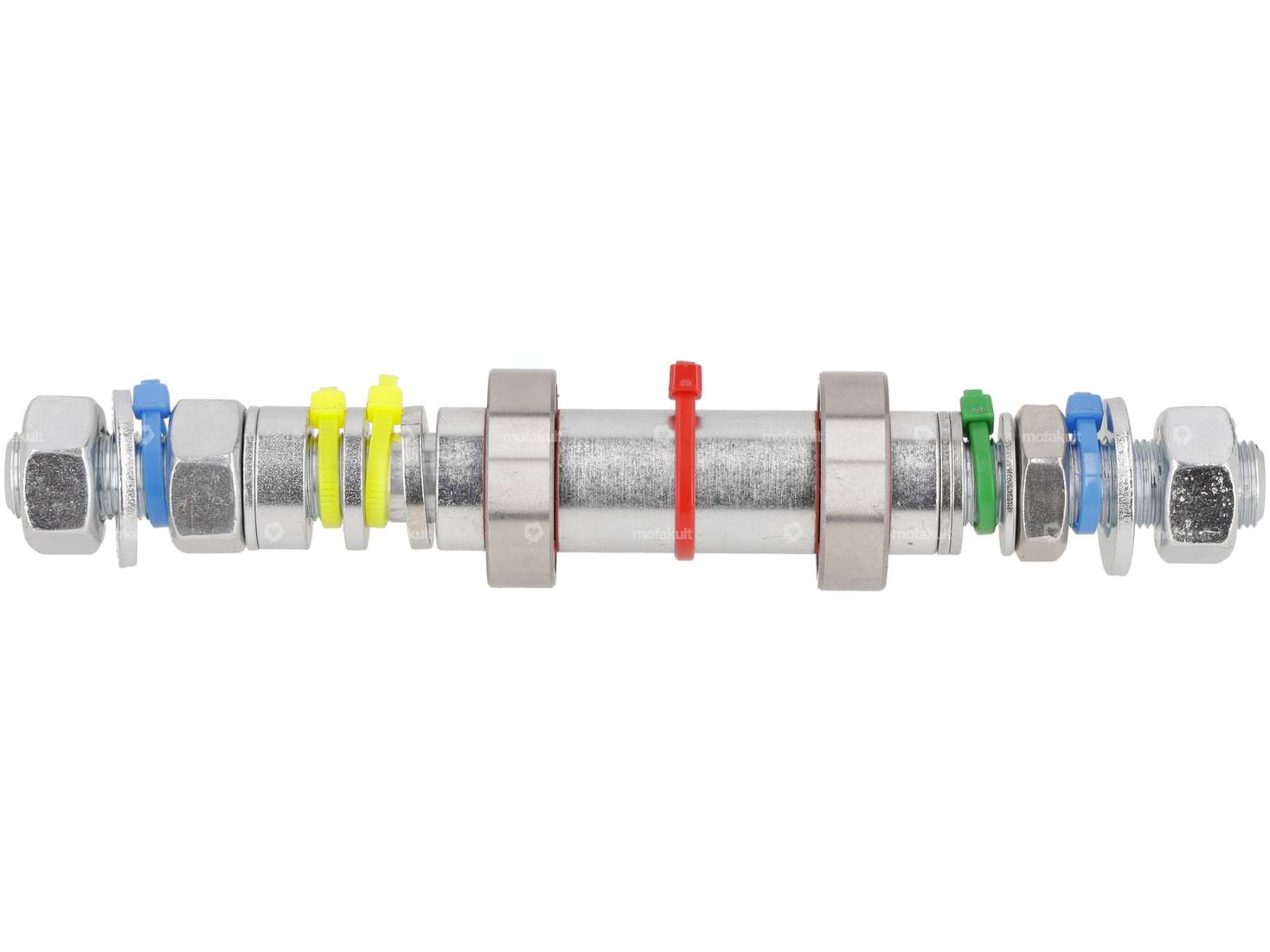

The cable ties show you where to mount what:
- Red marking: wheel hub
- Green marking: Brake anchor plate
- Yellow marking: Replacement disk for the speedometer drive (the disk is omitted if a drive is fitted)
- Blue marking: fork leg
Note: When installing the ball bearings, it is important to note that the long spacer bushing must be clamped between the two ball bearings to ensure that the two bearings press against the bushing with the inner ring. If this is not observed, the ball bearings will inevitably jam.
| Manufacturer | swiing® ingenious parts |
| Ball bearing closed | Yes |
| Material | Steel |
| Ø shaft | 11.95 mm |
| Thread type | MF12x1 (fine pitch thread) |
| Ø outside | 29.02 mm |
| Width | 34.5 mm, 6.6 mm, 11 mm, 2.7 mm |
| Ø inside | 12 mm |
| Height | 9.9 mm, 5.9 mm |
| Surface | galvanized (blue) |
| Total length | 165 mm |
| Width across flats | 19 mm |
| Shank length | 74.5 mm |
| Thread length | 50 mm, 40.5 mm |
| Puch |
