swiing® ingenious wheel axle with bearing conversion kit rear spoke hub | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 47.70

Incl. 25% VAT.

Description

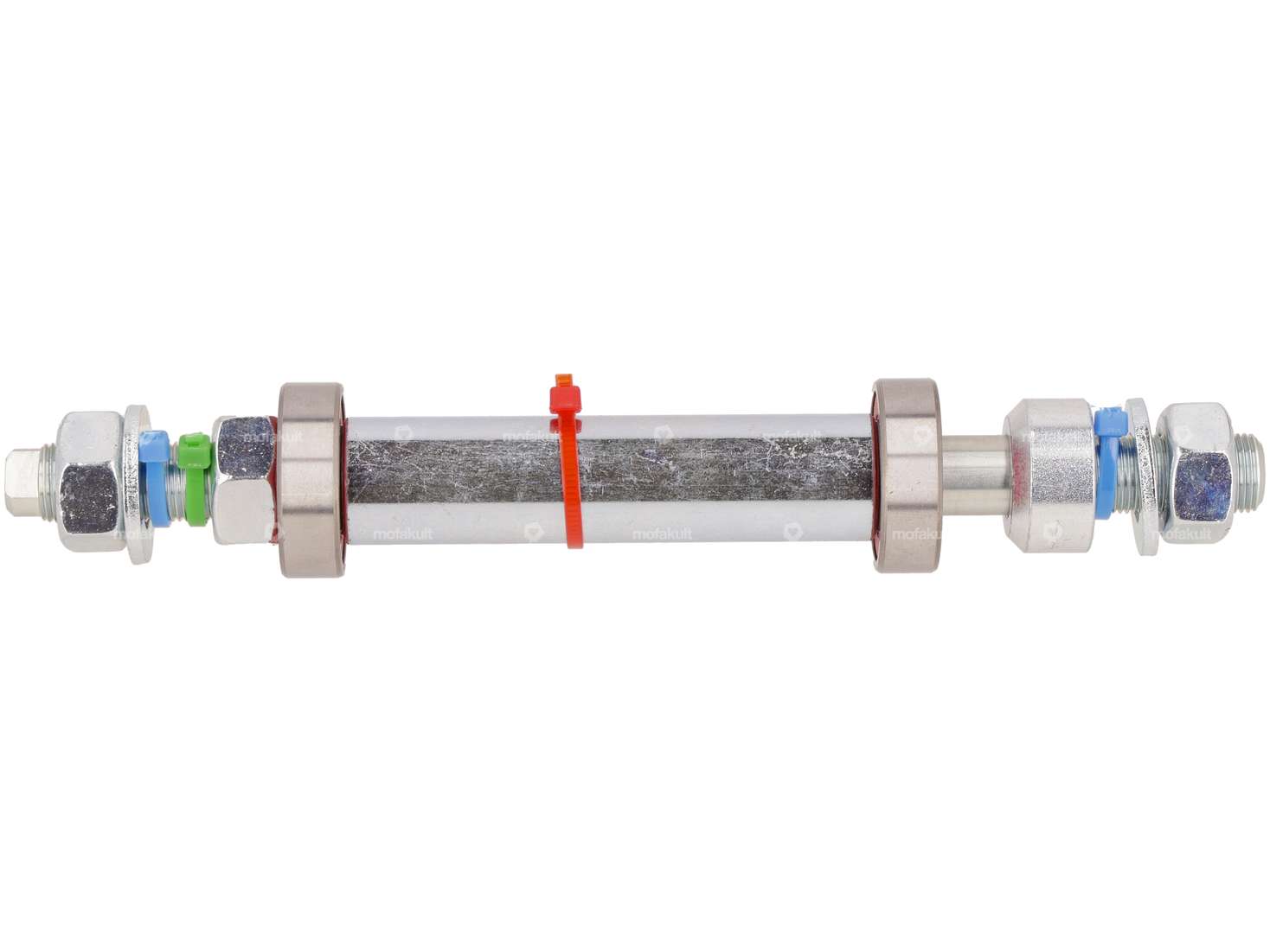

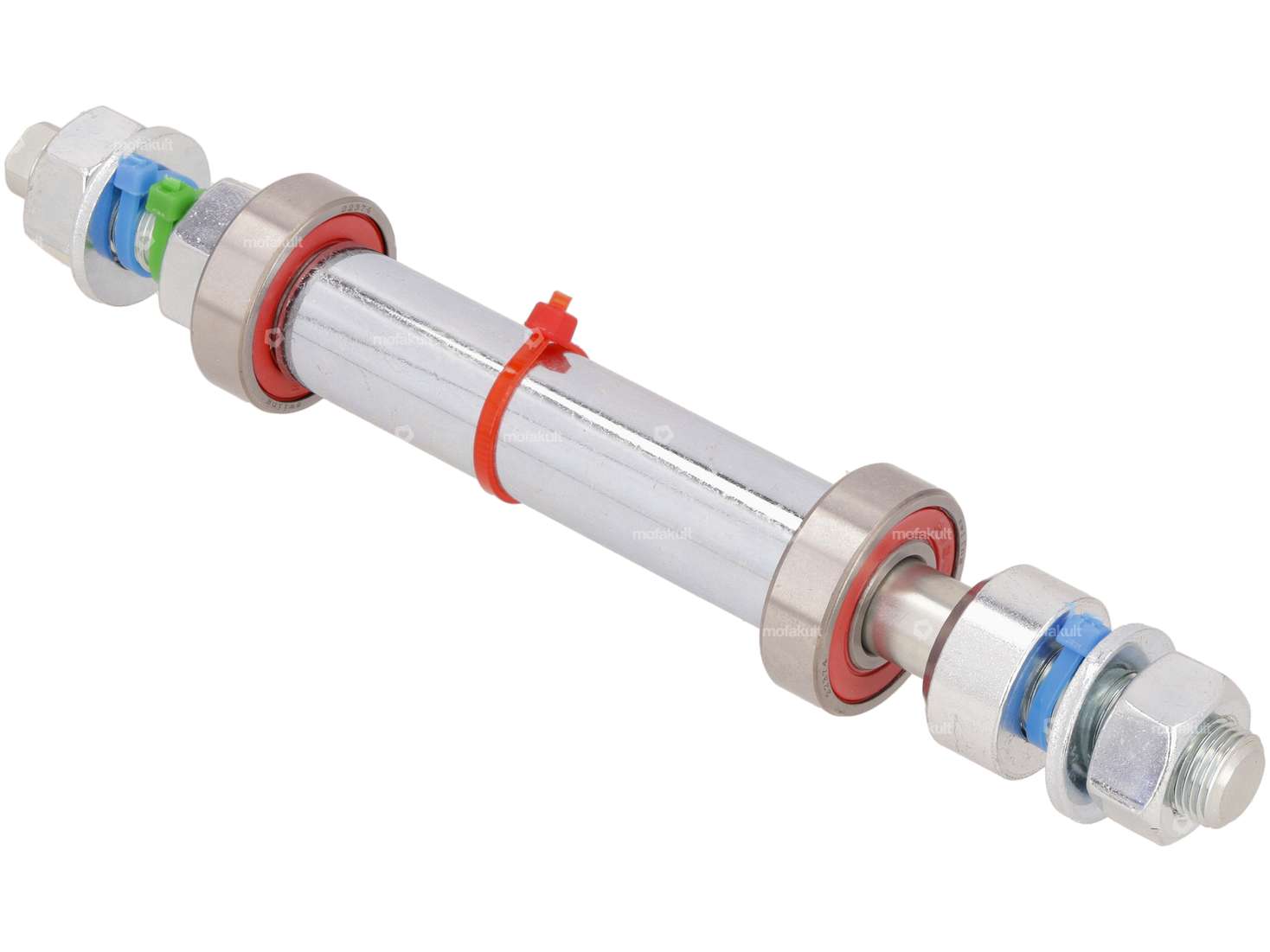

Wheel axle with closed groove ball bearings (Ø 29 mm) for the rear spoke wheel on your Puch moped / moped.

The rear wheel axle includes all required washers, nuts and spacer bushes.
The dimension of the long spacer sleeve is 78.5 mm.

The colored markings clearly show you which component is mounted in which position:

  • Green marking brake anchor plate
  • Blue marking: swing arm
  • Red marking: wheel hub

Note: When mounting the ball bearings, make sure that the long spacer bushing is clamped between the two bearings without any play. This is the only way to ensure that the inner rings of the bearings press correctly onto the bushing. If this is not observed, the bearings will inevitably become distorted.

Manufacturerswiing® ingenious parts
Ball bearing closedYes
MaterialSteel
Surfacegalvanized (blue)
Diameter29 mm
Ø shaft19 mm
Shank length100 mm
Ø inside12 mm
Thread typeMF12x1 (fine pitch thread)
Ø outside29 mm
Total length190 mm
Thread length29 mm, 53 mm
Width across flats19 mm
