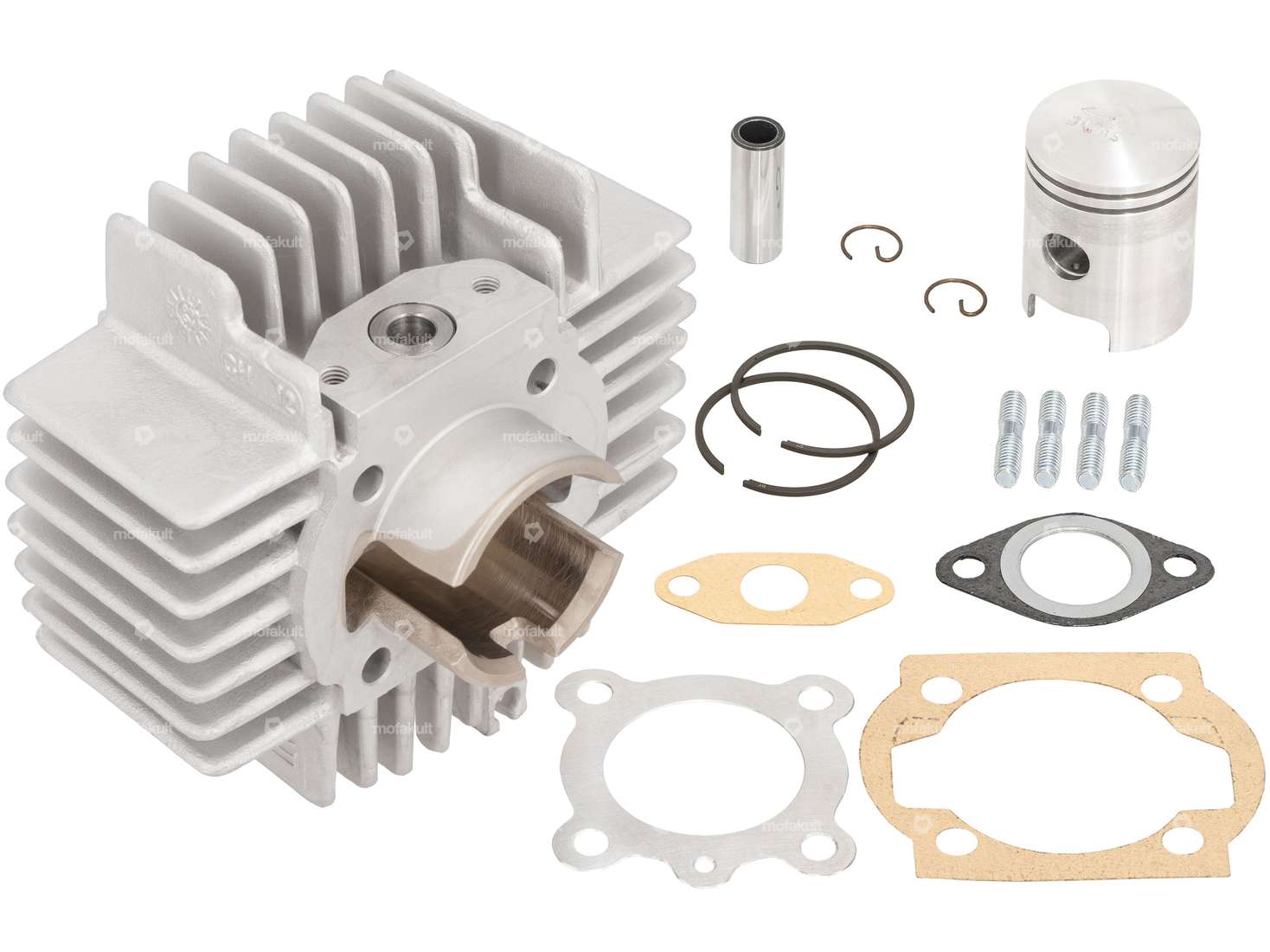

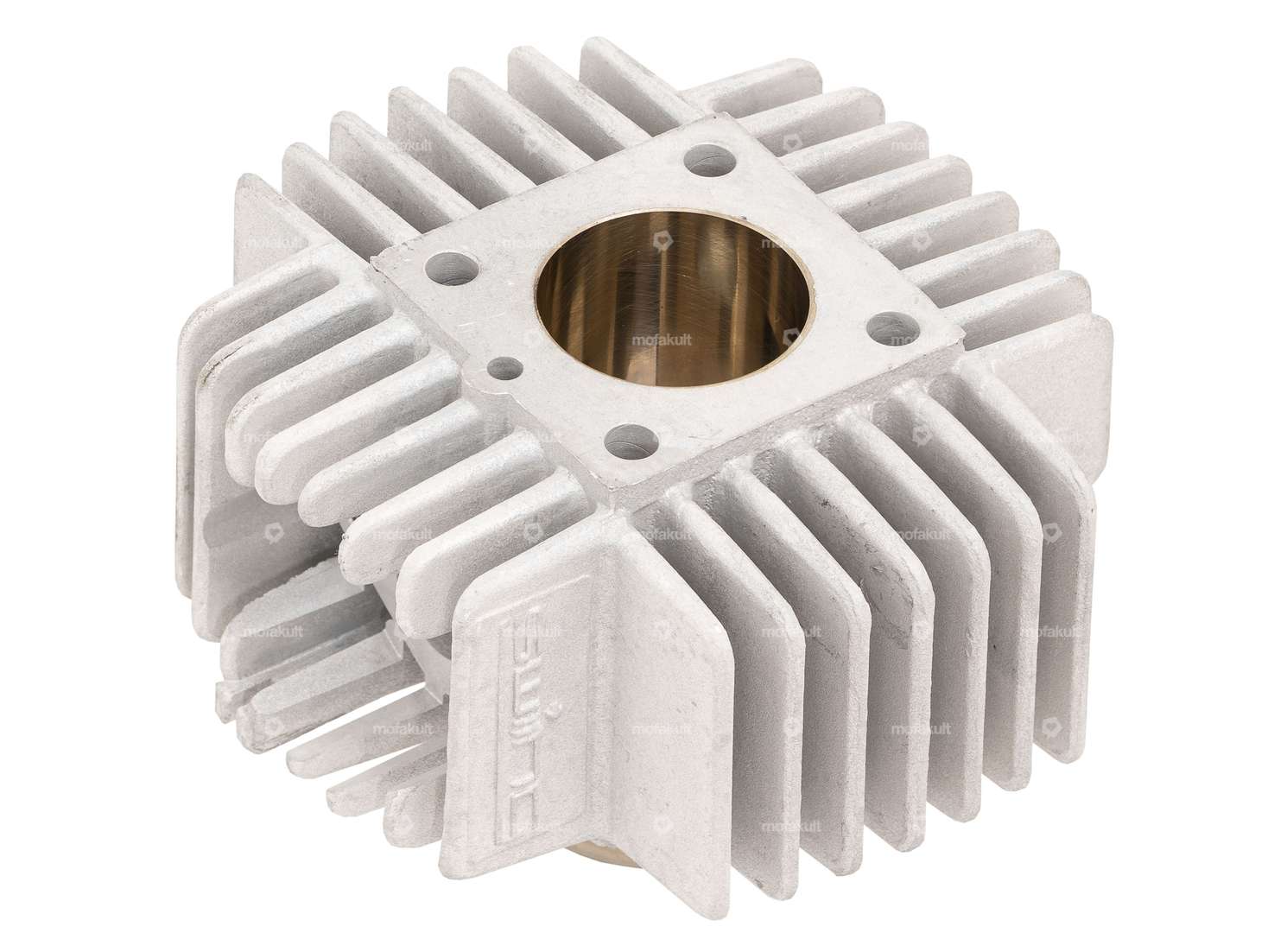

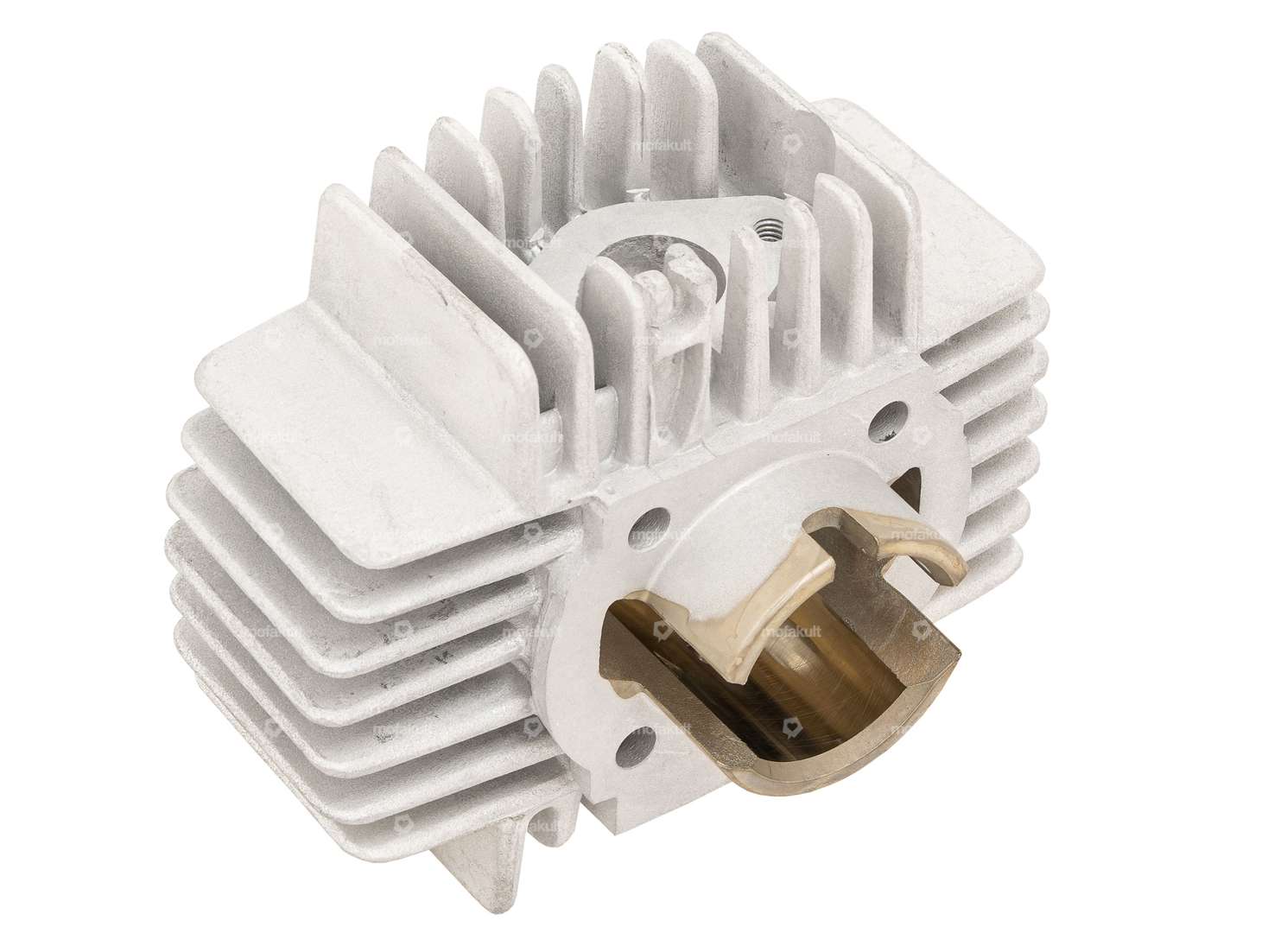

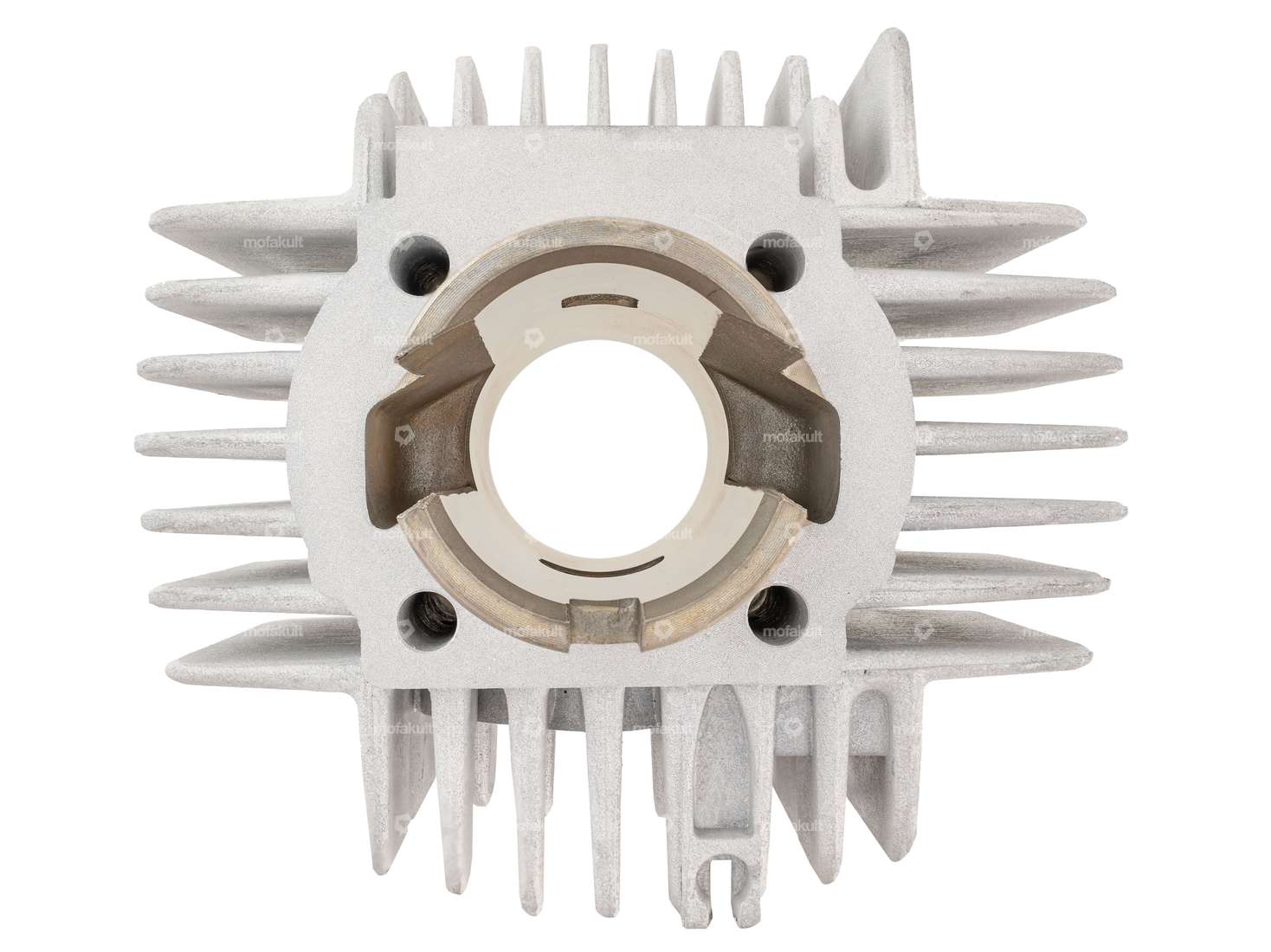

swiing® revival 38 mm cylinder kit 1.6 hp CH12 "original" | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 159.20

Incl. 25% VAT.

Description

Lightly optimized, high-quality 38 mm original cylinder suitable for various Puch mopeds / mopeds such as Maxi S / N and Puch X30 NS / NL.

With this cylinder, you can reach your destination quickly and powerfully

.
  • The intake window has been moved slightly downwards to achieve better timing
  • Lubrication holes on the piston to the piston pin.
  • The inner flats on the piston were milled flat for clean guidance of the connecting rod bearing
  • The piston skirt has been optimized
  • The inlet angles of the transfer ports have been adjusted
  • Intake and exhaust largely milled flat (exhaust and intake manifold can be fitted without any problems)

With these optimizations, the 38 mm cylinder kit delivers a whopping 1.6 hp to the rear tire with the correct setting. This makes it the most powerful 38 mm cylinder with seal for Puch ever!

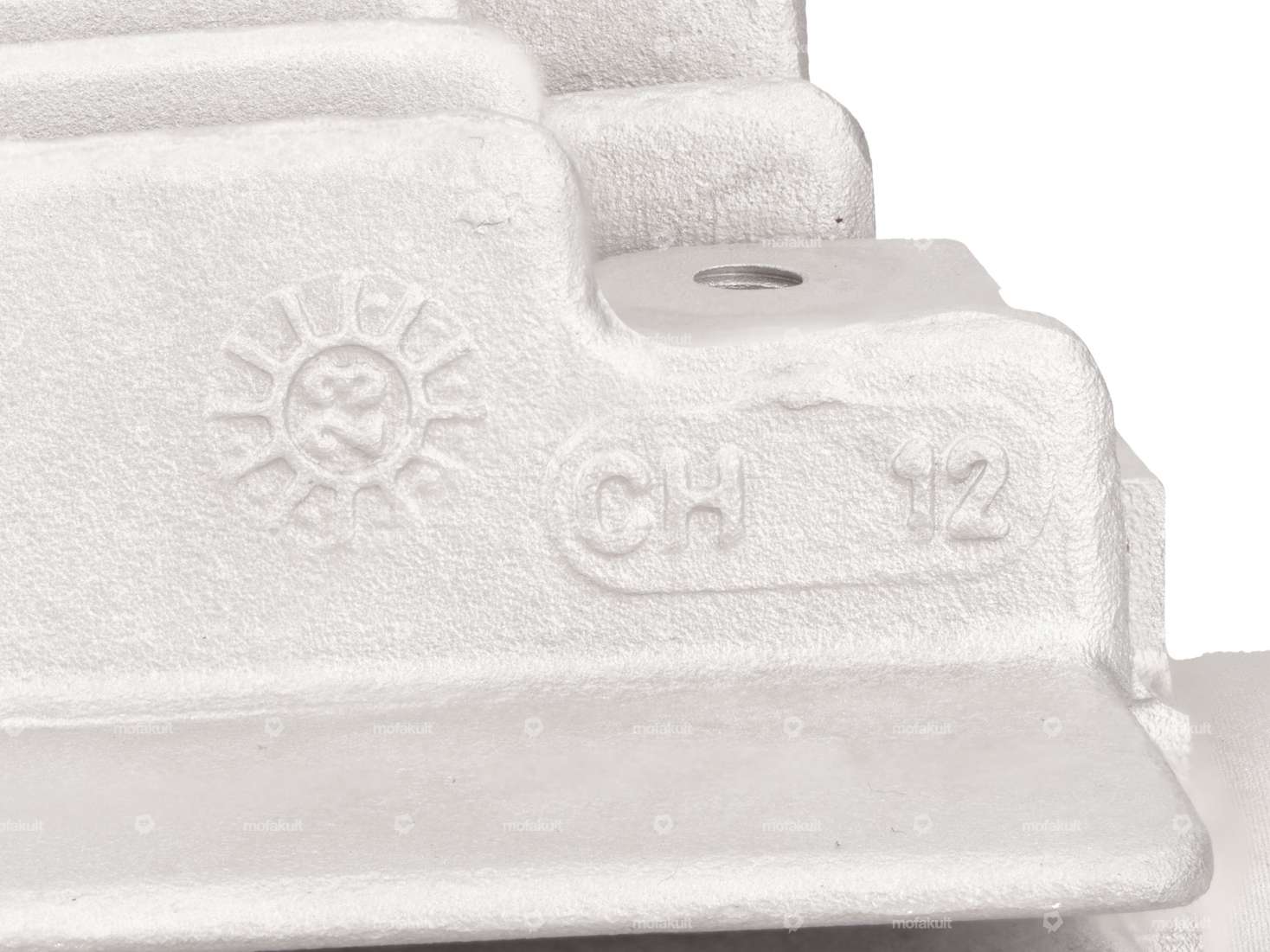

Of course, the original «CH12» is also cast in.

You can find detailed installation instructions in the video below.

Download Montageanleitung
Manufacturerswiing® revival parts
MaterialAluminum
Surfacesandblasted
Displacement50 ccm
Crankshaft stroke43 mm
Nominal diameter38 mm
Ø cylinder neck48 mm
Ø outlet inside19 mm
Ø Inlet inside9 mm
Hole spacing inlet38 mm
Ø piston pin (B)12 mm
Thread inletM6x1 (standard thread)
Number of fixing points4 pcs
Hole pattern [mm]44 x 44
Area of applicationStandard
Outlet typestraight
Hole spacing outlet42 mm
Thread outletM6x1 (standard thread)
DecompressorYes
CamouflagedYes
Alternative version of the Puch OEM number349.7.10.105.0
Puch

E50

Z50 (X30 Sport)
