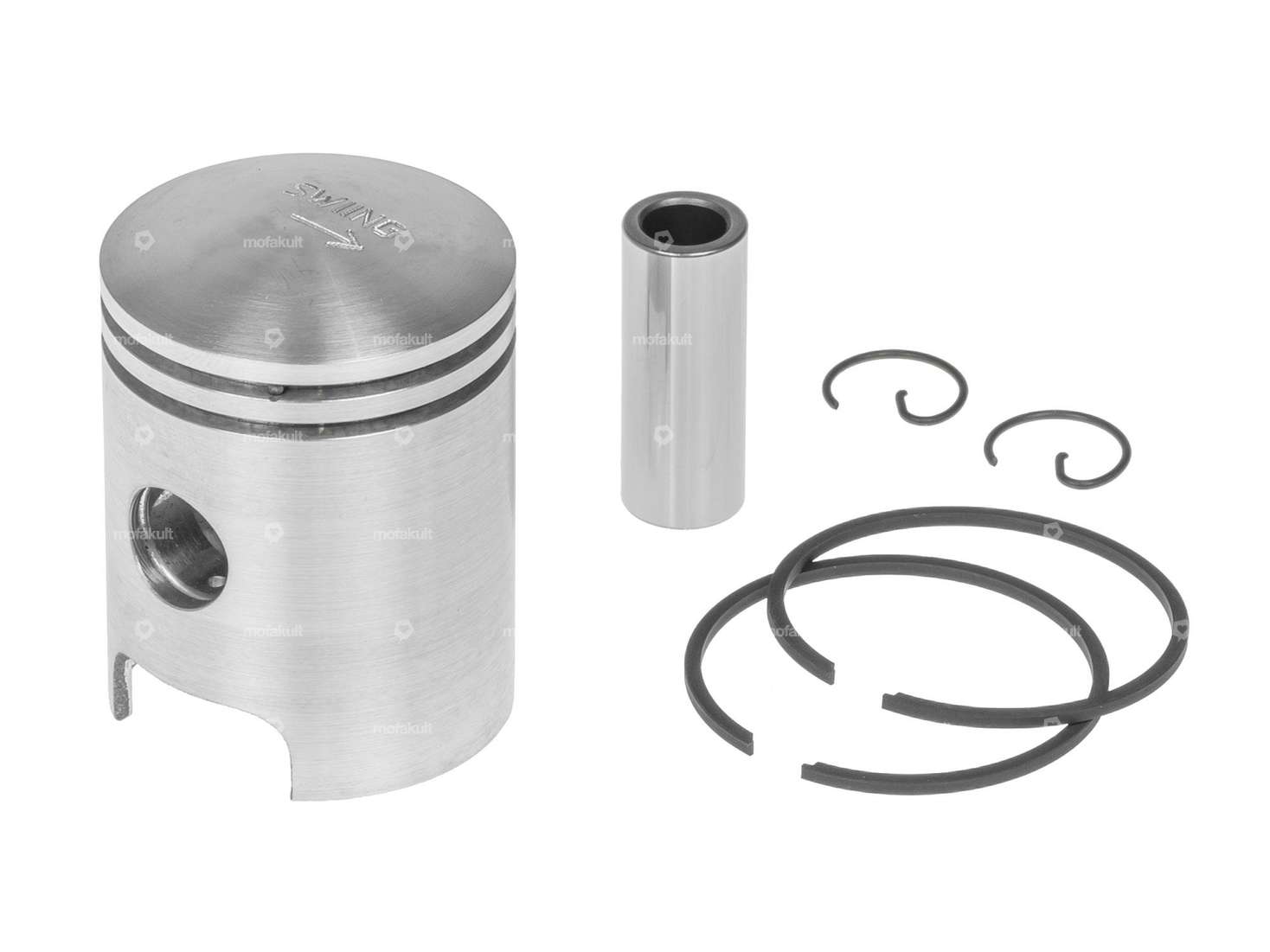

38.0 mm piston with two rectangular piston rings with internal fuse (IS) suitable for your moped / moped with 38 mm swiing cylinder kit with seal.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories.
Nostalgic product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® revival parts |
| Ø outside piston (A) | 37.96 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 22.6 mm |
| Curvature (D) | 2.5 mm |
| Total piston height (E) | 50.45 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Nominal diameter | 38 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston weight | 74 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 24.40
swiing® revival 38 mm cylinder kit 1.6 hp CH12 "Original" | Puch
Manufacturer: swiing® revival parts · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Ø cylinder neck: 48 mm · Ø Inlet inside: 9 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 19 mm · Ø piston pin (B): 12 mm · Hole spacing outlet: 42 mm · Decompressor: Yes · Number of fixing points: 4 pcs · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Hole spacing inlet: 38 mm · Area of application: Standard · Alternative version of the Puch OEM number: 349.7.10.105.0
EUR 128.70
Moped fans also bought
BERU spark plug connector / 1 kΩ interference suppressed
Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Component group Carburetor: Spark plug connector · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00
EUR 10.80
Inner cable set automatic | Puch E50
Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Manufacturer: Made in Germany · Material: Steel · Quantity: 4 pcs · Total length: 1600 mm · Total length: 2200 mm
EUR 12.10
swiing® revival 12 mm carburetor (original) | Puch
Manufacturer: swiing® revival parts · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: gray · Mounting type: Plug connection clamped · Total length: 65 mm · Carburetor type: SRE · Width: 50 mm · Nominal diameter: 12 mm · Height: 108 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.15 · Nozzle size: 52 · Clamping screw torque (max.): 4 N/m · Area of application: Standard
EUR 85.70

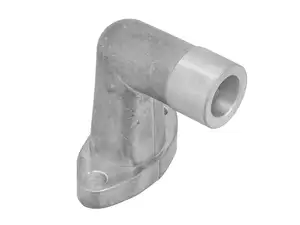

swiing® revival 12 mm intake manifold | Puch E50
