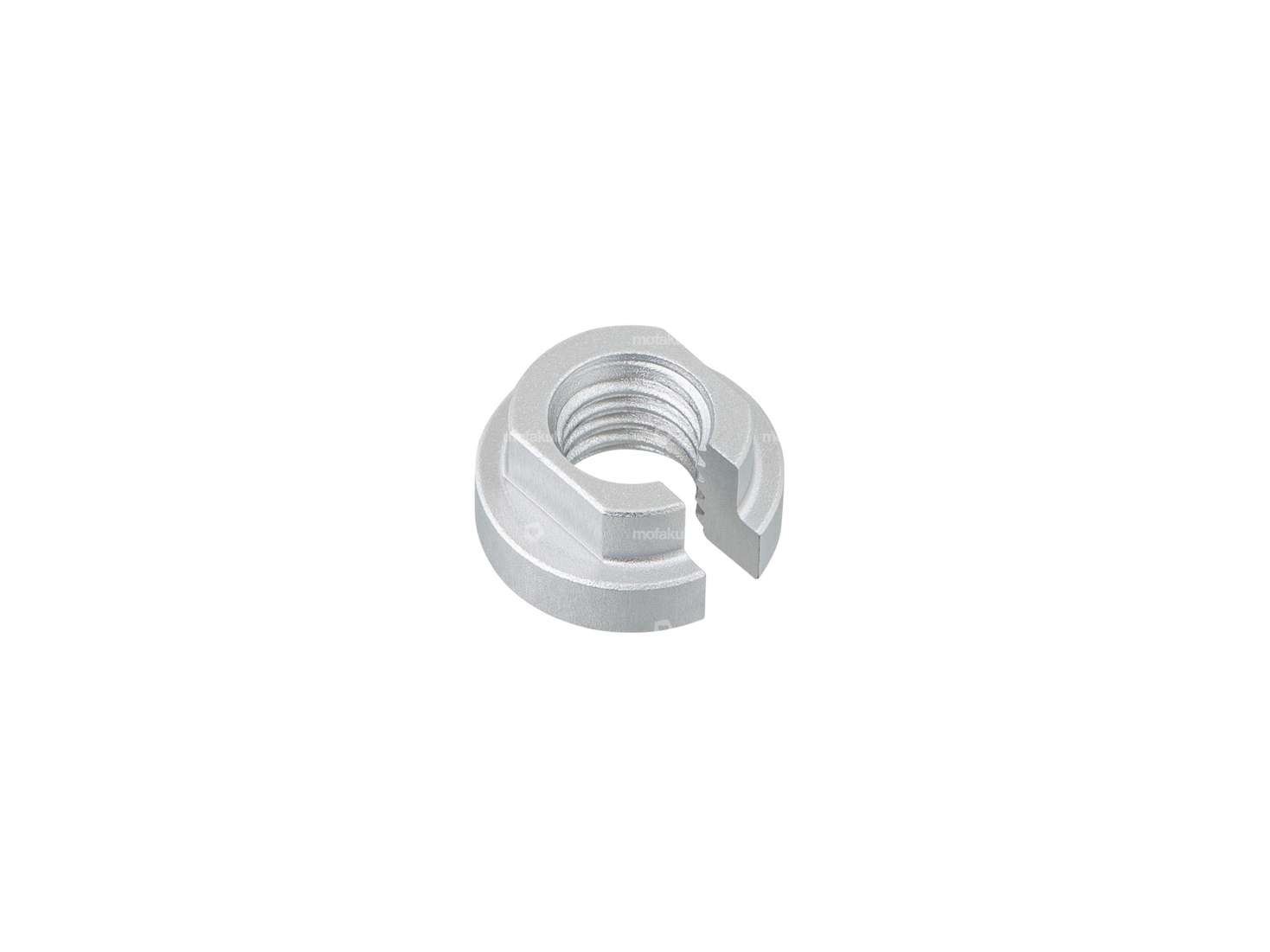

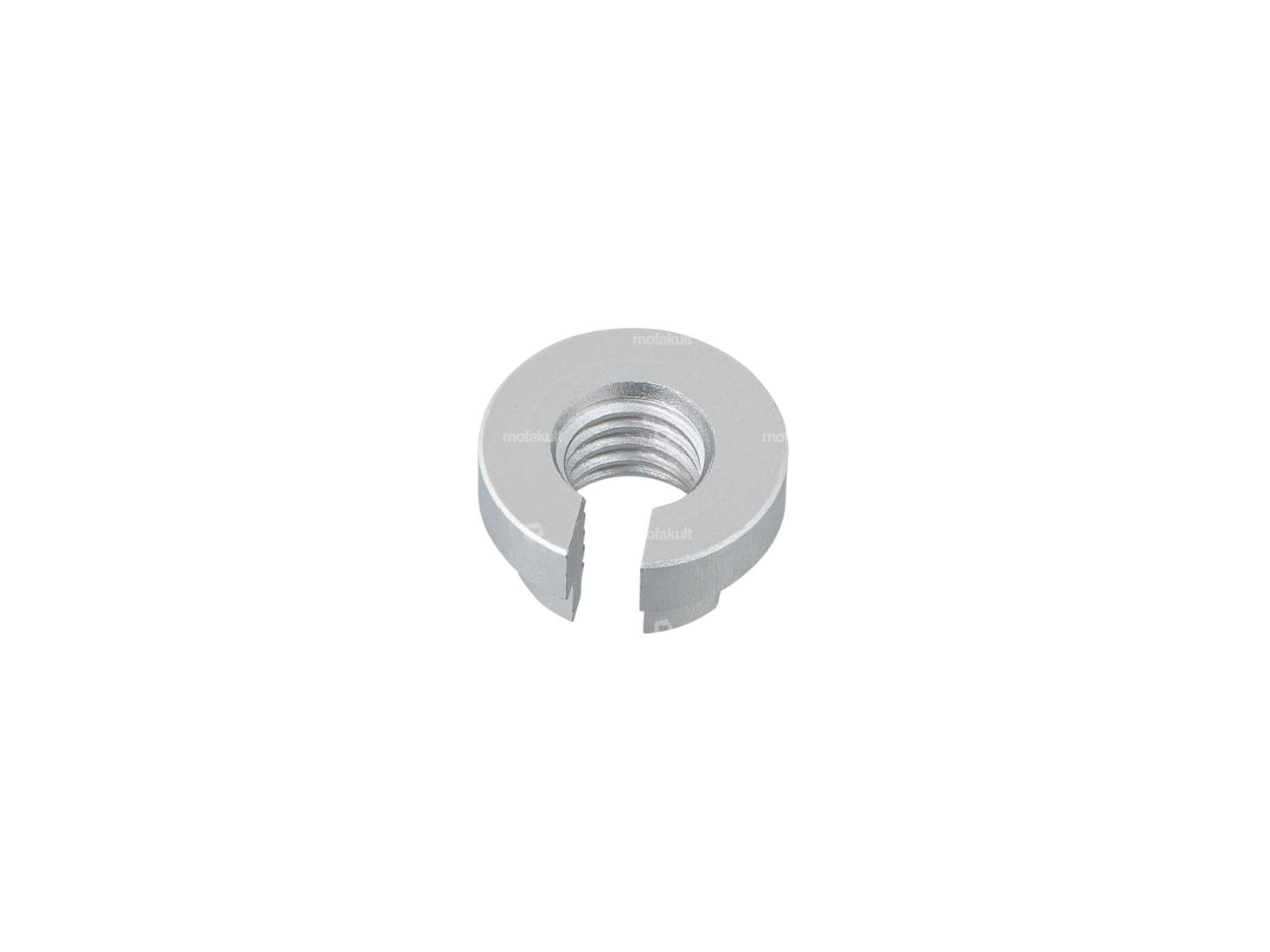

Special adjusting screw holder made of aluminum to be able to mount adjusting screws on the old Magura grips on your moped, moped and small motorcycle.
The holder is pushed into the Magura grip with the chamfered side.
Attention: Only applicable to the old Magura grips, where the throttle cable is mounted directly with a cable clamp in the grip tube (not suitable for the new grips with sliding block).
Internal thread: M6x1 mm (standard set screws)
Material: aluminium
Surface: colourless anodized

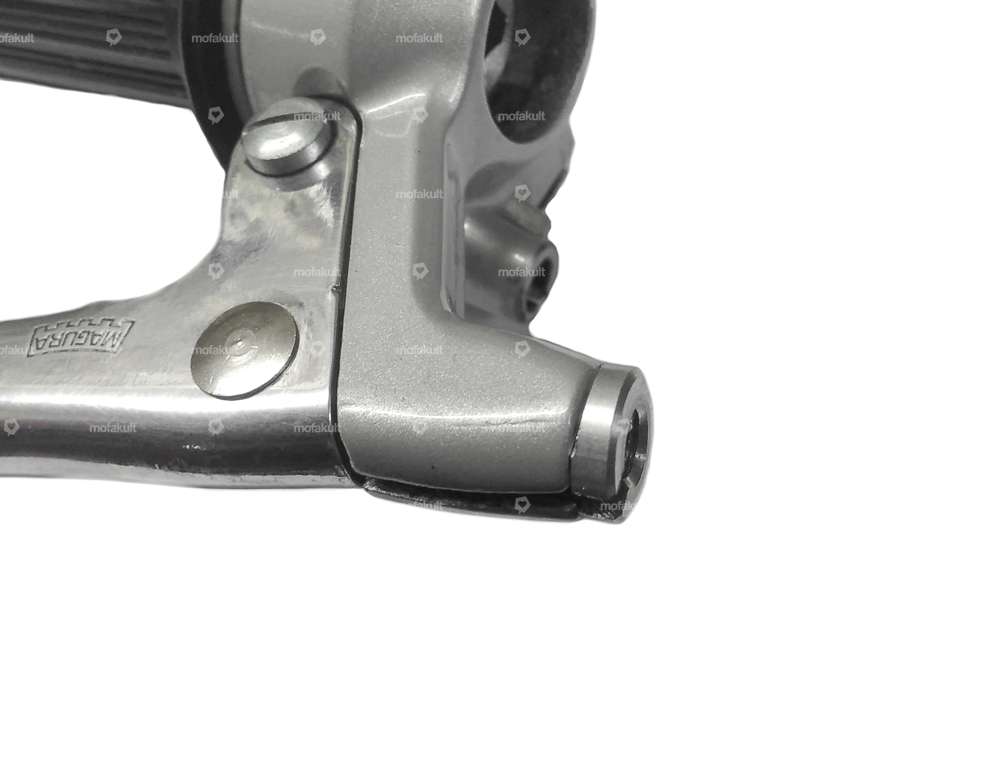

Figures 4 & 5 show the mount in assembled condition.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Manufacturer | swiing® revival parts |
| Material | Aluminum |
| Surface | anodized |
| Thread type | M6x1 (standard thread) |
| Color | silver, transparent |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | |
| Zündapp Belmondo |
