swiing revival parts transparent

For: Sachs

21012

swiing® revival piston 38 mm | Sachs 503

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 67.30

Incl. 25% VAT.

Description

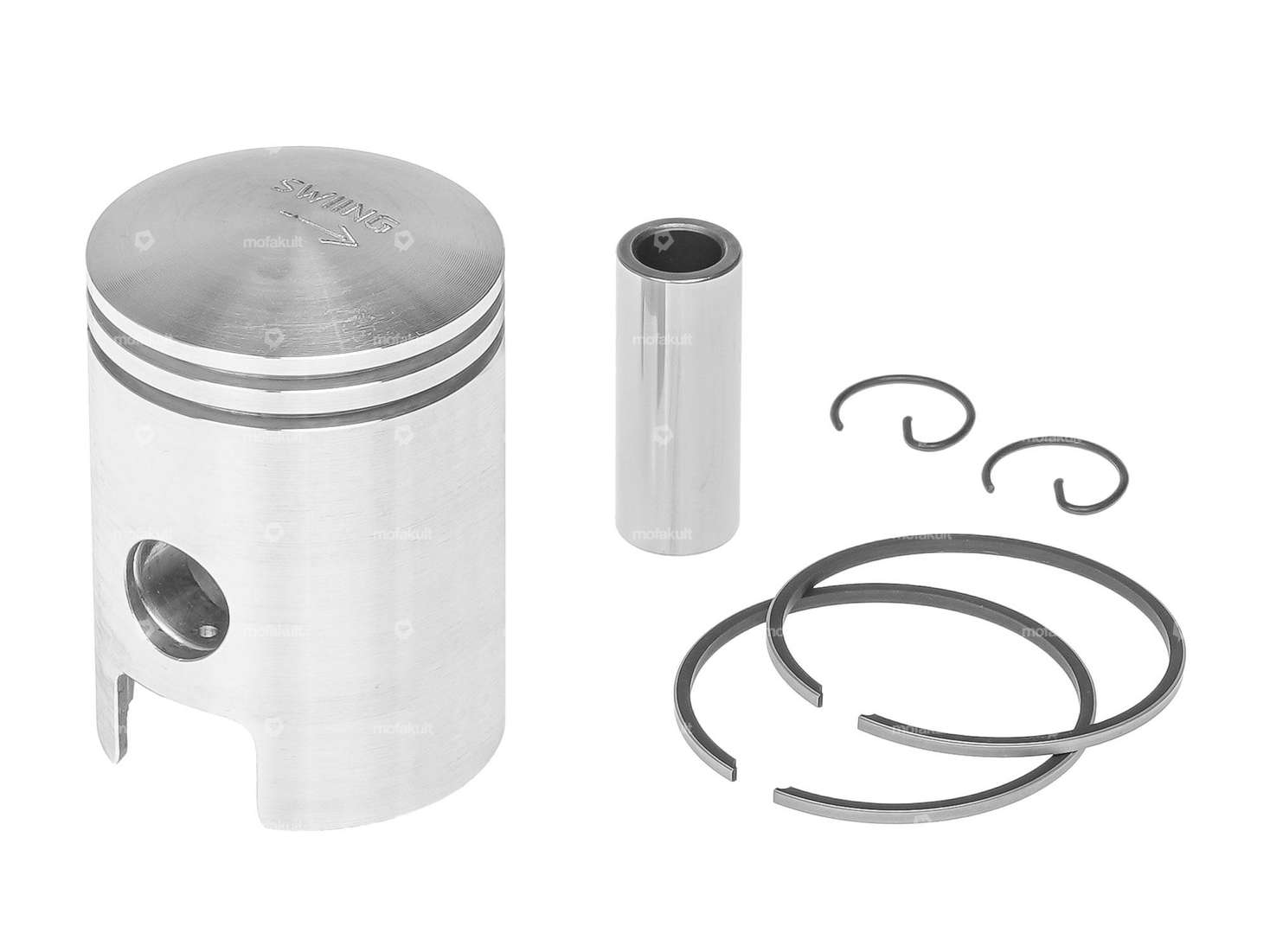

38.0 mm piston kit with two 1.5 mm rectangular piston rings with internal fuse (IS) for swiing aluminum cylinder for Sachs 503 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Manufacturerswiing® revival parts
Ø outside piston (A)37.97 mm
Compression height (C)28 mm
Curvature (D)3.6 mm
Total piston height (E)54.1 mm
Number of piston rings (F)2 pcs
Nominal diameter38 mm
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Weight piston kit73 g
Sachs

503 - AAL , ABL , 2AL / 2BL

Accessories & related products

Airsal piston pin lock Ø 12 mm (single)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

10240

Airsal piston pin lock Ø 12 mm (single)

Material: Spring steel · Manufacturer: Airsal · Ø outside: 12 mm · Number of sensors / lugs: 1 pcs

EUR 1.50

Hot Hot
Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L
undefined

Universal

10610

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

EUR 31.80

EUR 31.80/l

Buzzetti pliers for piston ring assembly
undefined

For: Sachs · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp · Franco Morini

15195

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

EUR 16.60

Meteor piston pin lock Ø 12 mm (double)
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha

17313

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

EUR 1.50

GPO piston pin extractor Ø 10, 12, 14 mm
undefined

For: Universal · Puch · Sachs · Pony / Cilo (Beta 521 & 512) · Piaggio · Zündapp Belmondo · Solex · Tomos · Bye Bike · Alpa Chopper / Turbo · Cilo · DKW · Fantic · Garelli · Honda · Hercules · ILO / JLO · Kreidler · Malaguti · MBK / Motobécane · Miele · --- PLEASE USE --- · Monark · Peugeot · Victoria · Yamaha · Zündapp

17988

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Material: Steel · Surface: burnished · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool · Number of components: 7 pcs

EUR 24.40
