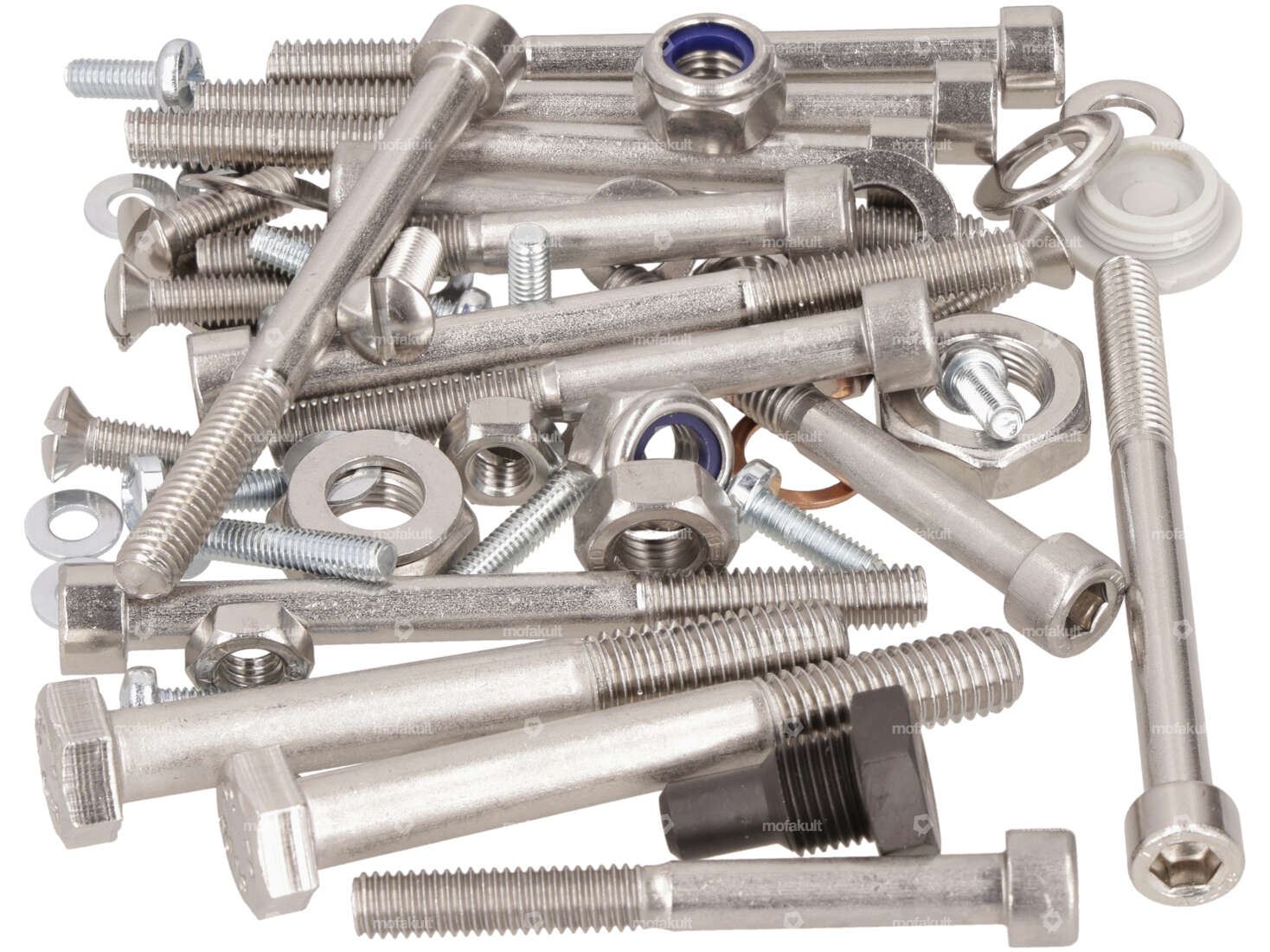

Complete screw set suitable for your moped / moped with Sachs 504/1, 504/2 or 508/1 engine. The screw set covers all three versions.
This set is also suitable for earlier Hercules Prima M models which were equipped with Sachs 504 engines.
The screw set includes all screws, washers, lock washers, nuts, stud bolts etc. which are required for a professional engine overhaul.
With a few exceptions, all components are made of stainless steel.
A list with the corresponding mounting points is included in the scope of delivery.
You will find the galvanized steel version together with the matching seal set and bearing set in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (colloquially known as stainless steel) |
| Surface | stainless |
| Number of components | 61 pcs |
| Sachs | 504 (without pedal shaft) 508 - 1 A |
| Hercules | Great - 2 , 3 , 4 , 5 |
