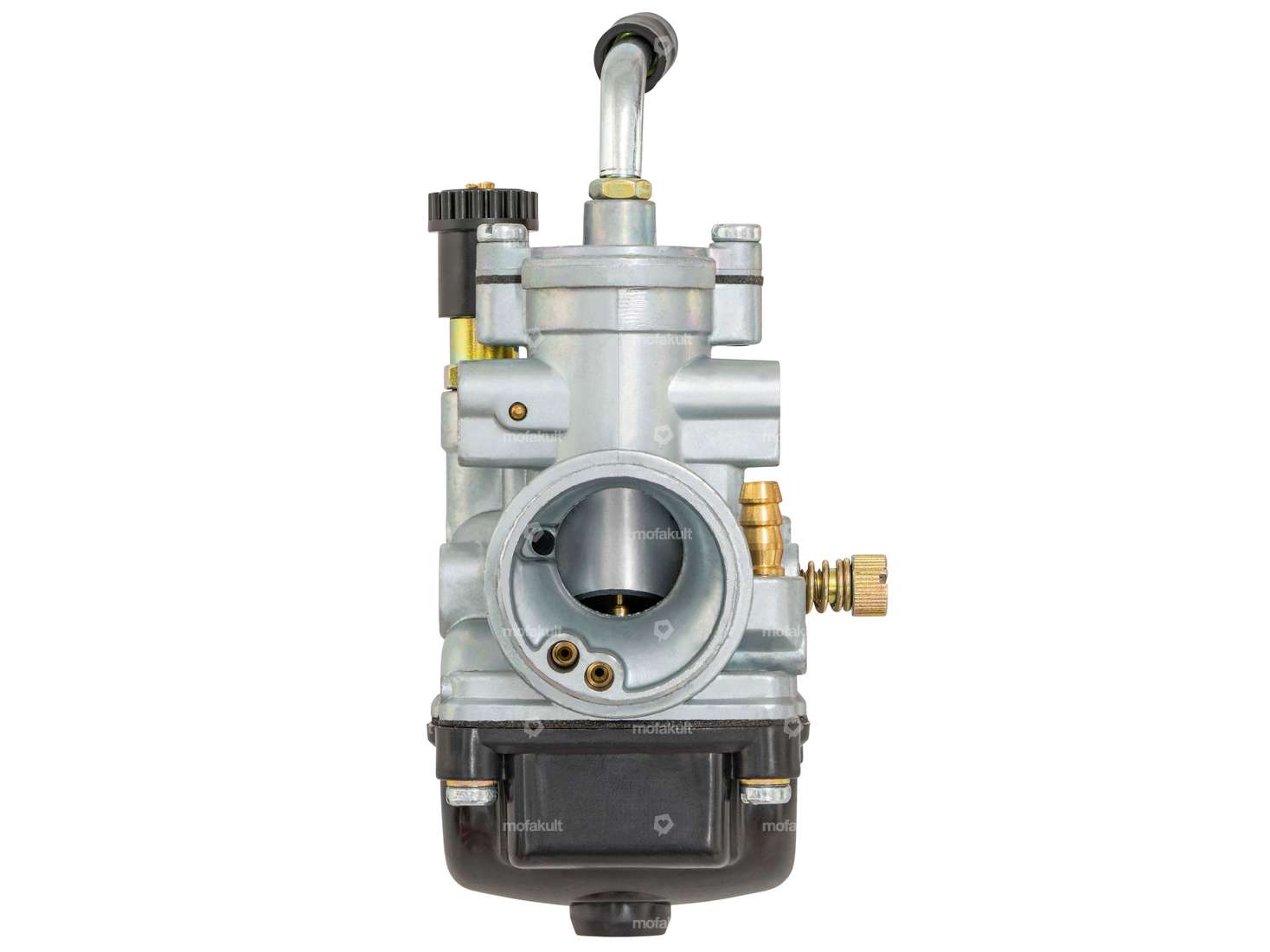

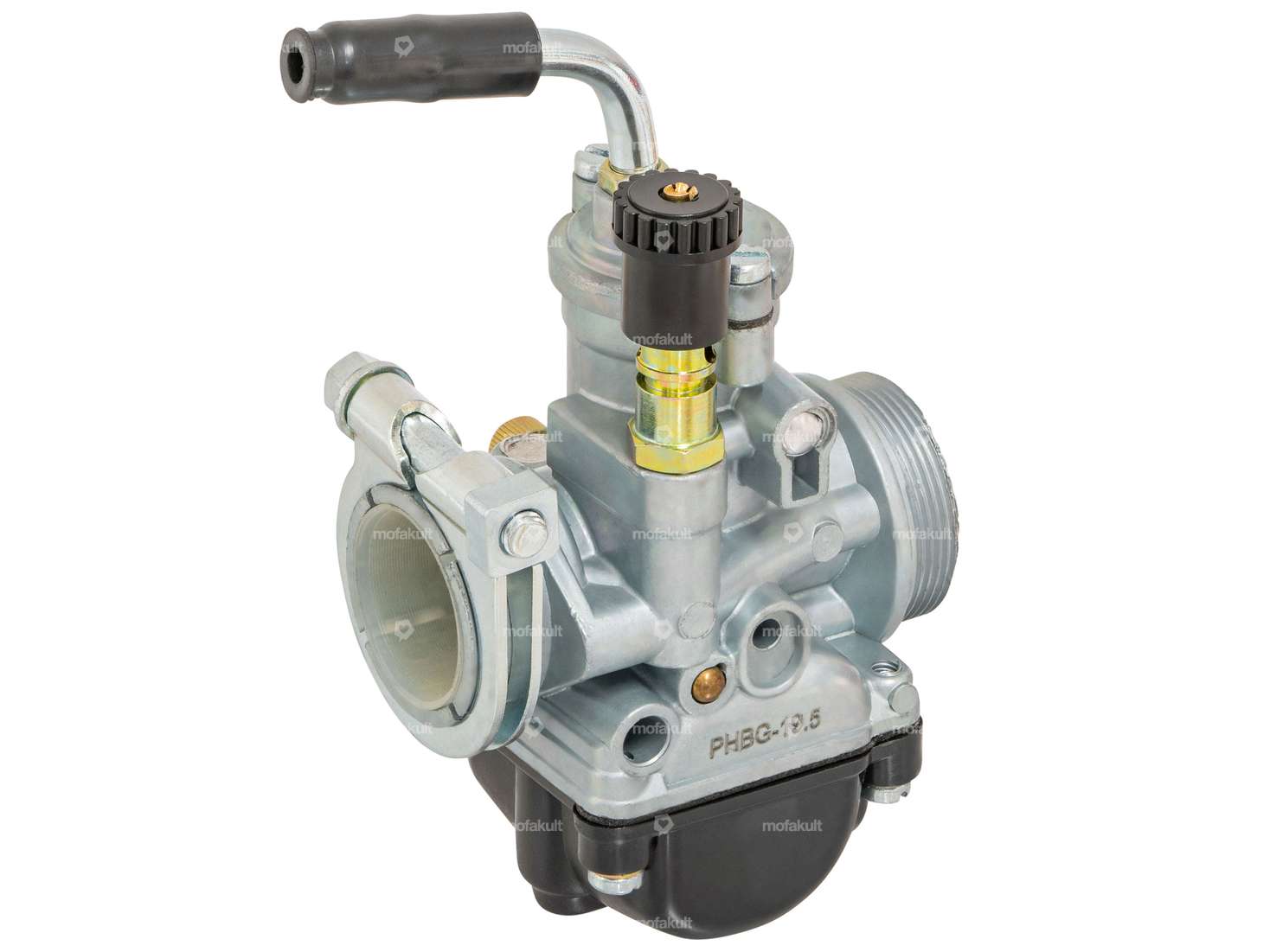

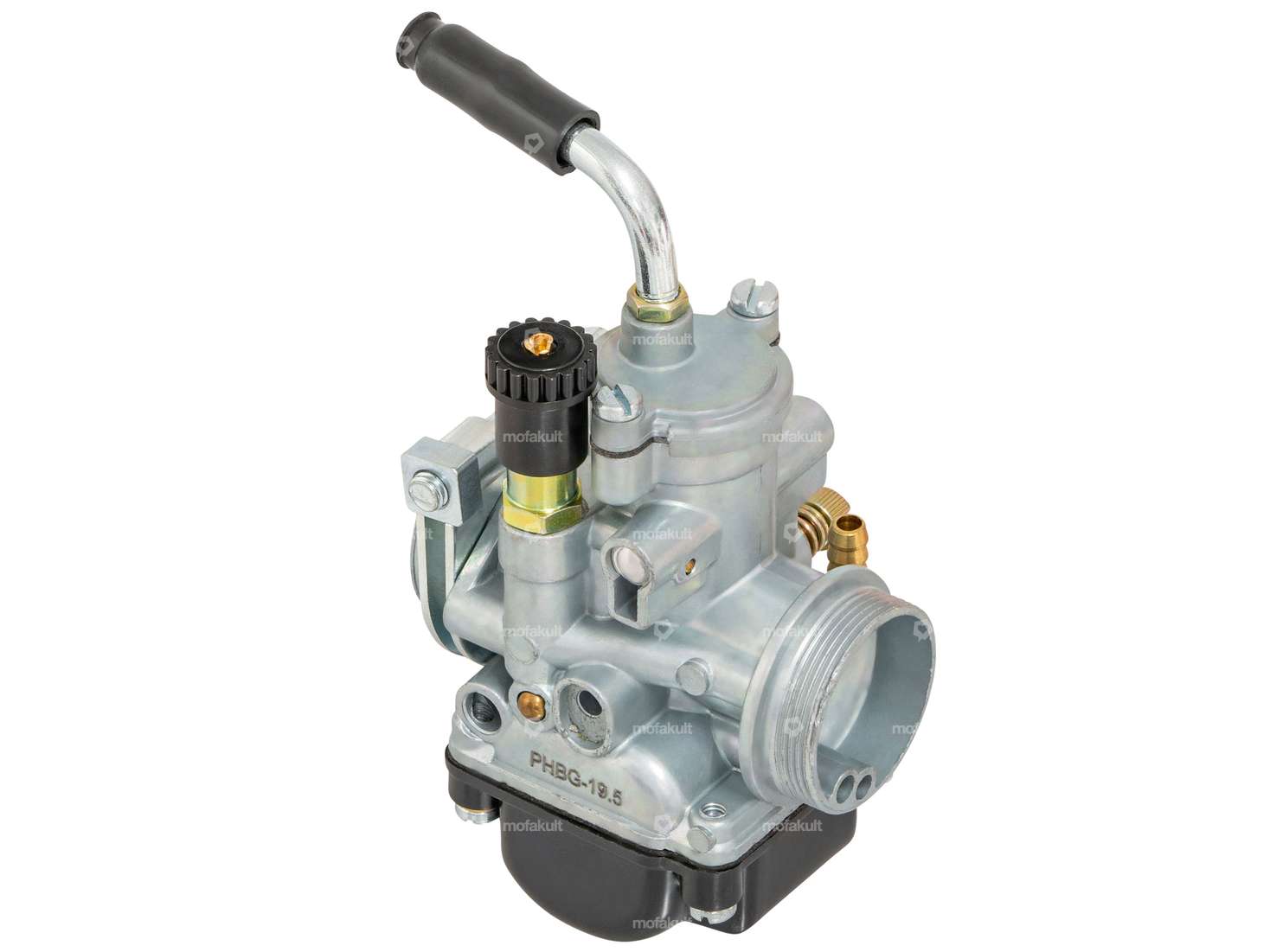

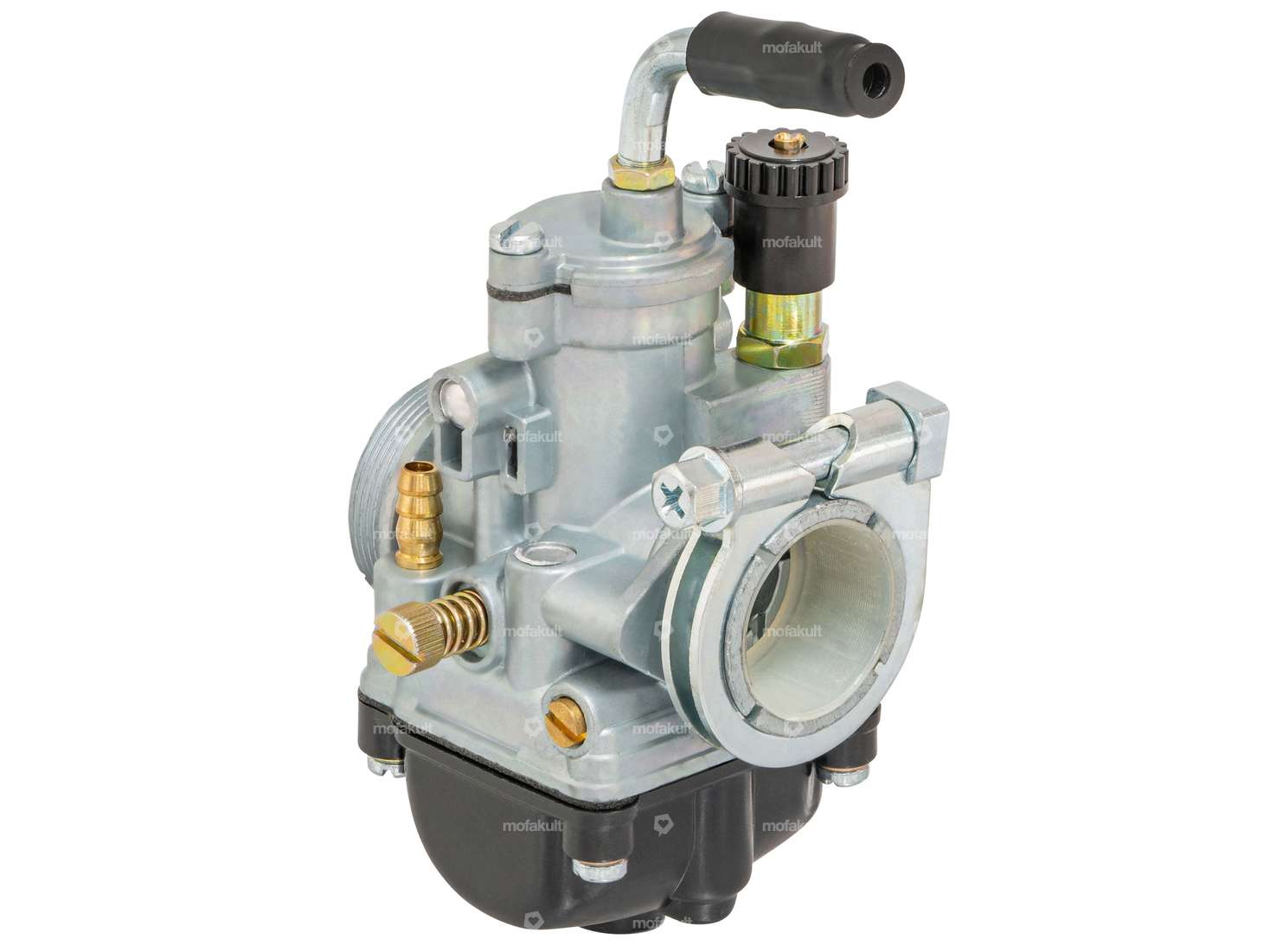

19.5 mm PHBG replica racing carburetor for universal use for your moped, moped and small motorcycle.
This racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.
The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and auxiliary valves and the mixture adjustment screw.
The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.
Main thread size (M5): 85
Side thread size (idle thread): 55
Choked thread size: 53
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reduction sleeve)
Total height: 132 mm
Total length: 70 mm
Total width: 60 mm
High-quality alternatives, matching nozzles, air filters and intake manifolds can be found in the accessories section.
Good quality aftermarket product from the Asian market.
| Nominal diameter | 19.5 mm |
| Manufacturer | Quenching |
| Camouflaged | No |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Carburetor type | PHBG |
| Choke control | Hand choke |
| Total length | 70 mm |
| Width | 60 mm |
| Color | black |
| Nozzle thread | M5x0.8 (standard thread) |
| Mounting type | Plug connection clamped |
| Nozzle size | 85 |
| Ø Inside entrance | 24 mm, 26 mm |
| Ø Air filter connection | 32 mm |
| Height | 132 mm |
| Air filter connection thread | MF32x1.25 (fine pitch thread) |
| Mixed oil connection | No |
| Vacuum connection | No |
| Choke nozzle size | 53 |
| Size of secondary nozzle | 55 |
| Area of application | Tuning |
