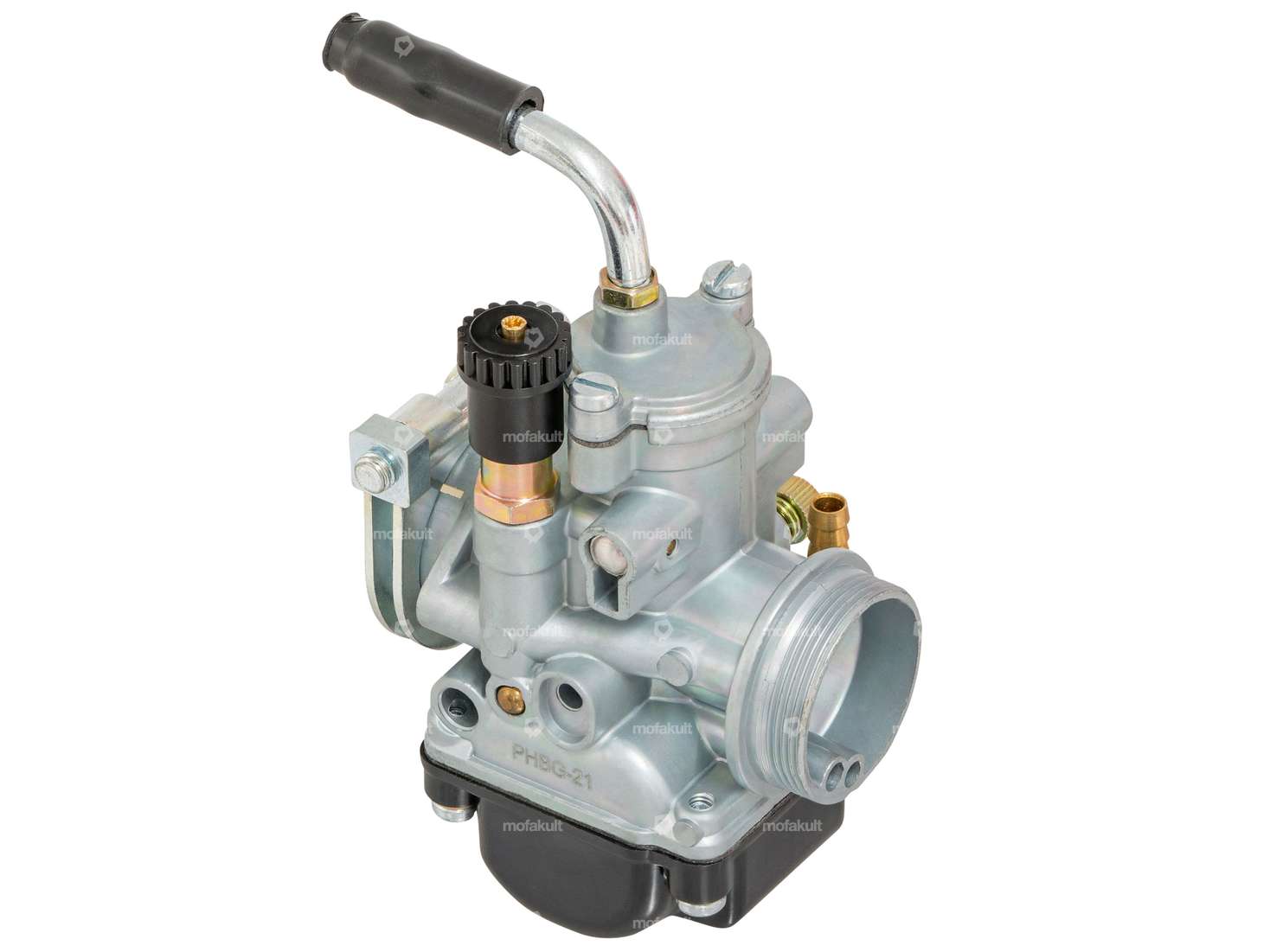

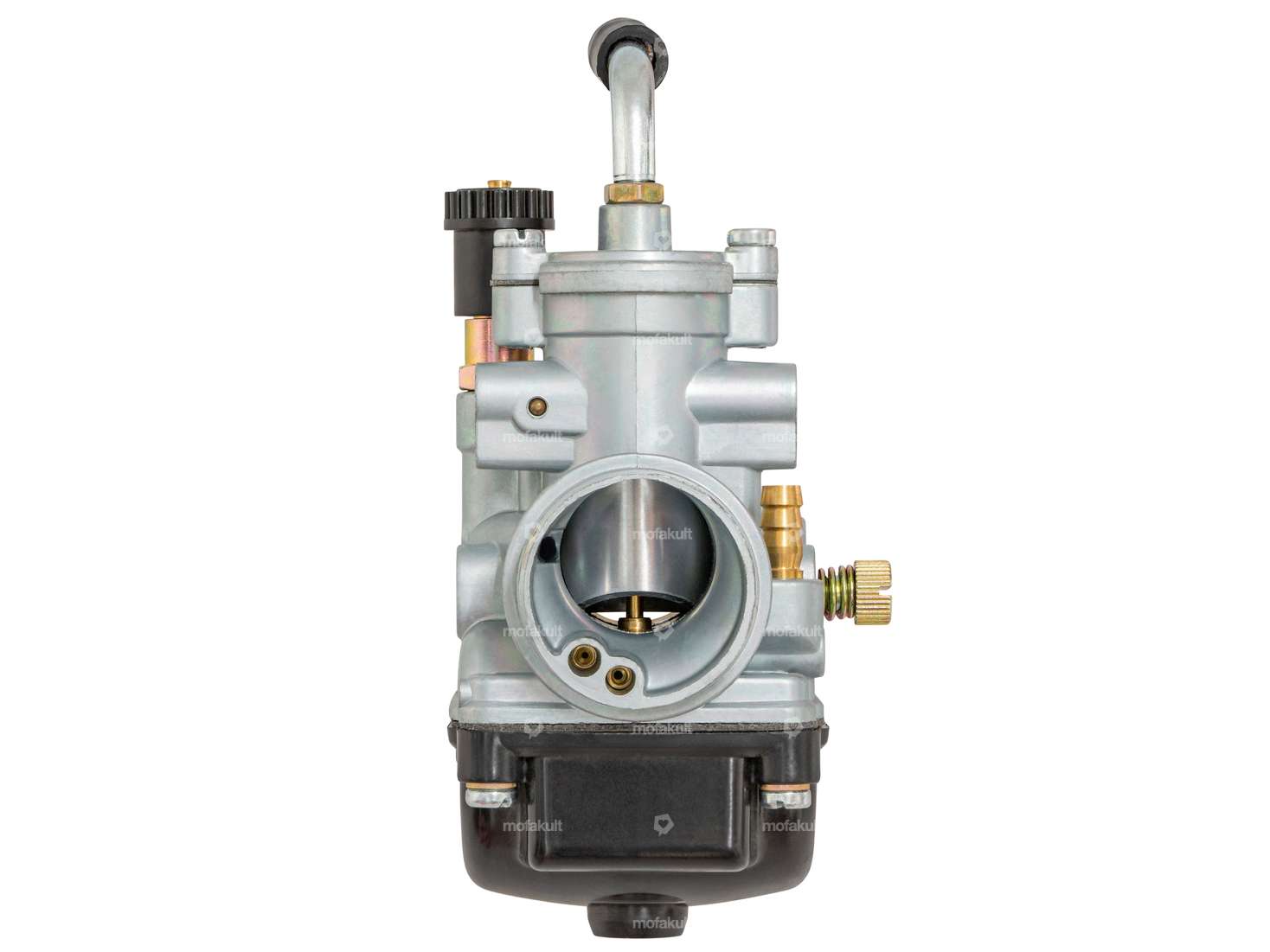

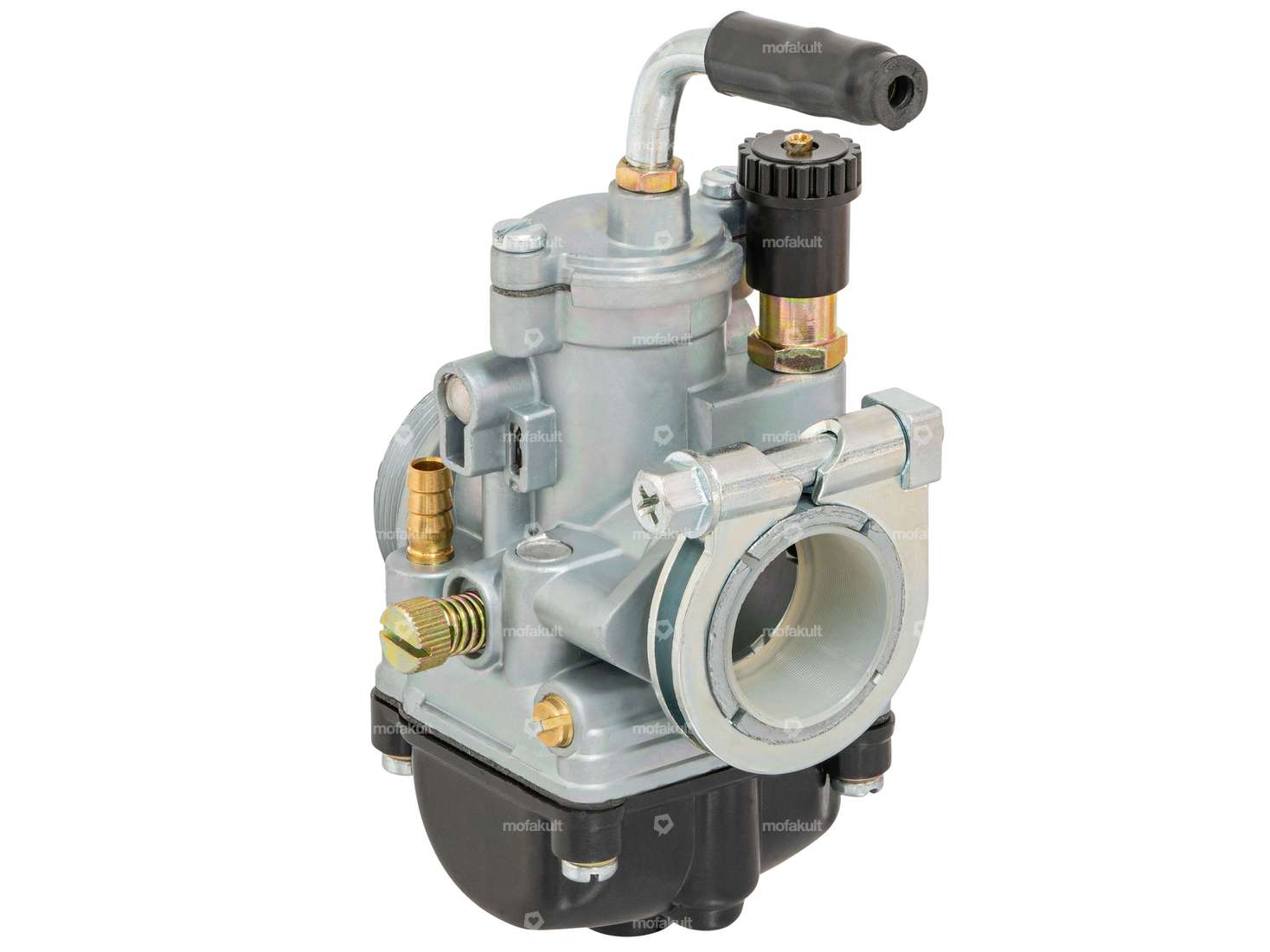

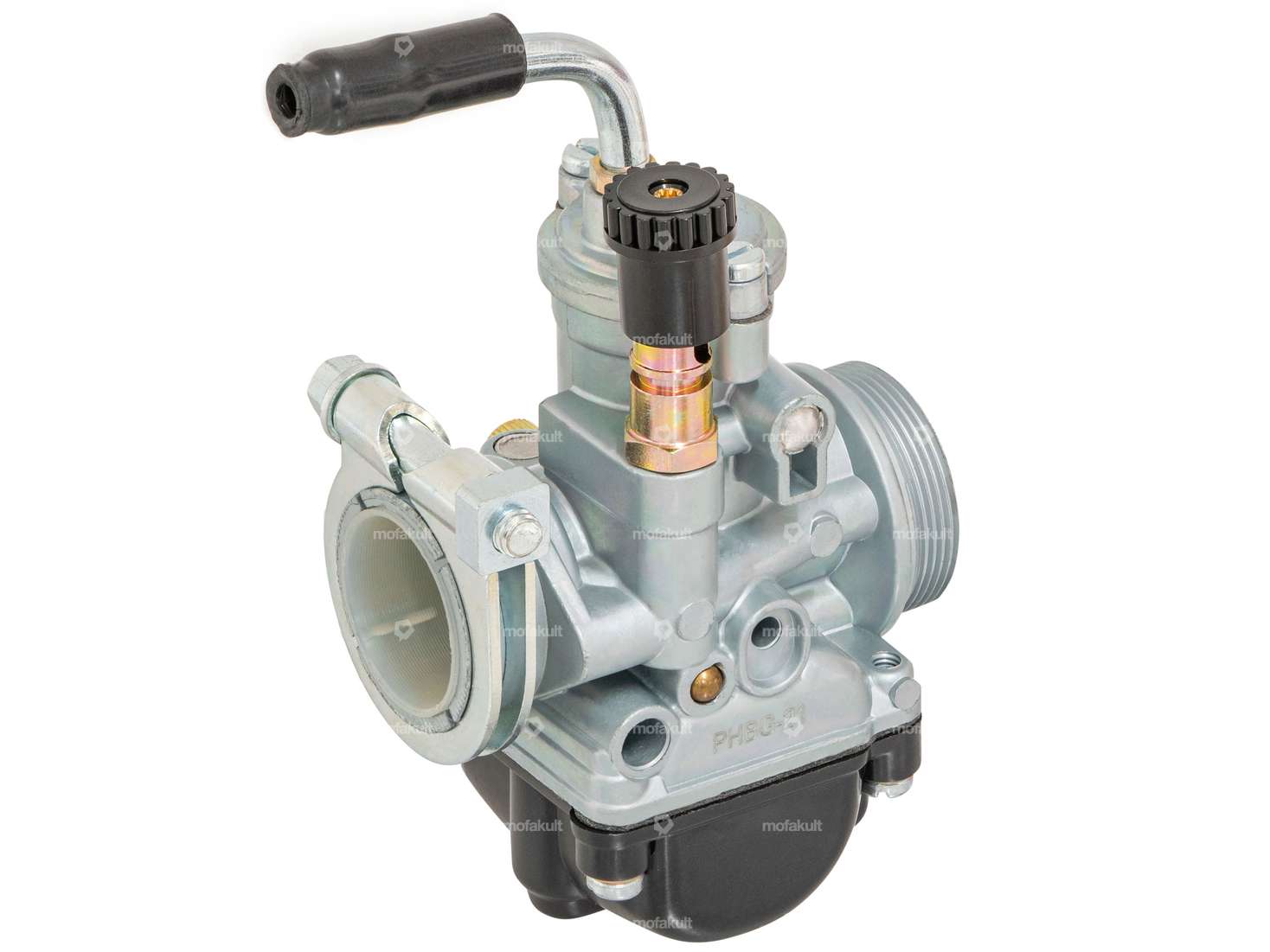

21 mm PHBG AS carburetor hand choke (Dell'Orto replica)

EUR 80.30

Incl. 25% VAT.

Description

21 mm PHBG replica racing carburetor for universal use for your moped, moped and small motorcycle.
This racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.

The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and auxiliary valves and the mixture adjustment screw.

The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.

Main thread size (M5): 90
Side thread size (idle thread): 55
Choked thread size: 53
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reduction sleeve)
Total height: 132 mm
Total length: 70 mm
Total width: 60 mm

High-quality alternatives, matching nozzles, air filters and intake manifolds can be found in the accessories section.

Good-quality aftermarket product from the Asian market.

Nominal diameter21 mm
Width60 mm
ManufacturerQuenching
MaterialAluminum, Plastic
Component group CarburetorCarburetor complete
Colorblack
Area of applicationTuning
Carburetor typePHBG
Ø without reducing sleeve26 mm
Ø Inside entrance24 mm
Ø Output inside24 mm
Ø Air filter connection32 mm
Air filter connection threadMF32x1.25 (fine pitch thread)
Ø fuel hose connection5 mm
Mixed oil connectionNo
Vacuum connectionNo
Choke controlHand choke
Choke nozzle size53
Nozzle threadM5x0.8 (standard thread)
Nozzle size90
CamouflagedNo
Size of secondary nozzle55
Mounting typePlug connection clamped
Total length71 mm
Height132 mm
