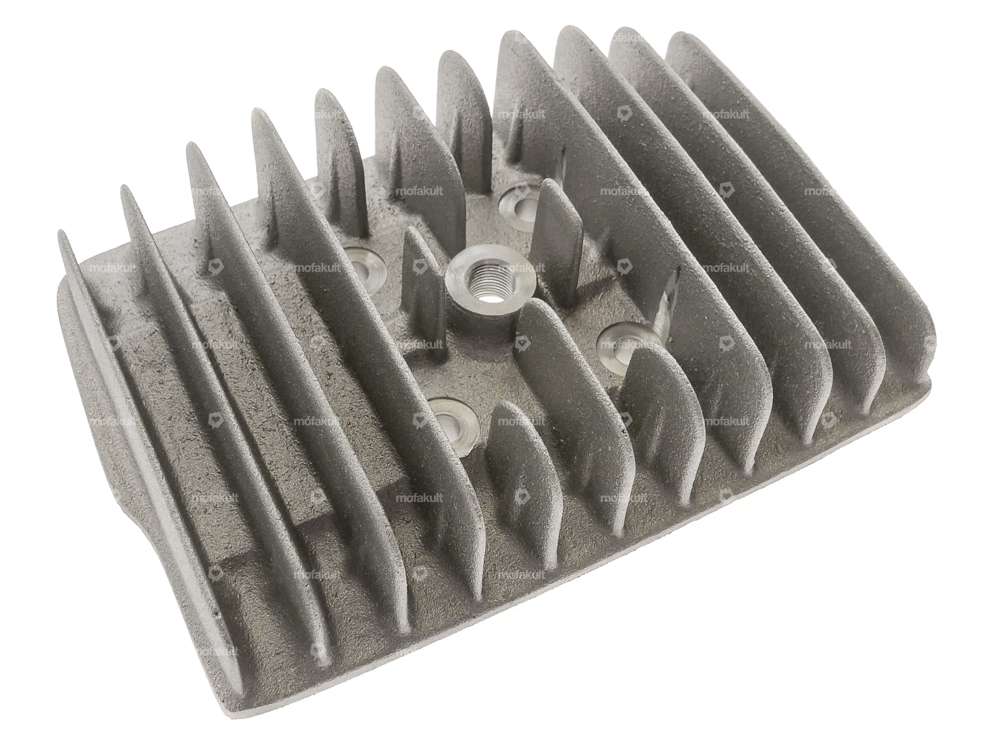

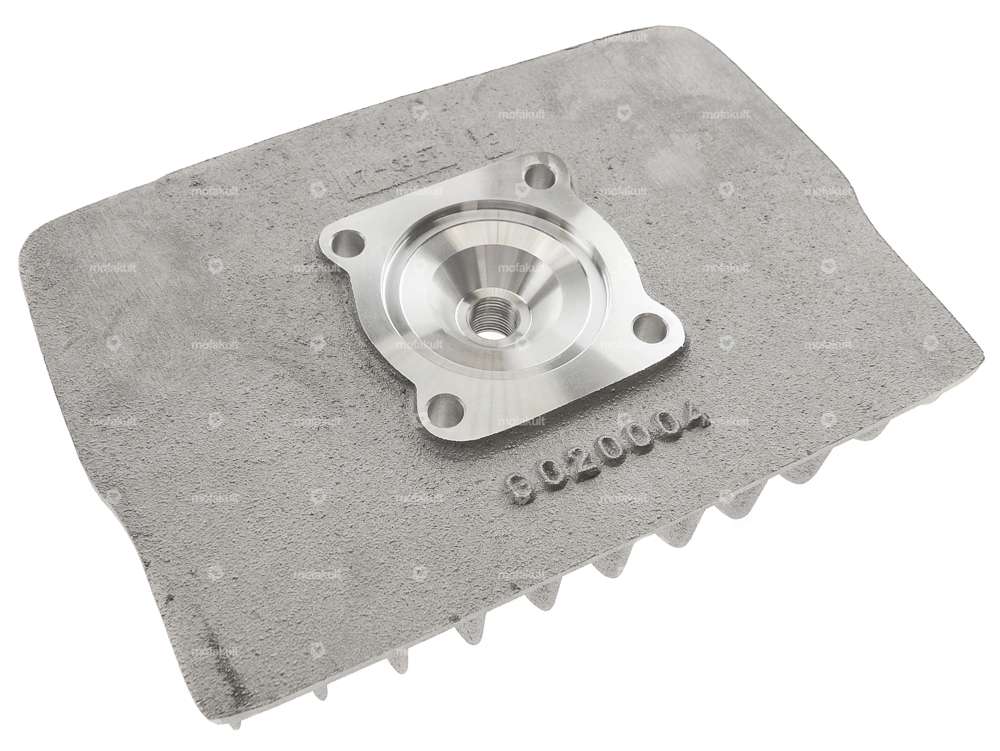

Athena cylinder head 48 mm cylinder kit Sachs 503 AB, AC, ADV

Athena 48 mm cylinder kit | Sachs 503 AB, AC, ADV

Nominal diameter: 48 mm · Manufacturer: Athena · Material: Aluminum · Displacement: 80 ccm · Crankshaft stroke: 43 mm · Surface: sandblasted · Ø Outlet outside: 26 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Camouflaged: No · Area of application: Tuning

Athena piston 48 mm #A | Sachs 503 AB, AC, ADV

Nominal diameter: 48 mm · Manufacturer: Athena · Ø outside piston (A): 47.92 mm · Compression height (C): 29.3 mm · Curvature (D): 2.1 mm · Total piston height (E): 52 mm · Number of piston rings (F): 1 pcs · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Piston weight: 114 g

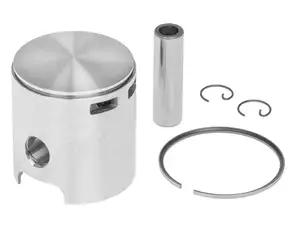

Athena piston 48 mm #B | Sachs 503 AB, AC, ADV

Nominal diameter: 48 mm · Manufacturer: Athena · Ø outside piston (A): 47.93 mm · Compression height (C): 29.1 mm · Curvature (D): 2.1 mm · Total piston height (E): 52 mm · Number of piston rings (F): 1 pcs · Piston ring mold: L-ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Piston weight: 113 g

Athena piston ring 48 x 2 mm L | Sachs 503 AB, AC, ADV

Nominal diameter: 48 mm · Manufacturer: Athena · Height: 2 mm · Piston ring impact: Internal fuse (IS)

Athena exhaust adapter 24 mm cylinder kit | Sachs

Manufacturer: Athena · Material: Aluminum · Color: gray · Ø inside: 20 mm · Ø External connection: 24 mm · Ø mounting hole: 7 mm · Hole spacing: 50 mm

Athena exhaust adapter 32 mm cylinder kit | Sachs

Manufacturer: Athena · Material: Steel · Ø inside: 28.5 mm · Total length: 31 mm · Surface: galvanized (blue) · Ø External connection: 32 mm · Ø mounting hole: 8.3 mm · Hole spacing: 46 - 56 mm

Airsal 38 mm cylinder kit 50 cc camouflaged | Puch Maxi, X30

Manufacturer: Airsal · Material: Aluminum · Camouflaged: Yes · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Surface: sandblasted · Nominal diameter: 38 mm · Hole spacing inlet: 38 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 20 mm · Ø piston pin (B): 12 mm · Inlet window: 23.5 / 20 x 14.5 · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 42 mm · Area of application: Tuning · Outlet type: straight · Number of fixing points: 4 pcs · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44

Tank cap 30 mm bayonet lockable chrome

Ø External head: 55.4 mm · Material: Chrome steel (known as Nirosta®) · Material: Steel · Surface: blank · Surface: galvanized (blue) · Color: Chrome · Fuel filler cap: Bayonet 30 mm · Lockable: Yes · Height: 28.6 mm · Vented: Yes

swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Drive: Slot · Total length: 8 mm · Nozzle type: Main nozzle · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70

"Turbo" adhesive black

Material: Polyvinyl chloride (PVC) · Color: black · Width: 180 mm · Height: 40 mm · Rear side texture: Adhesive · Place of use: Frame (+ tank)

Handlebar fork plate 30 cm curved black

Manufacturer: Made in Portugal · Material: Steel · Color: black · Ø outside: 22 mm · Width: 610 mm · Fork plate holder length: 75 mm · Height: 300 mm · Surface: varnished · Mounting type: Fork plate · Length handlebar ends: 145 mm · Clamping diameter: 22 mm · Crossbar: No

Tank cap 30 mm bayonet lockable black

Ø External head: 55.3 mm · Material: Steel · Surface: varnished · Color: black · Fuel filler cap: Bayonet 30 mm · Lockable: Yes · Height: 28.7 mm · Vented: Yes

42 mm cylinder kit | Sachs 5V

Nominal diameter: 42 mm · Material: Aluminum · Crankshaft stroke: 42 mm · Surface: sandblasted · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 55 x 55 · Number of fixing points: 4 pcs · Hole spacing inlet: 50 mm · Ø piston pin (B): 14 mm · Outlet type: slanted · Hole spacing outlet: 50 mm · Thread outlet: M6x1 (standard thread) · Camouflaged: No · Area of application: Tuning

GPO fuel filter connection 8 mm aluminum silver (removable)

Manufacturer: GPO · Material: Aluminum · Color: silver · Total length: 77 mm · Ø outside: 28 mm · Filter type: Sintered metal · demountable: Yes · Surface: anodized · Ø fuel hose connection: 8 mm

Polini oil measuring container 250 ml (with 7 mixing ratios)

Manufacturer: Polini · Material: Plastic · Surface: raw · Area of application: Workshop accessories · Color: blue · Color: transparent · Diameter: 50 mm · Capacity: 250 ml · Mass display: 1:100 (1%) · Mass display: 1:50 (2%) · Mass display: 1:33 (3%) · Mass display: 1:25 (4%) · Mass display: 1:20 (5%) · Mass display: 1:16 (6%) · Mass display: 1:14 (7%) · Height: 170 mm

swiing® revival bulb rear light 12V - 15W (BA15s, G18) 1-filament

Manufacturer: swiing® revival parts · Test mark: none · Tension: 12 V · Color: white · Performance: 15 W · Total length: 36 mm · Bulb holder: BA15s · Ø base: 15 mm · Ø Lamp head: 17 mm · LED: No
