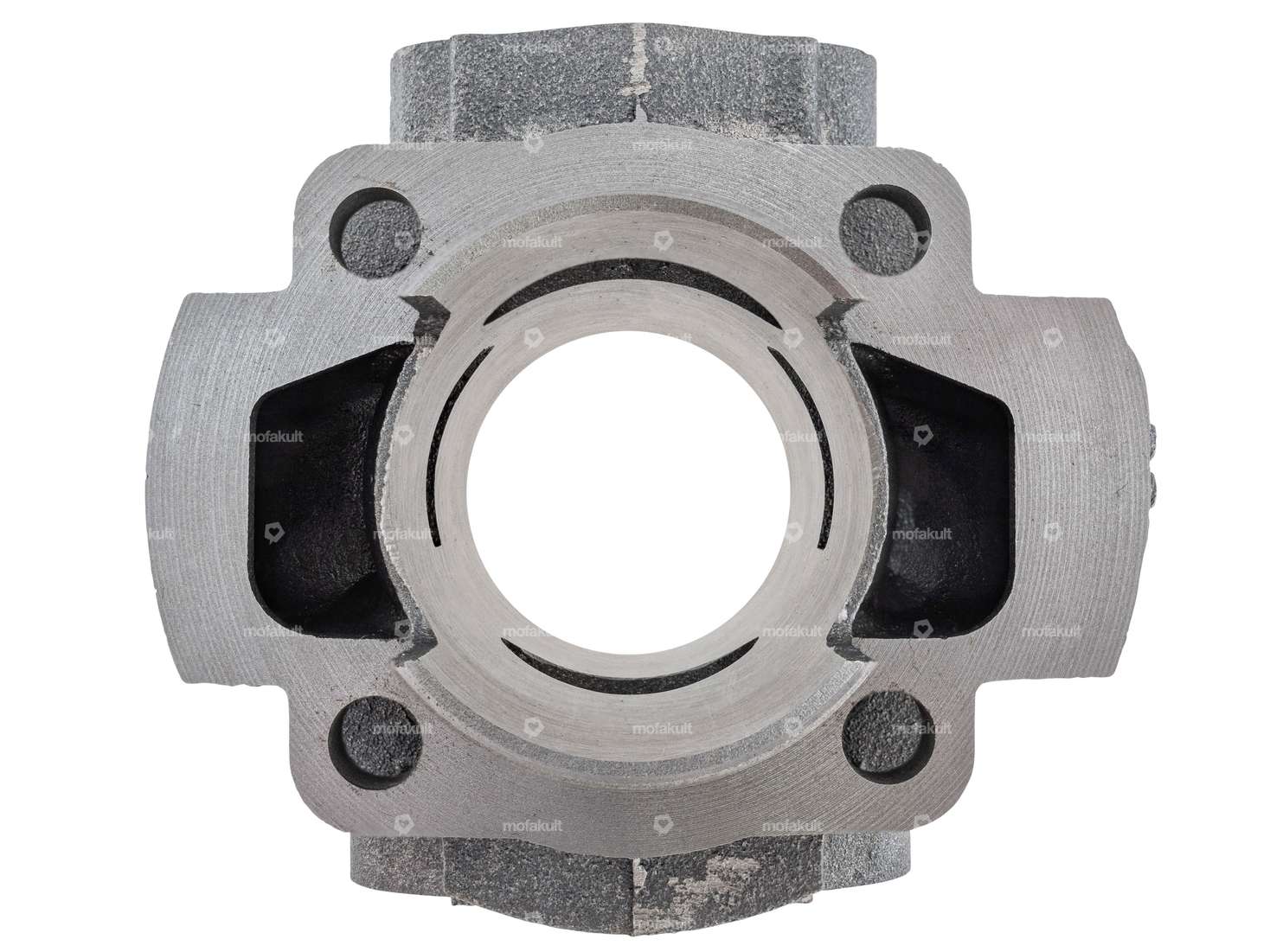

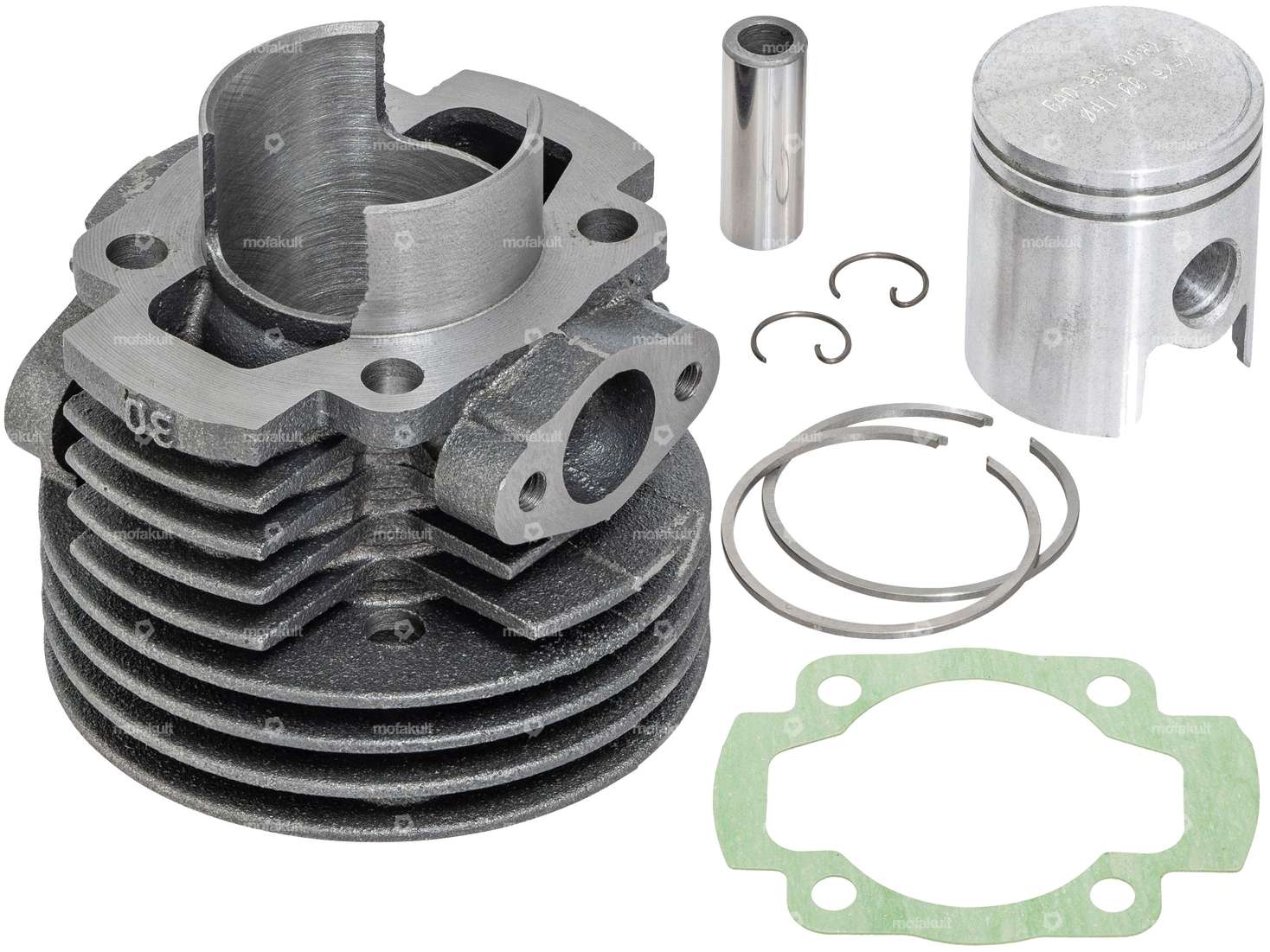

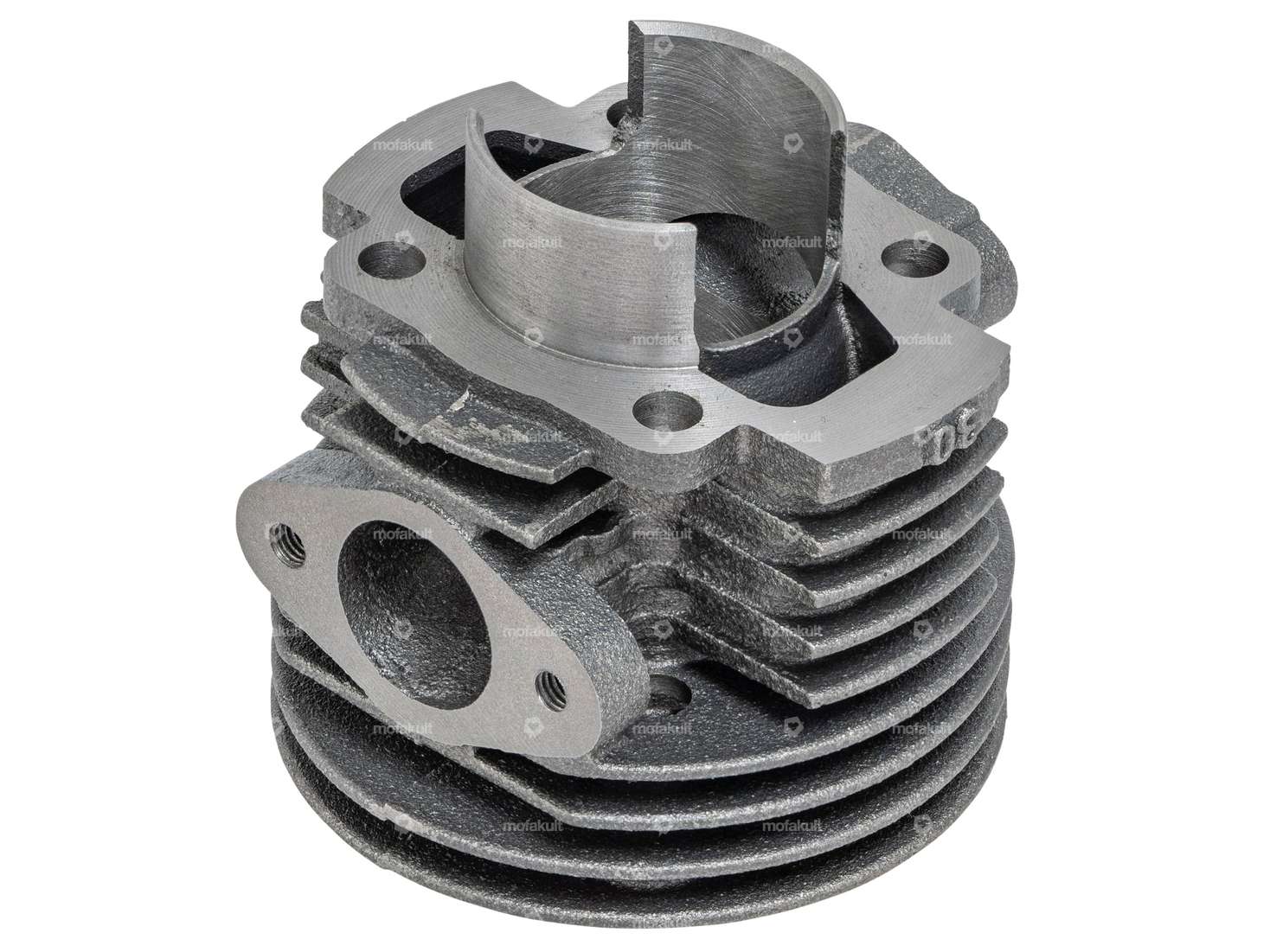

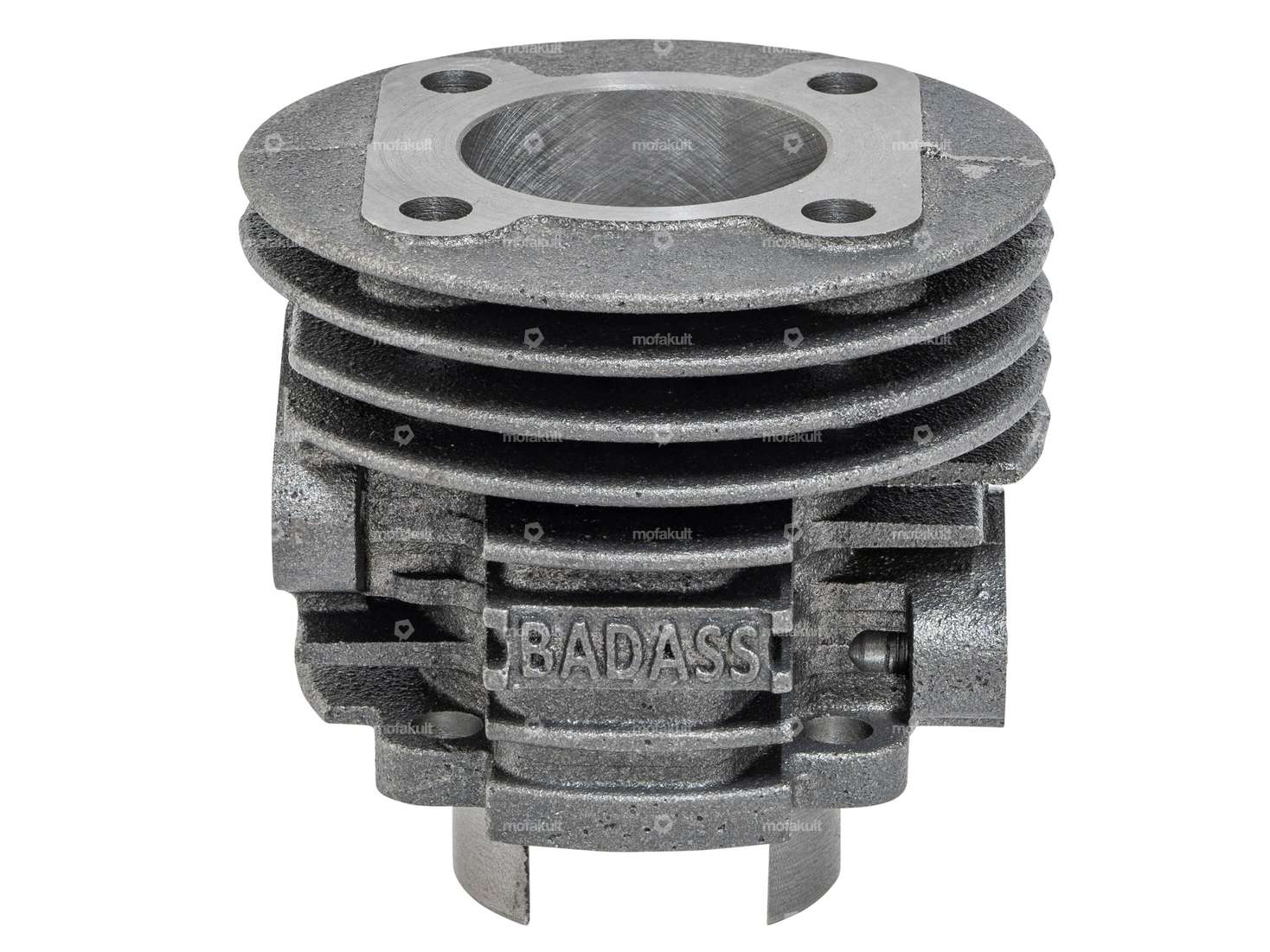

Bladed 41 mm (55 ccm) cylinder kit with 12 mm piston pin, suitable for your Puch X30 Velux and X30 NG-2AH moped / moped and with adaptations to your DS, MV, MS, VZ (EX50) small motorcycle
The timing was kept rather low on the cylinder, which is characterized by a very nice torque in the lower speed range.
Details:
Cast iron reproduction cylinder with Ø 41.0 mm bore
Slot-controlled
Ø 19 mm intake, 32 mm stud spacing
Optimized overflow channels
Improved timing
No need for spindling of the engine housing (Ø cylinder neck 45.0 mm)
Ø 25 mm outlet, 42 mm stud bolt spacing
Hole pattern stud bolt: 44 x 44 mm
Incl. Ø 41 mm piston from the Italian manufacturer -GOL-
Notes:
For Puch Velux engines, the slot on the housing no longer needs to be cast on thanks to the large sealing surface.
For ZA50-G engines, the housing may need to be spindled on.
The cylinder kit can also be used on DS, MV, MS, VZ (EX50) engines, provided the housing is spindled on.
Corresponding accessories such as gaskets, cylinder head, exhaust system etc. can be found in the accessories section.
Made by the BADASS brand.
| Manufacturer | BAD ASS |
| Camouflaged | No |
| Material | Gray cast iron |
| Surface | sandblasted |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 41 mm |
| Ø cylinder neck | 44.9 mm |
| Ø outlet inside | 25 mm |
| Ø Inlet inside | 19 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing outlet | 42 mm |
| Outlet type | straight |
| Number of fixing points | 4 pcs |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Decompressor | No |
| Hole spacing inlet | 32 mm |
| Area of application | Tuning |
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Accessories & related products
swiing® ingenious 15 mm carburetor set camouflaged | Puch X30 Velux
Manufacturer: swiing® ingenious parts · Area of application: Tuning · Component group Carburetor: Carburetor complete · Nominal diameter: 15 mm · Carburetor type: SRE · Choke control: Hand choke · Hole spacing inlet: 32 mm · Nozzle thread: M3.5x0.6 (standard thread) · Ø fuel hose connection: 6 mm · Mounting type: Flange · Mounting type: Plug connection clamped · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø Air filter connection: 23 mm
EUR 150.00
swiing® ingenious resonance exhaust set Ø 28 / 70 mm | Puch X30 Velux
Ø outside: 70 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Screwed clamp · Ø Internal connection: 28 mm · Exhaust type: Cigar · Total length: 730 mm · Flame tube attachment: Flange
EUR 174.50
swiing® revival stud bolt set M6x30 (strength 10.9) galvanized
Manufacturer: swiing® revival parts · Thread type: M6x1 (standard thread) · Diameter: 6 mm · Material: Steel · Surface: galvanized (blue) · Width across flats SW: 10 mm · Drive: External hexagon · Total length: 30 mm · Thread length: 12 mm · Strength class: 8 · Strength class: 10.9
EUR 13.10

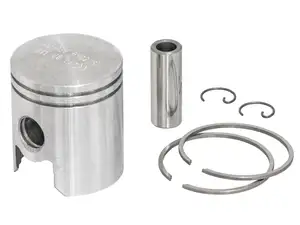

GOL piston 41 mm BAD ASS Lucifer | Puch X30 Velux, NG-2AH
