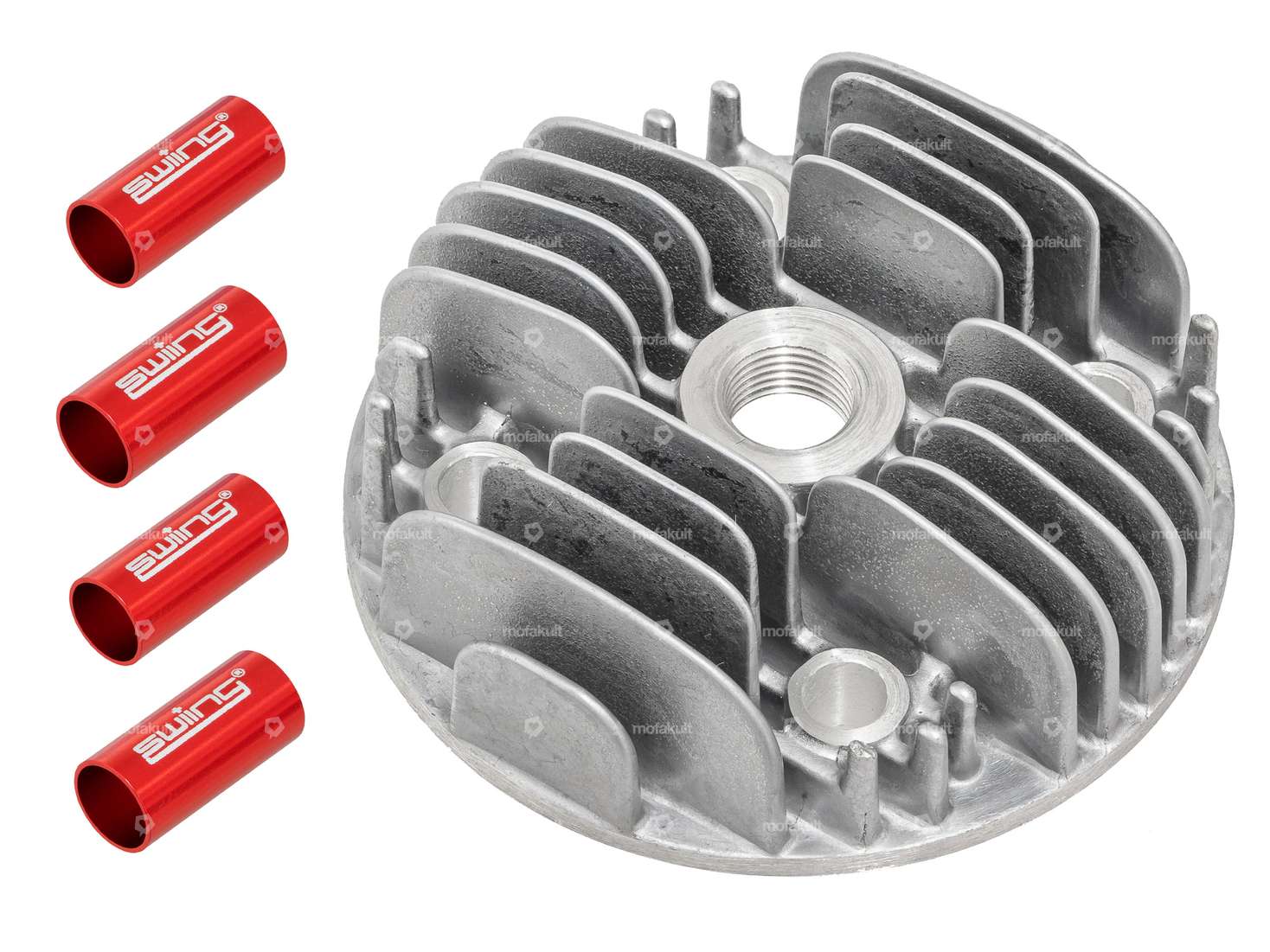

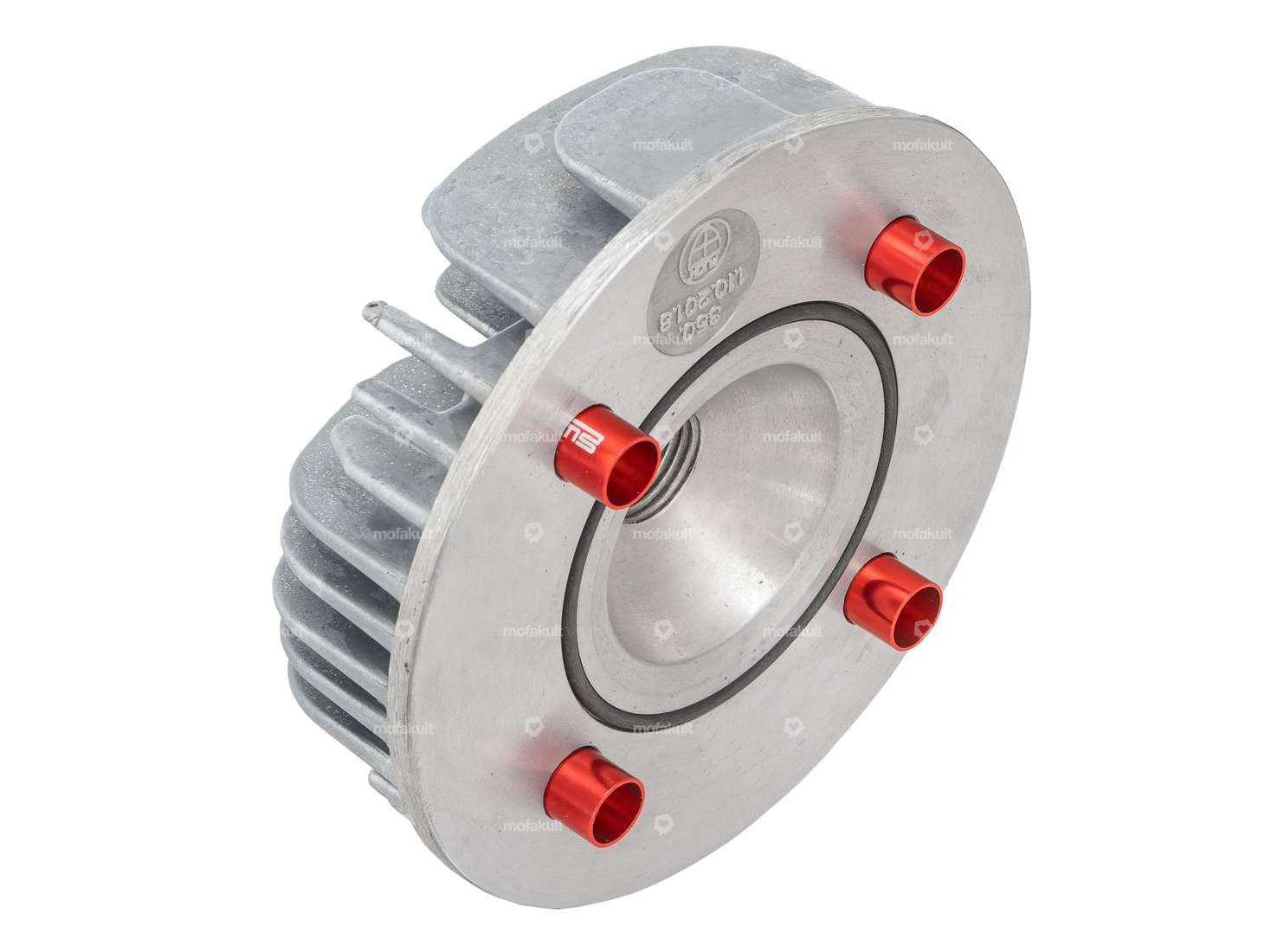

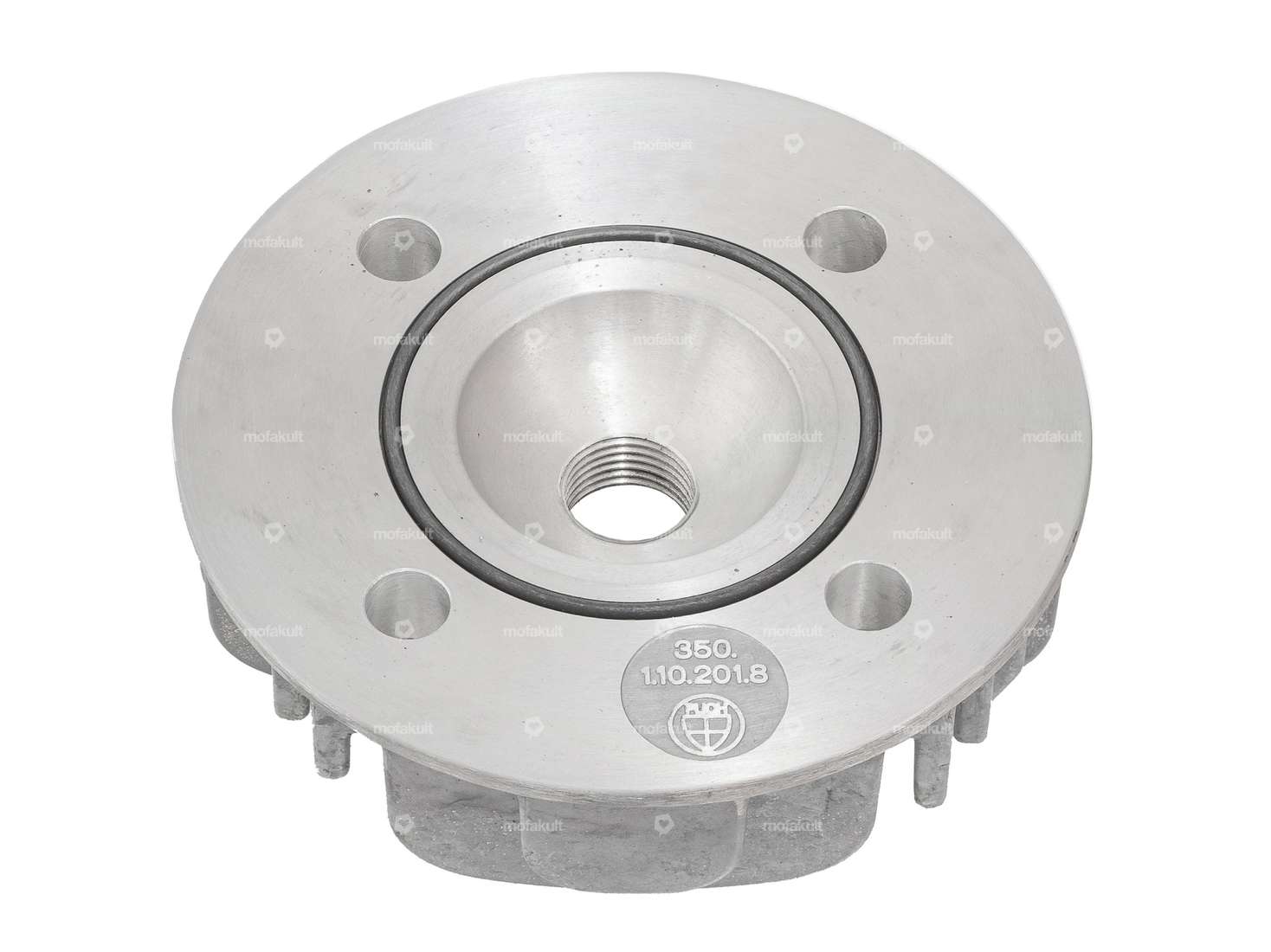

swiing® ingenious cylinder head "Racing" with O-ring (38 - 41 mm of your choice) | Puch X30 Velux

Stud bolt M7 x 106 mm (Velux)

Material: Steel · Surface: galvanized (blue) · Total length: 106 mm · Thread length: 25 mm · Thread type: M7x1 (standard thread)

Loctite 638 High-strength adhesive 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Area of application: Chemistry · Contents [ml]: 10 ml · Hazard warning: Causes serious eye damage · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Color: green · Signal word: Danger · Hazard pictogram: GHS05 - Corrosive · Hazard pictogram: GHS07 - Caution dangerous · Adhesion: high-strength · Temperature resistance (min.): -75 - 150 °C · Gap dimension (max.): 0.25 mm · Type of application: 1K · Alignment time: 300 sec · Breakaway torque (according to material): 23 N/m · Breakaway torque (according to material): 25 N/m · Breakaway torque (according to material): 57 N/m

GPO 41 mm cylinder kit fan-cooled 10 mm KoBo | Puch X30 Velux, N-2AH

Nominal diameter: 41 mm · Manufacturer: GPO · Manufacturer: Meteor Racing · Material: Gray cast iron · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 43 mm · Displacement: 60 ccm · Number of fixing points: 4 pcs · Ø piston pin (B): 10 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

GPO 41 mm cylinder kit fan-cooled 12 mm KoBo | Puch X30 Velux, N-2AH

Nominal diameter: 41 mm · Manufacturer: GPO · Manufacturer: Meteor Racing · Manufacturer: swiing · Material: Gray cast iron · Surface: sandblasted · Area of application: Tuning · Crankshaft stroke: 43 mm · Displacement: 60 ccm · Ø cylinder neck: 43.2 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.6 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

swiing® revival stud bolt set | Puch X30 Velux

Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Total length: 106 mm · Manufacturer: swiing® revival parts · Diameter: 7 mm · Thread type: M7x1 (standard thread) · Width across flats SW: 11 mm · Thread length: 25 mm

Nut M7 galvanized

Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Nut type: Hexagon nut · Drive: External hexagon · Thread type: M7x1 (standard thread) · Strength class: 8 · Height: 5.3 mm · Width across flats SW: 11 mm

38 mm cylinder kit fan-cooled 10 mm KoBo | Puch Velux, NG-2AH

Nominal diameter: 38 mm · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 10 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Tuning

swiing centering sleeves cylinder head (M7 stud bolt) | Puch X30 Velux

Manufacturer: swiing · Material: Aluminum · Ø inside: 7.1 mm · Ø outside: 8 mm · Total length: 17 mm · Nominal diameter inside: 7 mm

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Total length: 30 mm · Thread length: 12 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9

swiing® ingenious flame tube 28 mm chrome | Puch X30 Velux

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Ø inside: 25 mm · Ø outside: 28 mm · Total length: 380 mm · Color: Chrome · Number of fixing points: 2 pcs · Mounting type: Stud bolts & nuts · Hole spacing outlet: 42 mm

GPO air filter screen Ø 52 mm "Racing"

Manufacturer: GPO · Material: Steel · Surface: galvanized (yellow) · Area of application: Tuning · Ø outside: 52 mm · Color: yellow · Height: 9.7 mm · Camouflaged: No

GPO gasket set 40 - 41 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux

Manufacturer: GPO · Number of components: 4 pcs · Area of application: Tuning · Ø cylinder: 40 mm · Ø cylinder: 41 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes

swiing® ingenious 15 mm carburetor tuning camouflaged | Sachs 503

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Area of application: Tuning · Carburetor type: SRE · Choke control: Hand choke · Total length: 66 mm · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Width: 50 mm · Mounting type: Plug connection clamped · Height: 95 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Camouflaged: Yes · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m

swiing centering sleeves cylinder head (M7 stud bolt) | Puch X30 Velux

Manufacturer: swiing · Material: Aluminum · Ø inside: 7.1 mm · Ø outside: 8 mm · Total length: 17 mm · Nominal diameter inside: 7 mm

BAD ASS Lucifer cylinder kit Ø 41 mm | Puch X30 Velux, NG-2AH

Material: Gray cast iron · Surface: sandblasted · Nominal diameter: 41 mm · Manufacturer: BAD ASS · Number of fixing points: 4 pcs · Camouflaged: No · Ø cylinder neck: 44.9 mm · Area of application: Tuning · Ø Inlet inside: 19 mm · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 25 mm · Hole spacing outlet: 42 mm · Outlet type: straight · Hole spacing inlet: 32 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No

GPO cylinder gasket set BAD ASS Lucifer / GPO Sombrero 41 mm | Puch X30 Velux, M50, MS

Manufacturer: GPO · Thickness: 0.4 mm · Thickness: 0.45 mm · Material: Aluminum · Material: Sealing paper · Area of application: Tuning · Ø cylinder: 41 mm · Ø outlet inside: 27 mm · Hole spacing inlet: 32 mm · Decompressor: Yes · Hole spacing outlet: 32 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm
