Membrane system

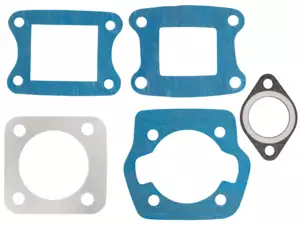

Athena gasket set 45 mm AJH diaphragm | Puch

Manufacturer: Athena · Number of components: 5 pcs · Ø cylinder: 45 mm · Area of application: Tuning · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Hole spacing outlet: 42 mm

Polini 2-folding diaphragm insert

Manufacturer: Polini · Number of flaps: 2 pcs · Number of fixing points: 4 pcs · Ø mounting hole: 5.3 mm · Mounting type: Screws · Thickness: 2 mm · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

Polini lung aluminum

Manufacturer: Polini · Material: Aluminum · Mounting type: Cable ties · Area of application: Tuning · Total height: 40 mm · Total length: 105 mm

Polini gasket diaphragm

Manufacturer: Polini · Ø cylinder: 45 mm · Place of use: Admission

Polini intake system 4-folding diaphragm PHBG | Puch

Manufacturer: Polini · Number of flaps: 4 pcs · Mounting type: Screws · Ø inside: 19 mm · Ø outside: 24 mm · Area of application: Tuning · Hole pattern [mm]: 56 x 30 mm / 39 x 36 mm

Polini intake system 4-folding diaphragm "Big Valve" PHBG / CP carburetor | Puch

Ø inside: 19 mm · Manufacturer: Polini · Material: Aluminum · Material: Plastic · Surface: glass bead blasted · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Ø outside: 24 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø mounting hole: 5.2 mm · Thread type: M5x0.8 (standard thread) · Camouflaged: No · Area of application: Racing · Area of application: Tuning

Athena diaphragm seal AJH | Puch

Manufacturer: Athena · Material: Oiled paper · Place of use: Admission · Thickness: 0.5 mm · Area of application: Tuning · Ø screw holder: 6.7 mm · Hole pattern [mm]: 40 x 62

Intermediate flange cylinder Athena AJH | Puch

Color: black-matt · Material: Plastic · Number of fixing points: 4 pcs · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 60 x 40

Malossi intake system 4-folding diaphragm PHBG | Puch / Peugeot 103 RCX, SPX

Ø outside: 24 mm · Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Mounting type: Screws · Area of application: Tuning

Malossi 4-folding diaphragm insert Carbon Gilardoni italkit | Puch

Manufacturer: Malossi · Material: Plastic · Number of flaps: 4 pcs · Membrane material: Carbon · Number of fixing points: 4 pcs · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm

Malossi diaphragm plate 0.3 mm carbonite 10 x 10 cm

Total length: 100 mm · Manufacturer: Malossi · Membrane material: Carbonite · Width: 100 mm · Thick membrane platelets: 0.3 mm · Area of application: Tuning

Athena gasket set 2-folding diaphragm | Puch / Sachs

Manufacturer: Athena · Material: Sealing paper · Hole pattern [mm]: 33 x 32 mm · Thickness: 0.5 mm · Mounting type: Screws · Number of fixing points: 4 pcs

MBR plate inlet Gilardoni italkit steel

Ø inside: 21 mm · Total length: 72.5 mm · Manufacturer: MBR · Material: Steel · Surface: raw · Width: 48 mm · Number of fixing points: 4 pcs · Mounting type: Screws · Thickness: 5 mm · Area of application: Tuning · Hole pattern [mm]: 60 x 35 mm

Membrane box for ADDY GME engine housing "der.pruefstand" | Puch E50

Material: Aluminum · Width: 66 mm · Total length: 48 mm · Thread type: M6x1 (standard thread) · Hole spacing: 52 mm · Hole pattern [mm]: 37 x 55

Polini gasket set 4-folding diaphragm | Puch

Manufacturer: Polini · Number of flaps: 4 pcs · Area of application: Tuning · Hole pattern [mm]: 39 x 36/32 mm

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Ø inside: 22 mm · Manufacturer: Athena · Material: Aluminum · Number of fixing points: 4 pcs · Ø External connection: 26 mm · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 60 x 40

Polini 20 mm intake manifold 2-folding diaphragm Puch

Ø inside: 20 mm · Manufacturer: Polini · Material: Aluminum · Number of fixing points: 4 pcs · Ø External connection: 25 mm · Mounting type: Screws · Area of application: Tuning · Total height: 46 mm

Malossi 4-folding diaphragm insert carbonite Gilardoni italkit | Puch

Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Hole pattern [mm]: 61 x 39 mm / 58 x 35 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi diaphragm plate 0.3 mm carbon 10 x 10 cm

Total length: 100 mm · Manufacturer: Malossi · Membrane material: Carbon · Width: 100 mm · Thick membrane platelets: 0.3 mm · Area of application: Tuning

MBR cover diaphragm inlet Gilardoni italkit | Puch

Total length: 72.5 mm · Manufacturer: MBR · Material: Steel · Surface: raw · Width: 48 mm · Number of fixing points: 4 pcs · Ø mounting hole: 6.3 mm · Mounting type: Screws · Thickness: 5 mm · Area of application: Tuning · Hole pattern [mm]: 60 x 35 mm

2-folding diaphragm insert Athena AJH | Puch

Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 mm · Area of application: Tuning

Malossi diaphragm plate 0.4 mm carbonite 10 x 10 cm

Total length: 100 mm · Manufacturer: Malossi · Membrane material: Carbonite · Width: 100 mm · Thick membrane platelets: 0.4 mm · Area of application: Tuning

Malossi diaphragm plate 0.35 mm carbonite 10 x 10 cm

Total length: 100 mm · Manufacturer: Malossi · Membrane material: Carbonite · Width: 100 mm · Thick membrane platelets: 0.35 mm · Area of application: Tuning

Membrane transpacer Polini Trapez 12 mm aluminum | Puch ZA50

Total length: 50 mm · Material: Aluminum · Surface: blank · Width: 42.5 mm · Width: 46 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.4 mm · Mounting type: Screws · Thickness: 12 mm · Area of application: Tuning · Hole pattern [mm]: 32 / 36 x 39

MLM 19 mm intake manifold Polini 2-folding diaphragm Dell'Orto PHBG, CP | Puch

Ø inside: 19 mm · Color: black · Manufacturer: MLM · Material: Steel · Surface: varnished · Number of fixing points: 4 pcs · Ø External connection: 23 mm · Mounting type: Screws · Area of application: Tuning · Total height: 67 mm

Malossi intake system 4-folding diaphragm SHA | Puch / Peugeot 103 SP, 104, 105

Ø inside: 15 mm · Ø outside: 19 mm · Manufacturer: Malossi · Number of flaps: 4 pcs · Mounting type: Screws · Area of application: Tuning

Parmakit 2-folding diaphragm insert carbon

Manufacturer: Parmakit · Number of flaps: 2 pcs · Membrane material: Carbon · Number of fixing points: 4 pcs · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 60 x 40 mm

Malossi diaphragm insert carbon 0.3 mm | Peugeot 103 / BYE BIKE

Total length: 50 mm · Manufacturer: Malossi · Material: Plastic · Surface: raw · Number of flaps: 1 pcs · Membrane material: Carbon · Width: 43 mm · Width: 47 mm · Thick membrane platelets: 0.3 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.4 mm · Mounting type: Screws · Thickness: 3 mm · Area of application: Tuning · Hole pattern [mm]: 32 / 36 x 39 · Camouflaged: No

MLM 19 mm intake manifold Polini 4-folding diaphragm Dell'Orto PHBG, CP | Puch

Manufacturer: MLM · Material: Steel · Surface: varnished · Color: black · Ø External connection: 28.5 mm · Mounting type: Plug connection clamped · Ø inside: 25.3 mm · Total height: 80 mm · Area of application: Tuning

DMP 2 hinged membrane insert

Manufacturer: DMP · Number of flaps: 2 pcs · Membrane material: Spring steel · Mounting type: Screws · Ø mounting hole: 5.8 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 39 x 36/32 mm · Area of application: Tuning

Polini 2-folding diaphragm Puch

Thickness: 2 mm · Manufacturer: Polini · Number of flaps: 2 pcs · Hole pattern [mm]: 39 x 36/32 mm · Ø mounting hole: 5.3 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Gilardoni italkit 4-folding diaphragm original

Manufacturer: Gilardoni italkit · Number of flaps: 4 pcs · Membrane material: Carbon · Number of fixing points: 4 pcs · Ø mounting hole: 6.3 mm · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 60 x 35 mm

Polini intake system 4-folding diaphragm SHA | Puch

Ø inside: 15 mm · Manufacturer: Polini · Material: Aluminum · Number of flaps: 4 pcs · Ø outside: 19 mm · Mounting type: Screws · Area of application: Tuning

Athena 2-folding diaphragm | Puch / Sachs

Manufacturer: Athena · Number of flaps: 2 pcs · Membrane material: Spring steel · Number of fixing points: 4 pcs · Mounting type: Screws · Area of application: Tuning

Malossi 2-folding diaphragm insert carbonite | Puch / Tomos / Peugeot

Thickness: 3.3 mm · Manufacturer: Malossi · Area of application: Tuning · Number of flaps: 1 pcs · Width: 42.2 mm · Width: 46.2 mm · Thick membrane platelets: 0.35 mm · Mounting type: Screws · Total length: 50.4 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.65 mm · Hole pattern [mm]: 39 x 36/32 mm

Polini diaphragm plate carbon 0.3 / 0.35 mm

Total length: 38 mm · Manufacturer: Polini · Material: Carbon · Number of flaps: 4 pcs · Membrane material: Carbon · Hole spacing: 17 mm · Width: 36 mm · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Number of fixing points: 2 pcs · Ø mounting hole: 3 mm · Mounting type: Screws · Area of application: Racing · Area of application: Tuning · Camouflaged: No

Malossi 4-folding diaphragm insert carbonite | Puch / Peugeot 103 SP, 104, 105

Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Thick membrane platelets: 0.3 mm · Number of fixing points: 4 pcs · Mounting type: Screws · Area of application: Tuning

Diaphragm seal | Minarelli, Aprilia, Suzuki

Material: Sealing paper · Place of use: Admission · Thickness: 0.5 mm · Area of application: Racing · Area of application: Tuning · Ø screw holder: 6.3 mm

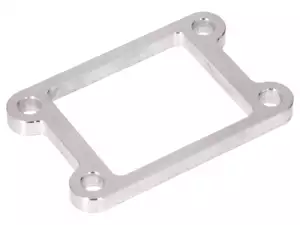

Membrane transpacer Gilardoni italkit rectangle 6 mm aluminum | Puch ZA50

Total length: 72.8 mm · Material: Aluminum · Surface: blank · Width: 47.8 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.4 mm · Mounting type: Screws · Thickness: 6.15 mm · Area of application: Tuning · Hole pattern [mm]: 59 x 34.5

Membrane transpacer Polini Trapez 6 mm aluminum | Puch ZA50

Total length: 50 mm · Material: Aluminum · Surface: blank · Width: 46 mm · Number of fixing points: 4 pcs · Ø mounting hole: 5.4 mm · Mounting type: Screws · Thickness: 6.15 mm · Area of application: Tuning · Hole pattern [mm]: 32 / 36 x 39

MBR inclined spacer inlet Gilardoni italkit

Manufacturer: MBR · Material: Aluminum · Number of fixing points: 4 pcs · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 60 x 35 · Total height: 3 mm · Total height: 8 mm

Malossi reed valve carbon 0.3 / 0.35 / 0.4 mm VL6 Gilardoni italkit

Total length: 37 mm · Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbon · Hole spacing: 22 mm · Width: 42 mm · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Thick membrane platelets: 0.4 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Area of application: Tuning

MBR cover aluminum reed valve inlet Gilardoni italkit cylinder kit | Puch

Total length: 72.5 mm · Manufacturer: MBR · Material: Aluminum · Width: 48 mm · Number of fixing points: 4 pcs · Mounting type: Screws · Thickness: 8 mm · Area of application: Tuning · Hole pattern [mm]: 60 x 35 mm

Polini 4-flap diaphragm insert

Total length: 72.9 mm · Manufacturer: Polini · Material: Plastic · Material: Sheet metal (steel) · Surface: raw · Number of flaps: 4 pcs · Membrane material: Carbon · Width: 47.9 mm · Thick membrane platelets: 0.3 mm · Number of fixing points: 4 pcs · Mounting type: Stud bolts & nuts · Area of application: Tuning · Hole pattern [mm]: 35 x 60 · Camouflaged: No

Malossi gasket set 2-folding diaphragm for Polini 43.5 mm | Puch

Manufacturer: Malossi · Material: Sealing paper · Hole pattern [mm]: 39 x 36/32 mm · Number of fixing points: 4 pcs · Area of application: Tuning

Malossi MHR intake system 4-folding diaphragm PHGB Gilardoni italkit | Puch

Ø inside: 24.5 mm · Manufacturer: Malossi · Material: Aluminum · Material: FPM / FKM (colloquially known as Viton) · Number of flaps: 2 pcs · Membrane material: Carbonite · Number of fixing points: 4 pcs · Ø mounting hole: 6.5 mm · Mounting type: Screws · Area of application: Tuning · Hole pattern [mm]: 60 x 35 / 61 x 40 · Camouflaged: No

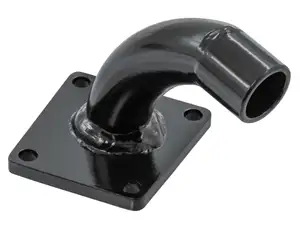

MLM 15 mm intake manifold Polini 2-folding diaphragm Dell'Orto SHA | Puch

Ø inside: 15 mm · Color: black · Manufacturer: MLM · Material: Steel · Surface: varnished · Number of fixing points: 4 pcs · Ø External connection: 18 mm · Mounting type: Screws · Area of application: Tuning · Total height: 58 mm

Malossi reed valve carbonite 0.3 / 0.35 / 0.4 mm VL6 Gilardoni italkit

Total length: 37 mm · Manufacturer: Malossi · Number of flaps: 4 pcs · Membrane material: Carbonite · Hole spacing: 22 mm · Width: 42 mm · Thick membrane platelets: 0.3 mm · Thick membrane platelets: 0.35 mm · Thick membrane platelets: 0.4 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Area of application: Tuning

Polini | Puch Diaphragm Box

Ø inside: 32 mm · Ø inside: 35.95 mm · Ø inside: 39 mm · Ø inside: 44 mm · Material: Aluminum · Thread type: M6x1 (standard thread) · Number of fixing points: 8 pcs · Mounting type: Screws · Area of application: Racing · Area of application: Tuning · Hole pattern [mm]: 40.85 x 50.9 · Hole spacing inlet: 32 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 38 mm · Total height: 47 mm · Total length: 58 mm

Malossi reed valve block MHR TEAM VL16

Total length: 66.2 mm · Manufacturer: Malossi · Material: Plastic · Number of flaps: 2 pcs · Membrane material: Carbon · Width: 48.3 mm · Hole spacing: 53 mm · Thick membrane platelets: 0.35 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.6 mm · Mounting type: Screws · Area of application: Racing · Camouflaged: No

MLM 15 mm intake manifold diaphragm adapter Bing SRE | Puch

Ø inside: 15 mm · Color: black · Manufacturer: MLM · Material: Steel · Surface: varnished · Number of fixing points: 4 pcs · Ø External connection: 20 mm · Mounting type: Screws · Area of application: Tuning

Polini diaphragm block | Minarelli horizontal

Total length: 38.9 mm · Manufacturer: Polini · Material: Carbonite · Material: Plastic · Material: Steel · Number of flaps: 4 pcs · Membrane material: Carbonite · Thread type: M6x1 (standard thread) · Width: 36.3 mm · Width: 39.7 mm · Hole spacing: 52.5 mm · Hole spacing: 62 mm · Width: 64.9 mm · Width: 75.2 mm · Thick membrane platelets: 0.35 mm · Number of fixing points: 4 pcs · Ø mounting hole: 6.4 mm · Mounting type: Screws · Thickness: 3.5 mm · Hole pattern [mm]: 52.5 x 62

MLM 15 mm intake manifold diaphragm adapter Dell'Orto SHA | Puch

Ø inside: 15 mm · Color: black · Manufacturer: MLM · Material: Steel · Surface: varnished · Number of fixing points: 4 pcs · Ø External connection: 19 mm · Mounting type: Screws · Area of application: Tuning

Stage6 8-folding diaphragm by Moto Tassinari (Gilardoni italkit)

Total length: 77 mm · Manufacturer: Stage6 · Material: Plastic · Surface: raw · Number of flaps: 8 pcs · Membrane material: Carbon · Width: 49 mm · Thick membrane platelets: 0.3 mm · Number of fixing points: 4 pcs · Ø mounting hole: 6.6 mm · Mounting type: Screws · Area of application: High End · Hole pattern [mm]: 60 x 34.8 mm

Gasket set diaphragm Gilardoni italkit Puch

Number of components: 2 pcs · Area of application: Tuning · Hole pattern [mm]: 60 x 35 mm

Malossi gasket set 4-folding diaphragm | Puch, Peugeot

Manufacturer: Malossi · Material: Sealing paper · Mounting type: Screws · Number of fixing points: 4 pcs · Area of application: Tuning

Stage6 reed valve block VForce 3 by Moto Tassinari

Manufacturer: Stage6 · Number of flaps: 8 pcs · Hole spacing: 52 mm

Stage6 reed valve V-Force 3 by Moto Tassinari | Minarelli

Total length: 76 mm · Manufacturer: Stage6 · Material: Plastic · Number of flaps: 8 pcs · Membrane material: Carbon · Width: 68 mm · Thick membrane platelets: 0.3 mm · Number of fixing points: 4 pcs · Ø mounting hole: 6.5 mm · Mounting type: Screws · Area of application: Racing · Area of application: Tuning

Polini Diaphragm Box on Gilardoni italkit | Puch

Total length: 73 mm · Ø inside: 32 mm · Ø inside: 35.95 mm · Ø inside: 39 mm · Ø inside: 44 mm · Material: Aluminum · Color: black · Mounting type: Screws · Hole spacing inlet: 32 mm · Hole spacing inlet: 36 mm · Hole spacing inlet: 38 mm · Total height: 54.1 mm · Thread type: M6x1 (standard thread) · Number of fixing points: 8 pcs · Hole pattern [mm]: 34.8 x 59.9 · Area of application: Racing · Area of application: Tuning
