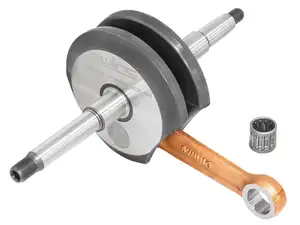

Original crankshaft for your moped / moped with Sachs 504/1 or 504/2 engine

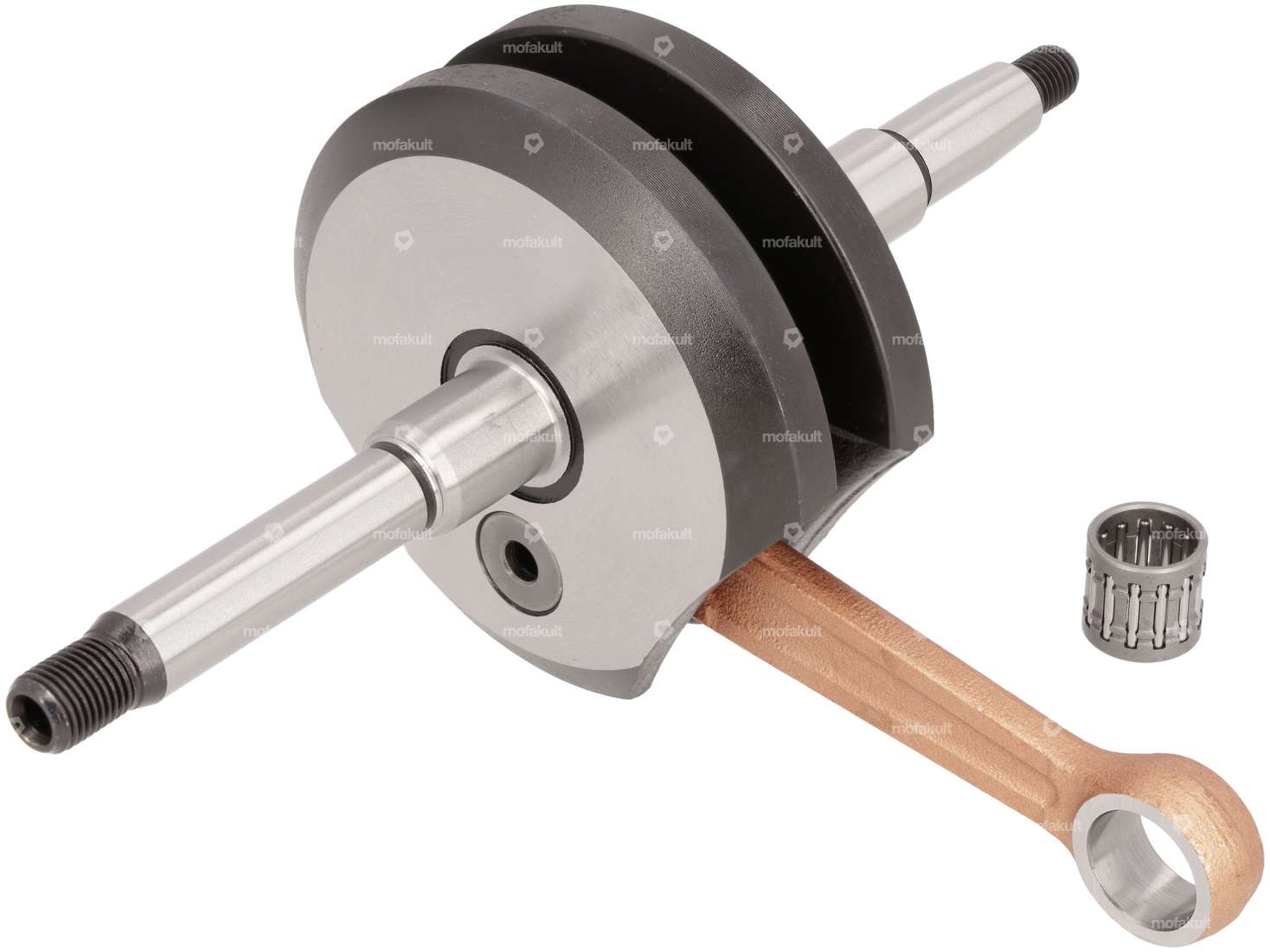

.The needle bearing is included in the scope of delivery
Note: There is no groove for a key on the clutch side. If the correct tightening torque is applied, a key is generally not required on the clutch side.
| Cheek type | standard |
| Material | Steel |
| Crankshaft stroke | 42 mm |
| Ø coupling pin / vario pin | 15 mm |
| Connecting rod length center-center | 85 mm |
| Total length of crankpin on clutch side | 85 mm |
| Total length crankpin ignition side | 70.2 mm |
| Ø crank webs | 80.5 mm |
| Ø Connecting rod eye | 15 mm |
| Bearing seat right | 15 mm |
| Ø piston pin (B) | 10 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 22.5 mm |
| Thread type | MF8x1 (fine pitch thread), MF10x1 (fine pitch thread) |
| Thread length | 9.5 mm, 11.5 mm |
| Dimension needle bearing | 12 / 15 x 14 |
| Wide crank webs | 34.2 mm |
| Length 1st paragraph | 43.5 mm |
| Length 2nd paragraph | 19 mm |
| Ø 1st step (on the coupling side) | 11.65 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 25.25 mm, 11 mm |
| Sachs | 504 (without pedal shaft) |
