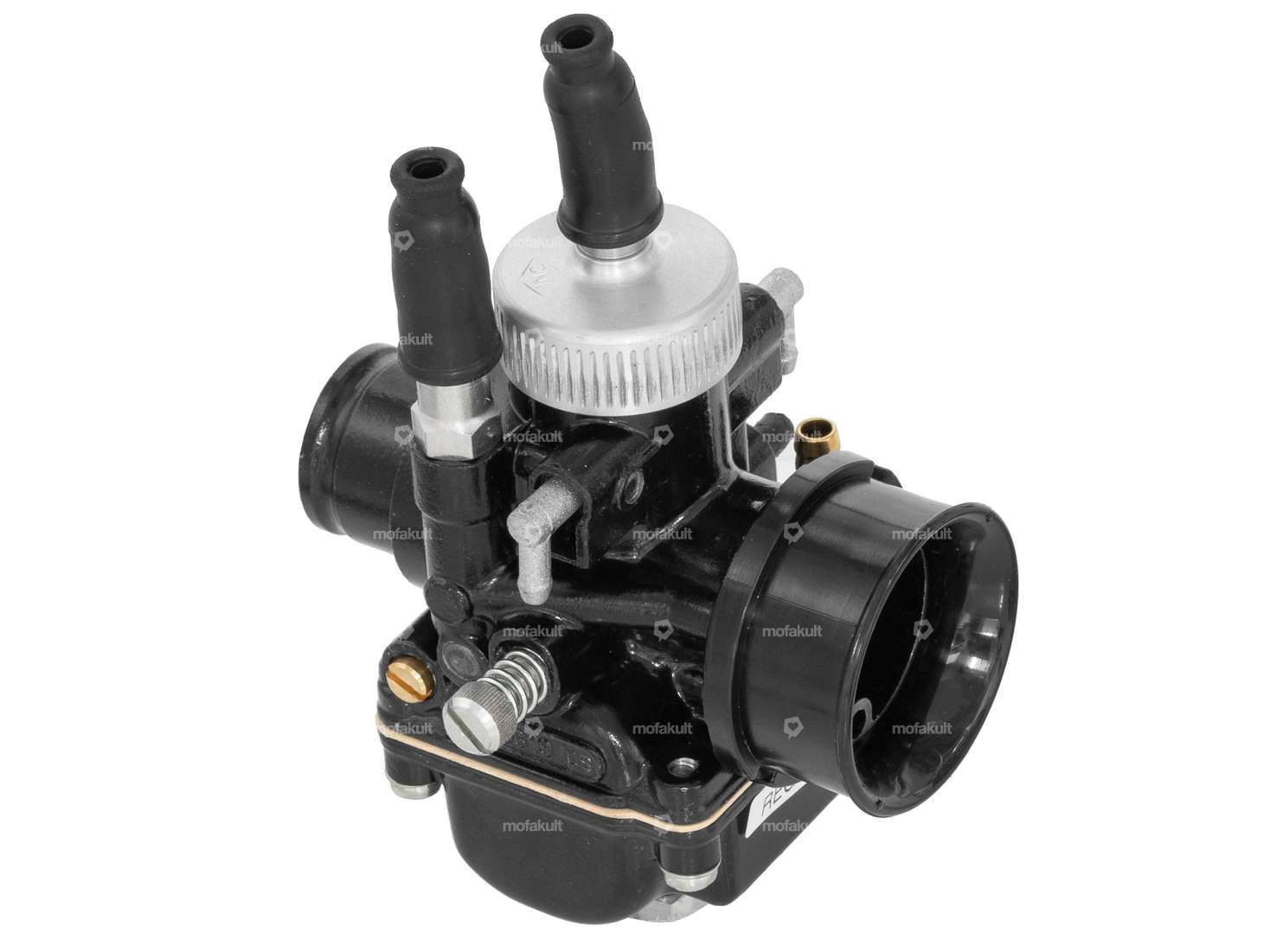

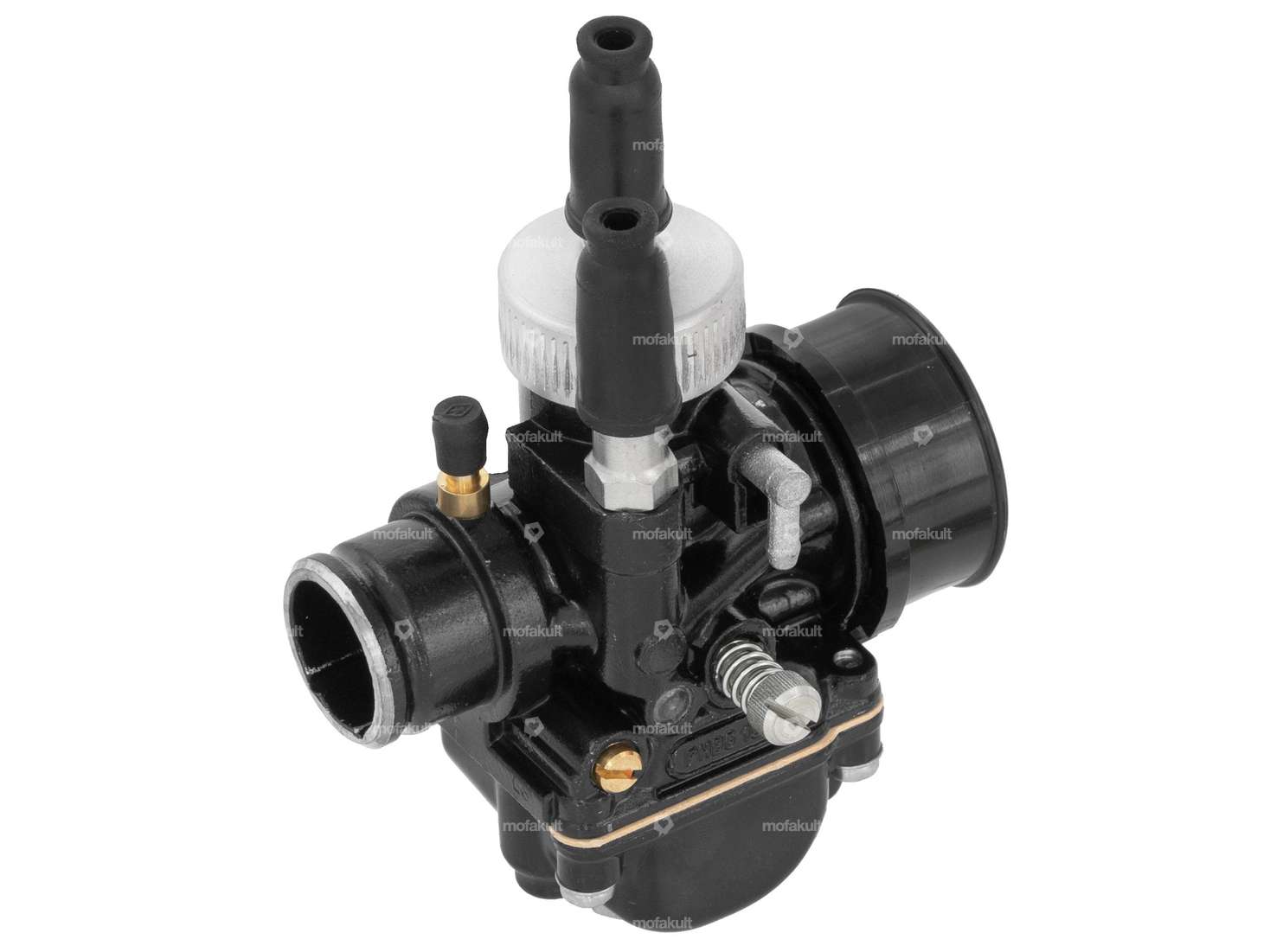

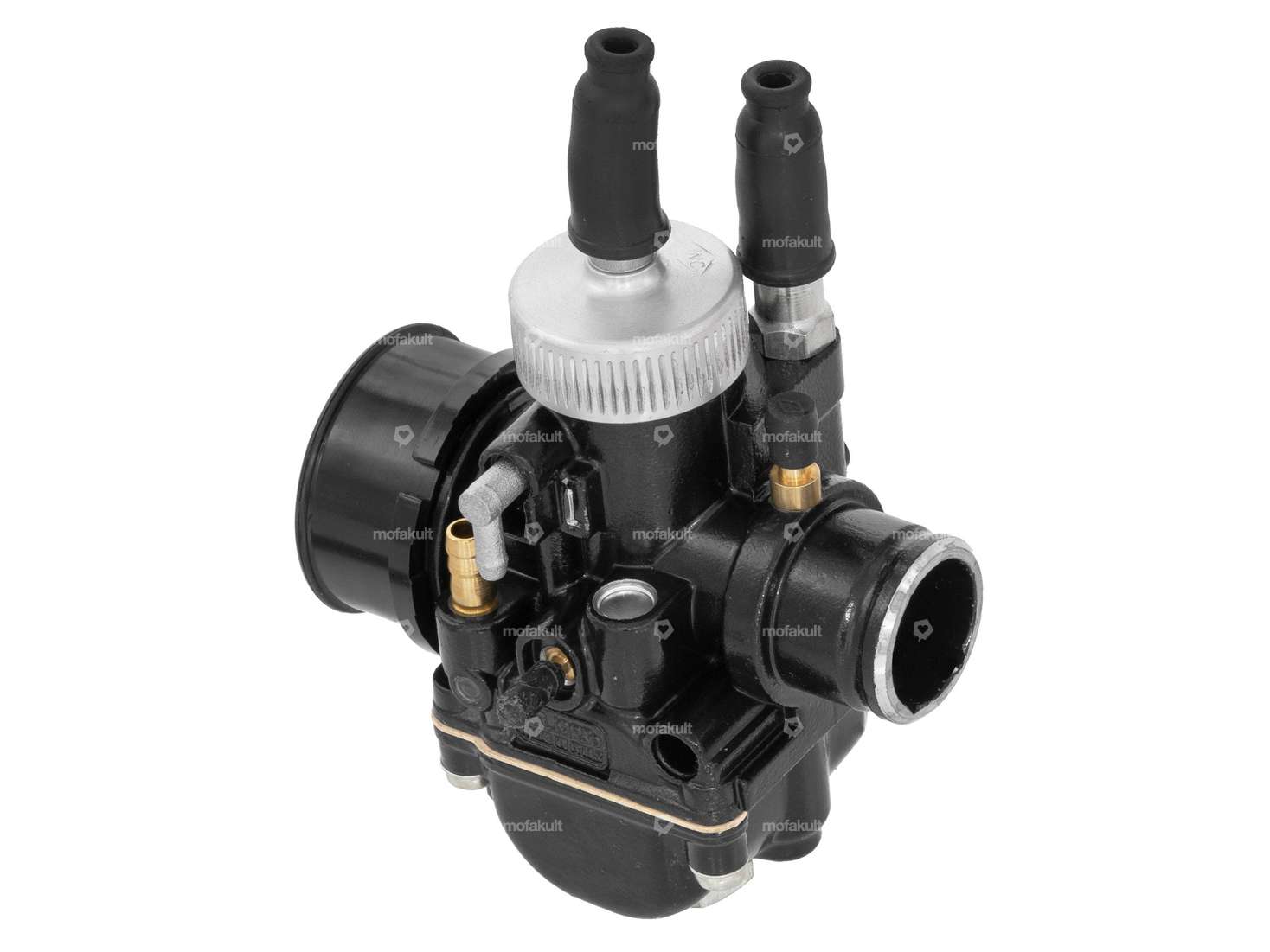

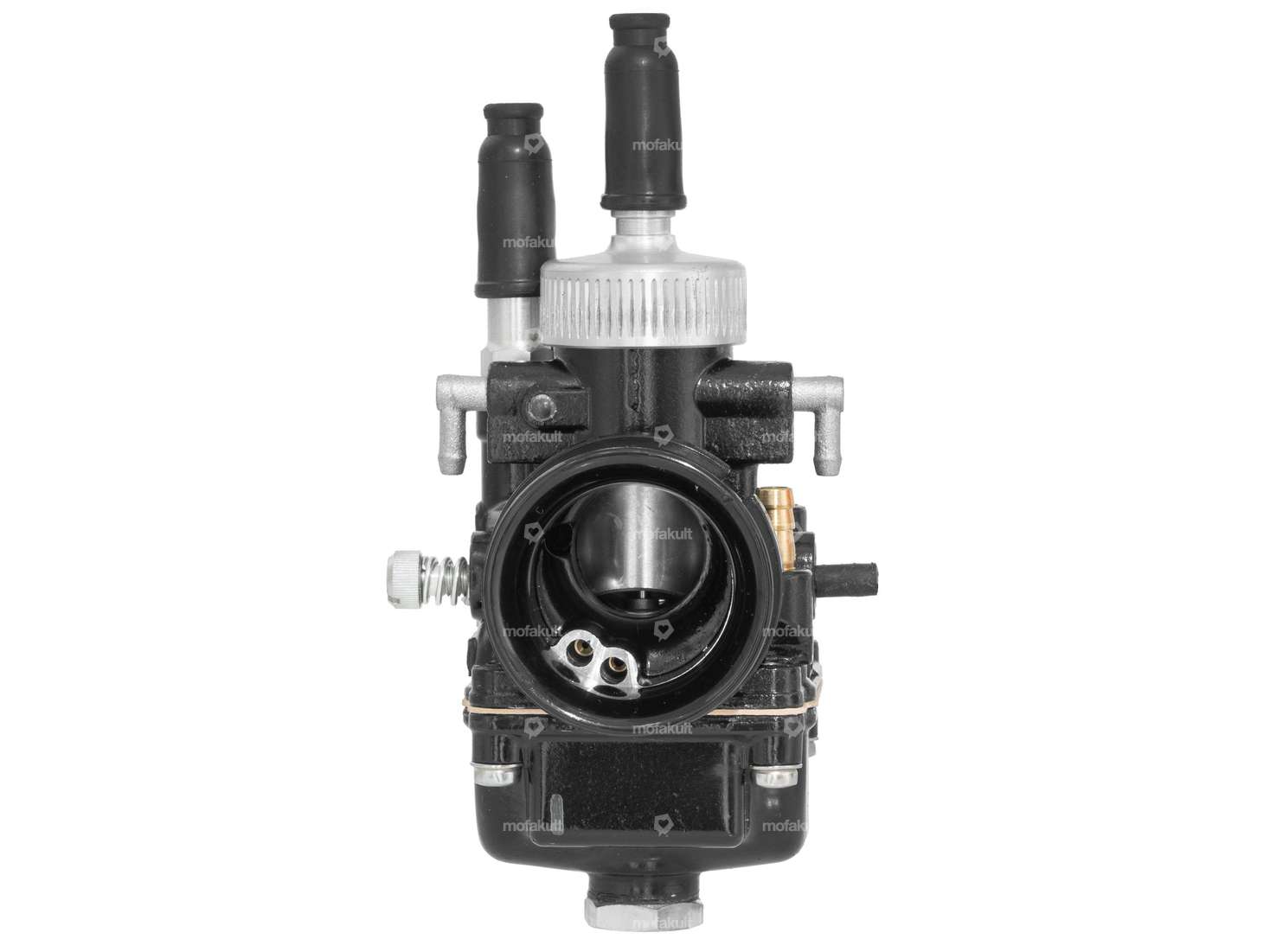

21 mm racing carburetor Dell'Orto PHBG. Ideal for 46 and 47 mm racing cylinders. This is the Black Edition.
An M32x1.25 thread is available for mounting the air filter, with the supplied ring you can thus achieve a diameter of 38 mm.
The carburetor has an oil and vacuum connection.
Connection width of intake manifold: 25 mm
Main diameter: 92
Quality product from the Italian manufacturer Dell'Orto.
Details
| Manufacturer | Dell'Orto |
| Color | black |
| Component group Carburetor | Carburetor complete |
| Surface | varnished |
| Nominal diameter | 21 mm |
| Carburetor type | PHBG DS |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 92 |
| Ø Air filter connection | 32 mm, 38 mm |
| Mounting type | Plug connection |
| Air filter connection thread | MF32x1.25 (fine pitch thread) |
| Mixed oil connection | Yes |
| Area of application | Tuning |
| Vacuum connection | Yes |
| Choke control | Cable choke |
