38.00 mm ELKO piston with a 2 mm rectangular piston ring with flank lock (FS) suitable for Puch Maxi S / N, Puch X30 Sport NS / NL, as well as Puch X30 Velux mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.

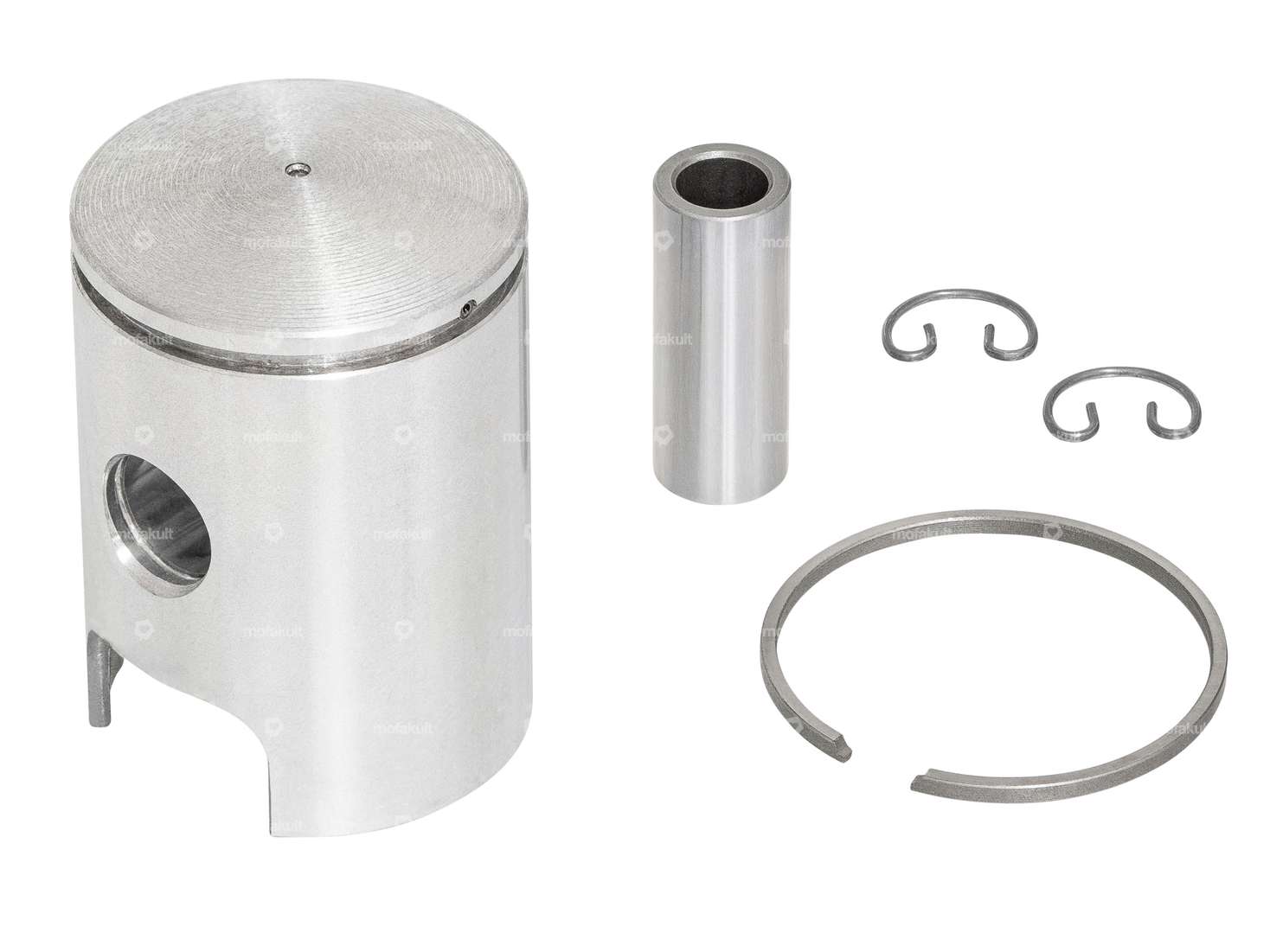

The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
NOS – New from old stock.
Quality product from the Austrian manufacturer König under the ELKO brand.
| Nominal diameter | 38 mm |
| Manufacturer | ELKO (König) |
| Ø outside piston (A) | 37.975 mm |
| Compression height (C) | 22.5 mm |
| Curvature (D) | 3.3 mm |
| Total piston height (E) | 55 mm |
| Number of piston rings (F) | 1 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Ø piston pin (B) | 12 mm |
| Piston ring height | 2 mm |
| Tolerance group | D |
| Weight piston kit | 81 g |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Ratings
Accessories & related products
Meteor piston 38 mm #1 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.95 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 1 · Weight piston kit: 79 g · Puch OEM number: 349.1.10.106.0/21
EUR 61.60
Meteor piston 38 mm #2 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 2 · Weight piston kit: 79 g
EUR 61.60
Meteor piston 38 mm #3 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.97 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 3 · Weight piston kit: 79 g
EUR 61.60
Meteor piston 38 mm #4 | Puch
Nominal diameter: 38 mm · Manufacturer: Meteor · Ø outside piston (A): 37.98 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 4 · Weight piston kit: 80 g
EUR 61.60
GPO piston pin extractor Ø 10, 12, 14 mm
Material: Steel · Total length: 130 mm · Manufacturer: GPO · Number of components: 7 pcs · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool
EUR 24.60
