For: Zündapp Belmondo · Zündapp

16151

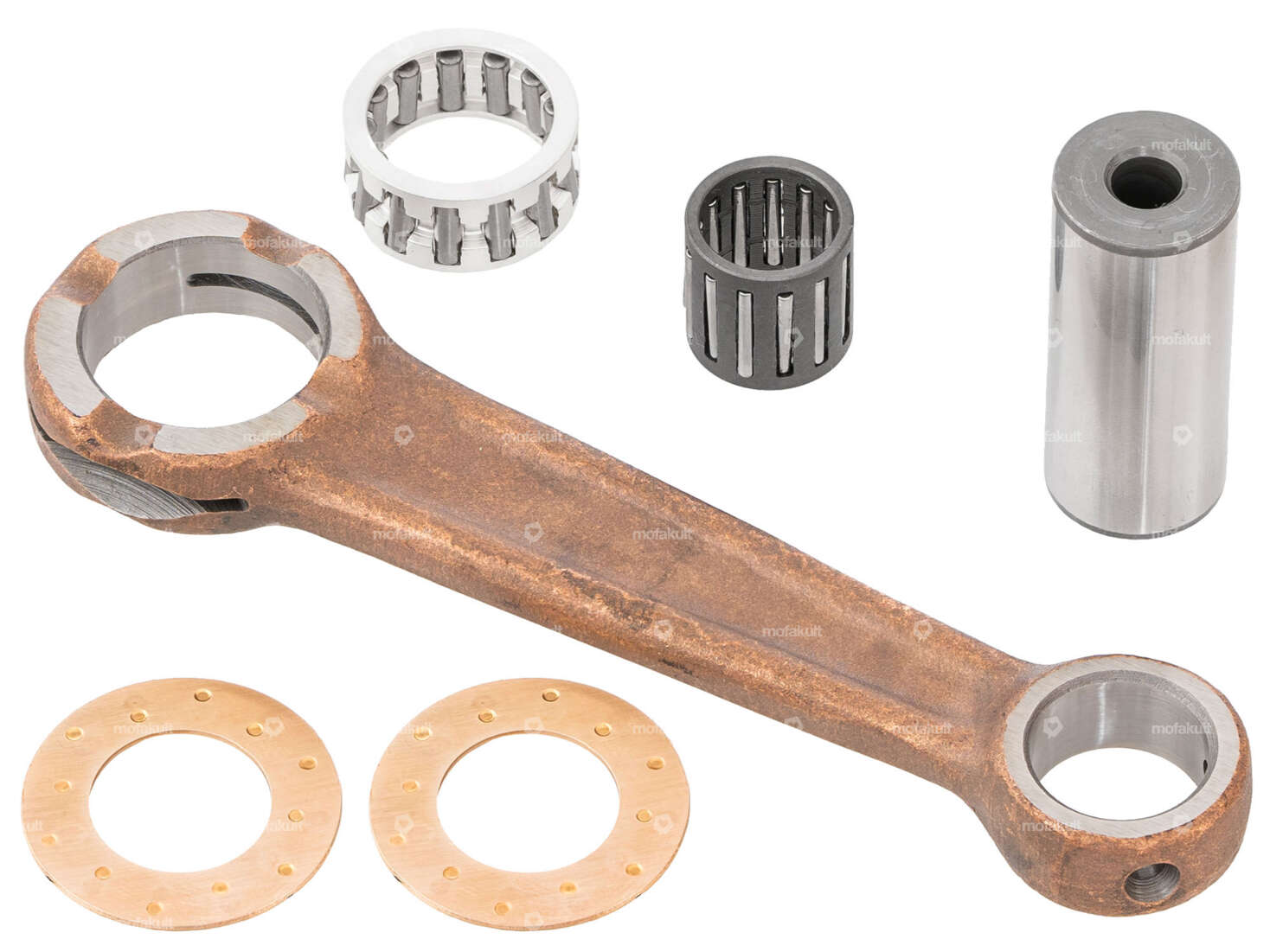

Jasil connecting rod set | Zündapp

EUR 67.30

Incl. 25% VAT.

Description

Complete connecting rod compatible with crankshafts from various Zündapp engines.
Some dimensions differ from the original Zündapp Belmondo (Type 247) connecting rod.

  • Connecting rod pin 1 dimensions: Ø16 x 37.85 mm
  • Connecting rod length (center to center): 91 mm
  • Total connecting rod length: 118.2 mm
  • Thickness: 10 mm
  • Outer diameter of lower connecting rod eye: 31 mm
  • Outer diameter of upper connecting rod eye: 23 mm
  • Lower needle bearing (silver cage): Ø21/16 x 9.75 mm
  • Upper needle bearing: Ø15/12 x 12.7 mm
  • Piston pin diameter: 12 mm

The two brass spacer washers are included in the package.

A brand-name product from the Portuguese manufacturer Jasil under the Top Racing brand.

Thickness10 mm
ManufacturerJasil
MaterialSteel
Surfacecopper-coated
Total length118.2 mm
Area of applicationStandard, Tuning
Ø piston pin (B)12 mm
Connecting rod length center-center91 mm
Ø Connecting rod bolt16 mm
Ø lower connecting rod eye outside31 mm
Ø upper connecting rod eye outside23 mm
Ø lower bearing inside21 mm
Ø inside upper bearing15 mm
Dimension lower bearing16/21 x 9.75 mm
Dimension upper bearing12/15 x 12.7 mm
Connecting rod pin length37.85 mm
