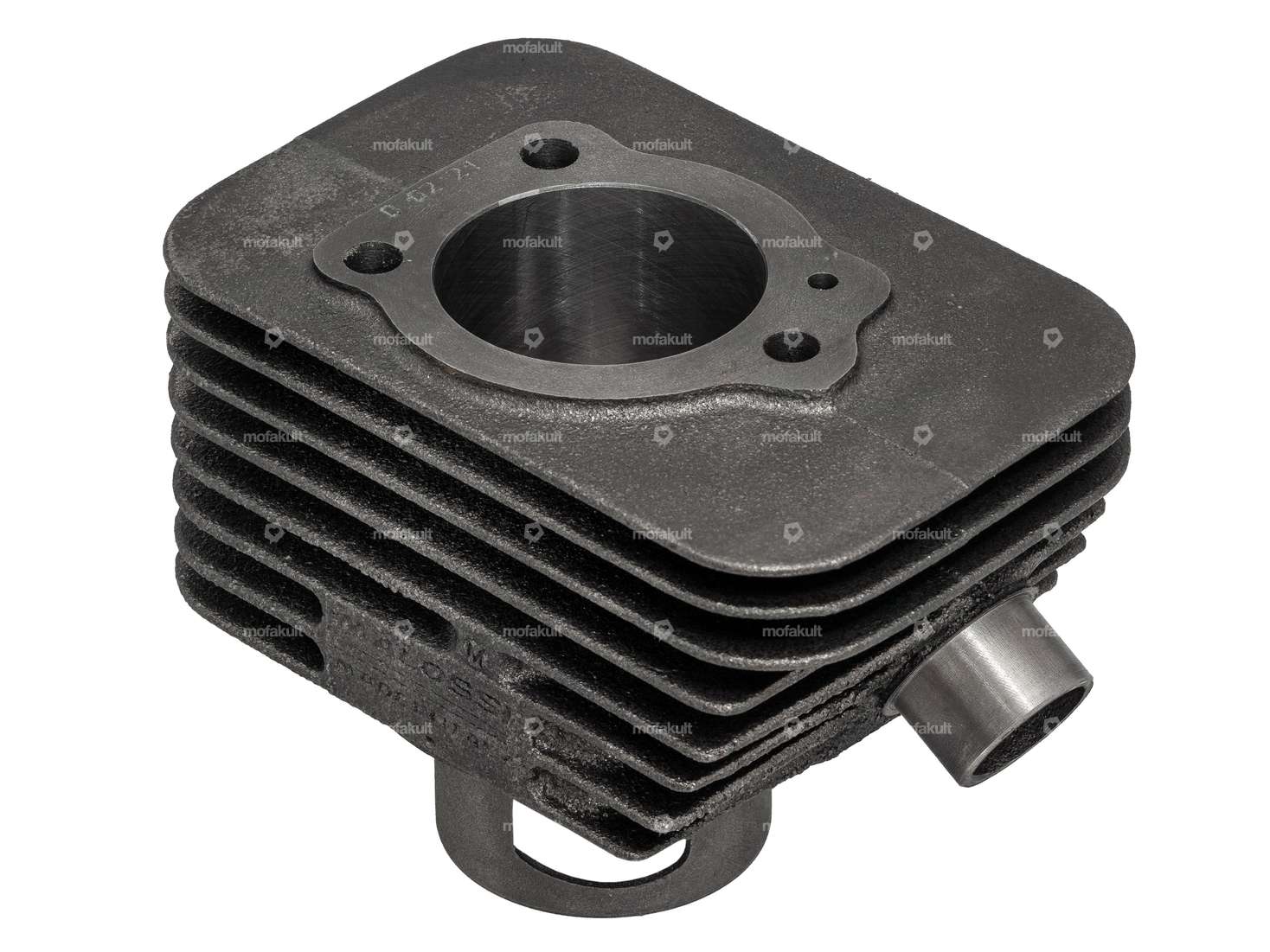

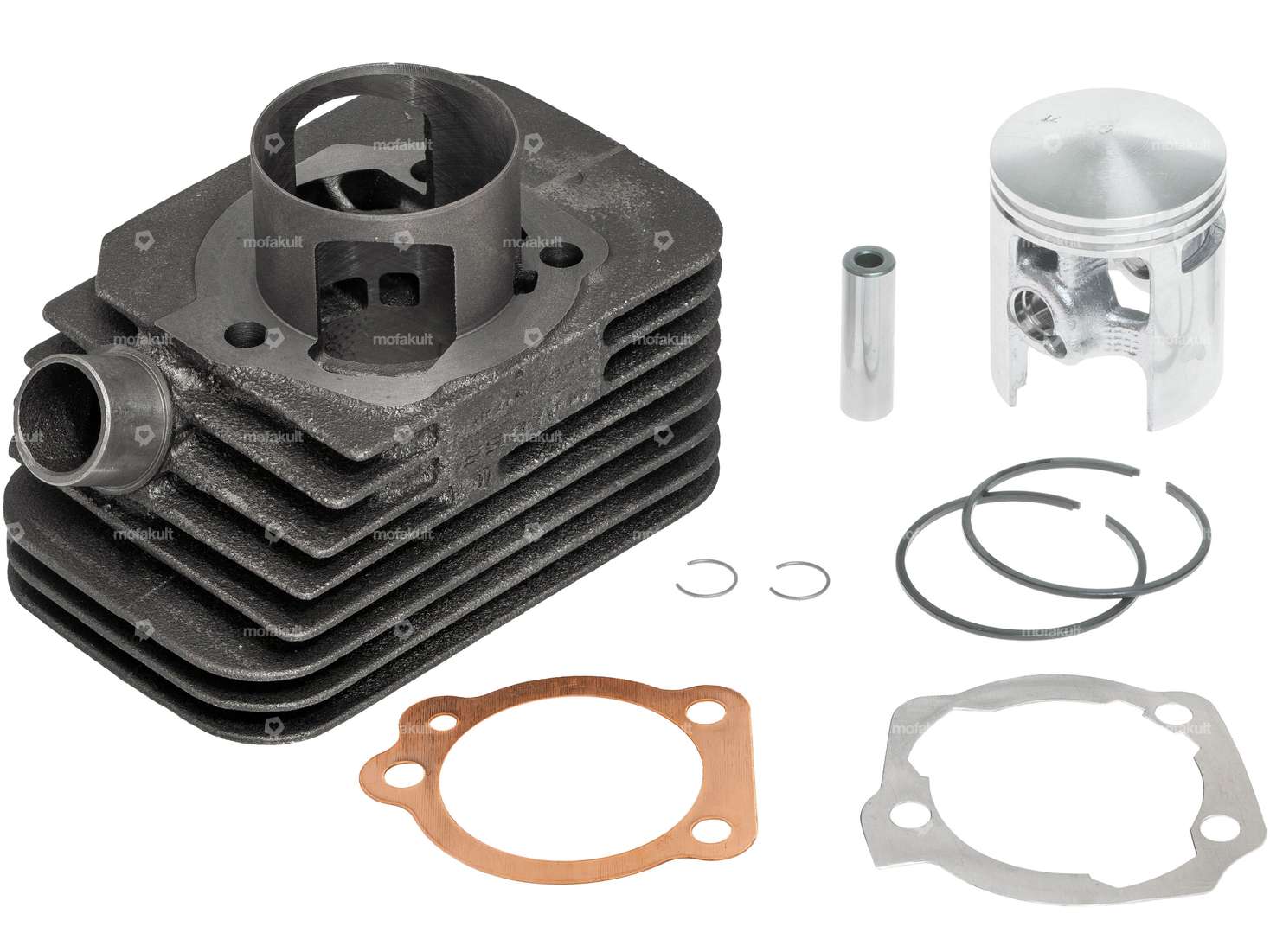

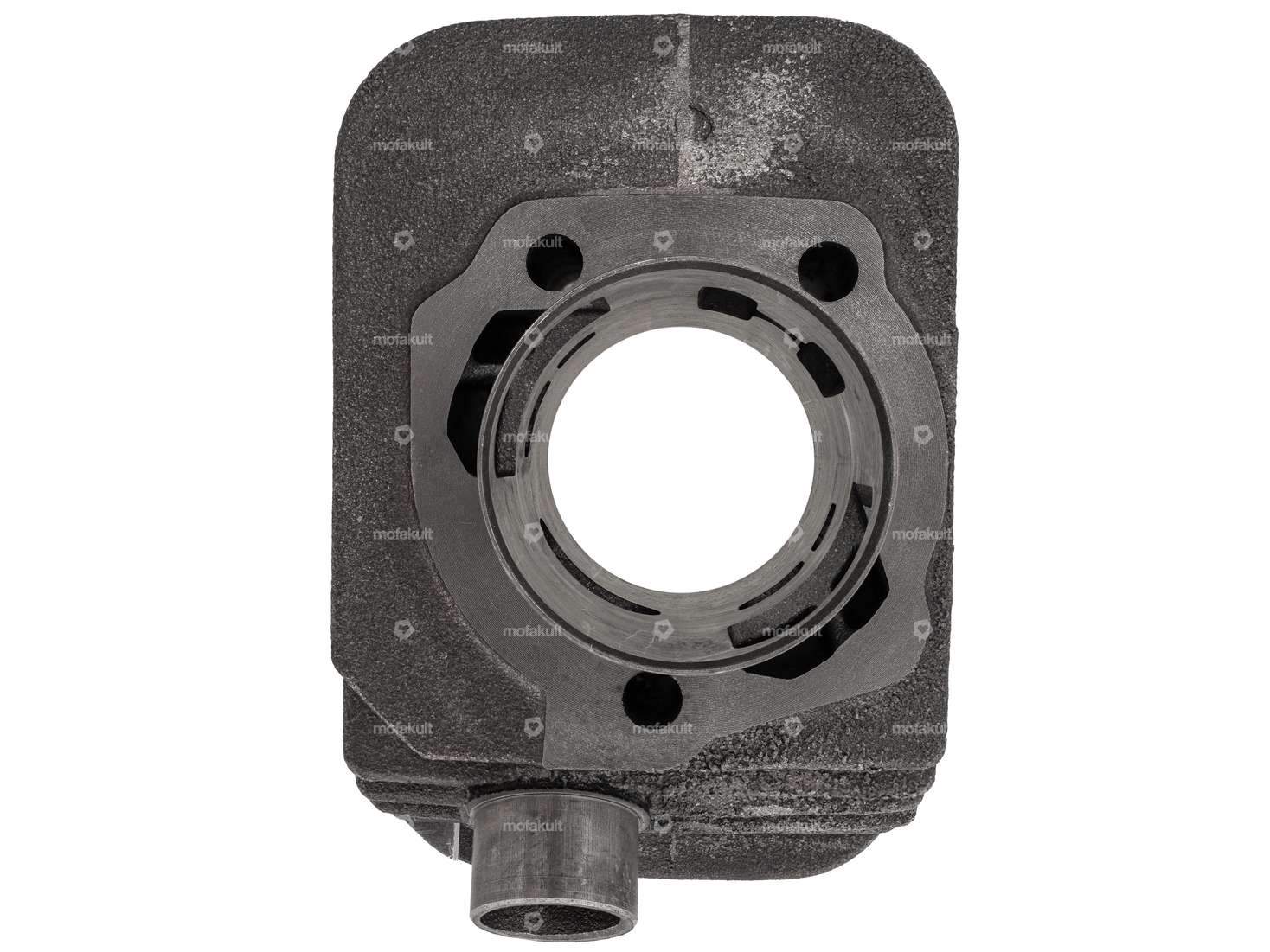

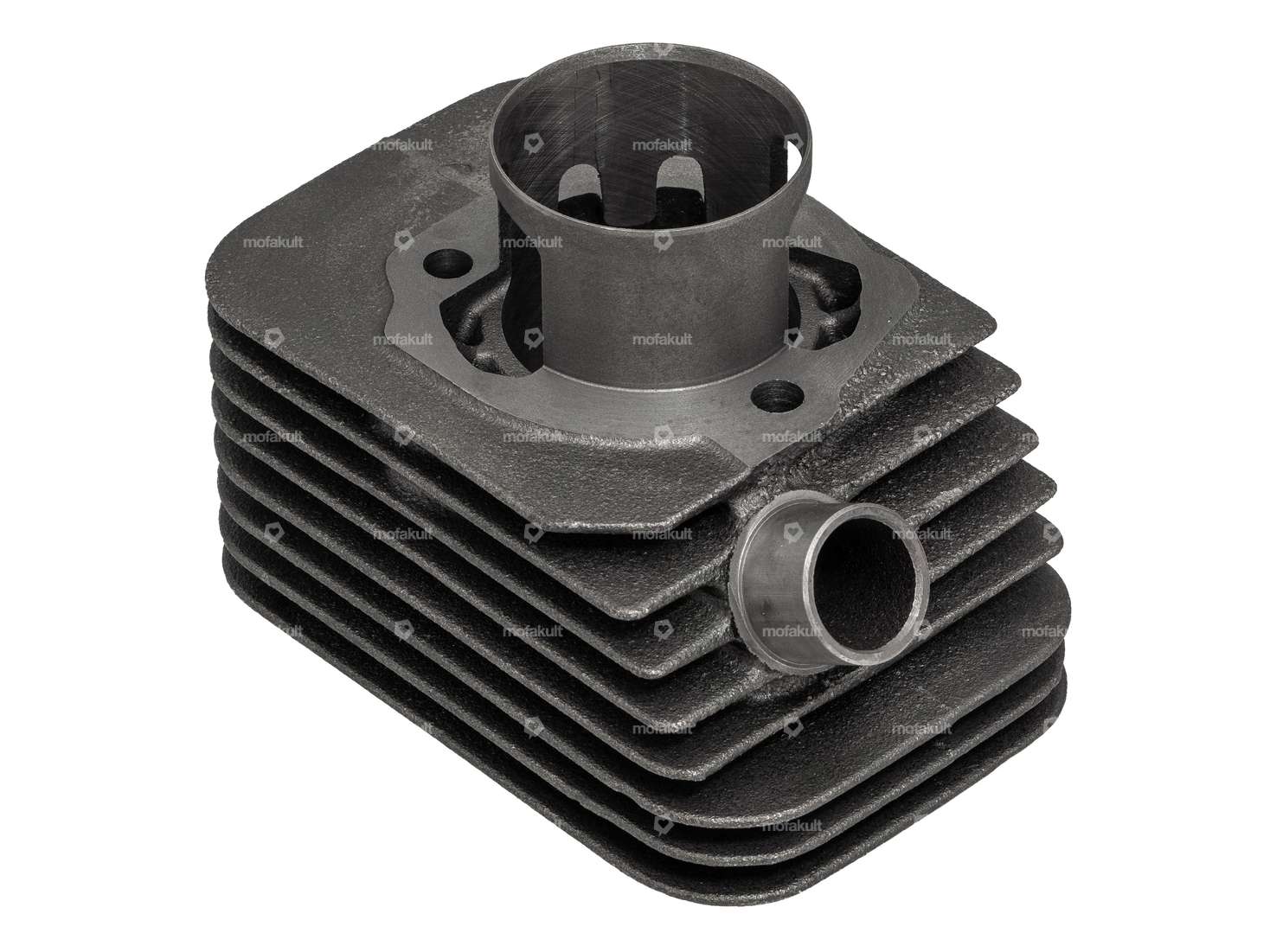

Revised 2021 version of one of the best available cylinder kits for Piaggio mopeds / mopeds.
This is the version with 10 mm piston pin.
This cast iron cylinder offers a very good increase in performance over the entire speed range and makes it one of the most popular 63 cc racing cylinders for Piaggio.
The workmanship is very clean and the matching of the piston windows to the overflow channels and boost parts is also very good. The webs in the area of the cylinder skirt significantly reduce the risk of piston jamming and make the cylinder extremely durable.
With the reworking, the triangular shape of the transfer ports was adapted to a longitudinal shape. As a result, the cylinder fits much better on racing gear such as the Polini Speed Engine, but less well on the original gear. Fortunately, there is enough sealing surface available so that you can also bring the channels back into a triangular shape on the cylinder if necessary.
In addition to installing a larger cylinder, we always recommend adapting the carburetor and exhaust accordingly. Ideally, you should also modify the intake and the overflow ducts or use a racing case.
Because the combustion chamber is optimally matched to the cylinder, we recommend using the Malossi cylinder head. Alternatively, the cylinder can also be operated with the original head.
Further add-on parts and other versions of the cylinder can be found under accessories.
Quality product from the Italian manufacturer Malossi.
Details
| Nominal diameter | 43 mm |
| Manufacturer | Malossi |
| Camouflaged | No |
| Area of application | Tuning |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 63 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 45.6 mm |
| Ø Outlet outside | 22.5 mm |
| Ø outlet inside | 18.3 mm |
| Number of fixing points | 3 pcs |
| Hole pattern [mm] | 55 x 34 |
| Ø piston pin (B) | 10 mm |
| Outlet type | clamped |
| Decompressor | Yes |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
SITO Plus exhaust Ø 24 mm | Piaggio Ciao, Bravo
Manufacturer: SITO · Material: Steel · Surface: varnished · Color: black · Ø Internal connection: 22 mm · Ø Silencer: 70 mm · Number of fixing points: 1 pcs · Ø outside: 14 mm · Ø Flame tube outside: 24 mm · Exhaust type: Cylindrical · Flame tube attachment: Plug connection clamped · Mounting type: Welded lug · Total length: 690 mm
EUR 90.10
SITO Plus exhaust Ø 24 mm | Piaggio SI, Grillo
Manufacturer: SITO · Material: Steel · Surface: varnished · Color: black · Ø Internal connection: 22.3 mm · Ø Silencer: 70 mm · Number of fixing points: 1 pcs · Ø outside: 14 mm · Ø Flame tube outside: 25 mm · Exhaust type: Cylindrical · Flame tube attachment: Plug connection clamped · Mounting type: Welded lug · Total length: 720 mm
EUR 96.10
Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio Ciao, Bravo 1, Boxer
Manufacturer: Malossi · Camouflaged: No · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 - 43 mm · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Candle thread: long · Decompressor: Yes · Total length: 122 mm · Width: 87 mm · Height: 60 mm · Area of application: Racing
EUR 87.70
Polini Speed Engine engine case breaker ignition | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Stock number: 6202 · Color: silver · Crankshaft stroke: 43 mm · Ignition type: Breaker · Total length: 215 mm · Width: 175 mm · Height: 104 mm
EUR 252.50
Malossi tuning set 43 mm (version 2.0) | Piaggio Ciao, Bravo, Boxer
Nominal diameter: 65 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing · Displacement: 65 ccm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Camouflaged: No · Area of application: Tuning
EUR 426.90
Malossi cylinder head for 41 - 43 mm cylinder kit | Piaggio SI, Bravo
Manufacturer: Malossi · Camouflaged: No · Material: Aluminum · Ø cylinder: 41 - 43 mm · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Candle thread: short · Decompressor: Yes · Total length: 134 mm · Width: 94 mm · Height: 52 mm · Area of application: Racing
EUR 84.10
Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Weight: 698 g · Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Thread type: M8x1.25 (standard thread) · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Thread length: 16 mm · Ø crank webs: 69.7 mm · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Area of application: Racing
EUR 180.30
Malossi tuning set 43 mm | Piaggio SI, Bravo, Grillo
Manufacturer: Dell'Orto · Manufacturer: Malossi · Manufacturer: NGK · Manufacturer: SITO · Manufacturer: swiing · Area of application: Tuning · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 44 mm · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No
EUR 450.90
Dell'Orto 13/13 SHA carburetor & racing air filter set | Piaggio Ciao PX, C24
Width: 60 mm · Height: 96 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Total length: 46 mm · Component group Carburetor: Carburetor complete · Area of application: Tuning · Carburetor type: SHA (Piaggio) · Nominal diameter: 13 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Mounting type: Plug connection clamped · Ø without reducing sleeve: 18 mm · Nozzle size: 66 · Ø Inside entrance: 13 mm · Ø Internal connection: 16 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 6 mm
EUR 80.50
Not in stock
swiing® ingenious stud bolt M7x120 / Ø 7.3 shank - 10.9 strength
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Diameter: 7.3 mm · Total length: 120 mm · Thread type: M7x1 (standard thread) · Thread length: 20 mm · Thread length: 30 mm · Strength class: 10.9
EUR 5.90

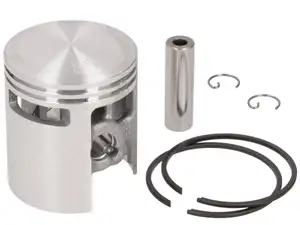

Malossi piston 43 mm (10 mm KoBo) new version | Piaggio Ciao, SI, Bravo, Boxer
