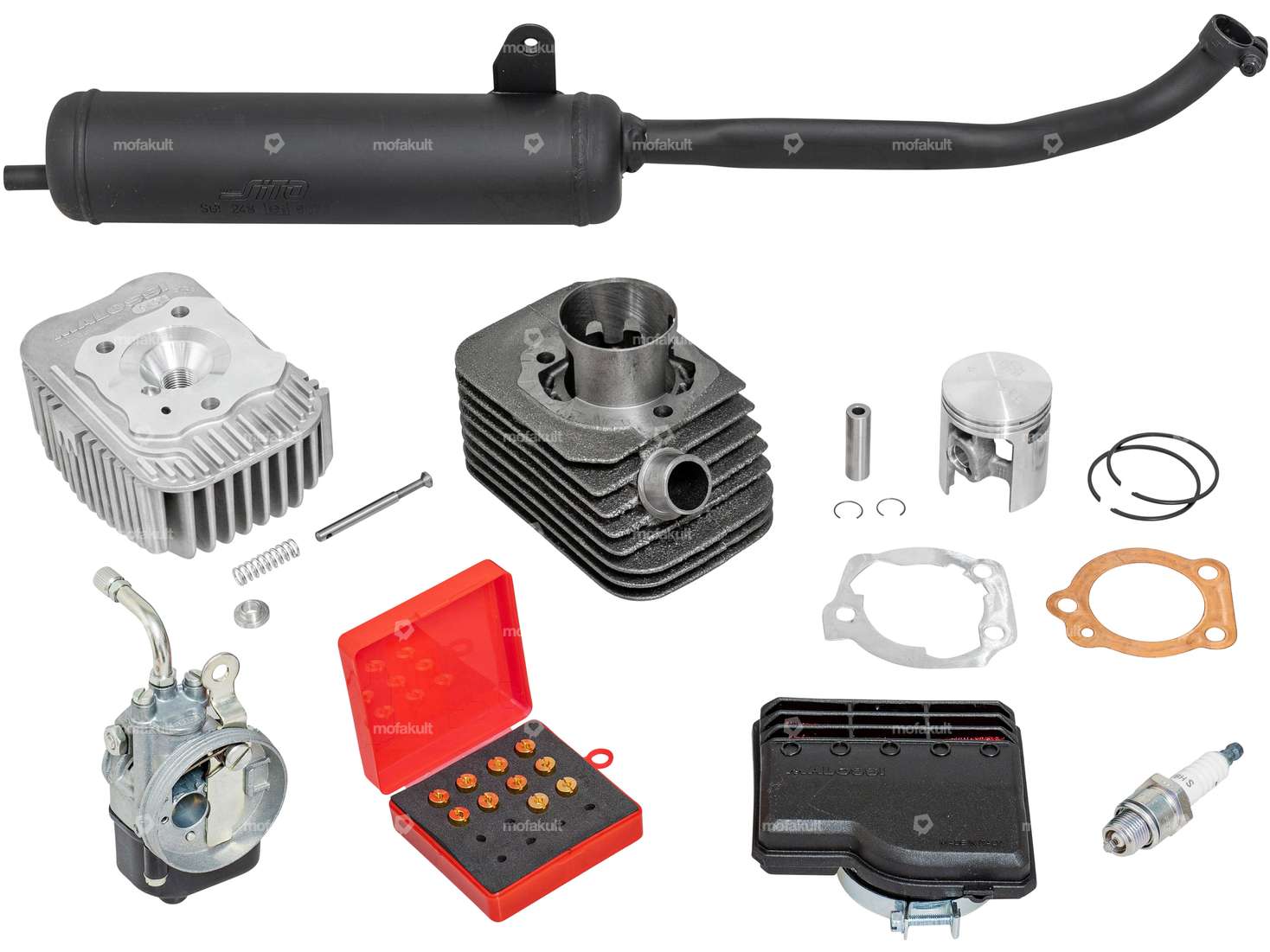

Malossi tuning set 43 mm | Piaggio Ciao, Bravo, Boxer

swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle thread: M5x0.8 (standard thread)

Motorex 2-stroke oil semi-synthetic 1 L (for running in cylinders)

Color: green · Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Material: Plastic · Material: Steel · Number of components: 3 pcs · Area of application: Standard

Needle bearing 10/13/14.2 Piston pin

Ø inside: 10 mm · Ø outside: 13 mm · Bearing cage: Sheet steel cage · Bearing type: Needle roller and cage assembly · Dimension needle bearing: 10/13 x 14.2 · Width: 14.2 mm

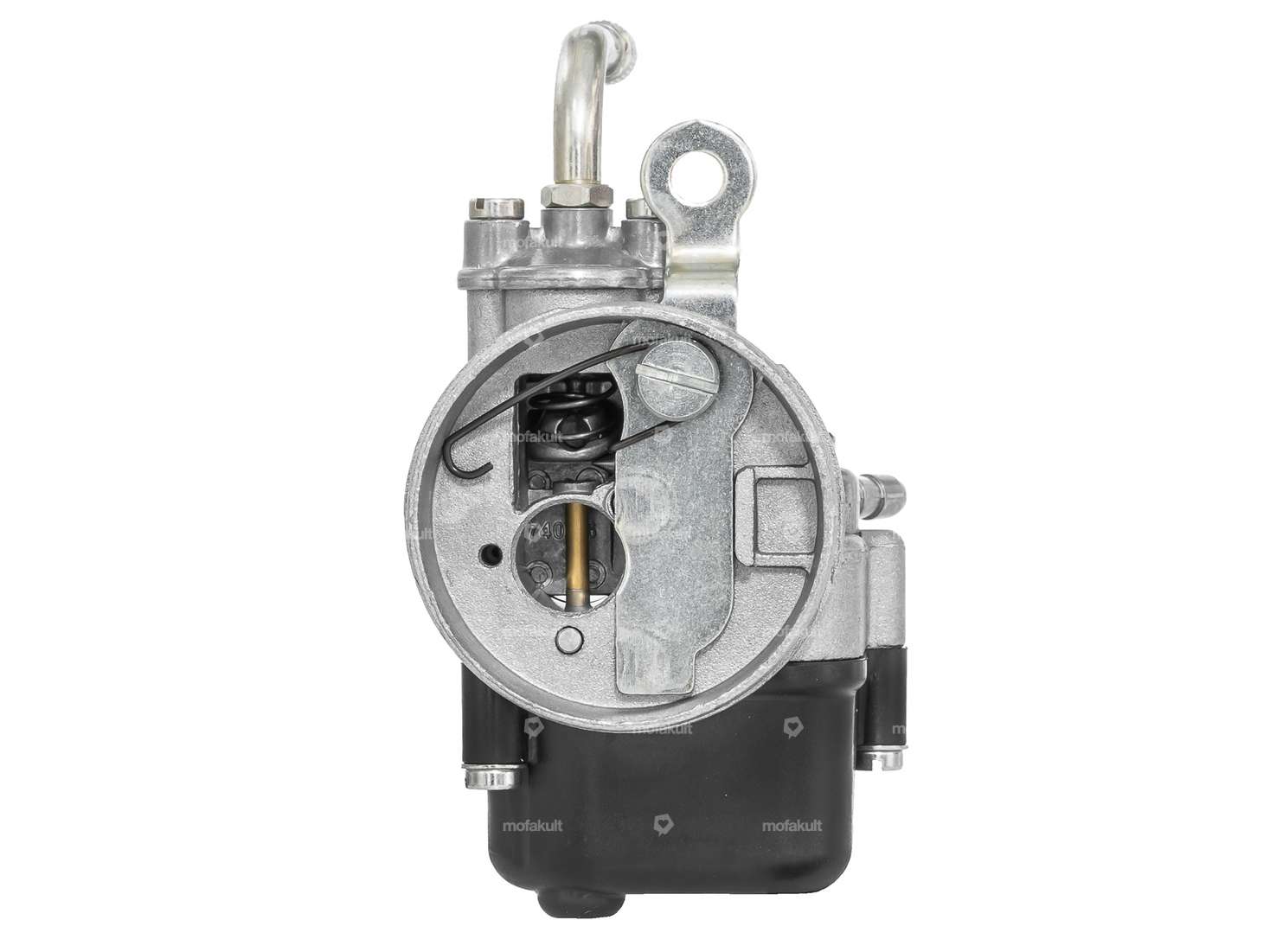

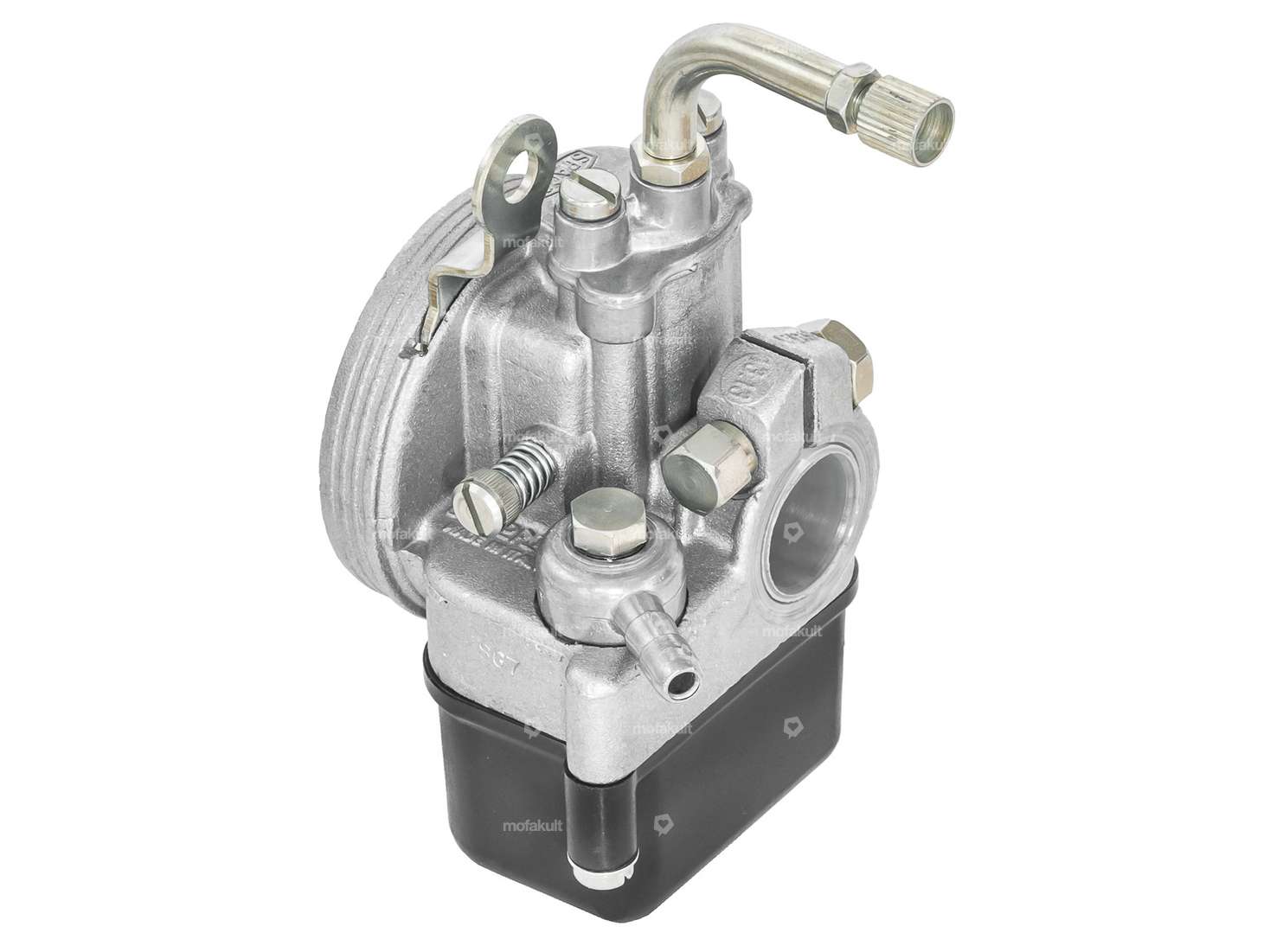

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX / C24, Bravo, SUPERbravo

Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: SHA (Piaggio) · Color: black · Nominal diameter: 13 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 18 mm · Total length: 46 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø Internal connection: 16 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Width: 60 mm · Camouflaged: No · Nozzle size: 66 · Height: 96 mm

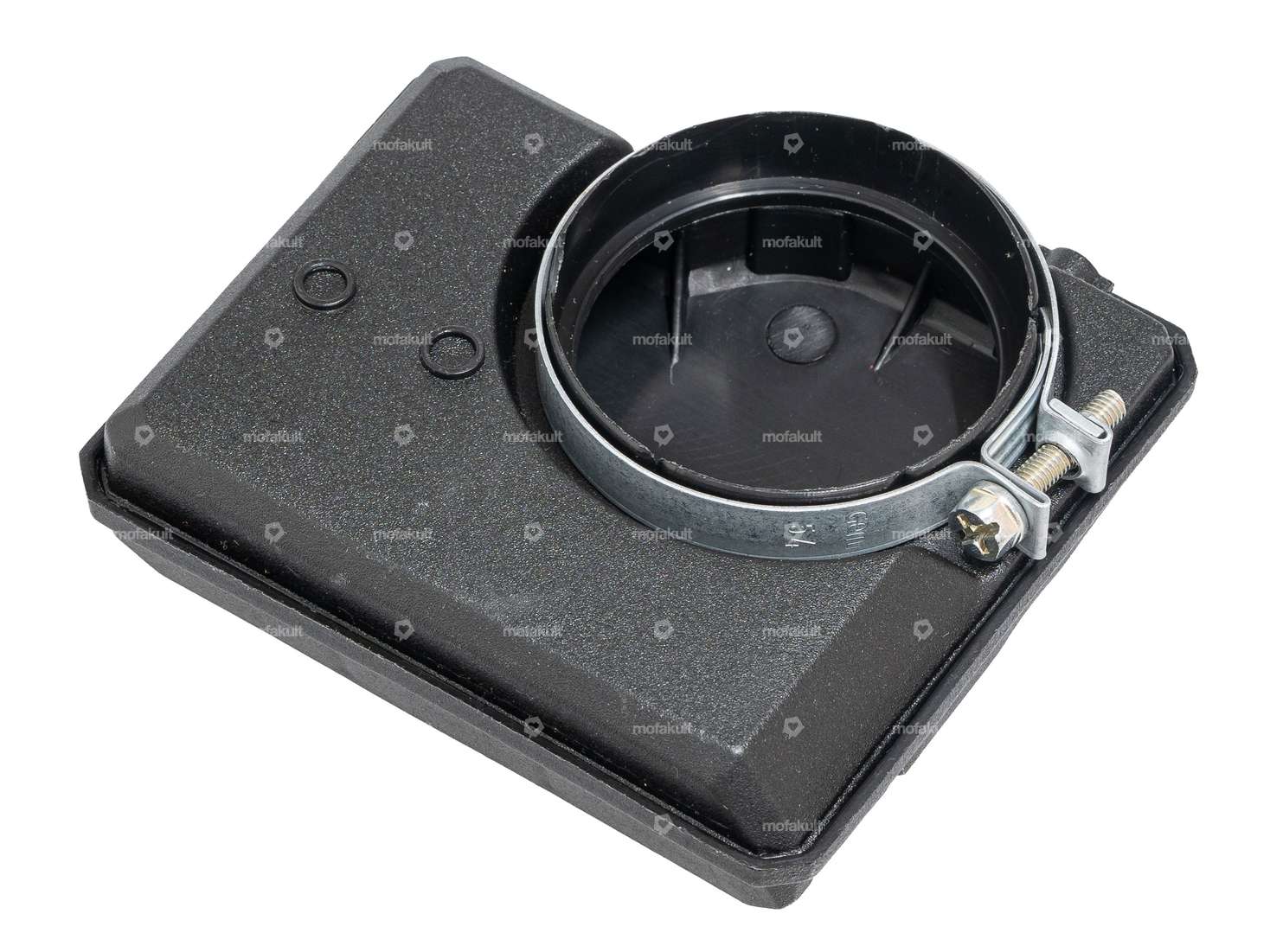

Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Plastic · Color: black · Filter type: Foam · Total length: 31.2 mm · Mounting type: Plug connection clamped · Width: 95 mm · Ø outside: 53.2 mm · Height: 88.7 mm · Ø Internal connection: 51 mm · Area of application: Tuning · Camouflaged: No

M7x120 stud bolt | Tomos / Piaggio Ciao, SI, Bravo, Boxer

Total length: 120 mm · Material: Steel · Surface: galvanized (blue) · Thread type: M7x1 (standard thread) · Nominal diameter (thread): 7 mm · Thread length: 25 mm

CIF Pulley 80 mm & V-belt 940 mm | Piaggio Ciao

Manufacturer: CIF · Material: Steel · Ø Outer pulley: 80 mm · Surface: galvanized (blue) · Gearbox type: Mono

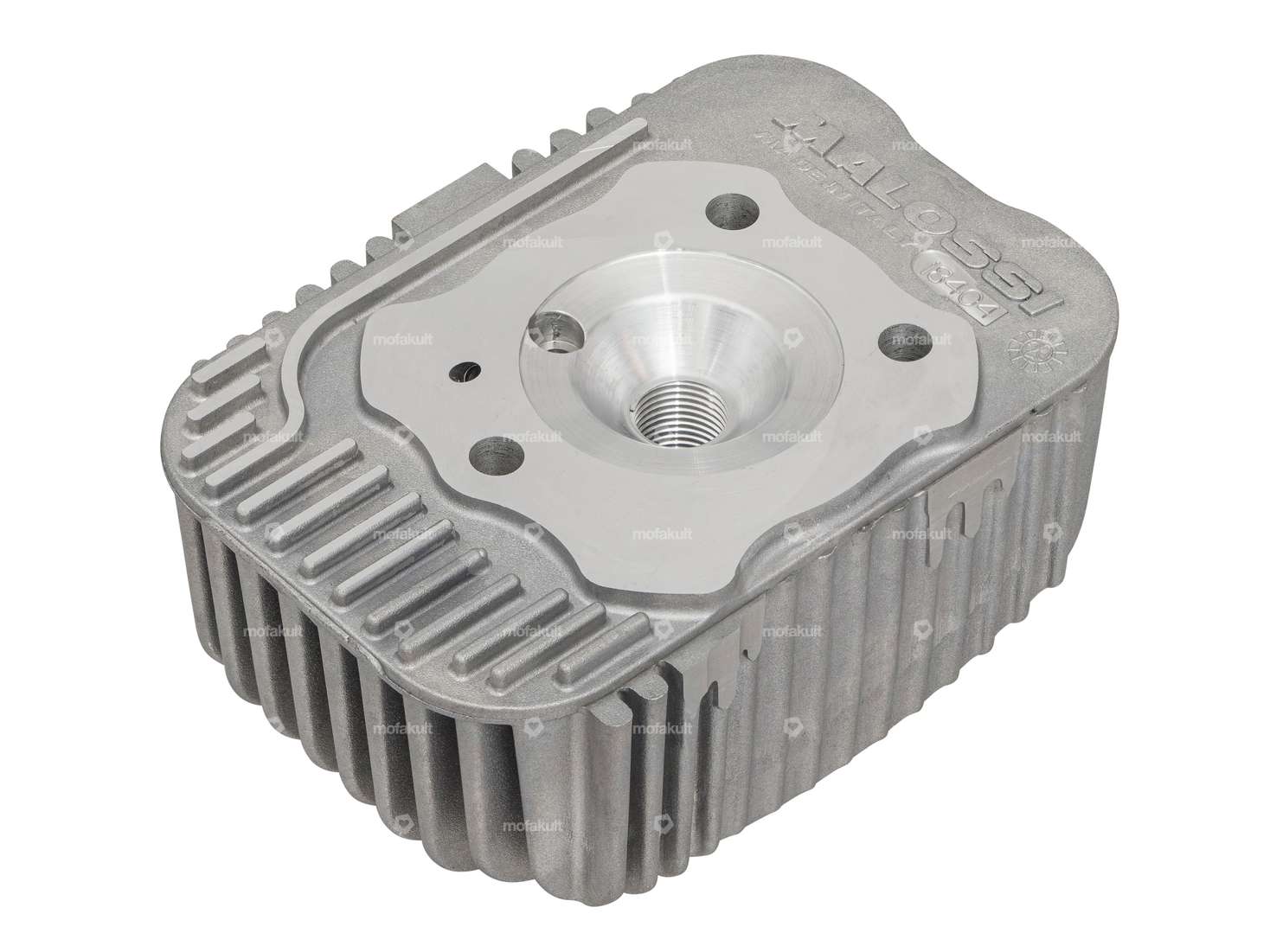

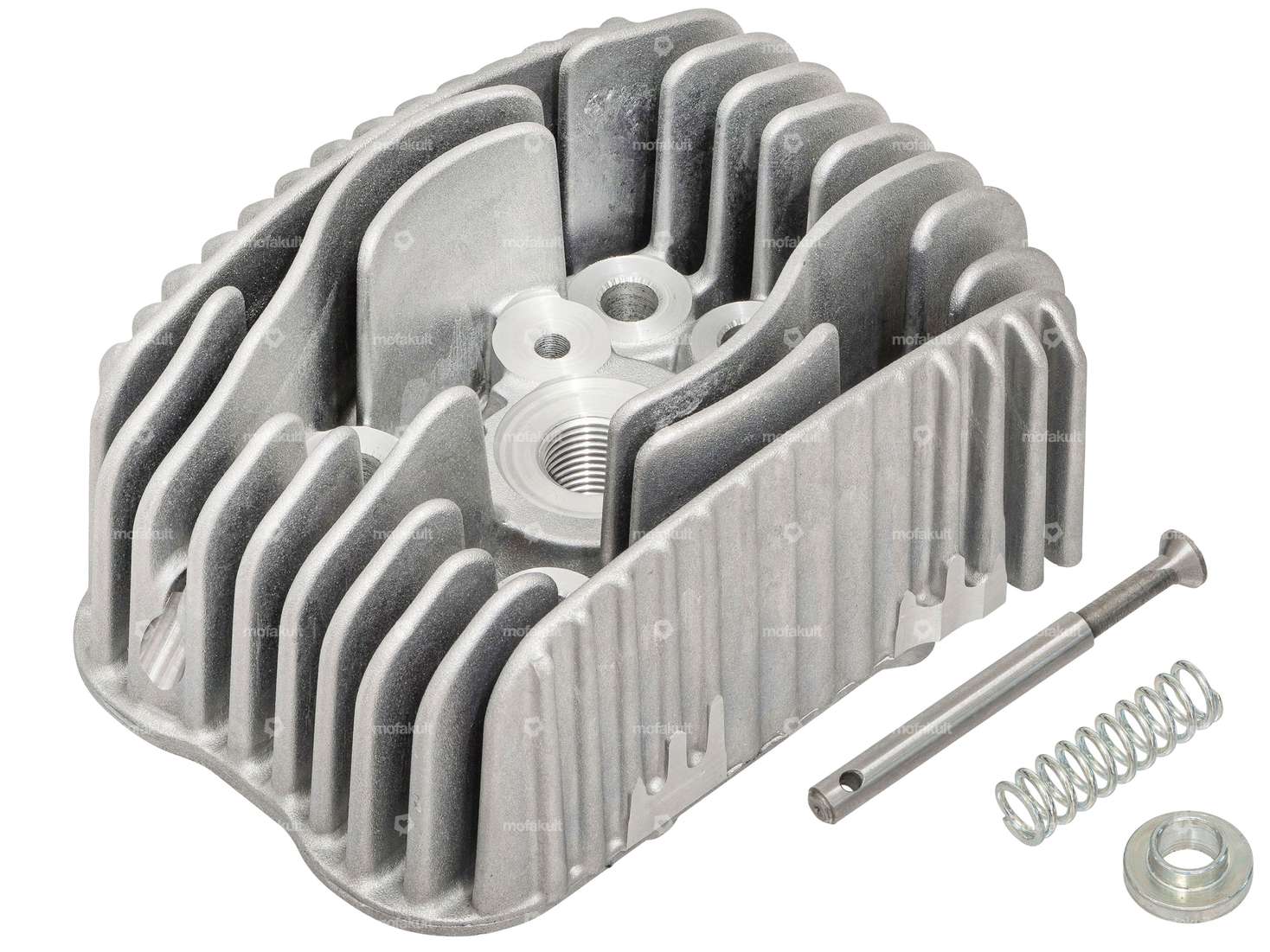

Malossi cylinder head for 41 - 43 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Total length: 122 mm · Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 - 43 mm · Width: 87 mm · Number of fixing points: 3 pcs · Height: 60 mm · Area of application: Racing · Hole pattern [mm]: 35 x 55 · Candle thread: long · Decompressor: Yes · Camouflaged: No

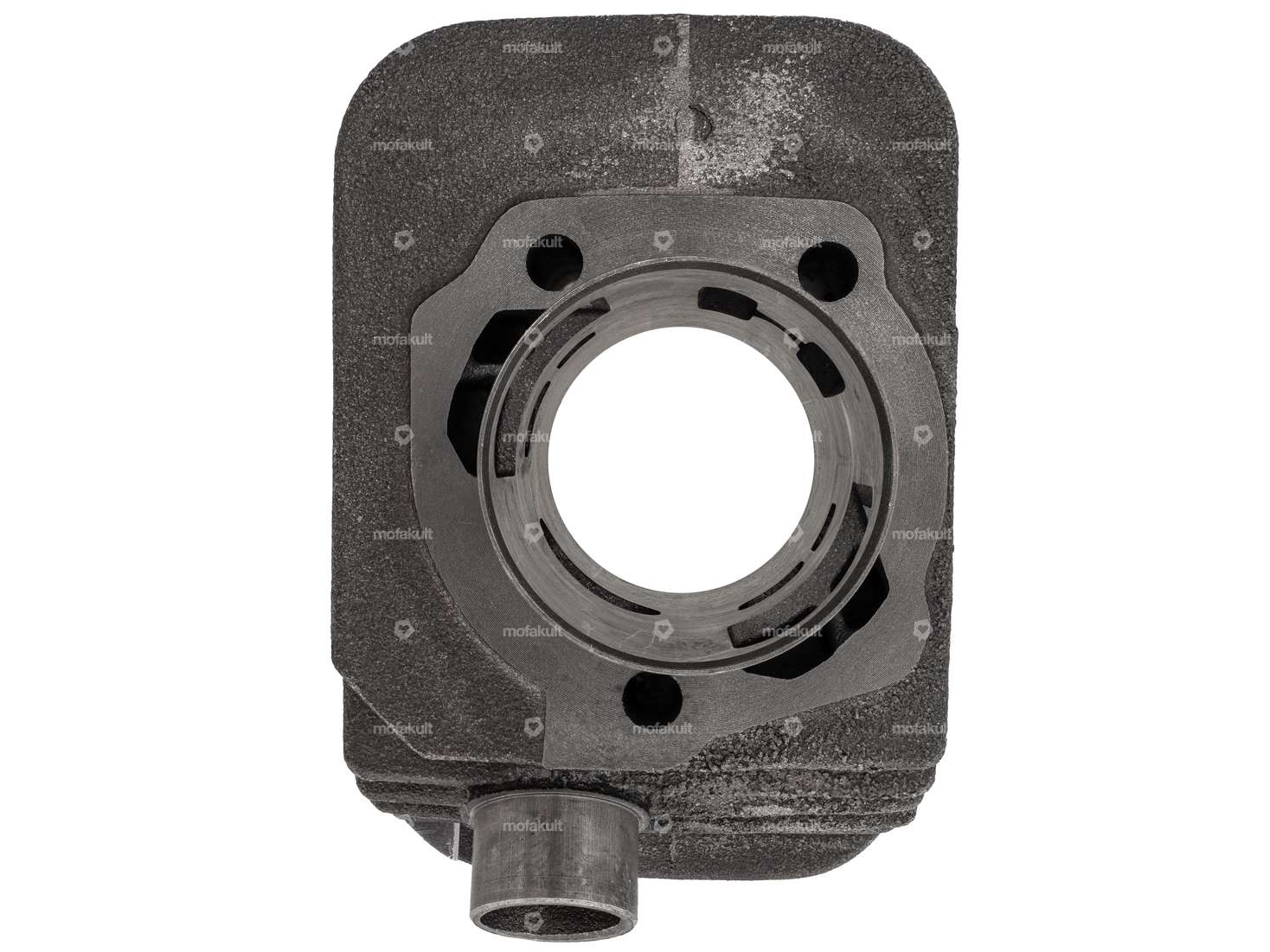

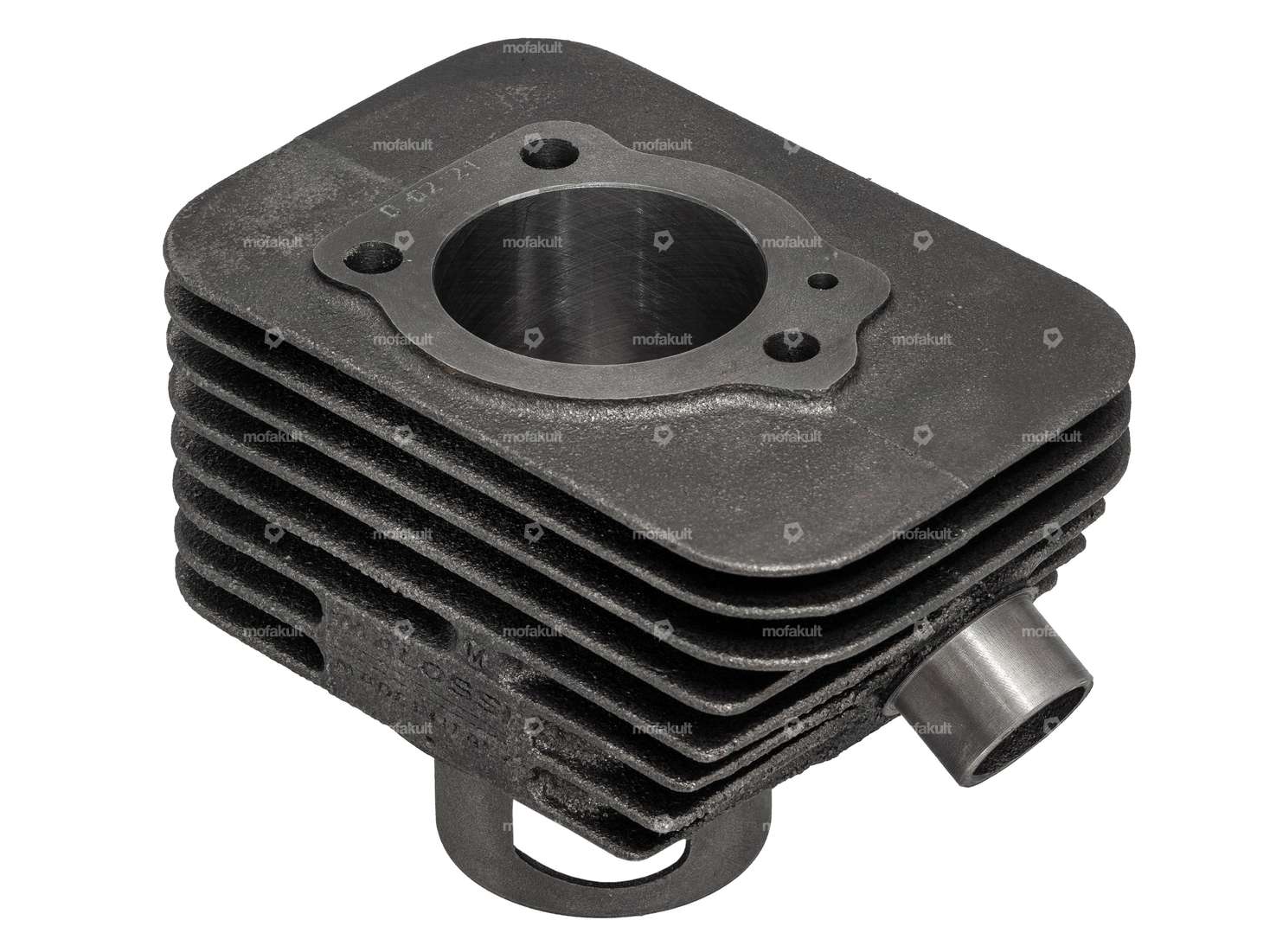

Malossi 43 mm cylinder kit 10 mm KoBo new version | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Gray cast iron · Area of application: Tuning · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 18.3 mm · Number of fixing points: 3 pcs · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No

Malossi 43 mm cylinder kit 12 mm KoBo new version | Piaggio Ciao, SI, Boxer, Bravo

Nominal diameter: 43 mm · Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Number of fixing points: 3 pcs · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.3 mm · Area of application: Tuning · Hole pattern [mm]: 55 x 34 · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Ø inside: 13 mm · Ø outside: 1 mm · Manufacturer: Malossi · Bearing cage: Sheet steel cage · Bearing type: Needle roller and cage assembly · Width: 14.5 mm · Dimension needle bearing: 10/13 x 14.5

Mazzucchelli crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Thread type: M8x1.25 (standard thread) · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Weight: 705 g · Area of application: Racing · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Thread length: 16 mm · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs

Mazzucchelli crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Thread type: M8x1.25 (standard thread) · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Weight: 698 g · Area of application: Racing · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Thread length: 16 mm · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 139 ° · Control time before O.T: 81 ° · Control time according to O.T: 58 ° · Number of gears: 1 pcs

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Width: 14.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001

swiing® ingenious Pully Ø 70 mm CNC | Piaggio Ciao, SI, Bravo, Boxer

Color: red · Manufacturer: swiing® ingenious parts · Material: Aluminum · Ø Outer pulley: 70 mm · Surface: anodized · Gearbox type: Mono

1 mm Offset Wedge for Flywheel | Piaggio Ciao, SI, Bravo, Boxer

Offset: 1 mm · Material: Steel · Total length: 12.4 mm · Width: 3 mm · Height: 4.9 mm

swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle thread: M5x0.8 (standard thread)

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Material: Plastic · Material: Steel · Number of components: 3 pcs · Area of application: Standard

swiing® ingenious puller flywheel | Piaggio Ciao, SI, Bravo, Boxer

Width across flats trigger: 10 mm · Width across flats trigger: 17 mm · Manufacturer: swiing® ingenious parts · Width across flats Screw: 19 mm · Area of application: (Dis)assembly tool · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Diameter: 12 mm · Diameter: 24 mm · Total length: 100 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Number of components: 3 pcs

SITO Plus exhaust Ø 24 mm | Piaggio Ciao, Bravo

Ø outside: 14 mm · Color: black · Total length: 690 mm · Manufacturer: SITO · Material: Steel · Surface: varnished · Number of fixing points: 1 pcs · Ø Internal connection: 22 mm · Ø Silencer: 70 mm · Flame tube attachment: Plug connection clamped · Mounting type: Welded lug · Ø Flame tube outside: 24 mm · Exhaust type: Cylindrical

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX / C24, Bravo, SUPERbravo

Manufacturer: Dell'Orto · Material: Aluminum · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: SHA (Piaggio) · Color: black · Nominal diameter: 13 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 18 mm · Total length: 46 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø Internal connection: 16 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Width: 60 mm · Camouflaged: No · Nozzle size: 66 · Height: 96 mm

Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Plastic · Color: black · Filter type: Foam · Total length: 31.2 mm · Mounting type: Plug connection clamped · Width: 95 mm · Ø outside: 53.2 mm · Height: 88.7 mm · Ø Internal connection: 51 mm · Area of application: Tuning · Camouflaged: No

Malossi cylinder head for 41 - 43 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Total length: 122 mm · Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 - 43 mm · Width: 87 mm · Number of fixing points: 3 pcs · Height: 60 mm · Area of application: Racing · Hole pattern [mm]: 35 x 55 · Candle thread: long · Decompressor: Yes · Camouflaged: No

Malossi 43 mm cylinder kit 10 mm KoBo new version | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Gray cast iron · Area of application: Tuning · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 18.3 mm · Number of fixing points: 3 pcs · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No

Malossi 43 mm cylinder kit 12 mm KoBo new version | Piaggio Ciao, SI, Boxer, Bravo

Nominal diameter: 43 mm · Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Number of fixing points: 3 pcs · Ø Outlet outside: 22.4 mm · Ø outlet inside: 18.3 mm · Area of application: Tuning · Hole pattern [mm]: 55 x 34 · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No

NGK B7ES spark plug long thread

Manufacturer: NGK · Candle designation: B7ES · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Candle thread type: long · Spark plug socket: M4 · Suppressed: No · Spark plug socket: SAE · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm
