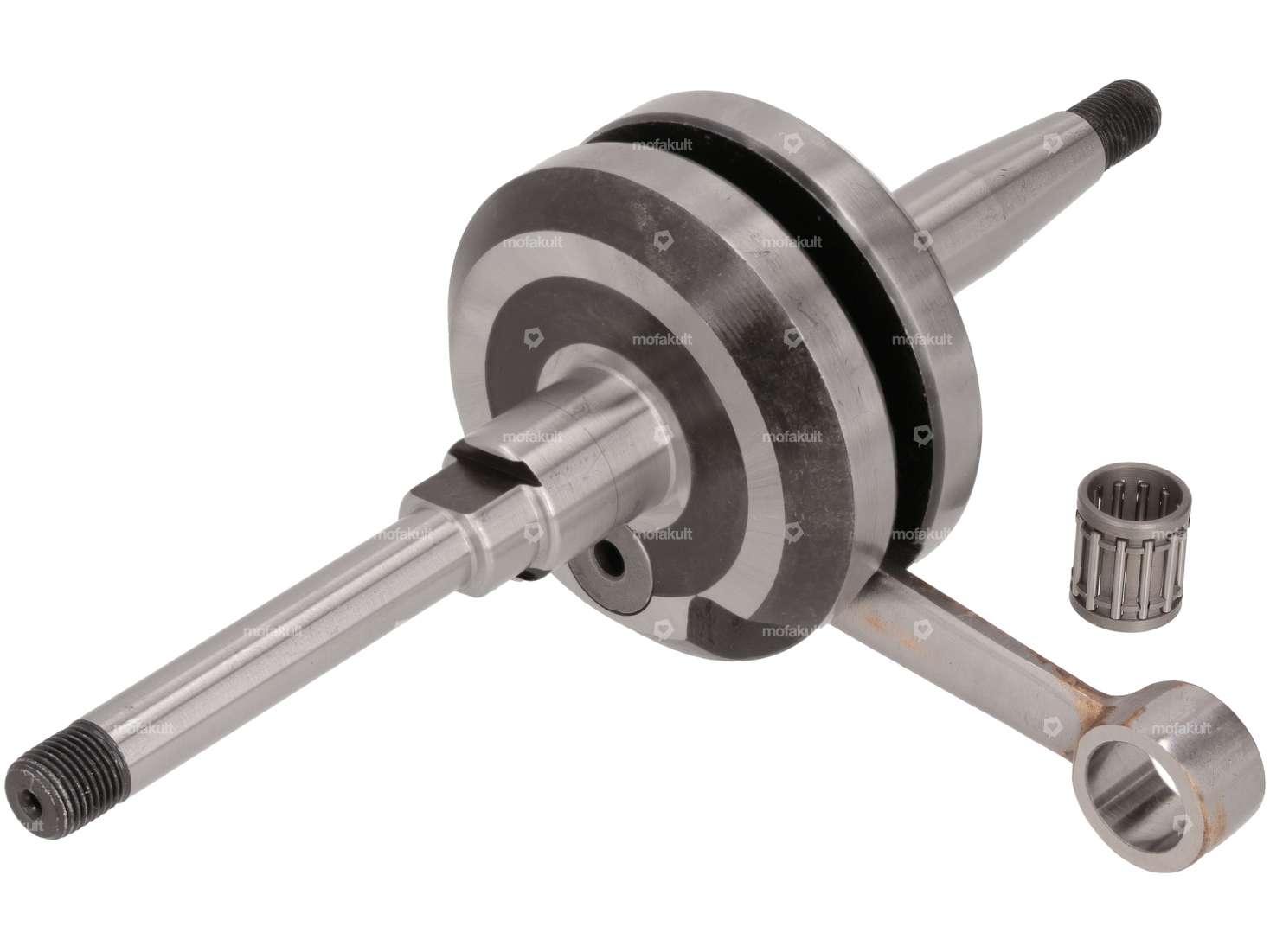

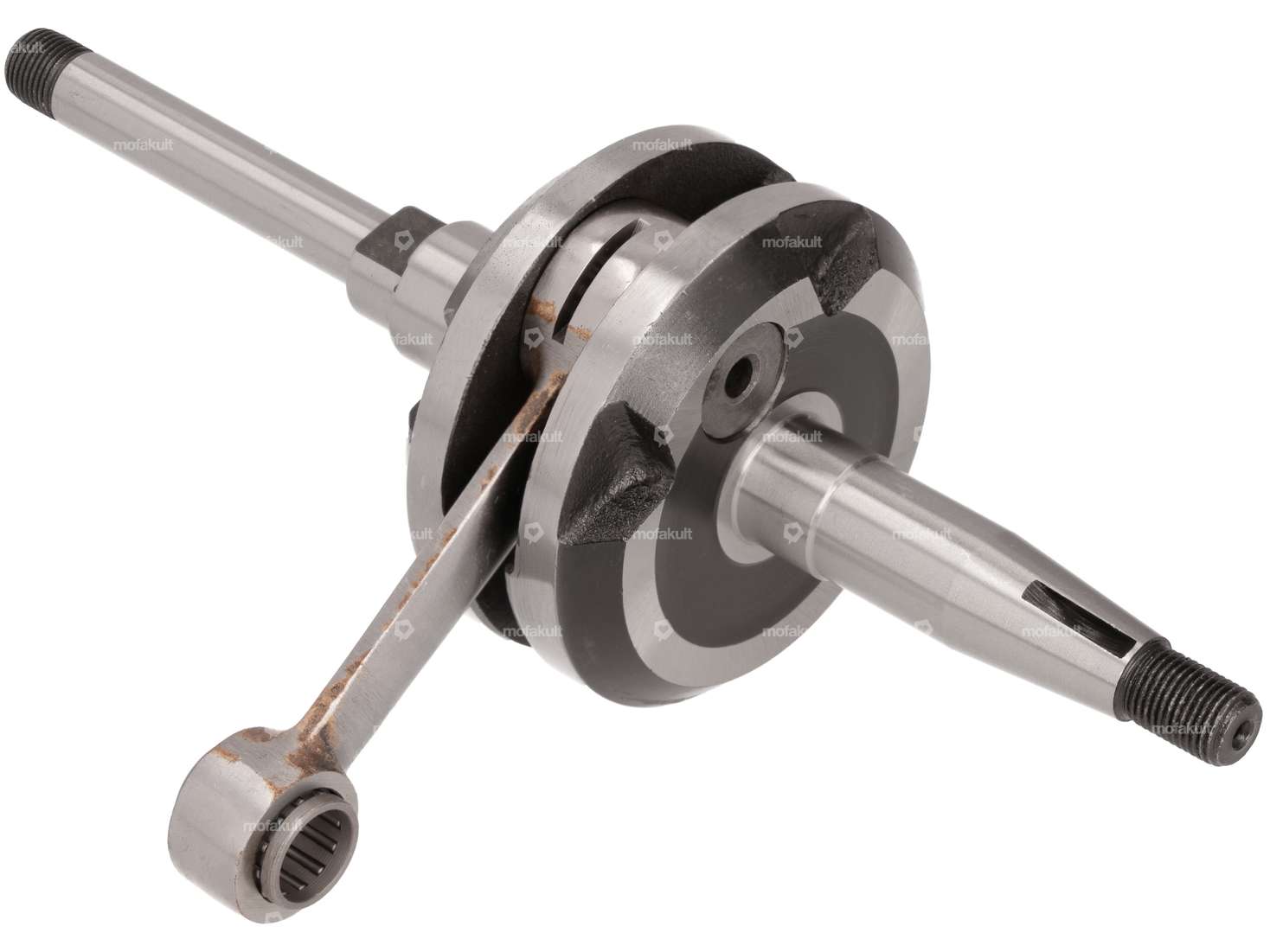

Racing crankshaft for Peugeot 103 SP, MV, MVL, LM, VOGUE and 104 mopeds / mopeds with electronic ignition.
In addition to additional balancing holes, the connecting rod has been polished and the lower connecting rod eye and cheeks reinforced compared to the standard shaft. The workmanship is okay, but won't knock anyone off their feet in terms of quality.
The needle bearing is included in the scope of delivery.
| Manufacturer | Mazzucchelli |
| Material | Steel |
| Area of application | Tuning, Racing |
| Cheek type | Full cheeks |
| Crankshaft stroke | 39 mm |
| Thread type | MF10x1 (fine pitch thread), MF11x1 (fine pitch thread) |
| Connecting rod length center-center | 76 mm |
| Total length of crankpin on clutch side | 100 mm |
| Total length crankpin ignition side | 72 mm |
| Ø crank webs | 68.7 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 16 mm |
| Ø Bearing seat (clutch side) | 20 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread length | 11 mm, 14 mm |
| Dimension needle bearing | 12 / 15 x 12.5 mm (axe 12) |
| Wide crank webs | 36 mm |
| Length 1st paragraph | 22 mm |
| Length 2nd paragraph | 9.5 mm |
| Length 3rd paragraph | 56.5 mm |
| Ø 1st step (on the coupling side) | 20 mm |
| Ø 2nd shoulder (on the clutch side) | 15.9 mm |
| Ø 3rd step (on the clutch side) | 10.9 mm |
| Length of shoulder (ignition side) | 12 mm |
| Weight | 1016 g |
| Number of gears | 1 pcs |
| Peugeot |
Accessories & related products
Airsal crankshaft 1 BAL WH | Peugeot 103
Manufacturer: Airsal · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 39 mm · Connecting rod length center-center: 76 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 100 mm · Total length crankpin ignition side: 72.3 mm · Ø crank webs: 68.5 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF11x1 (fine pitch thread) · Thread length: 10 mm · Ø Connecting rod eye: 15 mm · Thread length: 15 mm · Weight: 995 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 20 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 15.6 mm (axe 12) · Wide crank webs: 36 mm · Length 1st paragraph: 22 mm · Length 2nd paragraph: 9 mm · Length 3rd paragraph: 57 mm · Ø 1st step (on the coupling side): 20 mm · Ø 2nd shoulder (on the clutch side): 15.9 mm · Ø 3rd step (on the clutch side): 10.9 mm · Length of shoulder (ignition side): 12 mm · Area of application: Standard
EUR 67.00
Polini 46 mm cylinder kit cast iron | Peugeot 103, 104, 105, GL 10
Manufacturer: Polini · Material: Gray cast iron · Displacement: 65 ccm · Crankshaft stroke: 39 mm · Nominal diameter: 46 mm · Ø cylinder neck: 49.9 mm · Ø outlet inside: 23.5 mm · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Hole spacing outlet: 50 mm · Hole pattern [mm]: 46 x 50 · Area of application: Tuning
EUR 231.80

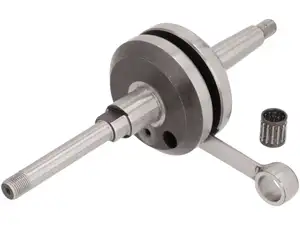

Mazzucchelli crankshaft "Racing" (breaker ignition) | Peugeot 103, 104
