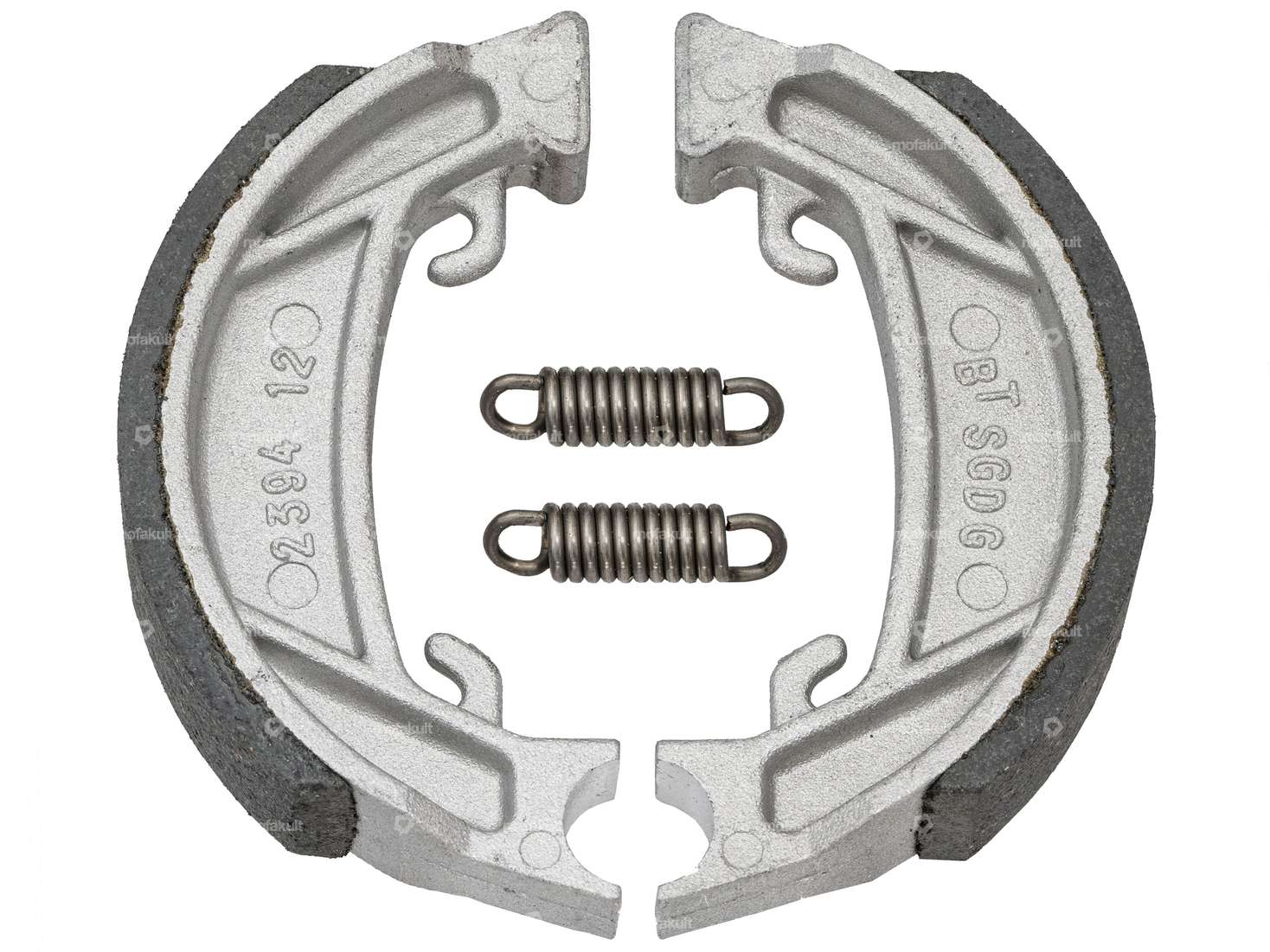

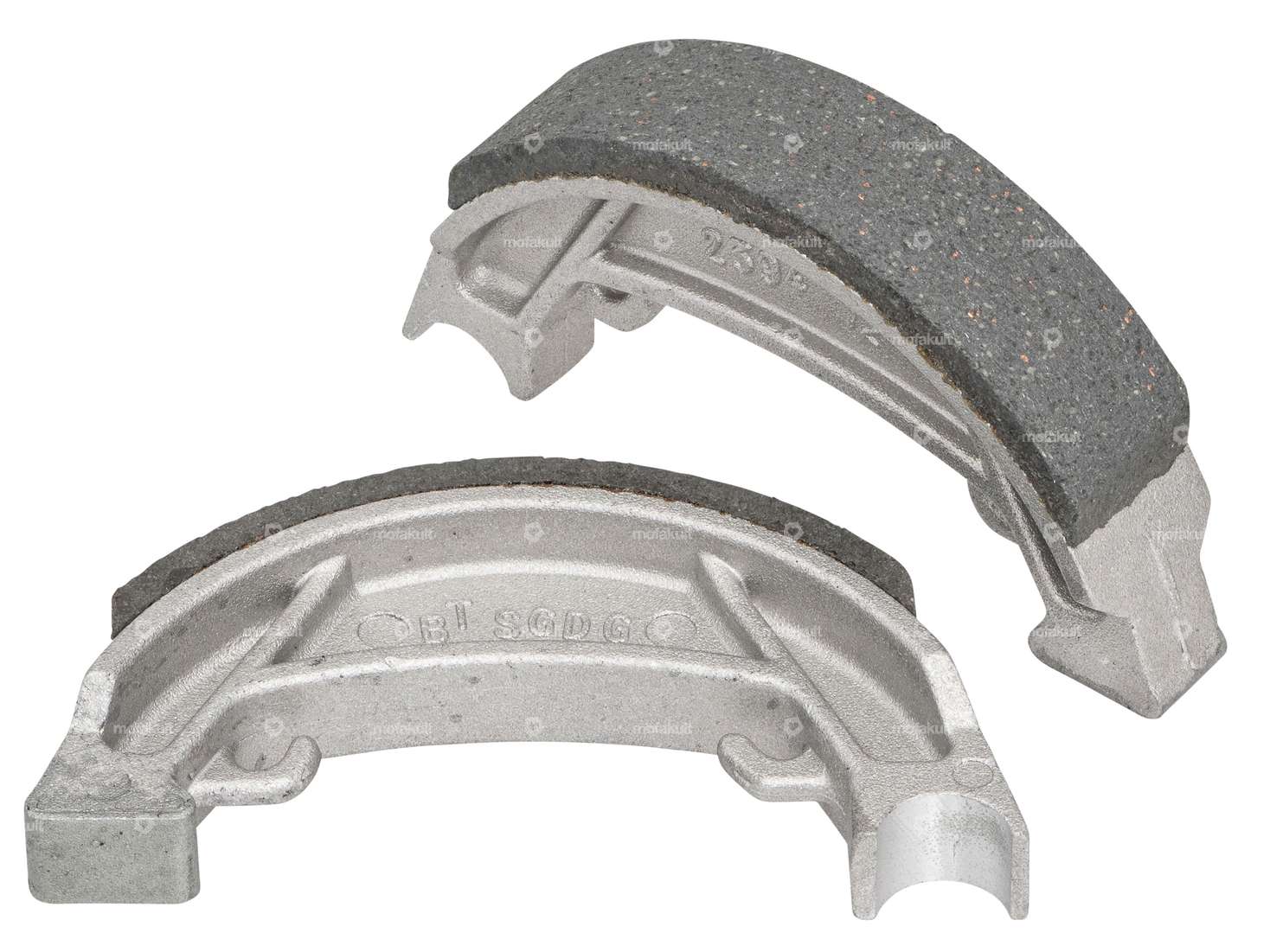

NewFren brake shoes Ø 100 x 20 "Type 2"

NewFren brake shoes Ø 105 x 20

Manufacturer: NewFren · Ø drum: 105 mm · Springs included: Yes · Width: 20 mm · Number of springs: 2 pcs

Brake shoes Ø 100 x 20 Leleu

Ø drum: 100 mm · Springs included: Yes · Number of springs: 2 pcs · Width: 20 mm

NewFren brake shoe spring (l=31 mm) | Puch

Manufacturer: NewFren · Spring design: Tension spring · Ø wire: 1.3 mm · Total length: 31 mm · Ø outside: 6.5 mm

NewFren brake shoes Ø 100 x 20

Manufacturer: NewFren · Ø drum: 100 mm · Width: 20 mm · Number of springs: 2 pcs · Springs included: Yes

swiing® revival snap ring low control bearing set

Thickness: 0.6 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: blank · Nominal diameter: 20 mm · Nominal diameter: 28 mm · Height: 7 mm · Puch OEM number: 349.1.30.015.1 · Sachs OEM no.: P0521

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Reserve level: 70 mm

GPO rubber for swingarm mounting | Puch Maxi S, X30

Manufacturer: GPO · Material: Rubber · Ø inside: 24 mm · Color: black · Ø outside: 32 mm · Ø outside: 37 mm · Total length: 90 mm · Puch OEM number: 349.1.21.509.1

Magura lever screw M5x18 mm

Manufacturer: Magura · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø shaft: 5.9 mm · Drive: External hexagon · Drive: Slot · Thread type: M5x0.8 (standard thread) · Total length: 21.5 mm · Thread length: 8.5 mm · Ø External head: 8.8 mm · Shank length: 9 mm · Width across flats SW: 8 mm

Magura lever screw M5x24 mm

Manufacturer: Magura · Material: Steel · Surface: galvanized (blue) · Ø shaft: 5.9 mm · Drive: Hexagon socket · Thread type: M5x0.8 (standard thread) · Color: silver · Ø External head: 9 mm · Total length: 27 mm · Shank length: 14.5 mm · Width across flats SW: 8 mm

NTN wheel bearing 12/28/8 rear cast hub Leleu | Puch Maxi

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6001 · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides · Bearing clearance: CM (special/noise-reduced) · Groove ring: No · Material: Plastic · Material: Steel · Surface: blank · Ø inside: 12 mm · Ø outside: 28 mm · Width: 8 mm · Area of application: Standard

NTN 6201 2RS ball bearing 12/32/10

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NTN · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides · Bearing clearance: CN (standard) · Ø inside: 12 mm · Ø outside: 32 mm · Width: 10 mm

GPO bulb 6V - 15/15W (BA15d) 2-filament full/dipped beam

Manufacturer: GPO · Bulb holder: BA15d · Tension: 6 V · Performance: 15 W · Color: white · Total length: 51 mm · Ø base: 15 mm · Test mark: none · Ø Lamp head: 27 mm · LED: No

OMG fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: OMG · Possible lever positions: open / closed / reserve · Material lever: Plastic · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 100 mm · Mounting type: Union nut

Polini auxiliary jet CP carburetor (32 - 52 of your choice)

Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Carburetor type: CP · Carburetor type: CP Evolution · Nozzle type: Secondary nozzle · Nozzle thread: M5x0.8 (standard thread) · Total length: 21.1 mm · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40 · Nozzle size: 42 · Nozzle size: 46 · Nozzle size: 49 · Nozzle size: 52 · Drive: Slot
