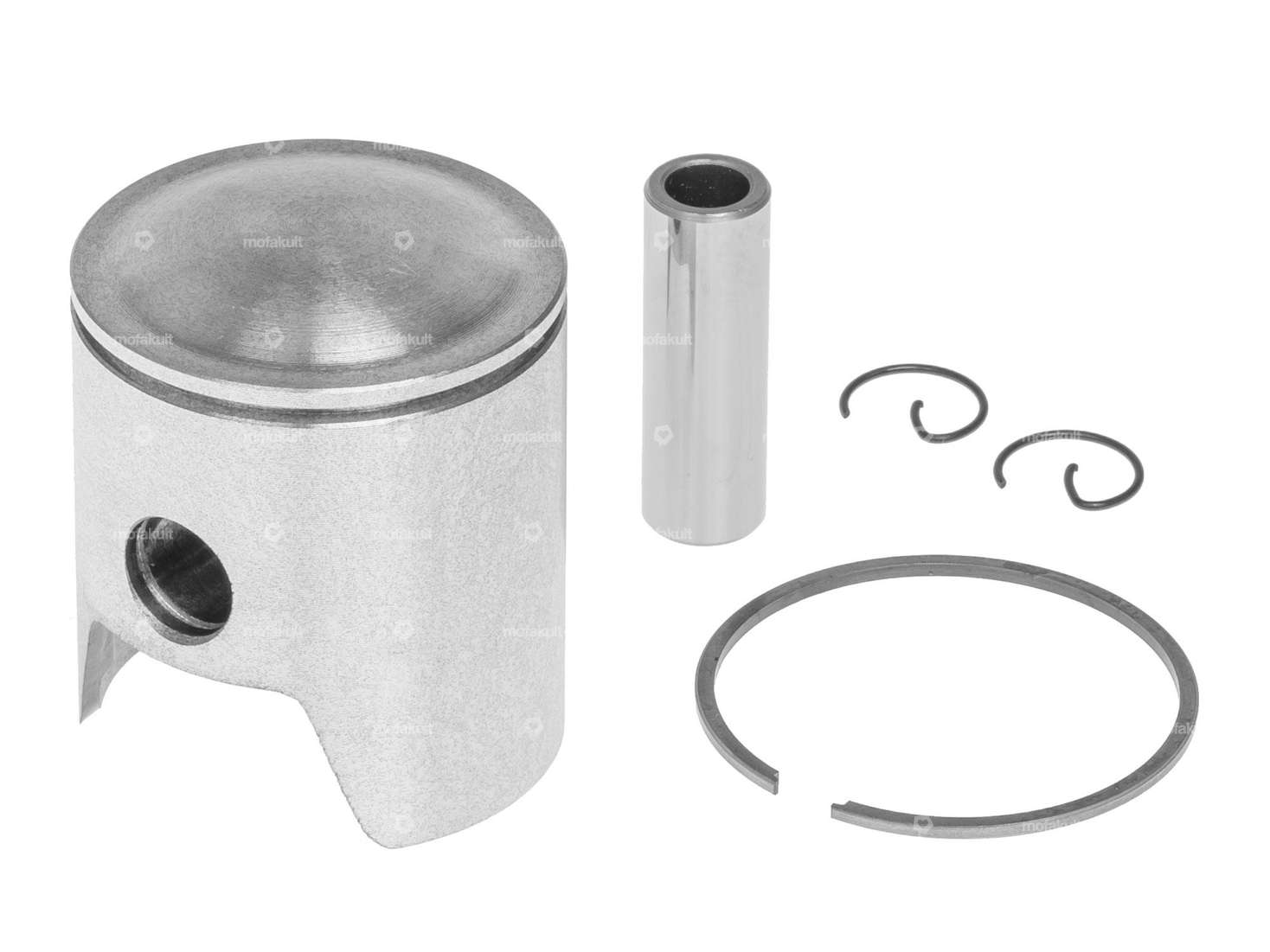

45 mm replacement piston with a 1.5 mm rectangular piston ring featuring an internal lock (IS) for the 45 mm cylinder kits for various Puch mopeds.
You can find the detailed dimensions of the piston, as shown in the technical drawing, in the product details. You can also find information about standard piston rings, their clearances, and retaining types in the legend accompanying the images.
Tolerance type: B
The piston kit includes a piston pin, piston clips, and piston rings.
Note: Please observe the installation direction during assembly. The piston is installed with the arrow pointing toward the exhaust on the exhaust side.
You’ll find the appropriate installation tools, piston pin retainers, and, if necessary, the corresponding cylinder among the accessories.
Product from the Italian manufacturer Parmakit.
| Manufacturer | Parmakit |
| Ø outside piston (A) | 44.94 mm |
| Ø piston pin (B) | 12 mm |
| Compression height (C) | 22.38 mm |
| Curvature (D) | 4.5 mm |
| Total piston height (E) | 53.9 mm |
| Number of piston rings (F) | 1 pcs |
| Nominal diameter | 45 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Tolerance group | B |
| Weight piston kit | 98 g |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products
GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Material: Aluminum · Camouflaged: Yes · Surface: sandblasted · Width: 125 mm · Height: 55 mm · Total length: 135 mm · Ø cylinder: 45 mm · Number of fixing points: 4 pcs · Candle thread: short · Hole pattern [mm]: 44 x 44 · Decompressor: No · Area of application: Tuning
EUR 40.30
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool
EUR 24.40

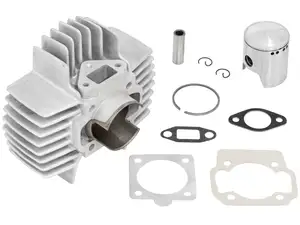

Parmakit 45 mm cylinder kit (large ribs) | Puch
Manufacturer: Parmakit · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Ø piston pin (B): 12 mm · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44
EUR 294.10

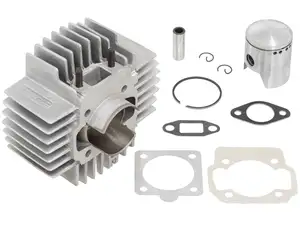

Parmakit 45 mm cylinder kit 70 ccm camouflaged | Puch
Manufacturer: Parmakit · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Ø piston pin (B): 12 mm · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Ø cylinder neck: 47.8 mm · Inlet window: 23.7 x 15 mm · Thread inlet: M6x1 (standard thread) · Ø outlet inside: 26.5 mm · Number of fixing points: 4 pcs · Hole spacing outlet: 42 mm · Outlet type: straight · Hole spacing inlet: 38 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No
EUR 257.30
Not in stock
Parmakit piston 45 mm #C | Puch
Manufacturer: Parmakit · Ø piston pin (B): 12 mm · Ø outside piston (A): 44.95 mm · Compression height (C): 22.45 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.98 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: C · Weight piston kit: 97 g
EUR 90.60
EUR 72.20

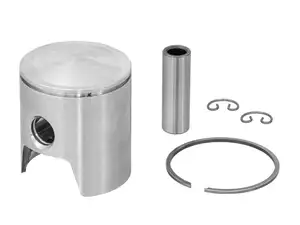

Parmakit piston 45 mm #A | Puch
