Parmakit piston 45 mm #A | Puch

GPO 45 mm cylinder head tuning | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 45 mm · Total length: 135 mm · Height: 55 mm · Number of fixing points: 4 pcs · Candle thread: short · Area of application: Tuning · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: Yes · Width: 125 mm

Motorex POWER SYNT 2-stroke mixed oil fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents [ml]: 1000 ml · Color: red

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents [ml]: 1000 ml · Color: green · Area of application: Standard

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Number of components: 7 pcs · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Area of application: (Dis)assembly tool

Parmakit 45 mm cylinder kit 70 ccm large ribs | Puch

Manufacturer: Parmakit · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Number of fixing points: 4 pcs · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No · Area of application: Tuning

Parmakit 45 mm cylinder kit 70 ccm camouflaged | Puch

Manufacturer: Parmakit · Material: Aluminum · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26.5 mm · Inlet window: 23.7 x 15 · Thread inlet: M6x1 (standard thread) · Ø piston pin (B): 12 mm · Outlet type: straight · Number of fixing points: 4 pcs · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Hole spacing inlet: 38 mm · Area of application: Tuning

Parmakit piston 45 mm #C | Puch

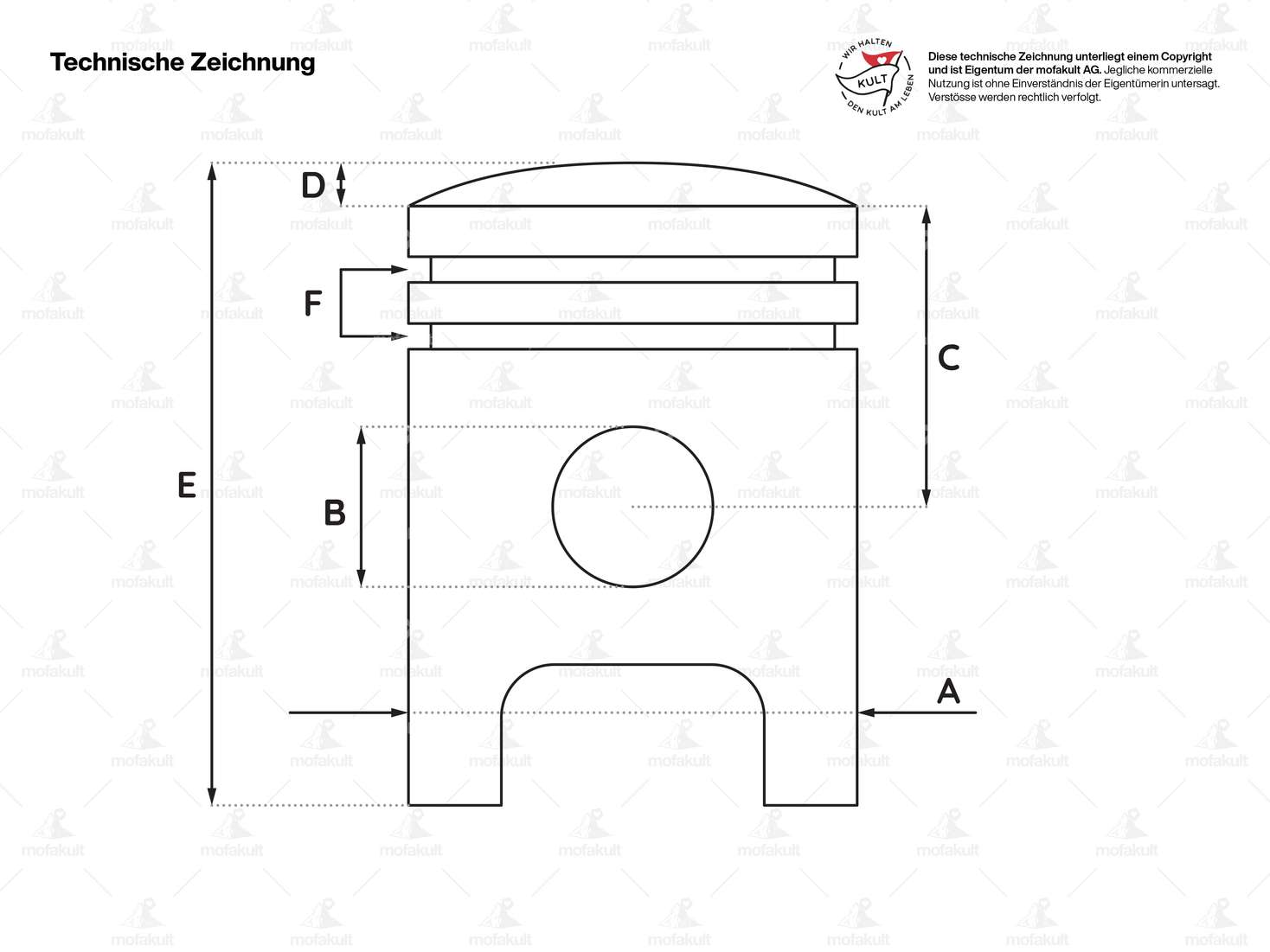

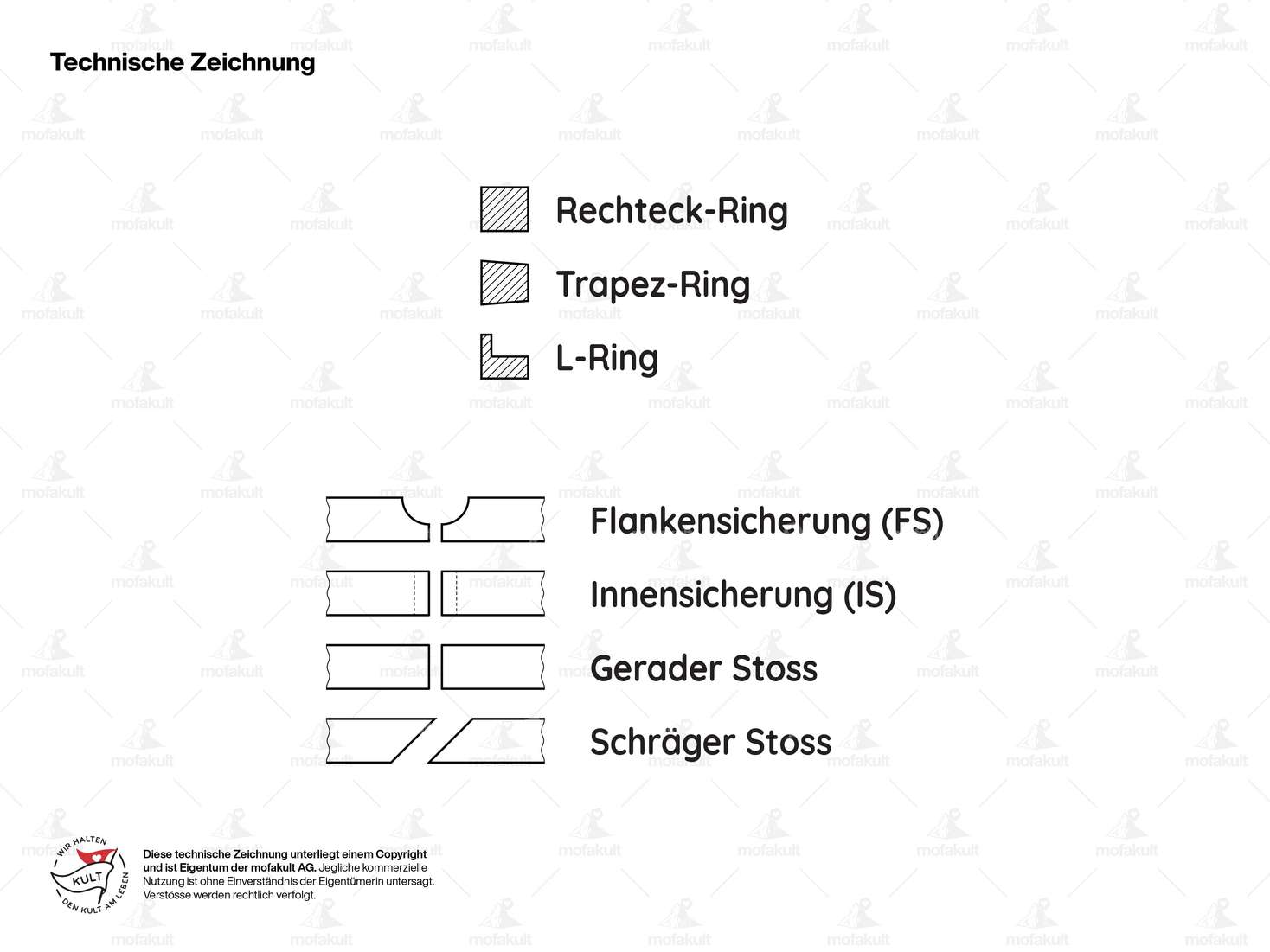

Manufacturer: Parmakit · Ø outside piston (A): 44.95 mm · Compression height (C): 22.45 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.98 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Piston weight: 97 g

Parmakit piston ring 45 mm | Puch / Tomos

Manufacturer: Parmakit · Diameter: 45 mm · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS)

Parmakit piston 45 mm #B | Puch

Manufacturer: Parmakit · Ø outside piston (A): 44.94 mm · Compression height (C): 22.38 mm · Curvature (D): 4.5 mm · Total piston height (E): 53.9 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Piston weight: 98 g

Athena piston 45 mm #A | Puch

Manufacturer: Athena · Ø outside piston (A): 44.94 mm · Compression height (C): 22.4 mm · Curvature (D): 3.15 mm · Total piston height (E): 52.67 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Piston weight: 98 g

Athena piston 45 mm AJH #B | Puch

Manufacturer: Athena · Ø outside piston (A): 44.93 mm · Compression height (C): 24.9 mm · Curvature (D): 2.82 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Piston weight: 94 g

Parmakit piston ring 45 mm | Puch / Tomos

Manufacturer: Parmakit · Diameter: 45 mm · Nominal diameter: 45 mm · Piston ring impact: Internal fuse (IS)

O-ring cylinder head FPM (up to 200°C) 44 x 1.8 mm | Puch

Place of use: Cylinder head · Material: FPM - Fluororubber · Ø inside: 44 mm · Cord thickness: 1.8 mm · Temperature resistance (min.): 0 - 200 °C

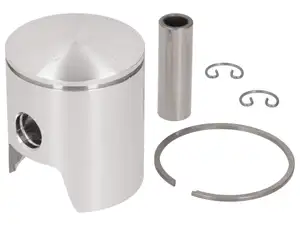

Meteor piston 44.94 mm type A | Puch Maxi

Manufacturer: Meteor · Ø outside piston (A): 44.94 mm · Compression height (C): 22.5 mm · Curvature (D): 3 mm · Total piston height (E): 52.66 mm · Number of piston rings (F): 1 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Piston weight: 97 g
