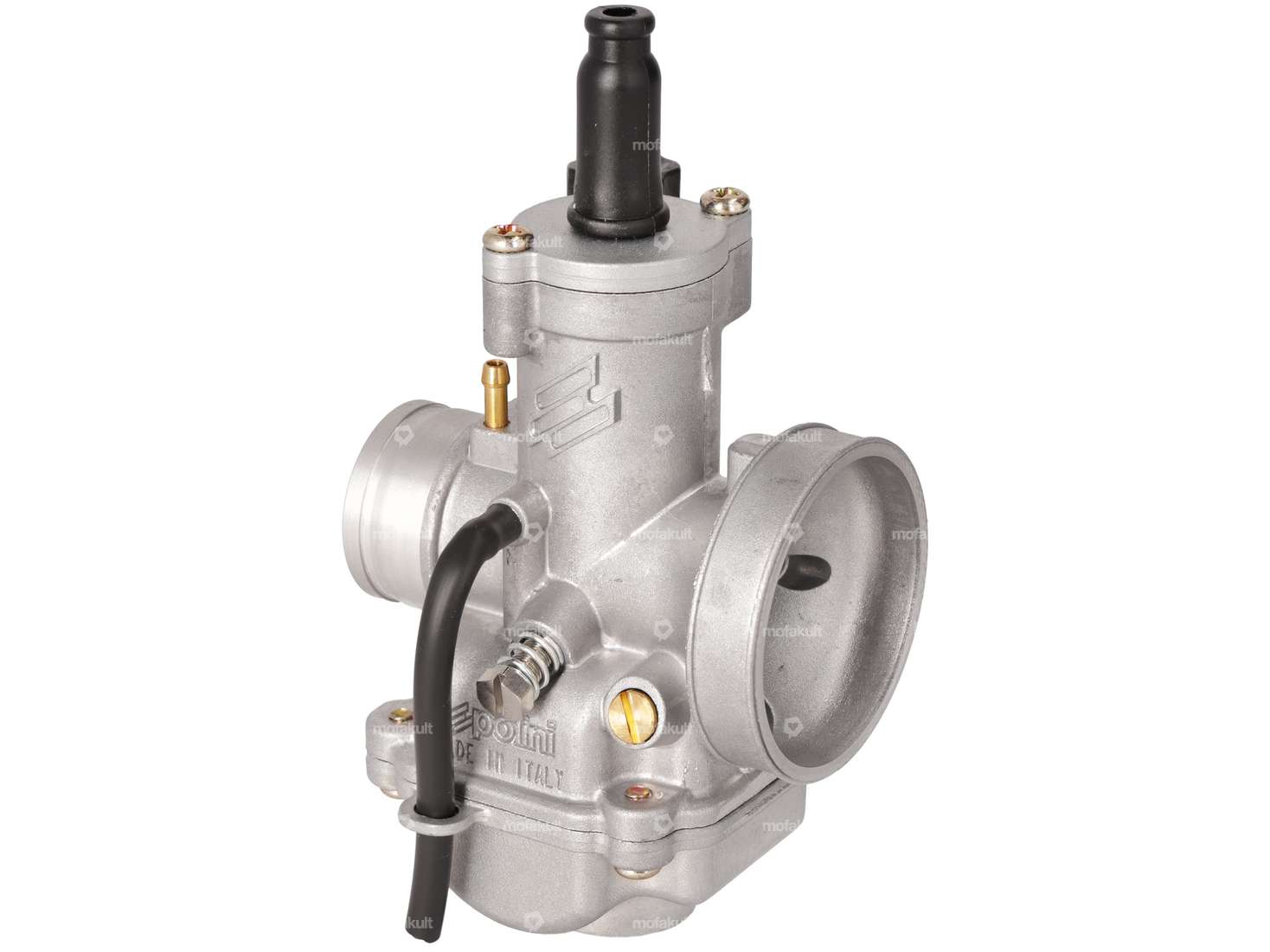

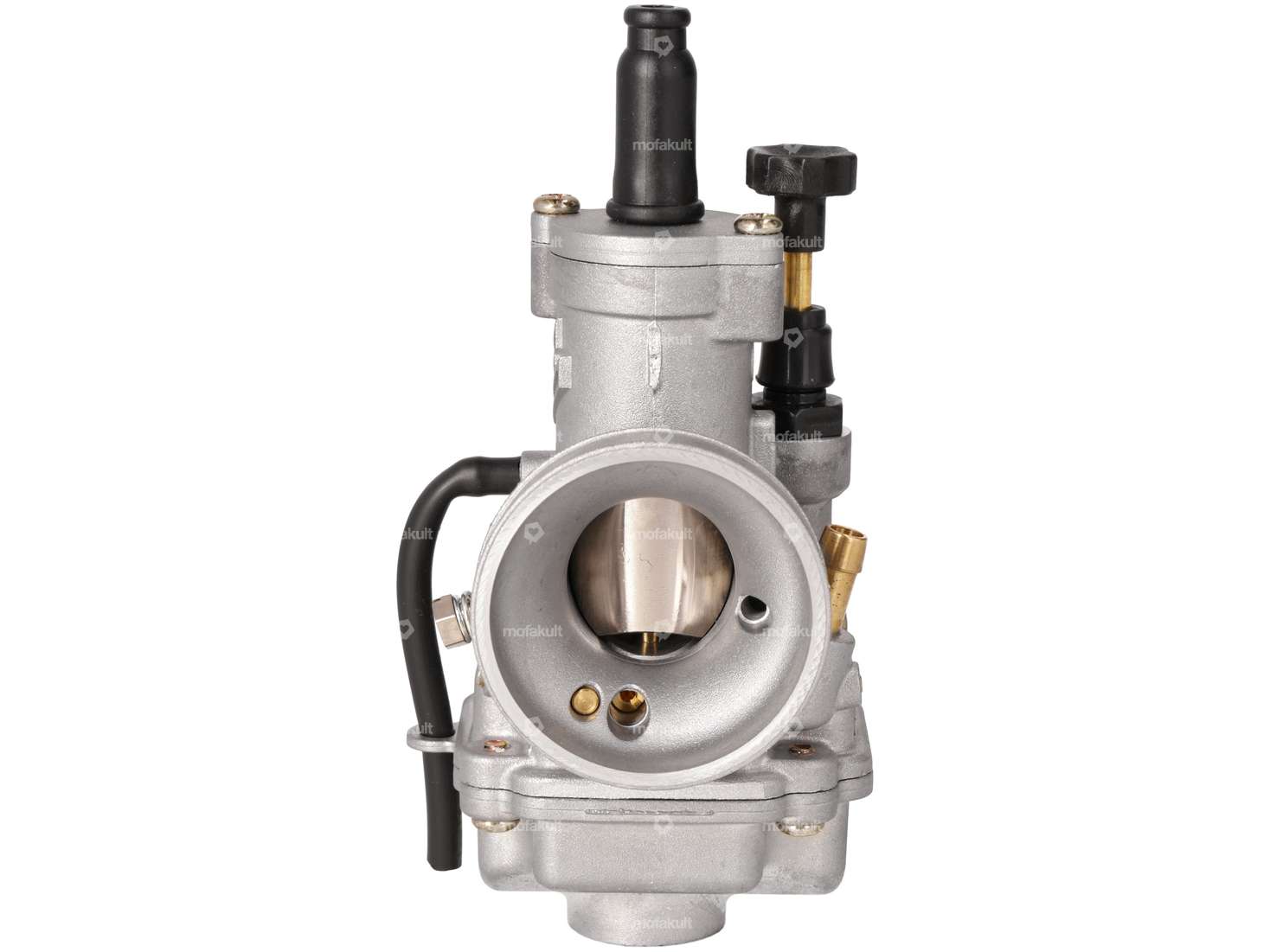

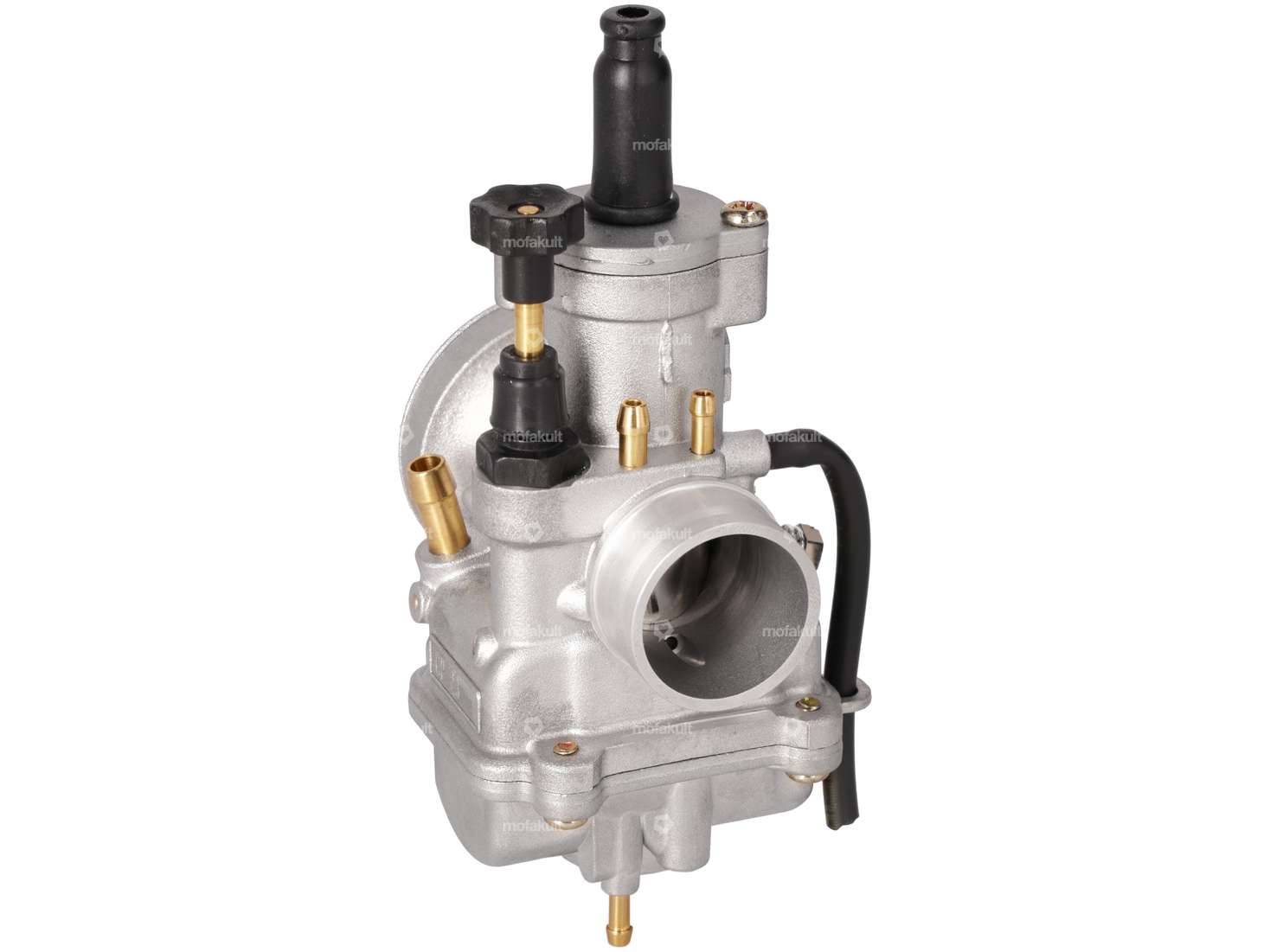

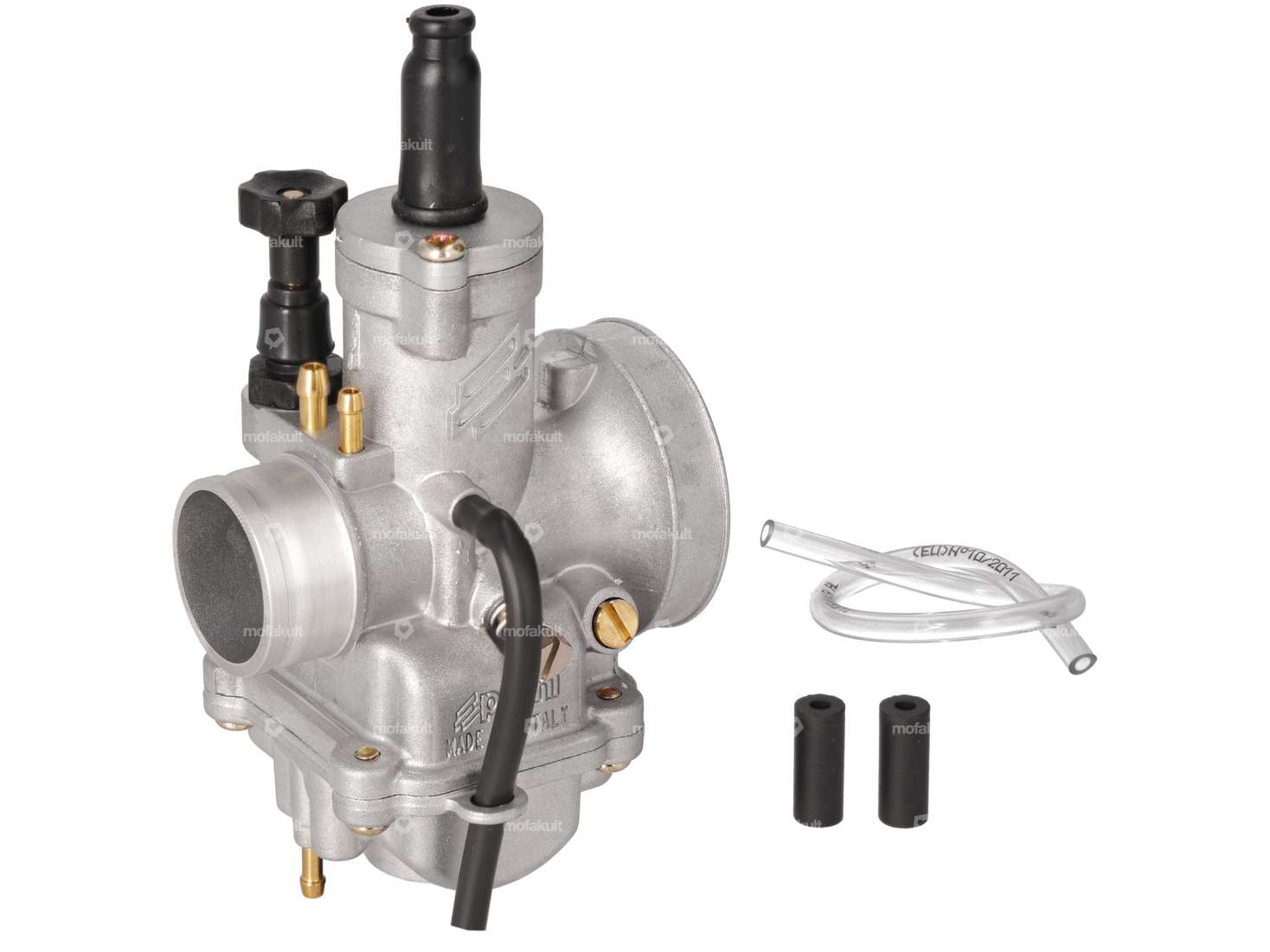

Polini has placed particular emphasis on size and weight in the development of the CP model; this carburettor is therefore particularly compact and around 40% lighter than traditional carburettors.
Due to the compact design, the intake path is very short. Unique is the concentric design of the passage, i.e. a circular passage instead of an oval one as with most other carburettors - a geometry that optimizes the air flow. Modifications to the mixing tube and the use of a larger needle ensure better atomization of the gas mixture.
This should simplify the tuning of the carburettor and enable high performance with low consumption. All CP carburettors have an oil and vacuum connection.
The choke is located directly on the carburettor and must be operated manually.
Quality product from the Italian manufacturer Polini.
| Manufacturer | Polini |
| Camouflaged | No |
| Area of application | Tuning, Racing, High End, Performance |
| Component group Carburetor | Carburetor complete |
| Material | Aluminum |
| Carburetor type | CP |
| Nominal diameter | 23 mm |
| Ø Inside entrance | 23 mm |
| Ø Output inside | 23 mm |
| Ø Air filter connection | 46 mm |
| Ø fuel hose connection | 7 mm, 6 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 110 |
| Size of secondary nozzle | 40 |
| Mounting type | Plug connection clamped |
| Total length | 71.3 mm |
| Width | 66 mm |
| Height | 136 mm |
Accessories & related products
Dell'Orto 21 mm PHBG DS carburetor - Black Edition
Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Surface: varnished · Color: black · Carburetor type: PHBG DS · Total length: 86.6 mm · Nominal diameter: 21 mm · Ø Inside entrance: 21.2 mm · Ø Output inside: 28.3 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 38 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø fuel hose connection: 6 mm · Mounting type: Plug connection · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Cable choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 92 · Width: 51.2 mm · Height: 134 mm · Area of application: Tuning
EUR 189.10

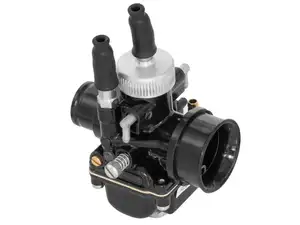

Dell'Orto 19 mm PHBG DS carburetor cable choke - Black Edition
Manufacturer: Dell'Orto · Component group Carburetor: Carburetor complete · Surface: varnished · Color: black · Carburetor type: PHBG DS · Nominal diameter: 19 mm · Ø Air filter connection: 32 mm · Ø Air filter connection: 38 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø fuel hose connection: 6 mm · Mounting type: Plug connection · Mixed oil connection: Yes · Choke control: Cable choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 75 · Size of secondary nozzle: 45 · Width: 85 mm · Height: 130 mm · Area of application: Tuning
EUR 189.10
Polini jet set (80 - 98) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Main nozzle · Nozzle size: 54 · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 86 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98 · Drive: External hexagon
EUR 48.70
Polini CP 21 mm carburetor (hand choke)
Nominal diameter: 21 mm · Manufacturer: Polini · Material: Aluminum · Component group Carburetor: Carburetor complete · Mounting type: Plug connection clamped · Carburetor type: CP · Total length: 73.5 mm · Width: 75 mm · Ø without reducing sleeve: 26 mm · Height: 135 mm · Ø Inside entrance: 21 mm · Ø Internal connection: 24 mm · Ø Output inside: 21 mm · Ø Air filter connection: 46 mm · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 72 · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Size of secondary nozzle: 42
EUR 183.00
Polini CP 21 mm carburetor (cable choke)
Manufacturer: Polini · Component group Carburetor: Carburetor complete · Carburetor type: CP · Nominal diameter: 21 mm · Ø Air filter connection: 46 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Cable choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 100 · Size of secondary nozzle: 40 · Area of application: Tuning
EUR 170.80
Polini CP 19 mm carburetor (cable choke)
Manufacturer: Polini · Component group Carburetor: Carburetor complete · Carburetor type: CP · Nominal diameter: 19 mm · Ø Air filter connection: 46 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Cable choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 90 · Size of secondary nozzle: 40 · Area of application: Tuning
EUR 158.60
Polini CP 17.5 mm carburetor (cable choke)
Manufacturer: Polini · Component group Carburetor: Carburetor complete · Carburetor type: CP · Nominal diameter: 17.5 mm · Ø Air filter connection: 46 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Cable choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 80 · Size of secondary nozzle: 38 · Area of application: Tuning
EUR 158.60
Polini auxiliary jet set 42 - 52 | CP carburetor
Drive: Slot · Manufacturer: Polini · Quantity: 5 pcs · Component group Carburetor: Spraying · Material: Brass · Carburetor type: CP · Carburetor type: Keihin · Carburetor type: PWK · Nozzle type: Secondary nozzle · Nozzle size: 42 · Nozzle size: 45 · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 58
EUR 30.40
Polini CP 15 mm carburetor (cable choke)
Manufacturer: Polini · Component group Carburetor: Carburetor complete · Carburetor type: CP · Nominal diameter: 15 mm · Ø Air filter connection: 46 mm · Ø fuel hose connection: 6 mm · Mounting type: Plug connection · Mixed oil connection: Yes · Vacuum connection: Yes · Choke control: Cable choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 80 · Size of secondary nozzle: 38 · Area of application: Tuning
EUR 164.70
Polini jet set (101 - 119) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Material: Brass · Quantity: 10 pcs · Component group Carburetor: Spraying · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle size: 101 · Nozzle size: 103 · Nozzle size: 105 · Nozzle size: 107 · Nozzle size: 109 · Nozzle size: 111 · Nozzle size: 113 · Nozzle size: 115 · Nozzle size: 117 · Nozzle size: 119
EUR 48.70
Polini intake rubber Ø 28.5 / 25 mm (PHBG, Polini CP)
Manufacturer: Polini · Material: Rubber · Ø inside: 28.5 mm · Color: black · Ø outside: 38.5 mm · Ø inside 2: 25 mm · Total length: 37.5 mm · Ø Passage: 25 mm · Ø Connection 2 external: 37 mm · Clamping diameter: 26.5 mm · Ø External connection: 37 mm
EUR 18.20
Moped fans also bought
Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing
Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Manufacturer: Made in Germany · Material: Steel · Number of components: 1 pcs · Cable length: 2200 mm · Surface: galvanized (blue) · Nipple length: 5 mm · Area of application: Standard
EUR 2.95

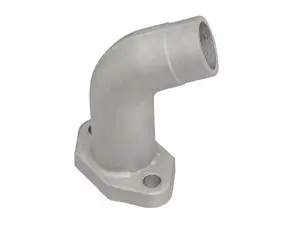

Airsal intake manifold 46 / 47 mm cylinder | Puch
