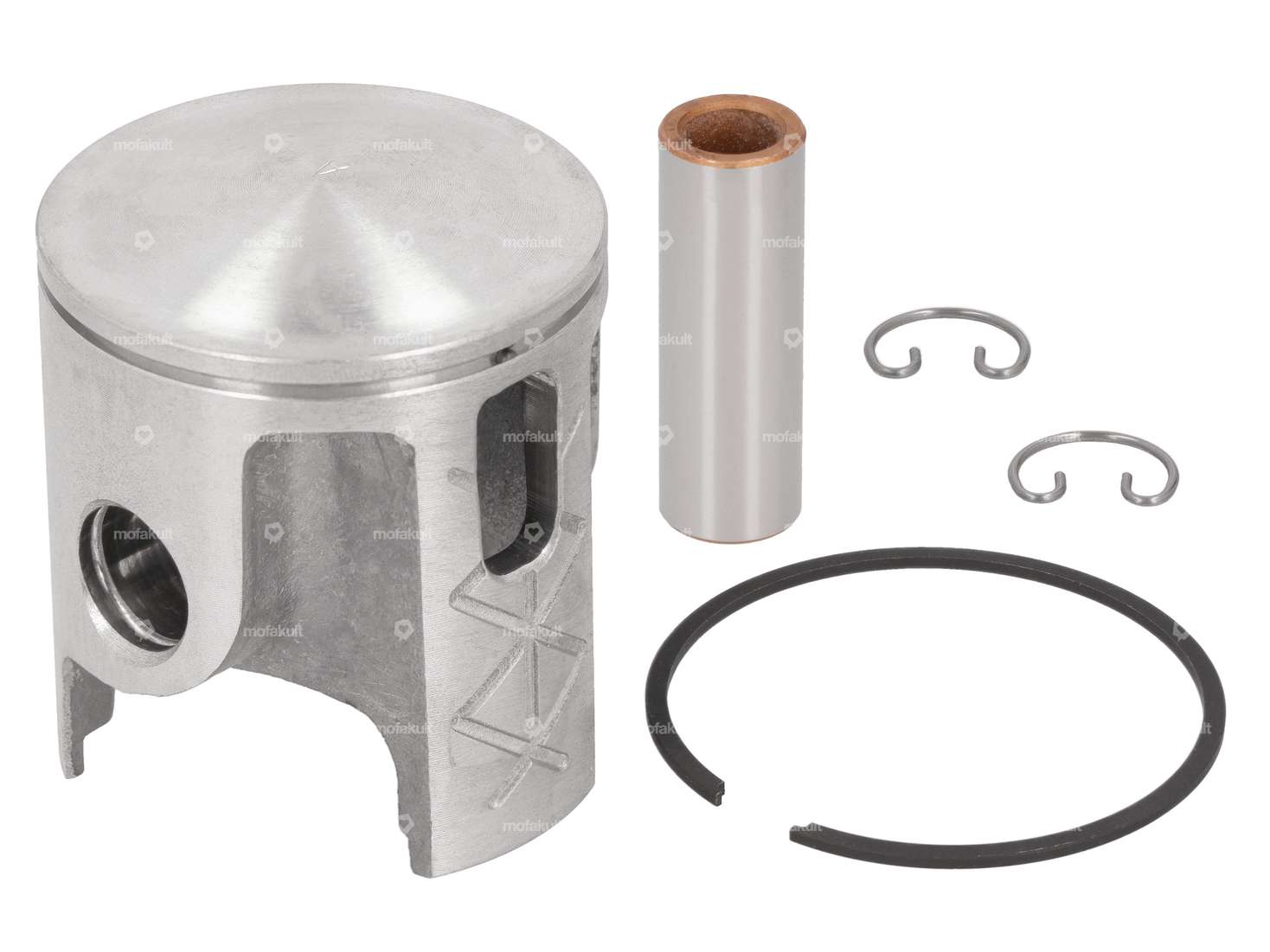

Polini piston 43.5 mm type A | Puch

Polini 43.5 mm cylinder kit reed | Puch

Nominal diameter: 43.5 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Surface: Nickel silicon carbide (colloquially known as Nikasil) · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 48 mm · Ø outlet inside: 22 mm · Hole spacing inlet: 32 mm · Hole spacing inlet: 39 mm · Inlet window: 26 x 21 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 44 x 44 · Area of application: Racing · Area of application: Tuning · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

Polini piston 43.5 mm #B | Puch

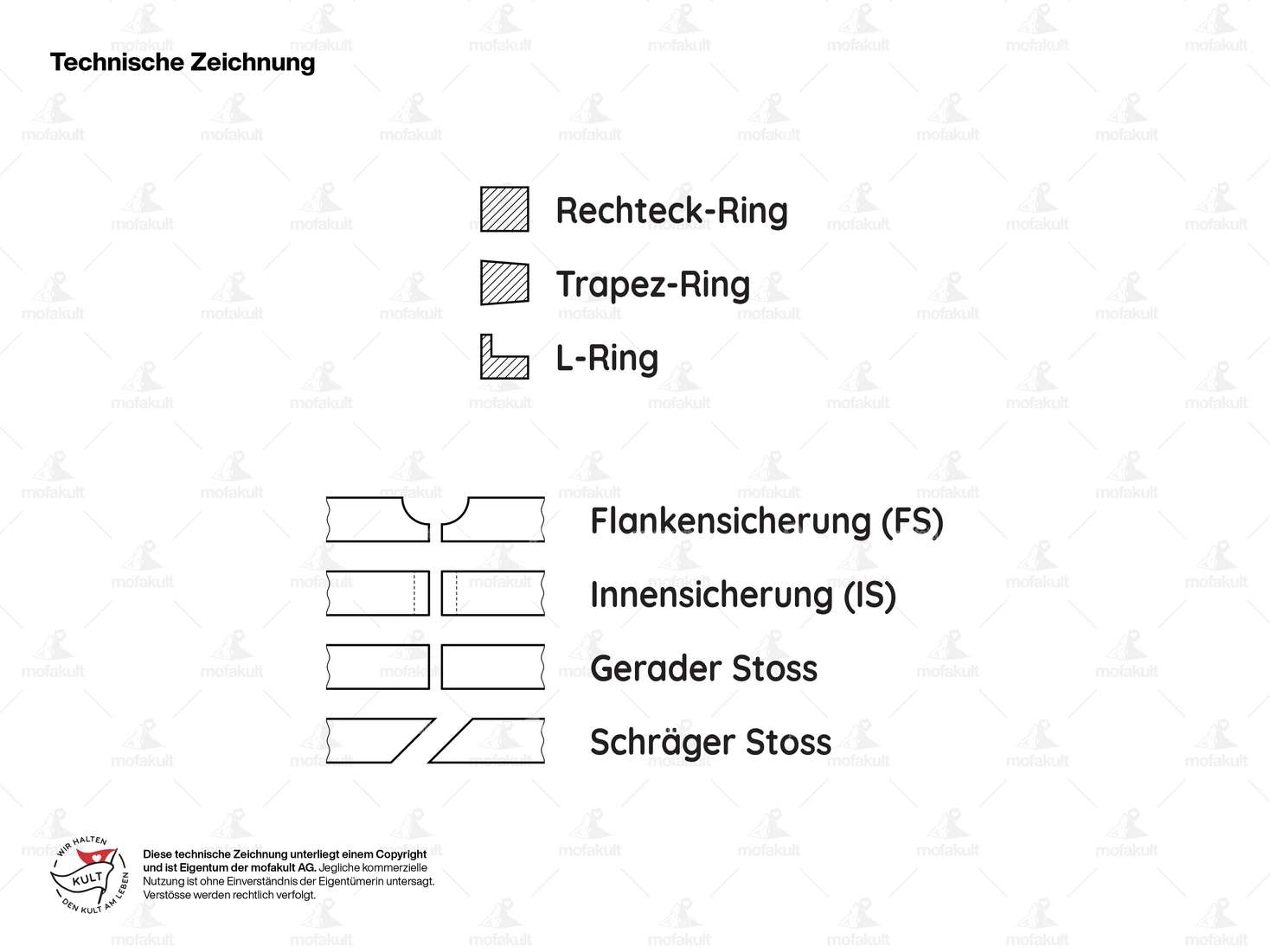

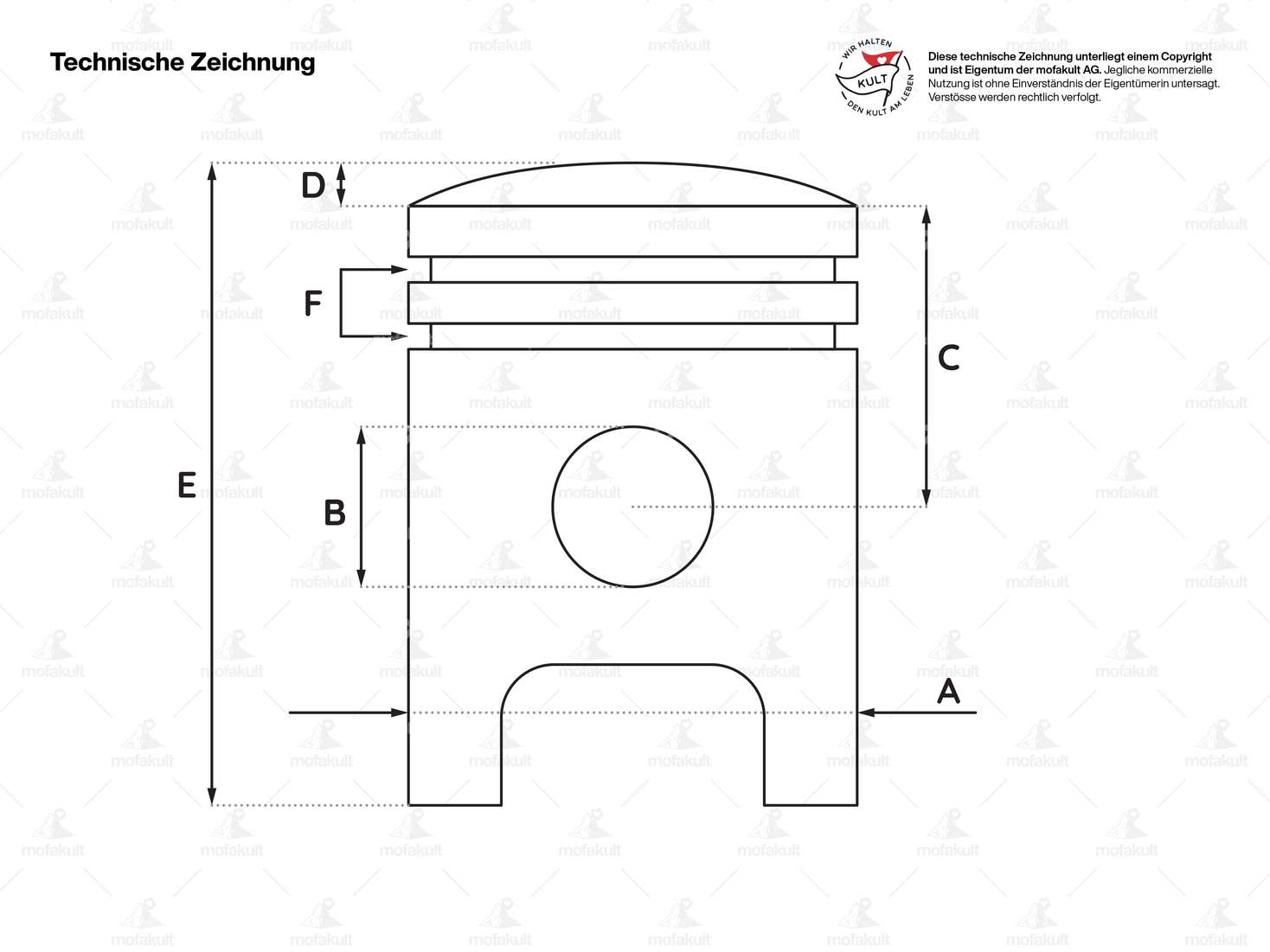

Nominal diameter: 43.5 mm · Manufacturer: Polini · Ø outside piston (A): 43.46 mm · Compression height (C): 23 mm · Curvature (D): 3.6 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Ø piston pin (B): 12 mm · Tolerance group: B · Weight piston kit: 93 g

Polini piston 43.5 mm #C | Puch

Nominal diameter: 43.5 mm · Manufacturer: Polini · Ø outside piston (A): 43.47 mm · Compression height (C): 23 mm · Curvature (D): 3.6 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Ø piston pin (B): 12 mm · Tolerance group: C · Weight piston kit: 92 g

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Total length: 130 mm · Number of components: 7 pcs · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm

Polini piston 43.5 mm type D | Puch

Nominal diameter: 43.5 mm · Manufacturer: Polini · Ø outside piston (A): 43.48 mm · Compression height (C): 23 mm · Curvature (D): 3.6 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Ø piston pin (B): 12 mm · Tolerance group: D · Weight piston kit: 93 g

GPO clutch trigger | Puch E50

Manufacturer: GPO · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Manufacturer: Made in Germany · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Cable length: 2200 mm · Nipple length: 5 mm

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Ø Stranded wire: 1.8 mm · Cable length: 2200 mm · Nipple shape: Pears · Number of components: 1 pcs · Nipple length: 10 mm

swiing® revival gearbox cover gasket (old model) | Puch Z50 engine

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Thickness: 0.35 mm · Total length: 166 mm · Width: 155 mm · Number of fixing points: 8 pcs · Number of components: 1 pcs · Puch OEM number: 349.1.10.249.1

swiing® revival plain bearing clutch basket | Puch Z50

Ø inside: 15 mm · Manufacturer: swiing® revival parts · Material: special bearing bronze · Nominal diameter inside: 15 mm · Ø outside: 17 mm · Total height: 16.2 mm

Polini gasket set 43.5 mm | Puch

Manufacturer: Polini · Area of application: Tuning · Ø cylinder: 43.5 mm · Number of components: 5 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm / 39 x 36/32 mm

Polini CP 21 mm carburetor (hand choke)

Nominal diameter: 21 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Carburetor type: CP · Width: 75 mm · Choke control: Hand choke · Height: 135 mm · Total length: 73.5 mm · Nozzle thread: M5x0.8 (standard thread) · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7 mm · Mounting type: Plug connection clamped · Ø without reducing sleeve: 26 mm · Nozzle size: 72 · Ø Inside entrance: 21 mm · Ø Output inside: 21 mm · Ø Air filter connection: 46 mm · Ø Internal connection: 24 mm · Mixed oil connection: Yes · Vacuum connection: Yes · Size of secondary nozzle: 42

swiing® revival drawbar 2-slats High End | Puch Z50

Manufacturer: swiing® revival parts · Material: Aluminum · Material: Steel · Surface: anodized · Surface: blackened · Area of application: High End · Color: black · Color: red · Total length: 35 mm · Ø outside: 44.8 mm

GPO Special Stud Bolt M6x106, Galvanized (Grade 10.9) | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Diameter: 7 mm · Total length: 106 mm · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Strength class: 10.9 · Thread length: 15 mm · Thread length: 19 mm · Alternative version of the Puch OEM number: 360.1.10.034.1
