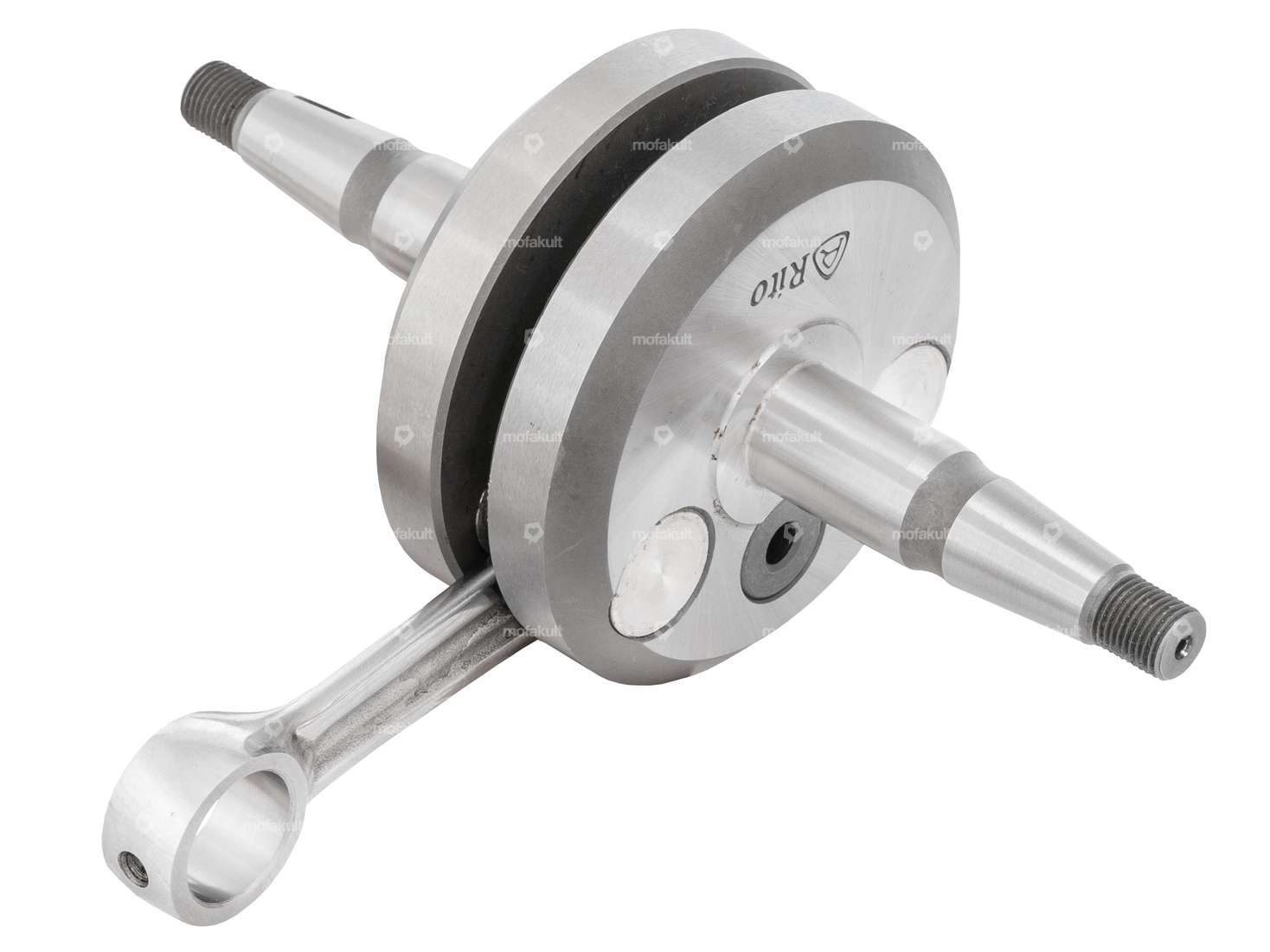

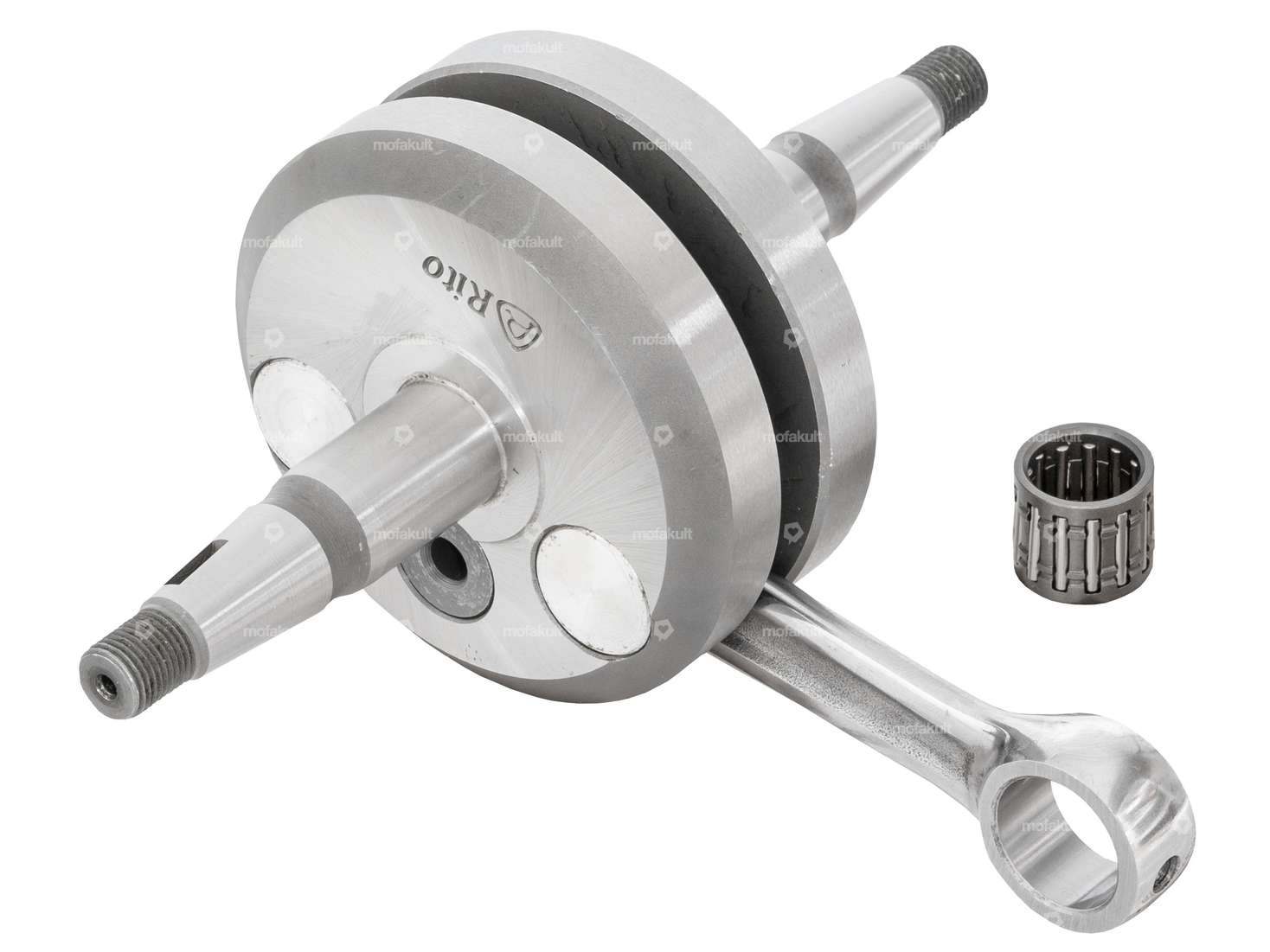

Rito crankshaft Kreidler Florett K3 39.8 mm stroke

Clutch plates | Kreidler Florett

Ø inside: 66 mm · Ø outside: 89 mm · Ø outside: 94 mm · Number of slats: 4 pcs · Area of application: Standard

Meteor piston 39.95 mm (14 mm KoBo) A | Kreidler Florett RS

Nominal diameter: 40 mm · Manufacturer: Meteor · Ø outside piston (A): 39.95 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: A · Weight piston kit: 99 g

Meteor piston 39.955 mm (14 mm KoBo) B | Kreidler Florett RS

Nominal diameter: 40 mm · Manufacturer: Meteor · Ø outside piston (A): 39.955 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: B · Weight piston kit: 100 g

Meteor piston 39.96 mm (14 mm KoBo) C | Kreidler Florett RS

Nominal diameter: 40 mm · Manufacturer: Meteor · Ø outside piston (A): 39.96 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: C · Weight piston kit: 100 g

Meteor piston 39.965 mm (14 mm KoBo) D | Kreidler Florett RS

Nominal diameter: 40 mm · Manufacturer: Meteor · Ø outside piston (A): 39.965 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: D · Weight piston kit: 100 g

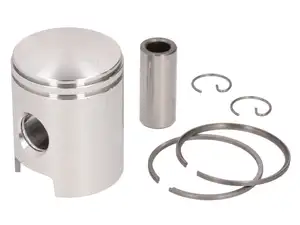

Meteor piston 39.97 mm (14 mm KoBo) E | Kreidler Florett RS

Manufacturer: Meteor · Nominal diameter: 40 mm · Ø outside piston (A): 39.97 mm · Ø piston pin (B): 14 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: E · Weight piston kit: 99 g

Meteor piston 39.975 mm (14mm KoBo) F | Kreidler Florett RS

Nominal diameter: 40 mm · Manufacturer: Meteor · Ø outside piston (A): 39.975 mm · Compression height (C): 27 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 14 mm · Tolerance group: F · Weight piston kit: 99 g

Air filter box Kreidler Florett

Material: Rubber · Color: black · Ø inside: 65 mm · Mounting type: Plug connection clamped · Area of application: Standard

swiing® ingenious engine mount | Kreidler Florett

Manufacturer: swiing® ingenious parts · Area of application: Motor bracket · Material: Steel · Surface: galvanized (blue)

Intake rubber | Kreidler Florett K54, LF, LH

Material: Rubber · Color: black · Ø inside: 16 mm · Ø outside: 23 mm

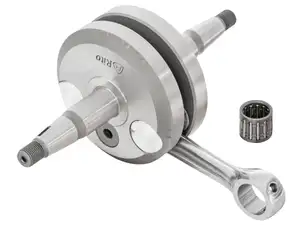

Rito crankshaft Kreidler Florett K3 42 mm stroke

Manufacturer: Rito · Cheek type: standard · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Number of gears: 3 pcs · Number of gears: 4 pcs · Number of gears: 5 pcs · Total length of crankpin on clutch side: 64.2 mm · Total length crankpin ignition side: 63.8 mm · Ø piston pin (B): 14 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Area of application: Standard · Wide crank webs: 39.9 mm

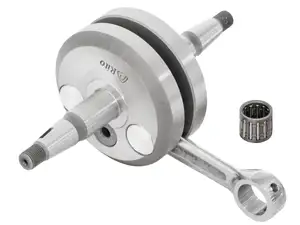

Rito crankshaft Kreidler Florett K3 39.8 mm stroke Racing

Manufacturer: Rito · Cheek type: standard · Crankshaft stroke: 39.8 mm · Connecting rod length center-center: 85 mm · Number of gears: 3 pcs · Number of gears: 4 pcs · Number of gears: 5 pcs · Total length of crankpin on clutch side: 64.2 mm · Total length crankpin ignition side: 63.8 mm · Ø piston pin (B): 14 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Area of application: Racing · Wide crank webs: 39.9 mm

Magura cable clamp Ø 8 x 15 mm

Ø Cable bushing: 2.3 mm · Manufacturer: Magura · Material: Brass · Material: Steel · Width across flats: 7 mm · Ø outside: 8 mm · Drive: External hexagon · Drive: Slot · Ø Bundle: 6 mm · Total length: 15 mm · Screw head: Hexagon · Surface: galvanized (blue) · Surface: nickel-plated · Thread type: M6x1 (standard thread) · Thread length: 7 mm · Area of application: Standard

Petrol hose 30 cm black

Material: Plastic · Color: black · Ø inside: 4.6 mm · Ø outside: 8 mm · Total length: 300 mm

HPI racing ignition 12V with light 60W

Ø cable: 7 mm · Manufacturer: HPI · Weight: 340 g · Material: Aluminum · Material: Steel · Tension: 12 V · Performance: 60 W · Light coil voltage: 12 V · Ø Internal flywheel: 61.5 mm · Direction of rotation: left · Direction of rotation: right · Ø mounting plate: 90 mm · Ø Flywheel outside: 71.5 mm · Mounting type: Screws · Area of application: Tuning · Number of fixing points: 6 pcs

Rubber grommet ignition cable | Sachs 3-, 4-gear

Material: Rubber · Color: black

Oil drain plug M10x1 | Sachs 50/2, 50/3, 50/4, 503 (A1401)

Drive: External hexagon · Material: Steel · Surface: galvanized (blue) · Screw head: Hexagon · Width across flats Screw: 14 mm · Thread type: MF10x1 (fine pitch thread) · Pony OEM number: A1401 · Sachs OEM no.: 0240 100 001

Sealing ring for tank cap Ø 40 mm

Place of use: Tank (+ frame) · Nominal diameter: 40 mm · Material: Rubber · Ø inside: 39 mm · Ø outside: 57 mm

TrailTech voltage regulator 12V (adjustable 12 - 16V)

Manufacturer: Trail Tech · Material: Aluminum · Tension: 12 - 16 V · Type of current: Alternating current (AC) · Mounting type: Screws · Ø mounting hole: 6 mm

swiing® ingenious flute Ø 32 / 70 mm chrome (reso exhaust)

Ø outside: 35 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 785 mm · Ø Internal connection: 32 mm · Ø Silencer: 70 mm · Exhaust type: Flute · Flame tube attachment: Plug connection clamped · Mounting type: Screwed clamp

Tank cap bayonet 40 mm

Ø External head: 64.3 mm · Material: Steel · Surface: chrome-plated · Fuel filler cap: Bayonet 40 mm · Color: Chrome · Lockable: No · Vented: Yes · Height: 24.5 mm
