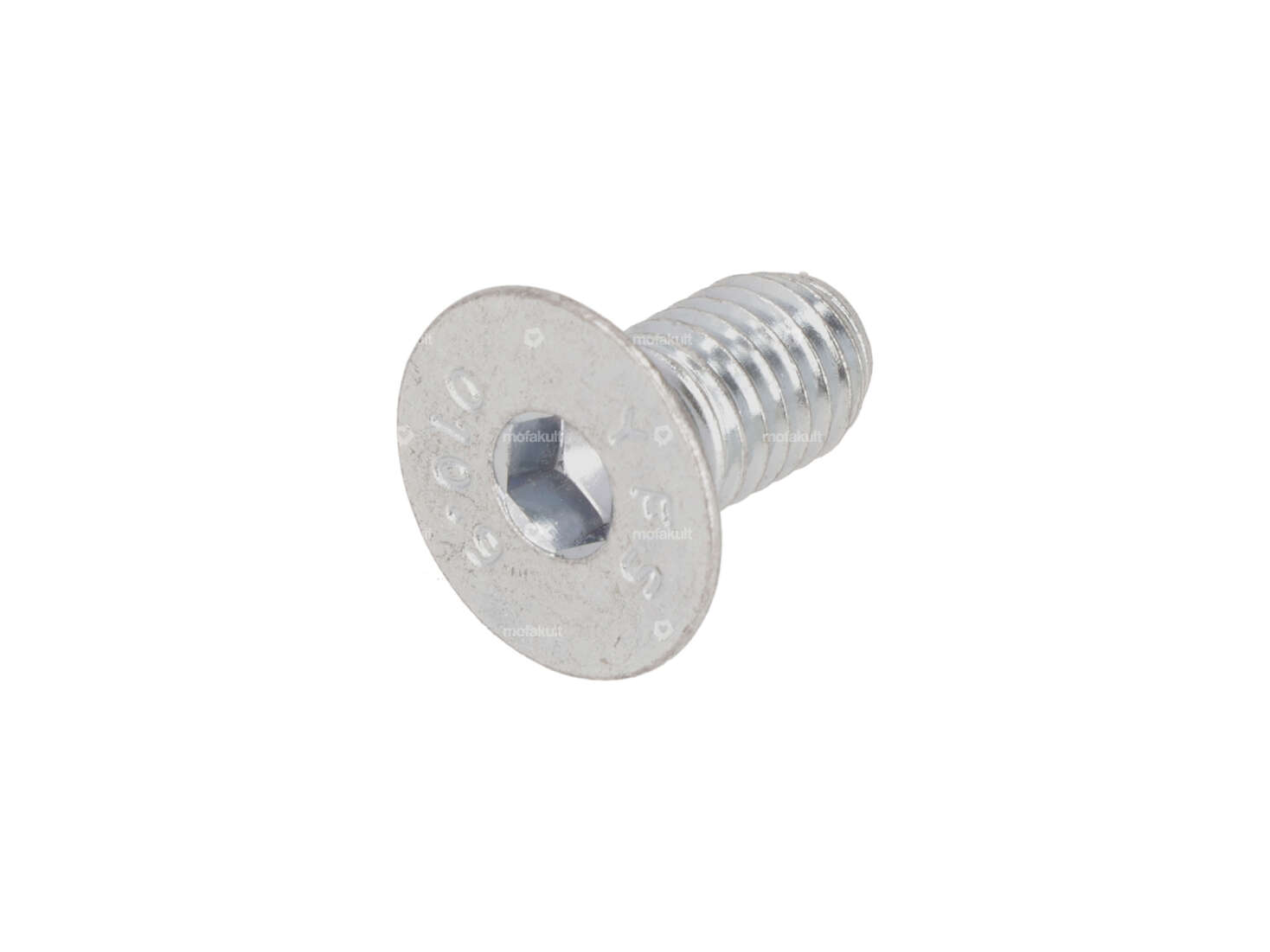

Screw M8x16 countersunk head hexagon socket, galvanized (10.9 strength)

Screw M8x10 cylinder head slotted stainless steel

Material: Chrome steel (colloquially known as stainless steel) · Area of application: Standard · Thread type: M8x1.25 (standard thread) · Drive: Slot · Screw head: Cylinder head · Total length: 10 mm · Thread length: 10 mm

M8 medium-height flange nut (1.5D), galvanized (Grade 10)

Material: Steel · Surface: galvanized (blue) · Nut type: Flange nut · Thread type: M8x1.25 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 8 mm · Height: 12 mm · Width across flats: 13 mm · Strength class: 10

M8x1 x 90 hexagon head screw, galvanized

Material: Steel · Surface: galvanized (blue) · Thread type: MF8x1 (fine pitch thread) · Nominal diameter (thread): 8 mm · Drive: External hexagon · Screw head: Hexagon · Width across flats: 13 mm · Thread length: 90 mm · Strength class: 8.8

Ripp-Lock flange nut M8 galvanized (10 strength)

Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Nut type: Flange nut · Nominal diameter (thread): 8 mm · Drive: External hexagon · Width across flats: 13 mm · Height: 12 mm · Strength class: 10

Screw M8x16 cylinder head low hexagon socket, galvanized

Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 8 mm · Drive: Hexagon socket · Screw head: Cylinder head · Width across flats: 5 mm · Thread length: 16 mm · Strength class: 8.8

M8x1 Stainless Steel Cap Nut

Material: Chrome steel (colloquially known as stainless steel) · Nut type: Cap nut · Thread type: MF8x1 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 8 mm · Height: 15 mm · Thread depth: 10 mm · Width across flats: 13 mm

M8x1 x 25 hex head screw, galvanized (10.9 strength class)

Material: Steel · Surface: galvanized (blue) · Thread type: MF8x1 (fine pitch thread) · Nominal diameter (thread): 8 mm · Drive: External hexagon · Screw head: Hexagon · Total length: 30.5 mm · Width across flats: 13 mm · Thread length: 25 mm · Strength class: 10.9 · Color: silver · Number of components: 1 pcs

Dell'Orto 13/13 SHA carburetor hand choke | Piaggio Ciao PX / C24, Bravo, SUPERbravo

Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Carburetor type: SHA (Piaggio) · Nominal diameter: 13 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 13 mm · Ø Output inside: 13 mm · Ø Air filter connection: 50.8 mm · Ø fuel hose connection: 5.2 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 66 · Mounting type: Plug connection clamped · Total length: 46 mm · Width: 60 mm · Height: 96 mm · Area of application: Tuning

Rear fender blank | Puch Maxi S, Supermaxi LG1 / LG2

Material: Steel · Surface: blank / oiled · Color: silver · Folding the ends: not folded · Folding the ends: open folded · Shape of the mudguard: angular · Total length over ends: 420 mm · Scope: 480 mm · Wide mudguard profile: 73 mm · Wide mudguard profile: 75 mm · Height of mudguard profile: 30 mm · Height of mudguard profile: 60 mm · Mounting type: Weld · Total height from support surface to top edge: 110 mm · Wheel size: 17 "

Cast wheel hub | Puch Maxi, X30 NG-2AH

Material: Aluminum · Color: silver · Area of application: Tuning · Ø axle: 12 mm · Ø mounting hole: 6.1 mm · Ø drum: 80 mm · Ø inside: 27.9 mm · Ø outside: 114.7 mm · Ø bolt circle: 105 mm · Total length: 105 mm · Thread type: FG34.8 (1.37" 24G) · Thread length: 12 mm · Number of fixing points: 12 pcs

Ripp-Lock washer M8 8.2/18/1.4 galvanized

Material: Steel · Surface: galvanized (blue) · Thread size: M8 · Ø inside: 8.2 mm · Nominal diameter inside: 8 mm · Nominal diameter (thread): 8 mm · Ø outside: 18 mm · Thickness: 1.4 mm

Wheel clamp straight Ø 12 mm (1A quality)

Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Ø outside: 20 mm · Ø inside: 12 mm · Total length: 75.2 mm · Thread type: M6x1 (standard thread) · Thread length: 38 mm

Screw M8x25 countersunk head hexagon socket, galvanized (10.9 strength)

Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 8 mm · Drive: Hexagon socket · Screw head: Countersunk head · Ø External head: 15.6 mm · Total length: 25 mm · Thread length: 19 mm · Strength class: 10.9

Screw M8x20 countersunk head hexagon socket, galvanized (10.9 strength)

Material: Steel · Surface: galvanized (blue) · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 8 mm · Drive: Hexagon socket · Screw head: Countersunk head · Ø External head: 15.8 mm · Total length: 20 mm · Thread length: 15 mm · Strength class: 10.9

Polini 46 mm cylinder kit incl. head 10 mm KoBo | Piaggio Ciao, Bravo, Boxer

Nominal diameter: 46 mm · Manufacturer: Polini · Material: Gray cast iron · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
