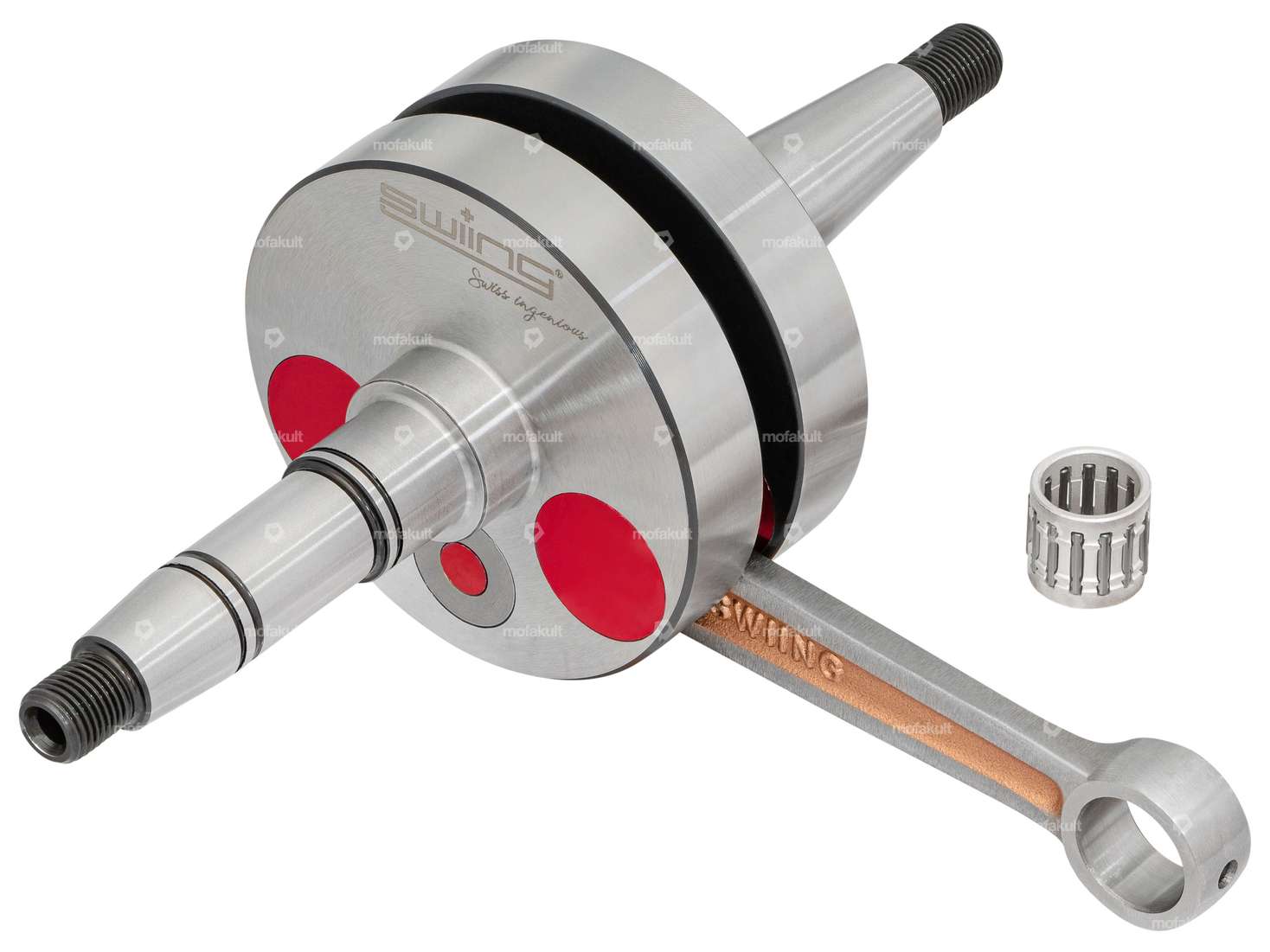

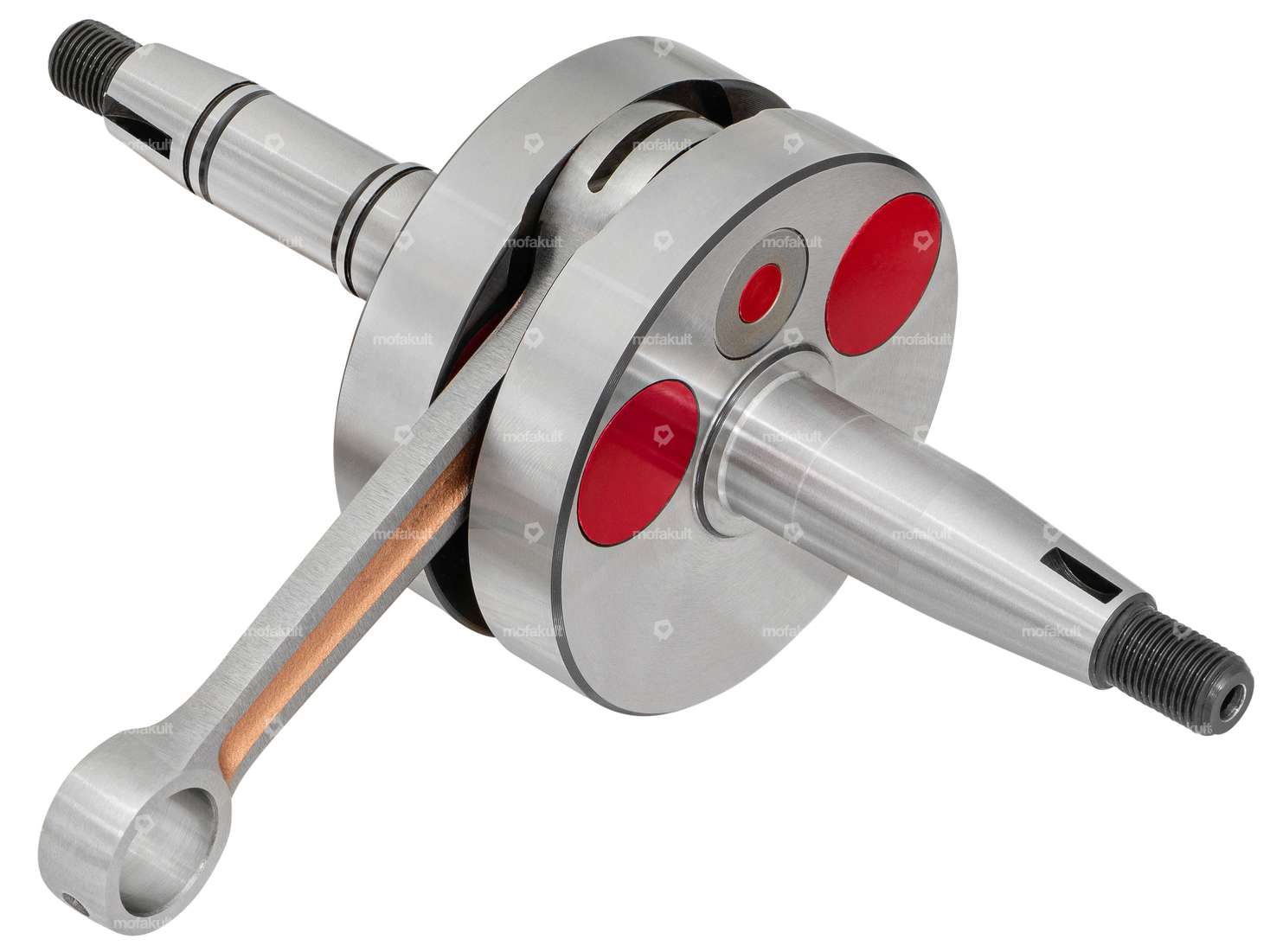

High-end racing crankshaft suitable for your Puch Maxi S / N and Supermaxi LG1 moped / moped with a 1-speed E50 engine.
This high-quality and precisely fitting, 968 gram full cheek crankshaft, which has proven itself in various load tests, impresses with its excellent balancing ratio and good speed stability.
This crankshaft was designed for use in engines with a large power increase.
All balancing holes in the cheeks have been sealed with aluminum inserts for maximum pre-compression.
The solid connecting rod is fitted with a more stable 16 mm connecting rod pin, which is hollow on the inside for better balancing.
In addition, the connecting rod bearings are silver bearings, which have excellent emergency running properties.
| Manufacturer | swiing® ingenious parts |
| Material | Steel, Aluminum |
| Area of application | High End, Tuning, Racing |
| Cheek type | Full cheeks |
| Crankshaft stroke | 43 mm |
| Connecting rod length center-center | 90 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Weight | 968 g |
| Total length of crankpin on clutch side | 74 mm |
| Number of gears | 1 pcs |
| Total length crankpin ignition side | 66 mm |
| Ø crank webs | 69.9 mm |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread length | 11 mm, 15 mm |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Wide crank webs | 34 mm |
| Length 1st paragraph | 9 mm |
| Length 2nd paragraph | 14.5 mm |
| Length 3rd paragraph | 25 mm |
| Ø 1st step (on the coupling side) | 22 mm |
| Ø 2nd shoulder (on the clutch side) | 17 mm |
| Ø 3rd step (on the clutch side) | 15 mm |
| Puch | E50 |
Ratings
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing type: Needle roller and cage assembly · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Ø inside: 12 mm · Width: 16.2 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548
EUR 17.00
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing type: Needle roller and cage assembly · Manufacturer: swiing® ingenious parts · Bearing cage: Silver cage · Ø inside: 12 mm · Width: 14.2 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 157 001
EUR 14.60
Hot
swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50
Manufacturer: swiing® ingenious parts · Weight: 968 g · Material: Aluminum · Area of application: High End · Area of application: Racing · Material: Steel · Area of application: Tuning · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Thread type: MF10x1 (fine pitch thread) · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs
EUR 220.50
Not in stock

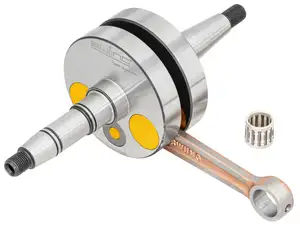

swiing® ingenious crankshaft "High End" (+1 mm stroke) | Puch E50
