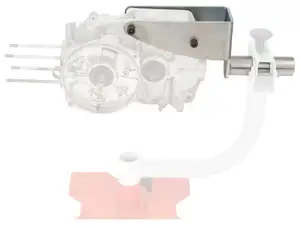

Engine mounting bracket 2.0! Reworked version with improved motor mount holder.
Only usable in conjunction with the new motor mounts 2.0. Not suitable for the conventional engine mounts!
No more need to place wooden blocks under the engine during engine revisions or tilt the engine when tightening the screws.
We offer you an exclusive engine assembly tool with which you can carry out revisions, tuning or other work on the engine conveniently and efficiently.
The engine can be fixed in any conceivable position at an ergonomic height on a 360° swivel axis.
The stand can be firmly screwed to the base at 4 points.
Base plate dimensions: 25 x 25 cm
Distance from pivot point to base: 32 cm
You can find the matching motor holders in the accessories section below.

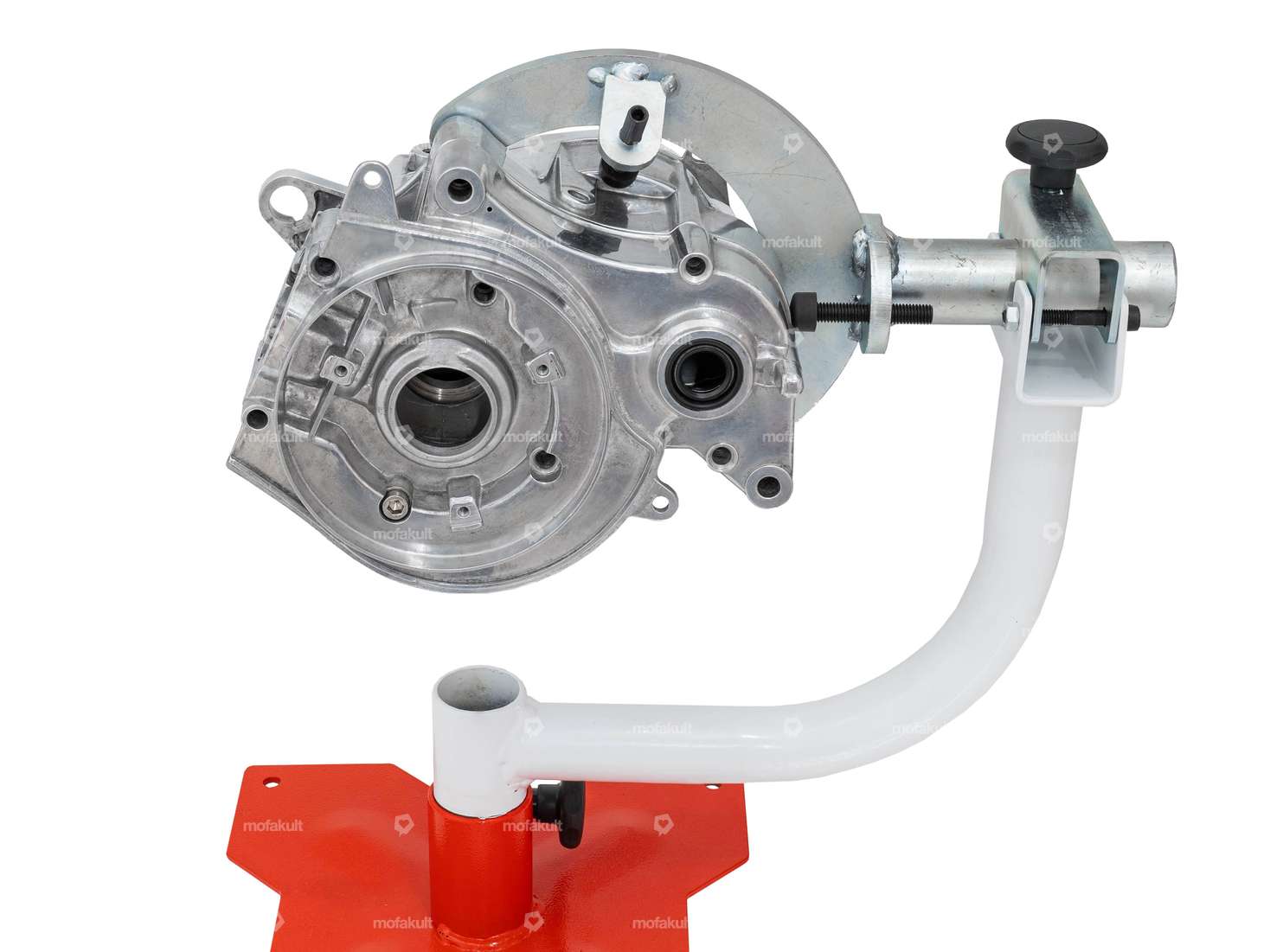

Fig. 3 shows the motor mounting stand with a mounted motor holder for illustration purposes. Scope of delivery according to picture 1 & 2.
Exceptional product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Surface | varnished |
| Color | white, red |
| Width | 245 mm |
| Height | 340 mm |
| Ø Receptacle | 25 mm, 35 mm |
| Total length | 370 mm |
| Material thickness | 3.5 mm |
| Hole spacing | 21.5 mm |
| Area of application | Motor bracket |
| Puch | |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 - 1 A 535 |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta various Beta 514 Beta 518 Beta 519 Beta 521 (engine) Beta 520 |
| Piaggio | |
| Zündapp Belmondo | |
| DKW | |
| Kreidler | Flory MF |
