logo_swiing ingenious parts

For: Puch

27684

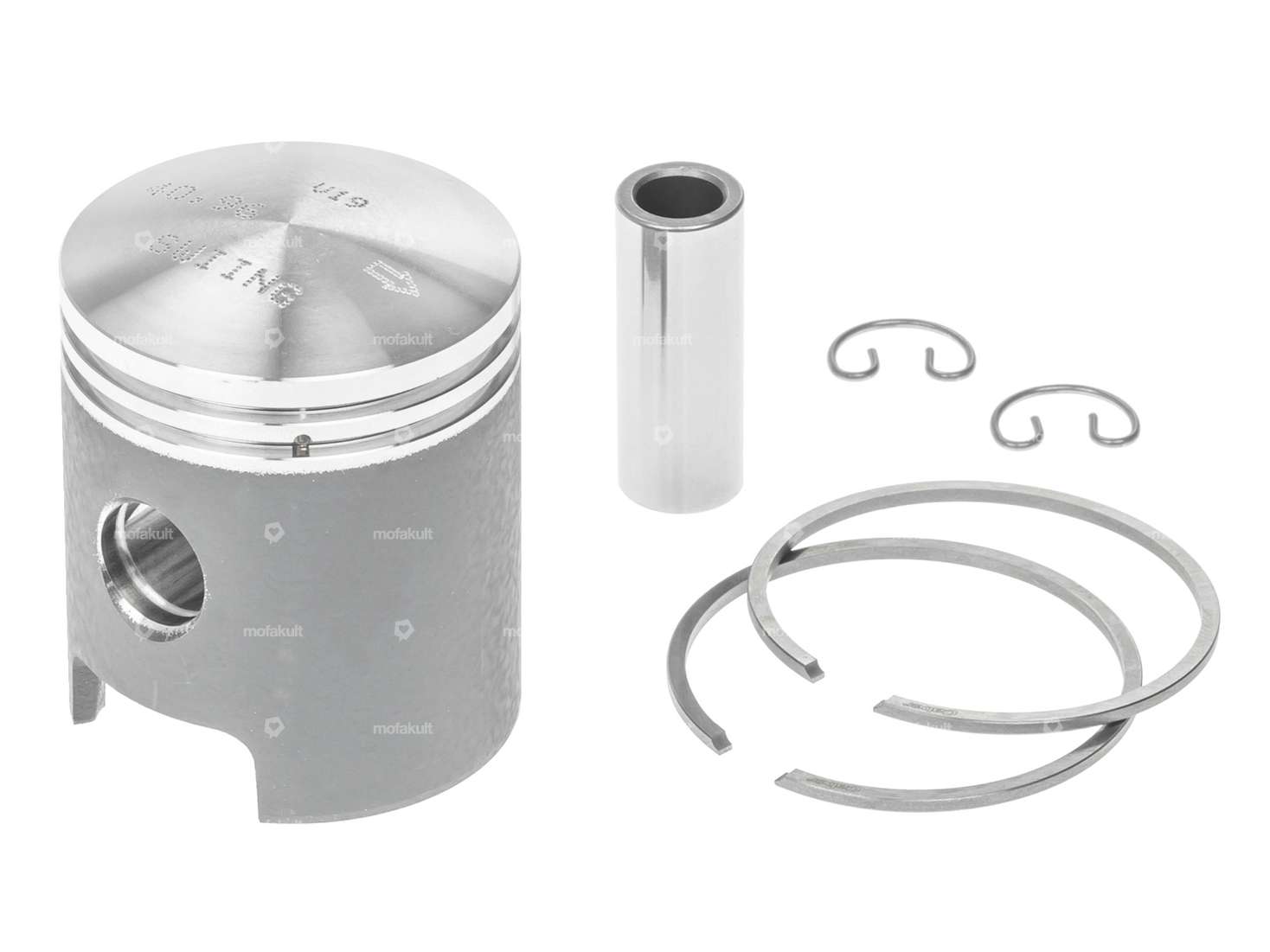

swiing® ingenious piston 41 mm (12 mm KoBo) "Racing" | Puch X30 Velux fan-cooled

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 85.70

Incl. 25% VAT.

Description

Replacement piston for the blown 41 mm cylinder with 12 mm piston pin and 2 pcs. 1.5 mm rectangular piston rings with flank lock (FS) suitable for Puch X30 Velux mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Manufacturerswiing® ingenious parts
Surfacemolybdenum-coated
Ø outside piston (A)40.95 mm
Ø piston pin (B)12 mm
Compression height (C)22.5 mm
Curvature (D)3.5 mm
Total piston height (E)50 mm
Number of piston rings (F)2 pcs
Nominal diameter41 mm
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Weight piston kit94 g
Puch

ZA50 (fan-cooled)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC
