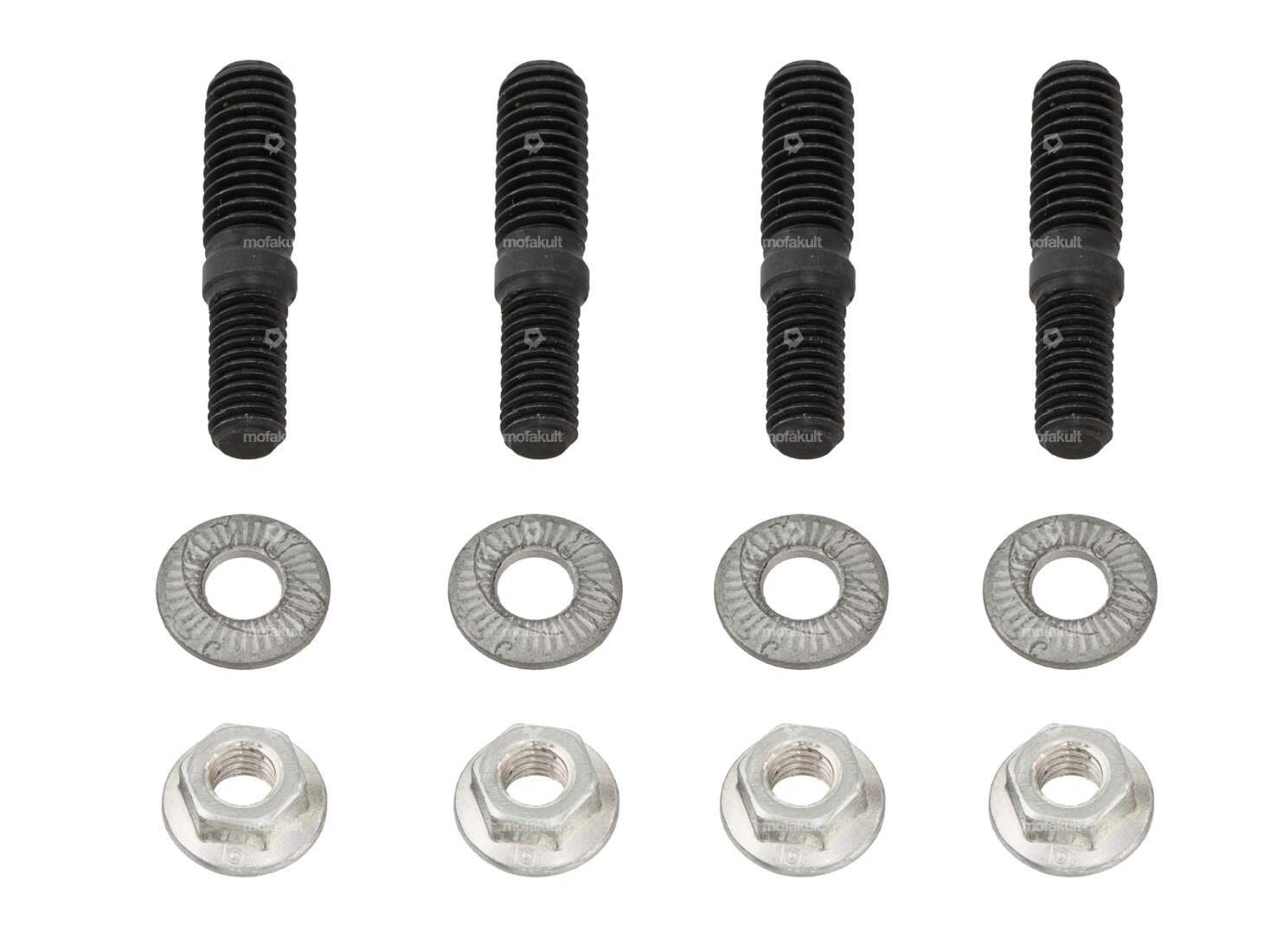

Special stud bolt set (centering sleeves) for Sachs 502, 50/2, 50/3, 50/4, 503, 504 mopeds, mopeds and small engine bikes.
| Drive | External hexagon |
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Surface | burnished, galvanized (blue) |
| Diameter | 6 mm |
| Total length | 27.3 mm |
| Strength class | 12.9, 10 |
| Width across flats | 8 mm |
| Thread type | M6x1 (standard thread), M5x0.8 (standard thread) |
| Thread length | 14 mm, 9.5 mm |
| Universal | |
| Sachs | 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 503 - AAL , ABL , 2AL / 2BL |
